DJM-A9

Description

The DJM-A9 is Pioneer DJ's 4-channel club mixer and the successor to the DJM-900NXS2. It keeps the familiar booth layout and adds 32-bit ESS converters on the channel inputs and the master and booth outputs, more room around the EQ knobs, brighter level meters, smoother channel faders and a third-generation MAGVEL FADER crossfader. Sound Color FX gain a Center Lock knob, Beat FX get a color display and three new effects, the mic input adds phantom power and voice effects, and two computers can stay connected at once for changeovers without stopping the music.

Key Features

• 32-bit ESS Technology A/D converters on the channel inputs and 32-bit D/A converters on the master and booth outputs, at 96 kHz
• Sound Color FX with a Center Lock knob, so a fast twist stops at the center instead of crossing into the opposite parameter
• 14 Beat FX with a color display and X-Pad control, including the new Mobius, Triplet Filter and Triplet Roll, plus a dedicated channel-select button
• Phantom-powered XLR mic input for condenser mics, with Echo, Pitch and Megaphone mic effects, dedicated reverb and a Push To Talk button
• Two USB Type-B and two USB Type-C ports so two computers stay connected for back-to-back sets
• Bluetooth input that can be routed to any channel
• Multi I/O send and return with its own channel selector for external effects units and pedals

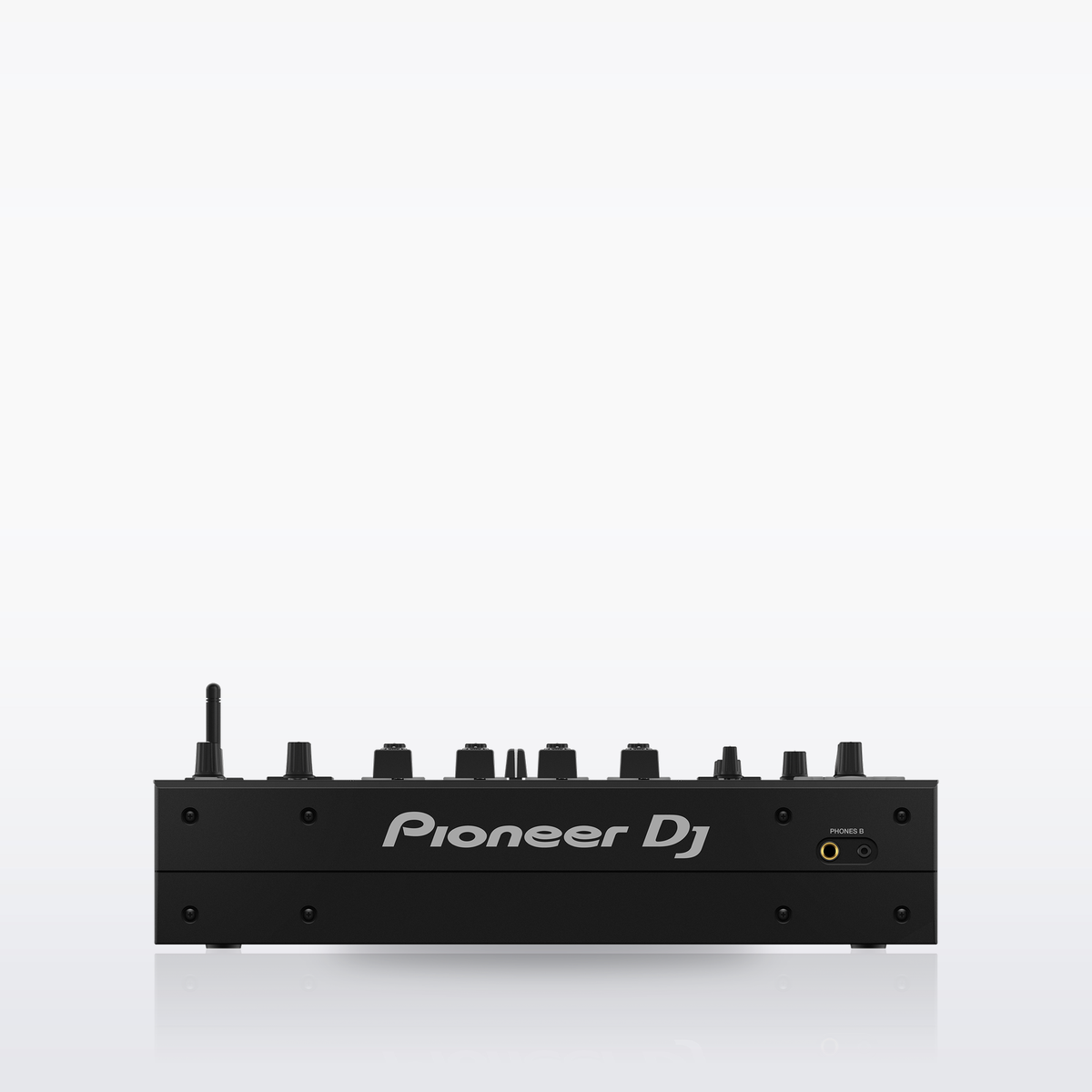

• Dual independent headphone outputs with separate cue, level and mix controls, plus a 2-band booth EQ
• Third-generation MAGVEL FADER crossfader and upgraded channel faders
• Built-in Wi-Fi for the Stagehand app, plus a built-in Sound Check function
• Lockable power cord (in some regions a non-lockable power cord is supplied)

Specifications

• Channels: 4

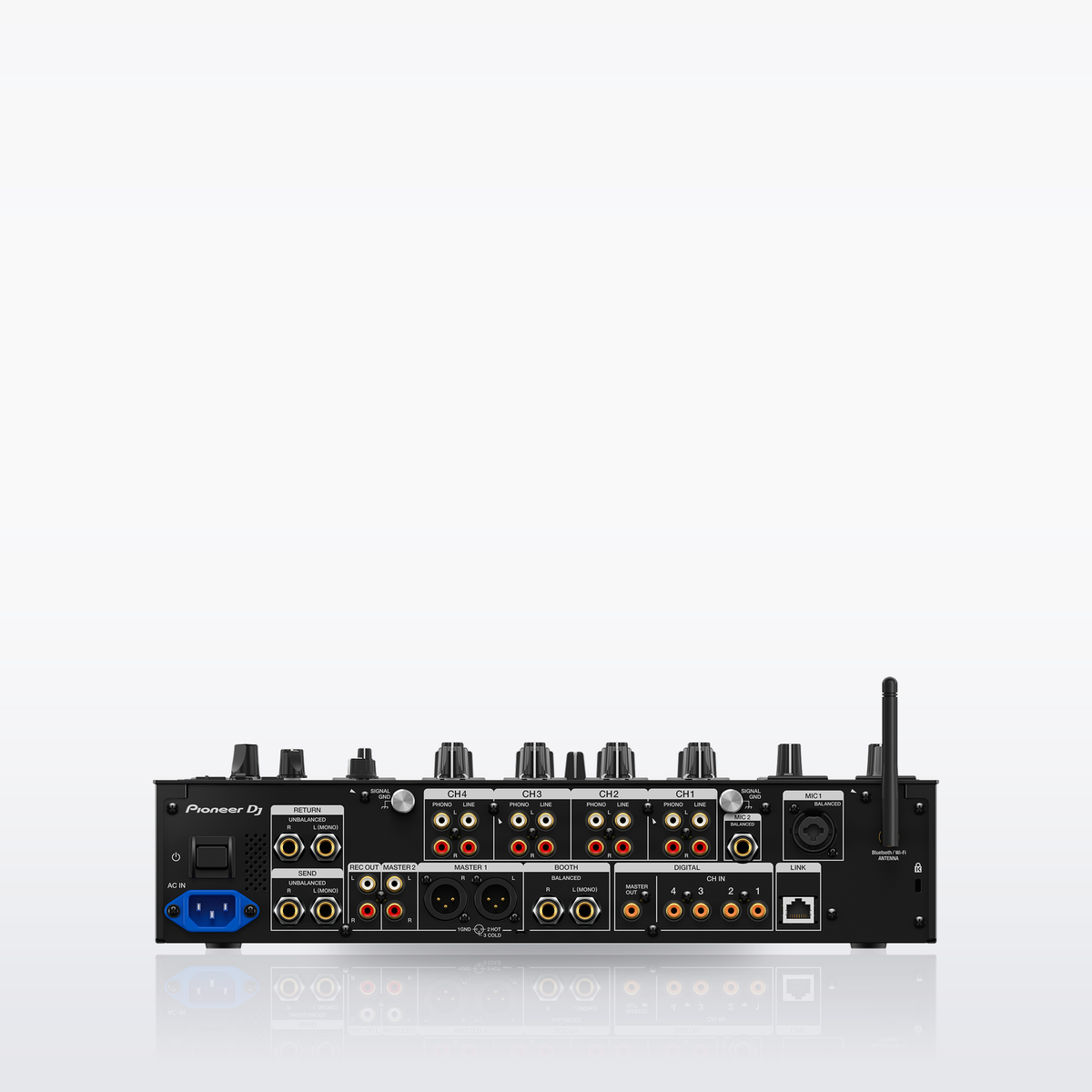

• Inputs: 4 x Phono (RCA), 4 x Line (RCA), 4 x Digital coaxial (RCA),
  1 x Mic 1 (XLR and 1/4" TRS, 48 V phantom),
  1 x Mic 2 (1/4" TRS),
  1 x Return (1/4" TS)
• Outputs: Master 1 (XLR), Master 2 (RCA), Booth (1/4" TRS), Rec Out (RCA), Send (1/4" TS), Digital Master Out (coaxial), 2 x Phones (each with 1/4" stereo and 3.5 mm stereo mini jacks)
• USB:
  1 x USB Type-A (5 V / 2.1 A), 2 x USB Type-B / USB Type-C
• LAN:
  1 x 100BASE-TX for PRO DJ LINK
• Wireless: Wi-Fi (IEEE 802.11 a/b/g/n/ac, 2.4/5 GHz); Bluetooth 5.0 input
• Sampling rate: 96 kHz; master, booth, rec and send D/A converters: 32-bit; channel A/D converters: 32-bit; other converters: 24-bit
• Frequency response (line): 20 Hz–40 kHz
• S/N ratio: 114 dB (USB, digital in), 105 dB (line), 88 dB (phono), 79 dB (mic)
• Total harmonic distortion (line to Master 1): 0.005%
• Power: AC 110–240 V, 50/60 Hz; 61 W
• Dimensions (W x D x H): 407.4 x 458.3 x 107.9 mm (16.4" x 18.4" x 4.25"); 140.7 mm (5.54") tall with the wireless antenna upright
• Weight: 10.2 kg (22.5 lb)

What's in the Box

• 1 x DJM-A9 mixer
• 1 x Power cord
• 1 x Quick start guide
• 1 x Precautions for use (includes warranty information in North America)
