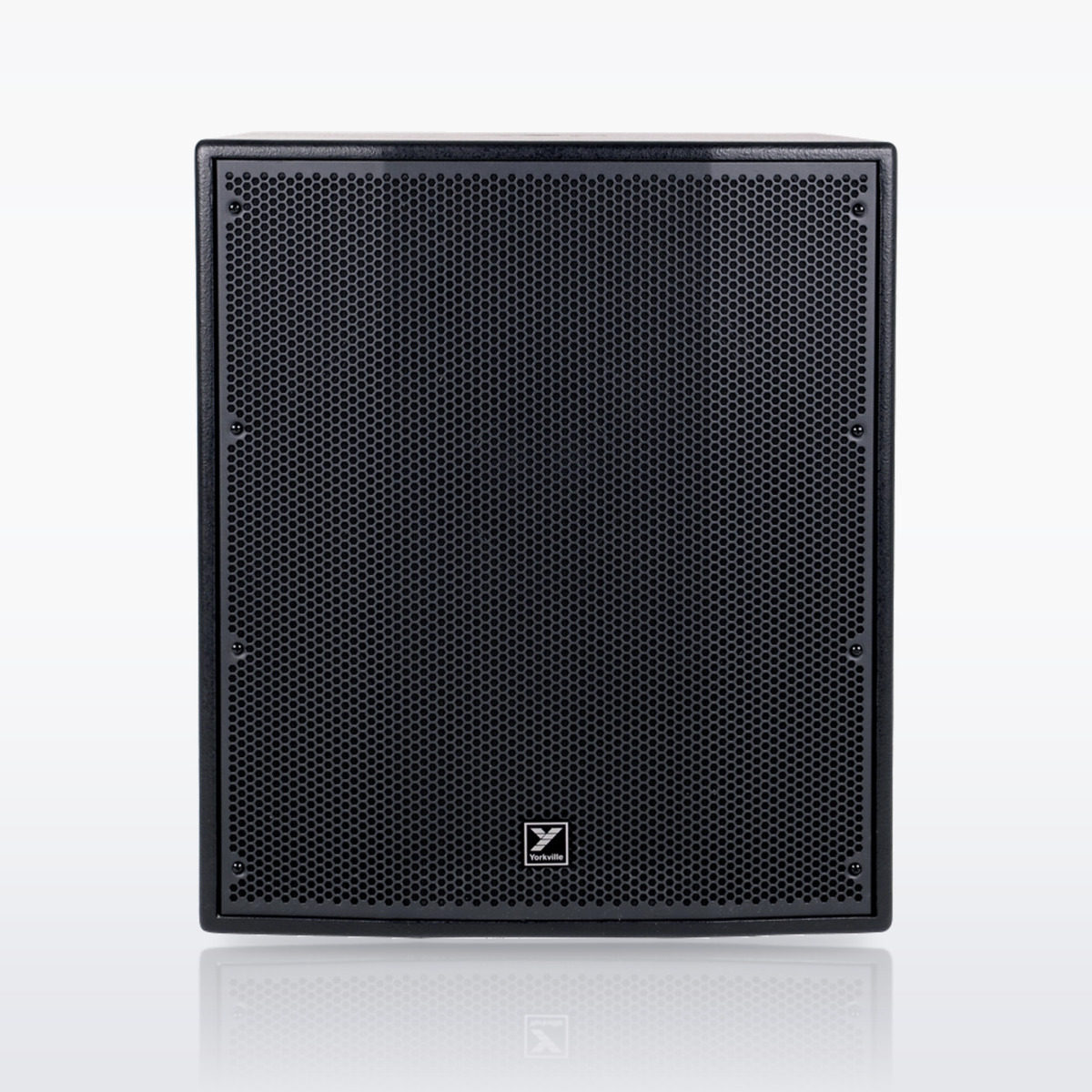

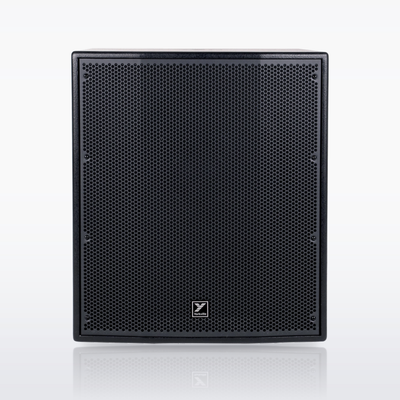

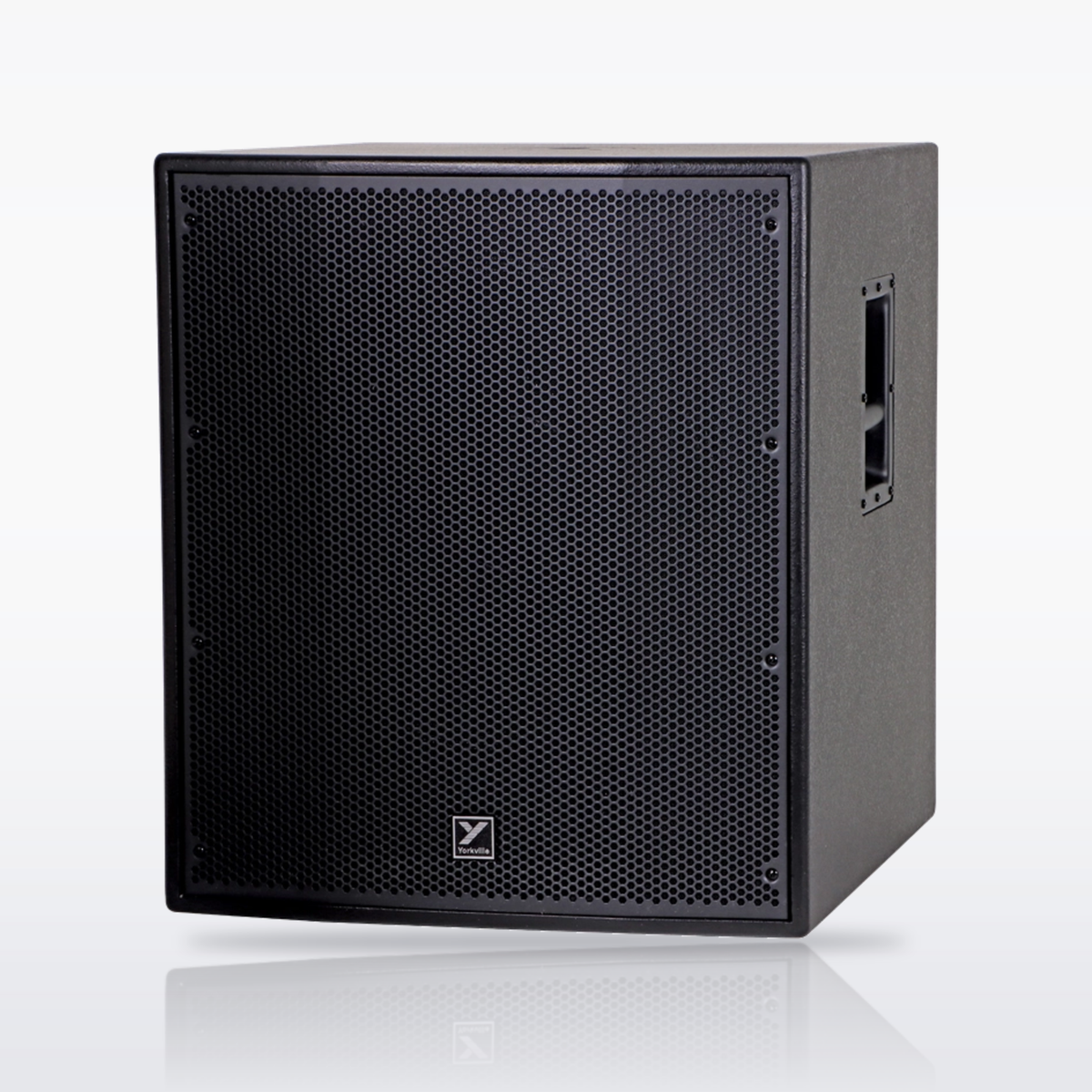

YXL18SP
18" Powered Subwoofer
In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details
We’ll email you once, when it’s available.
- 15-day returns. Return policy
- Warranty: 2 years · 10 years on wooden enclosure components. Full terms
Is it right for you?
The largest YXL powered sub: an 18-inch woofer reaching 40 Hz at 130 dB peak, with two XLR link outputs to feed the tops.
Great for
- Club DJ rigs with players and a DJ mixer
- Weekly band nights under EF12P tops
- Dance floors in mid-sized and large venues
Description
The YXL Series is Yorkville Sound's most affordable and versatile speaker lineup, and the YXL18SP is the largest and most powerful YXL subwoofer. Featuring 1000 watts of peak power and three selectable voicing modes, it was designed to be an ideal accompaniment for YXL top boxes in mid-sized and large venues, and can be paired with any full-range speaker.
Key Features
- 1000 W peak power (500 W program)
- 18" woofer with 3" voice coil
- 2x Combi-Jack (XLR / 1/4") inputs
- 2x XLR link outputs
- Advanced DSP with component protection
- Punch, Smooth and Deep voicing modes
- 130 dB peak SPL, 40 Hz–100 Hz frequency response
- Pole mount adapter and bar handles
Specifications
- System type: powered subwoofer
- Power rating: 1000 W peak (500 W program)
- Max SPL: 130 dB peak
- Frequency response (±3 dB): 40 Hz–100 Hz
- LF driver: 18" with 3" voice coil
- Amplifier: Class D; speed-controlled fan cooling
- Inputs: 2x XLR / 1/4" combo; outputs: 2x XLR link

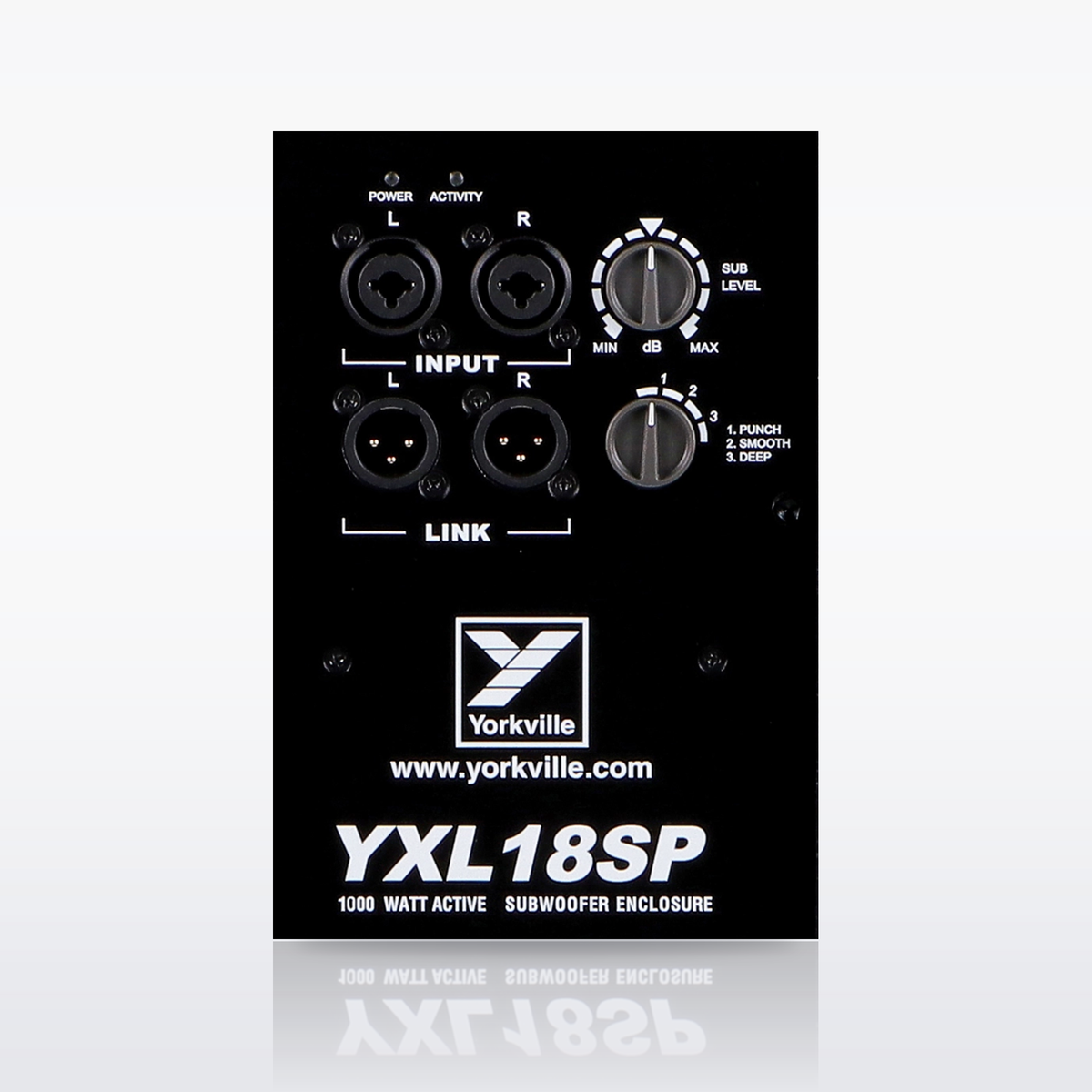

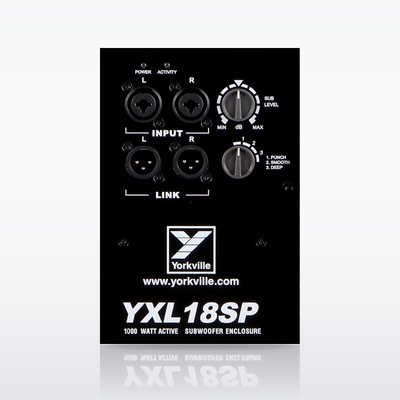

- Controls: master level; Punch, Smooth and Deep voicing modes
- Limiter: multiband excursion, RMS and rail
- Handles: 2 (one each side); pole mount adapter on top
- Enclosure: 12 mm plywood, painted finish
- Dimensions (D x W x H): 24.8" x 21.8" x 25.5" (63 x 53 x 65 cm)
- Weight: 78 lb (35.4 kg)
Pairs well with
Make it work
What you need with the YXL18SP
You also need
-
Top speakers: one on its single pole mount, the other on a speaker stand. Set YXL tops to sub mode, or press Sub on the EF12P.Pick one
-
A mixer or DJ gear with XLR outputs to feed the sub.Pick one
-
Two XLR cables from the mixer's left and right outputs into the sub's two combo inputs.
2 × CMI-100 Quad Microphone Cable25 ft
$89.90$44.95 each
-
One XLR cable from a link output to the top on the sub's pole mount.
CMI-100 Quad Microphone Cable10 ft
$26.95
-
One XLR cable from the other link output to the top on a speaker stand.
CMI-100 Quad Microphone Cable25 ft
$44.95
Works with
See it in a full setup
- DJ guideClub: players, mixer and PA
- SetupsAdvanced DJ setup
- SetupsAdvanced live venue setup
- SetupsWedding DJ setup
- Create your flowStart with the YXL18SP DJLive Venue
