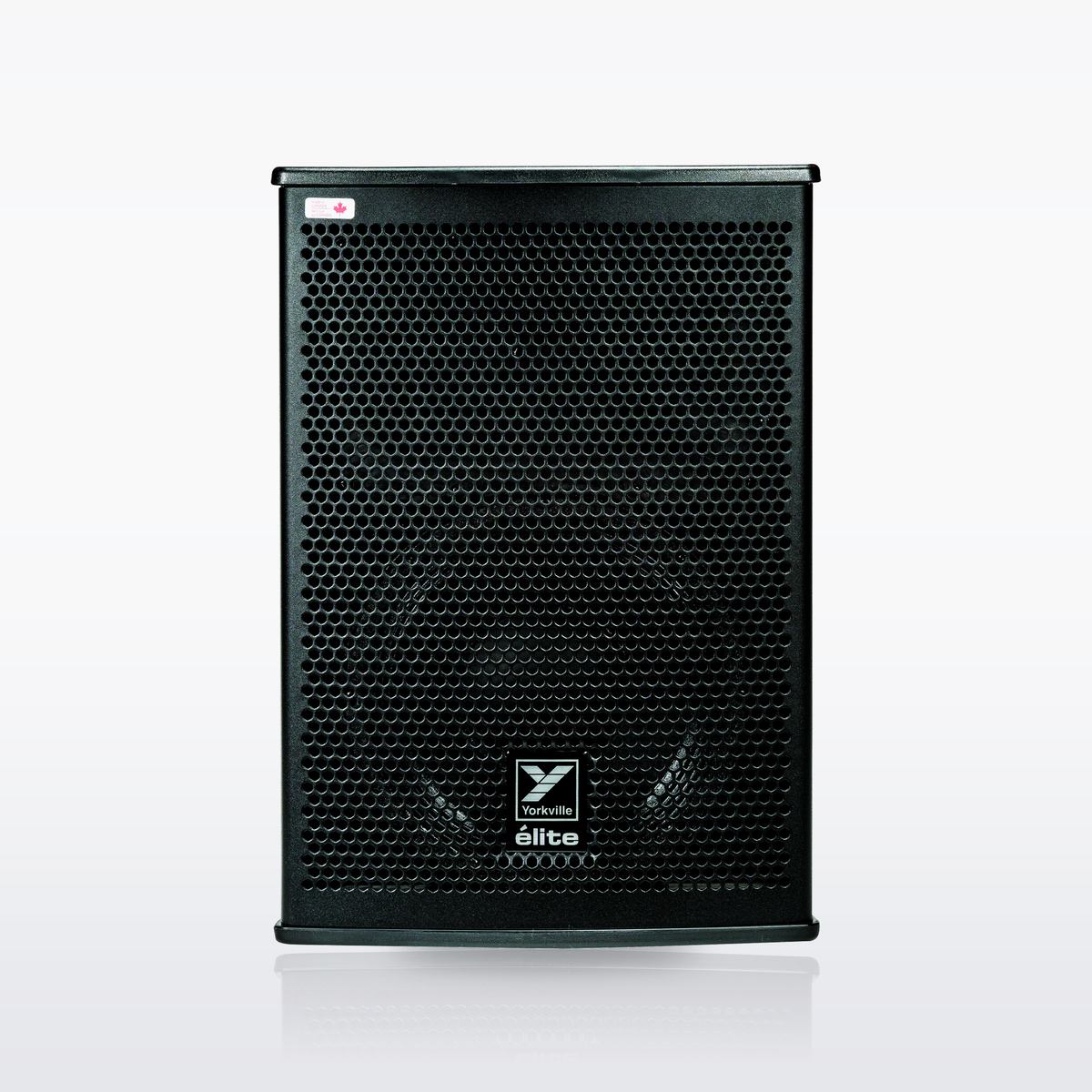

Yorkville EF10 Elite unpowered loudspeaker, front view

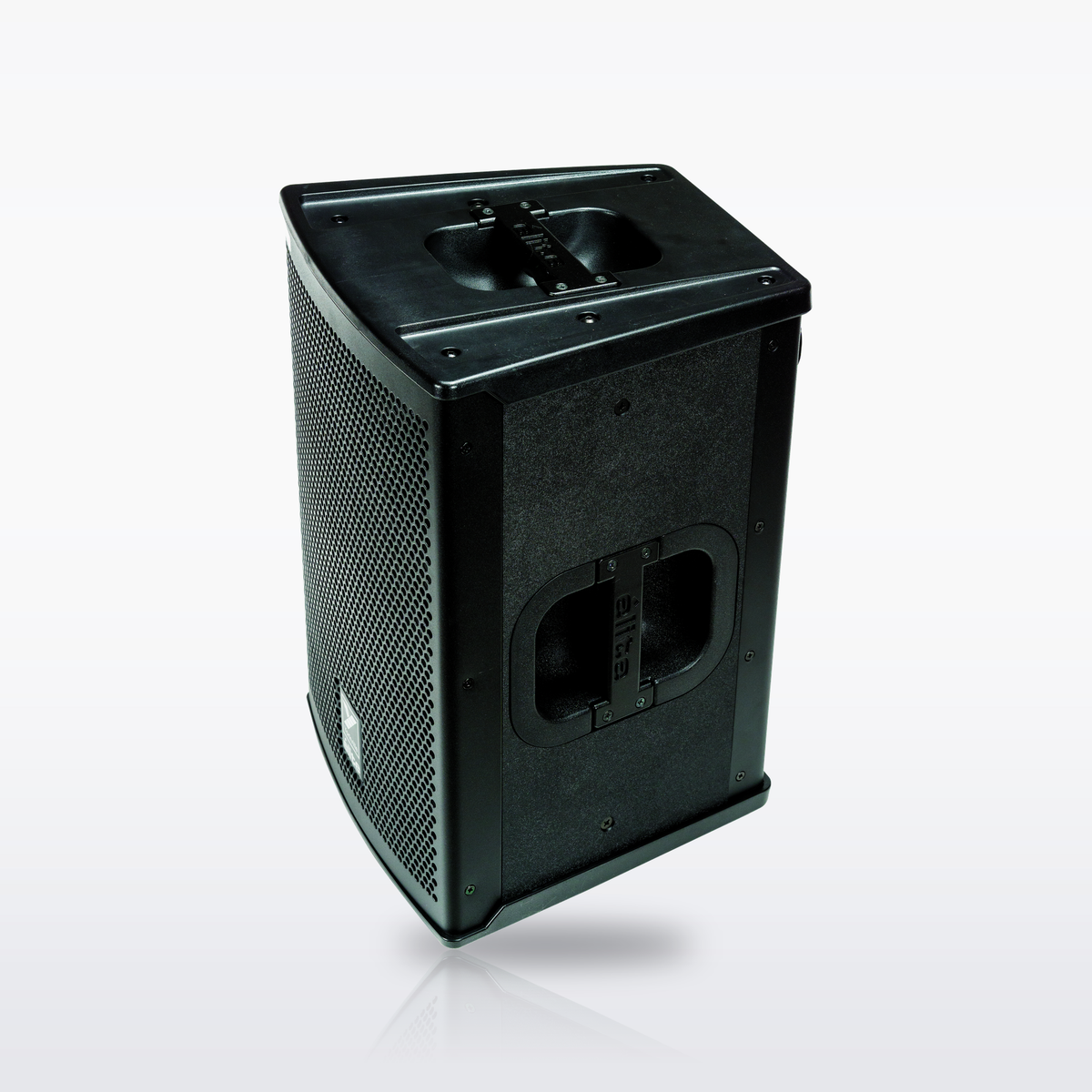

Yorkville EF10 Elite 10-inch unpowered loudspeaker, angled view showing the handles

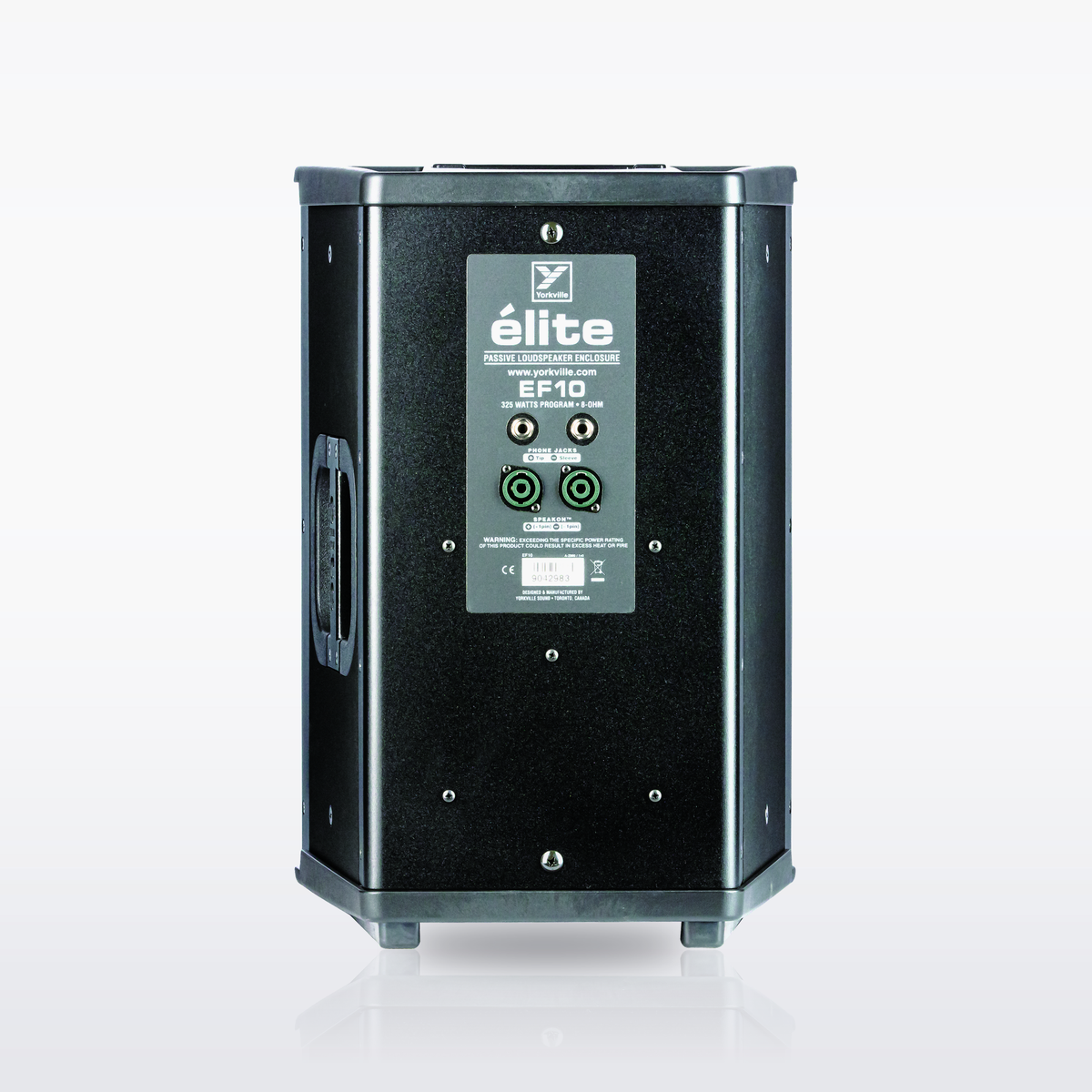

Yorkville EF10 Elite unpowered loudspeaker, rear view with Speakon and 1/4-inch inputs
Yorkville Elite Series loudspeakers video

Vendor:Yorkville

EF10

Elite 10" Unpowered Loudspeaker

$719.00

In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details

Is it right for you?

A 10-inch unpowered Elite speaker for venues that already own amplifiers: 650 W peak at 8 ohms and 127 dB peak, at 42.5 lb.

Great for

  • Venues and installs with power amplifiers
  • Compact mains that stack or fly
  • Replacing speakers on an existing amp rack
What you need to use it

Description

The EF10 is a 10-inch 2-way passive loudspeaker that brings the sound, performance and reliability of the Elite series to installations and venues that already have power amplifiers.

The EF10 is rated for 650 watts of peak power (325 watts program) at 8 ohms, and the rear panel has 1/4" and Speakon inputs.

The cabinet offers durable birch construction, and the total weight is less than 45 pounds. As the most compact passive speaker in the Elite range, the EF10 is particularly easy to transport and stack. 12-inch (EF12) and 15-inch (EF15) versions are also available.

Key Features

  • 650 W peak power (325 W program) at 8 ohms
  • 10" woofer with 2" voice coil
  • 1" compression driver on a custom waveguide
  • ABS-coated birch plywood construction
  • Made in Canada

Specifications

  • System type: unpowered 2-way loudspeaker
  • Power rating: 650 W peak (325 W program)
  • Nominal impedance: 8 ohms
  • Sensitivity: 99 dB (1 W / 1 m); max SPL 127 dB peak (124 dB continuous)
  • Frequency response: 65 Hz–20 kHz; crossover 2900 Hz
  • Dispersion (H x V): 100° x 30°
  • LF driver: 10" with 2" voice coil; HF driver: 1" throat, titanium diaphragm; 2x SK3 protection bulbs
  • Inputs: 2x Speakon 4-pin, 2x 1/4"
  • Handles: 2 (top and side); pole mount adapter
  • Fly points: 8 (2 top, 2 bottom, 2 each side) plus pullback; 1/4-20 fly hardware
  • Enclosure: 15 mm (5/8") 11-ply Russian birch, black Ultrathane paint; perforated metal grille
  • Dimensions (D x W x H): 13" x 13.7" x 20" (33 x 34.8 x 50.8 cm)
  • Weight: 42.5 lb (19.4 kg)

Pairs well with

Make it work

What you need with the EF10

You also need

  • It needs a separate power amplifier, which we do not sell. It is rated 325 W program at 8 ohms.

  • A speakON cable from your amplifier's speakON output to one of the speaker's two speakON inputs.

    SKT-400 Pro Speaker Cable25 ft $71.95
