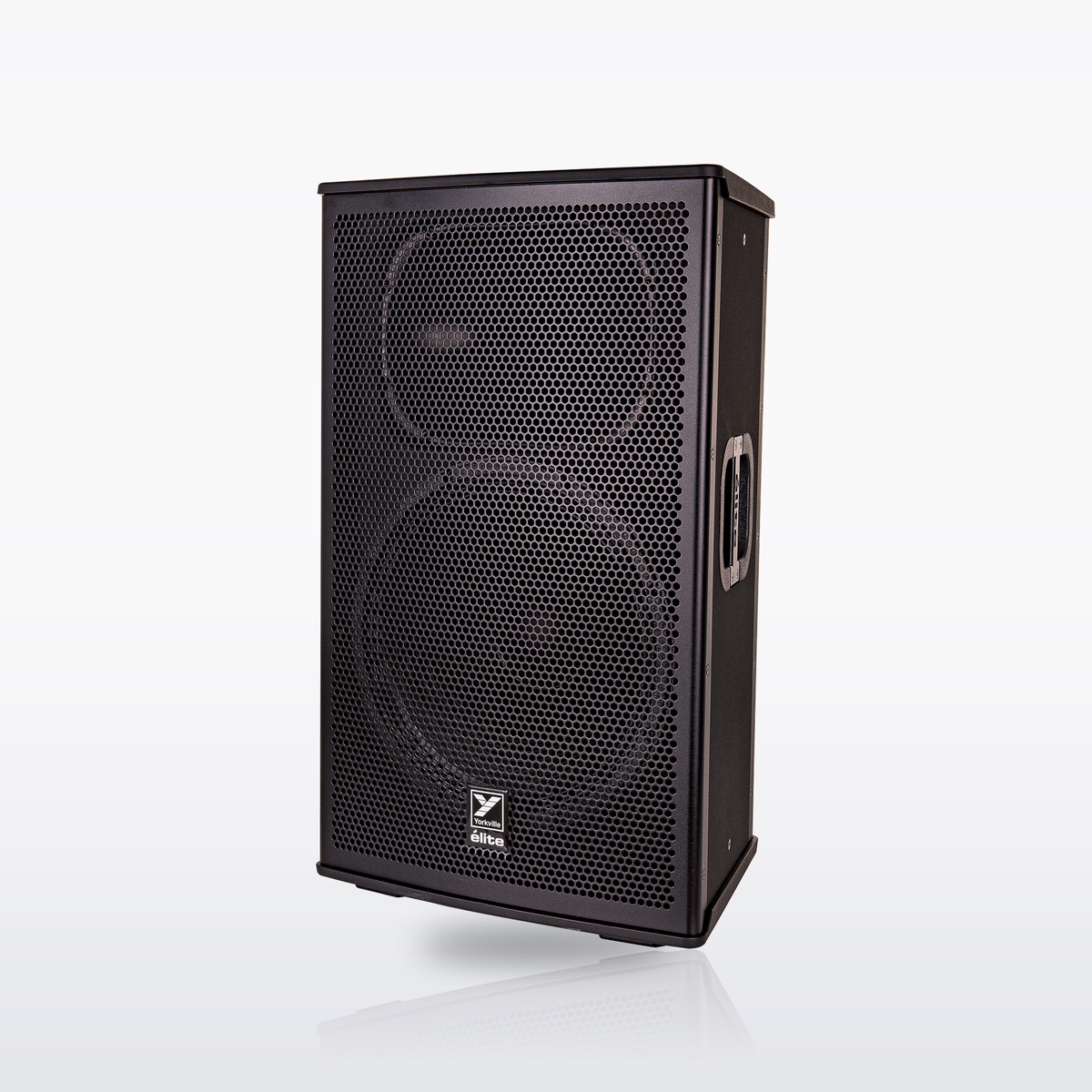

Yorkville EF15 Elite 15-inch unpowered loudspeaker, angled view

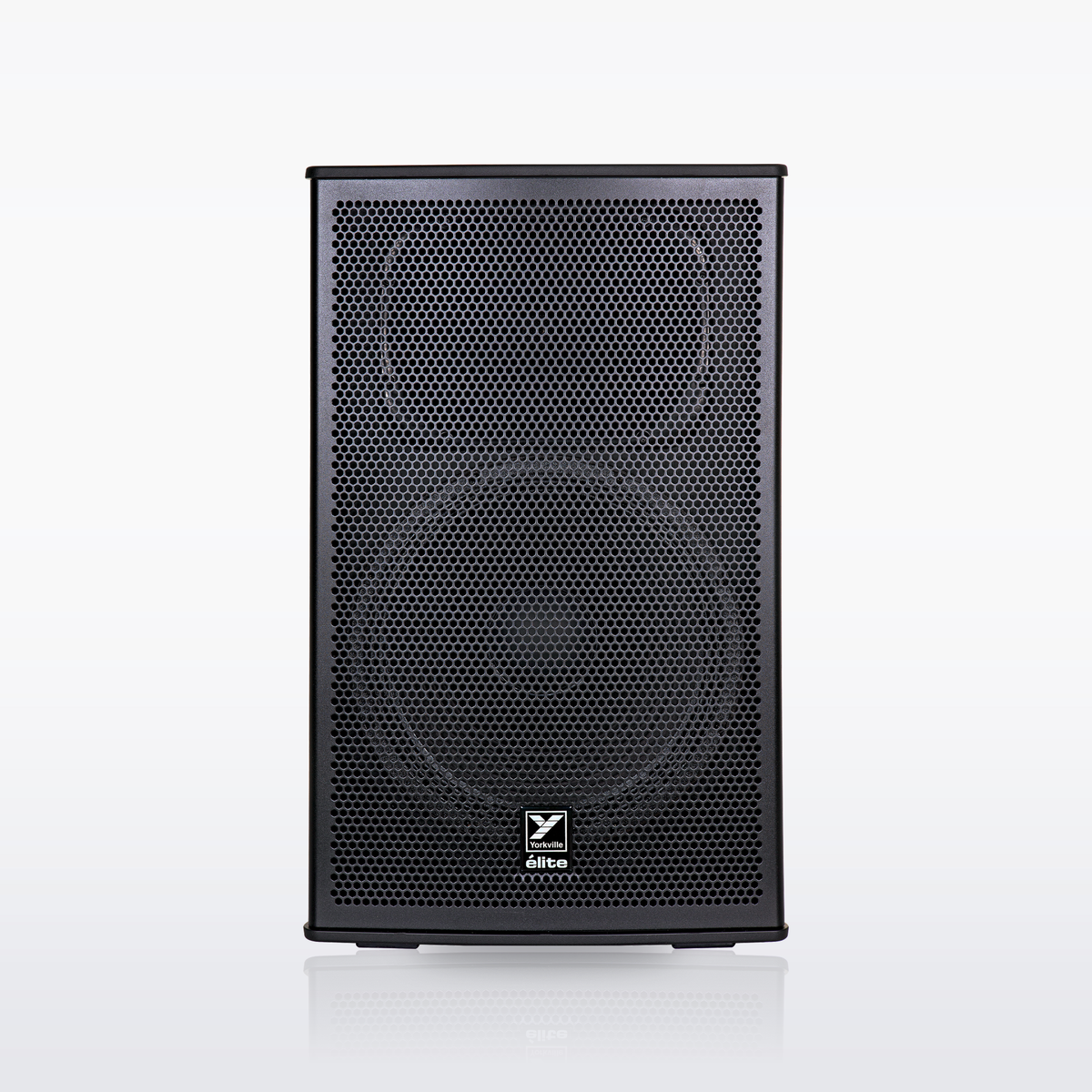

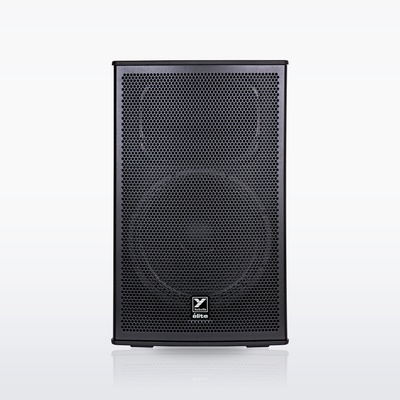

Yorkville EF15 Elite unpowered loudspeaker, front view

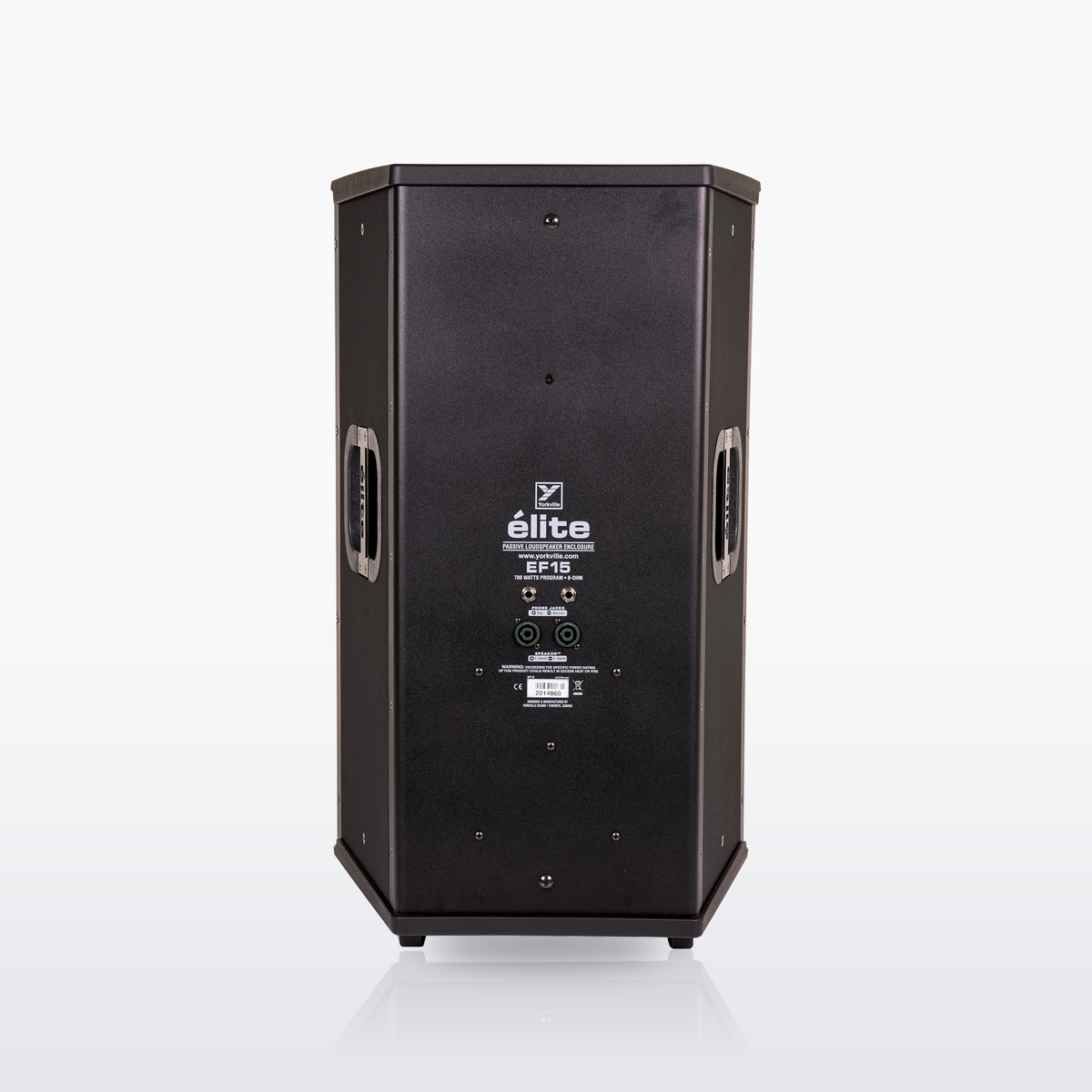

Yorkville EF15 Elite unpowered loudspeaker, rear view with Speakon and 1/4-inch inputs

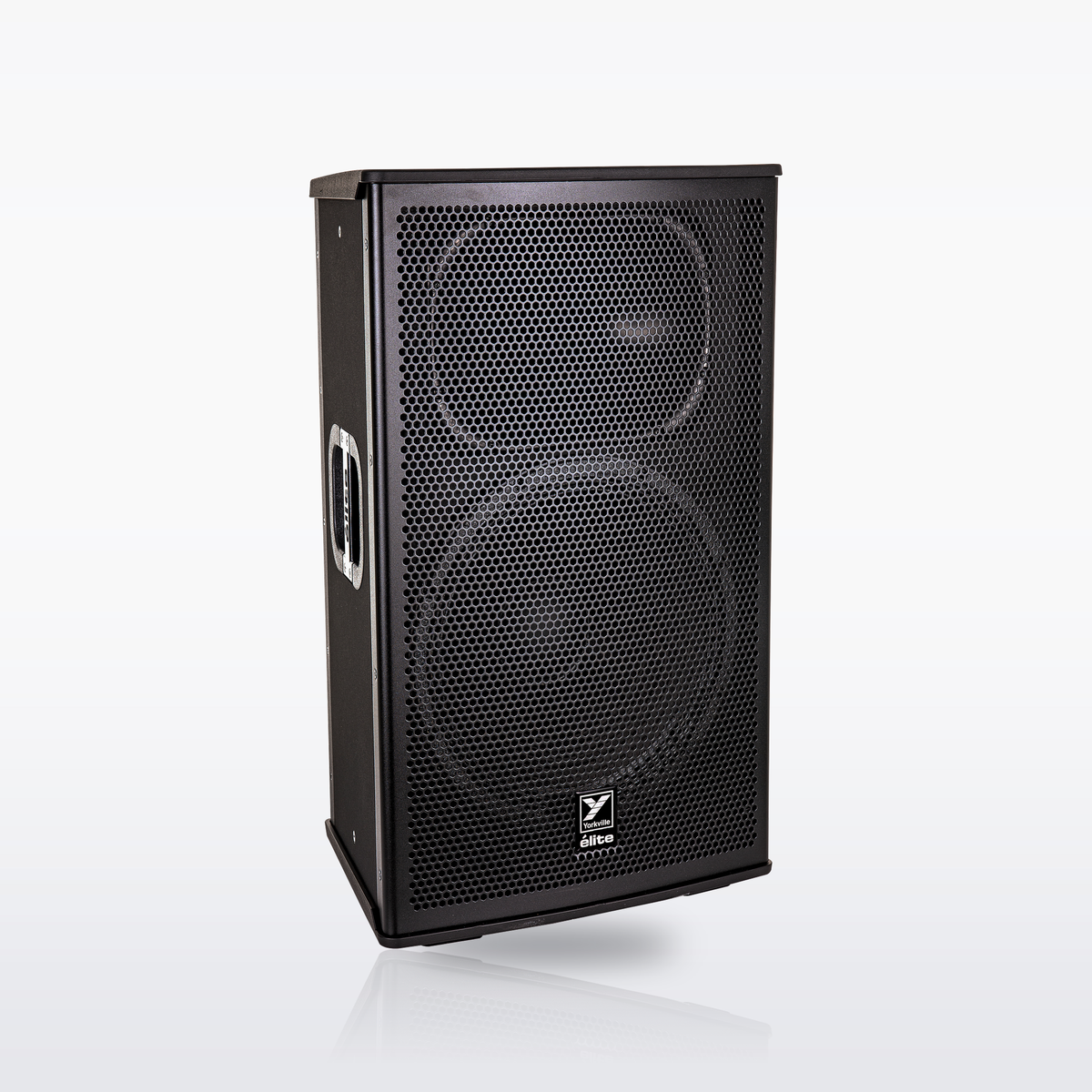

Yorkville EF15 Elite unpowered loudspeaker, angled view from the other side
Yorkville Elite Series loudspeakers video

Vendor:Yorkville

EF15

Elite 15" Unpowered Loudspeaker

$1,389.00

In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details

Is it right for you?

The largest and loudest passive Elite speaker: a 15-inch woofer, 1400 W peak at 8 ohms and 128 dB peak, for venues with amplifiers.

Great for

  • Venues and installs with power amplifiers
  • Bigger rooms on an existing amp rack
  • Upgrading passive mains to a 15-inch
What you need to use it

Description

The EF15 is a 15-inch 2-way passive loudspeaker that brings the sound, performance and reliability of the Elite series to installations and venues that already have power amplifiers.

The EF15 is rated for 1400 watts of peak power (700 watts program) at 8 ohms, and the rear panel has 1/4" and Speakon inputs.

The cabinet offers durable birch construction, and the total weight is less than 65 pounds, so the EF15 is easy to transport and stack. The EF15 is the largest and loudest passive speaker in the Elite range; 10-inch (EF10) and 12-inch (EF12) versions are also available.

Key Features

  • 1400 W peak power (700 W program) at 8 ohms
  • 15" woofer with 3" voice coil
  • 3" voice coil compression driver with titanium diaphragm
  • ABS-coated birch plywood construction
  • Made in Canada

Specifications

  • System type: unpowered 2-way loudspeaker
  • Power rating: 1400 W peak (700 W program)
  • Nominal impedance: 8 ohms
  • Sensitivity: 97 dB (1 W / 1 m); max SPL 128 dB peak (125.5 dB continuous)
  • Frequency response: 55 Hz–18 kHz; crossover 1900 Hz
  • Dispersion (H x V): 60° x 40°
  • LF driver: 15" with 3" voice coil; HF driver: 3" voice coil, 1" titanium diaphragm; 3x SK3 protection bulbs
  • Inputs: 2x Speakon 4-pin, 2x 1/4"
  • Handles: 2 (one each side); pole mount adapter
  • Fly points: 8 (2 top, 2 bottom, 2 each side) plus pullback; 1/4-20 fly hardware
  • Enclosure: 15 mm (5/8") 11-ply Russian birch, black Ultrathane paint; perforated metal grille
  • Dimensions (D x W x H): 14" x 18.5" x 30" (35.5 x 47 x 76 cm)
  • Weight: 61 lb (27.8 kg)

Pairs well with

Make it work

What you need with the EF15

You also need

  • It needs a separate power amplifier, which we do not sell. It is rated 700 W program at 8 ohms.

  • A speakON cable from your amplifier's speakON output to one of the speaker's two speakON inputs.
