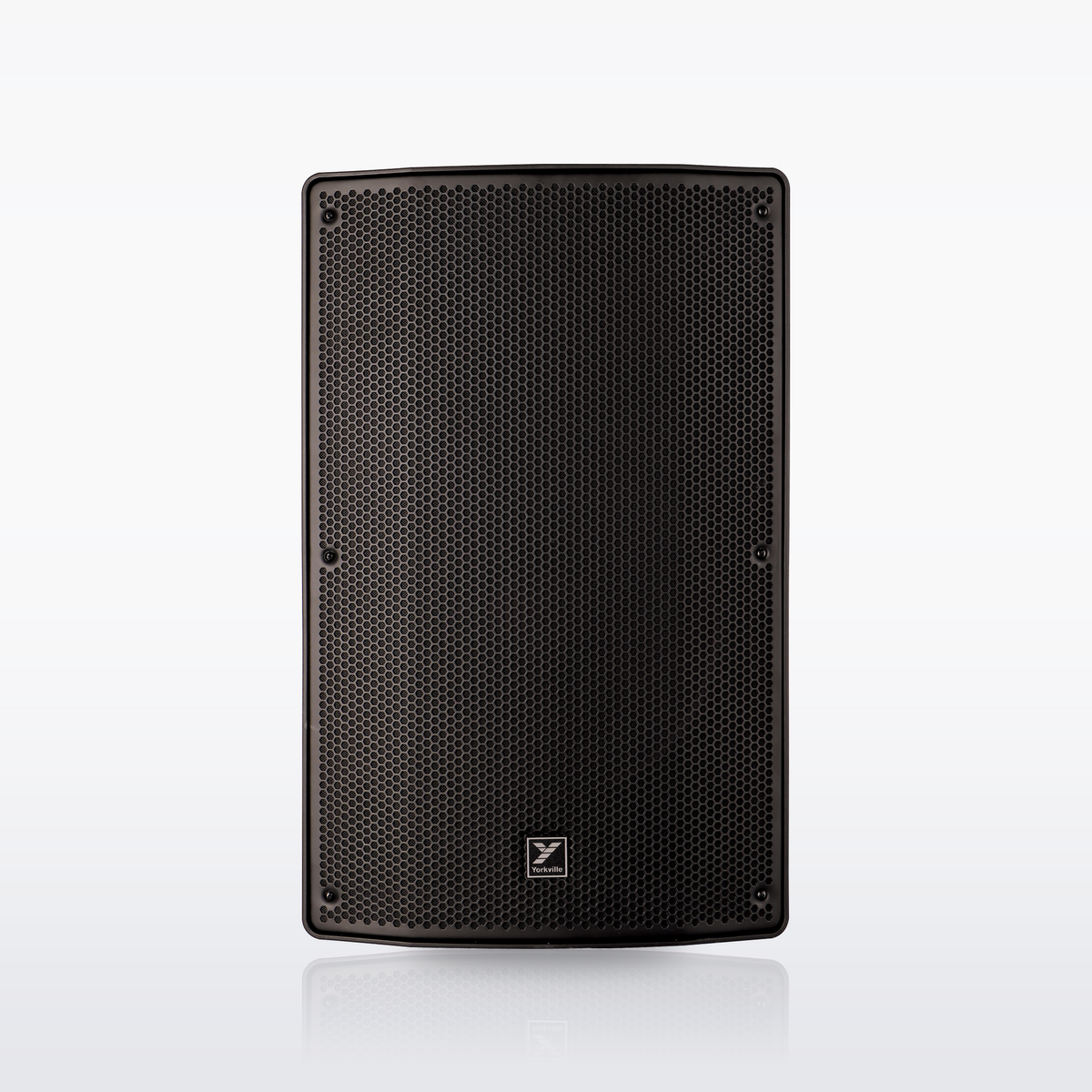

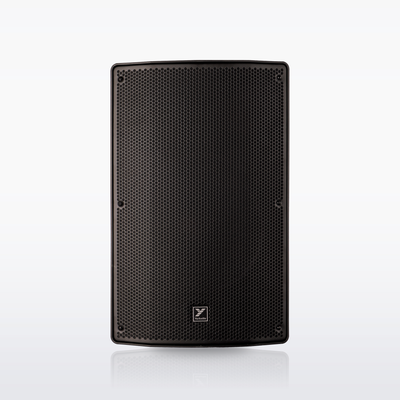

Yorkville YXL15 15-inch unpowered loudspeaker, front view

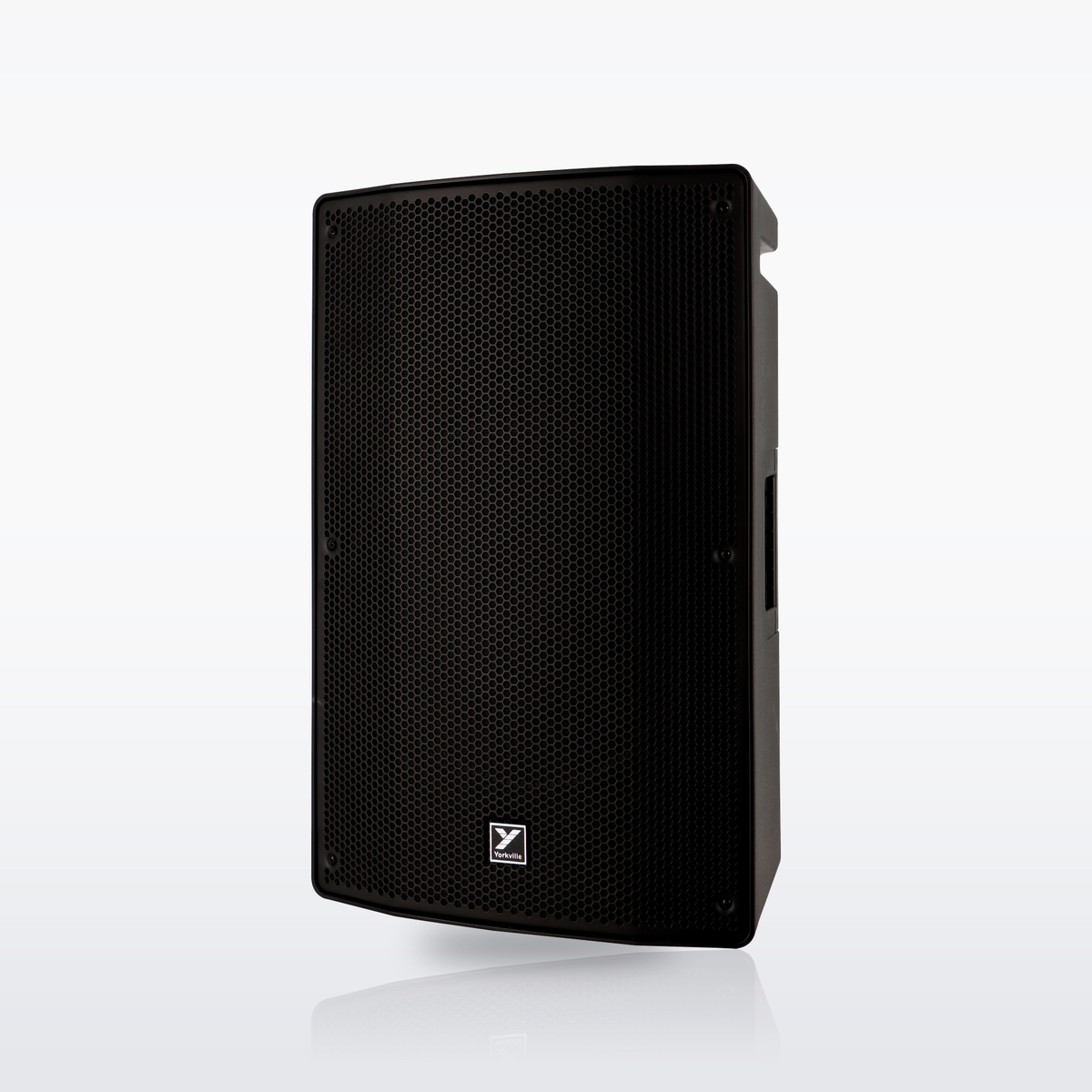

Yorkville YXL15 unpowered loudspeaker, angled view

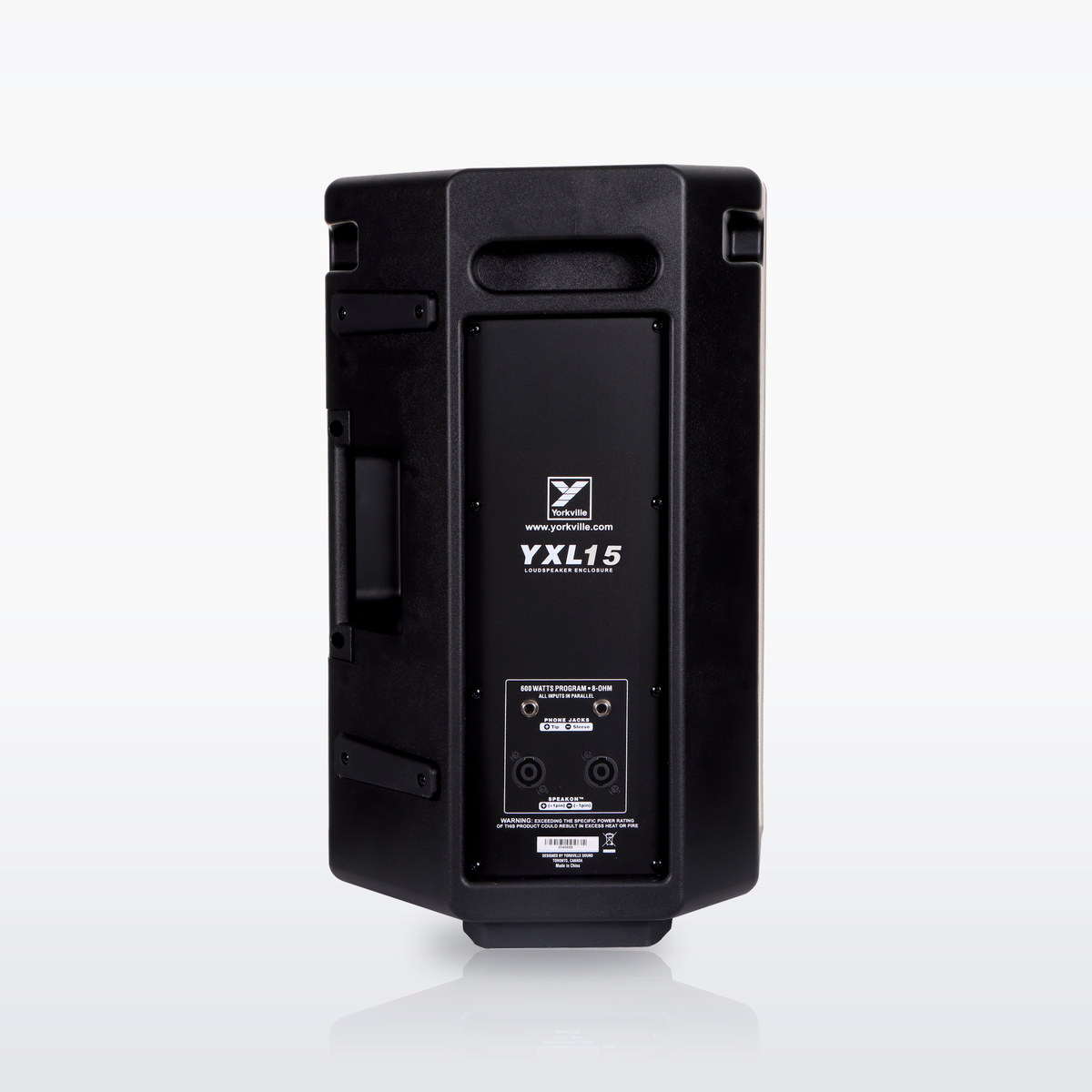

Yorkville YXL15 unpowered loudspeaker, rear view

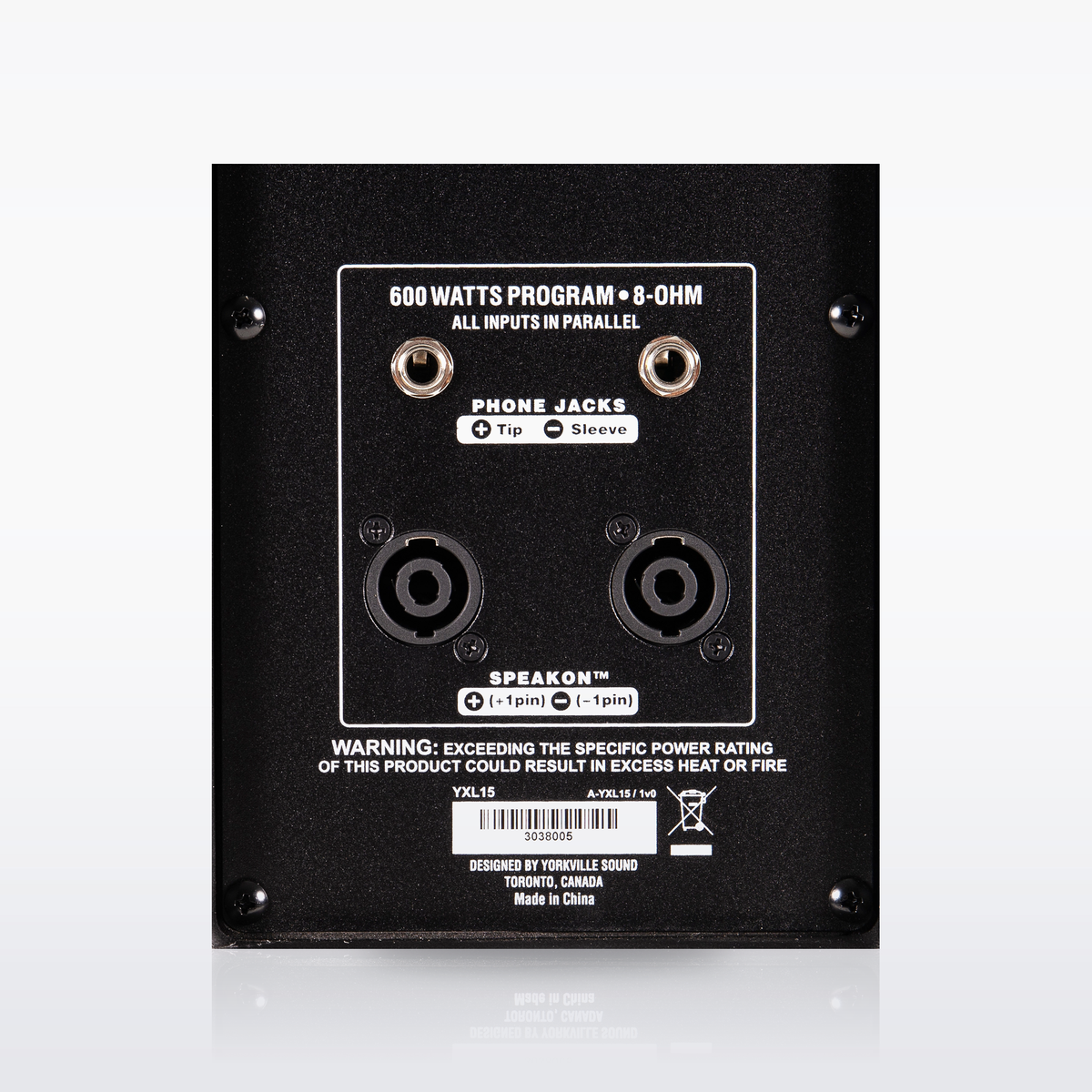

Yorkville YXL15 rear panel with Speakon and 1/4-inch inputs

Vendor:Yorkville

YXL15

15" Unpowered Loudspeaker

$449.00

In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details

Is it right for you?

The unpowered YXL15: a 15-inch speaker reaching 45 Hz, with no amplifier inside, for systems that run external power amplifiers.

Great for

  • Venues that already own power amplifiers
  • More low end than the YXL10 or YXL12
  • Flown or pole-mounted installs
What you need to use it

Description

The YXL series is Yorkville Sound's most affordable and versatile speaker lineup. Designed as an all-purpose speaker to be integrated into small and medium systems, YXL unpowered loudspeakers can be used vertically on the floor or a speaker stand, wedged as a stage monitor, or flown.

The YXL15 uses a single 15-inch driver and a 90° x 40° horn with a 1-inch throat and 1-inch compression driver. The cabinet is constructed with strong polypropylene for reliability and durability.

Key Features

  • 1200 W peak power (600 W program) at 8 ohms
  • 15" woofer with 3" voice coil
  • 1" compression driver
  • Polypropylene cabinet, usable upright, as a stage wedge or flown
  • 125 dB continuous SPL, 45 Hz–16 kHz frequency response

Specifications

  • System type: unpowered loudspeaker
  • Power rating: 1200 W peak (600 W program)
  • Nominal impedance: 8 ohms; sensitivity 98 dB (1 W / 1 m)
  • Max SPL: 125 dB continuous
  • Frequency response: 45 Hz–16 kHz
  • Dispersion (H x V): 90° x 40°; crossover 1.6 kHz
  • HF driver: 1" compression driver on a horn integrated into the baffle
  • LF driver: 15" with 3" voice coil
  • Inputs: 2x Speakon, 2x 1/4"
  • Pole mount adapter: dual angle; M8 fly points
  • Enclosure: polypropylene
  • Handles: 3 (one each side, one back)
  • Dimensions (D x W x H): 14.8" x 17" x 27.4" (37.5 x 43.2 x 70.4 cm)
  • Weight: 50 lb (23 kg)

Pairs well with

Make it work

What you need with the YXL15

You also need

  • It needs an external power amplifier, which we do not sell. Yorkville rates it at 8 ohms, 600 W program (1200 W peak).

  • A speakON speaker cable from the amplifier to one of the speaker's two speakON inputs, if your amp has speakON outputs.
