For DJs

Advanced DJ setup

Pick the FLX10 or the REV7 to play from a laptop, or the XDJ-AZ to play from USB drives with no laptop, with the layout and feel of the CDJ-3000 and DJM-A9 found in clubs. Its XLR master outputs run into an 18-inch powered sub, and the sub's two link outputs feed a pair of 12-inch powered tops for stereo. XLR cables throughout. The HDJ-X10 plugs into the 1/4-inch headphone jack with the adapter in its box.

Right for you if you want to mix at home, play parties, or start taking paid gigs.

Read the DJ equipment guide

The gear

Pioneer DJ DDJ-FLX10 controller, Black, anglePick onePioneer DJ DDJ-FLX104-Channel DJ ControllerFrom $1,729.00Coming soon

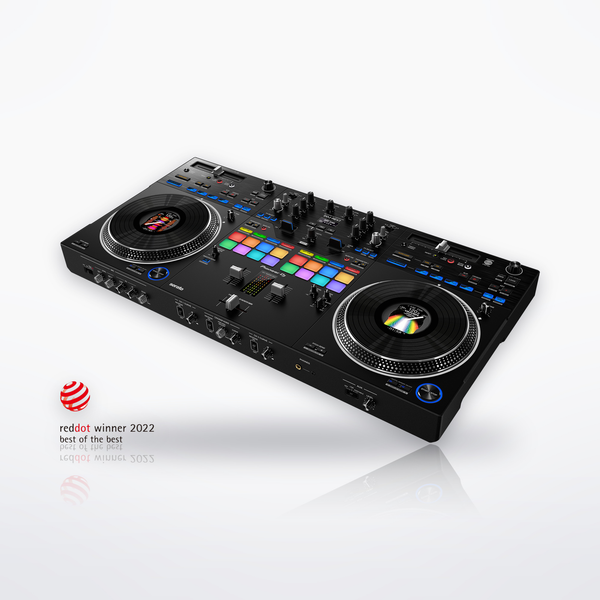

Pioneer DJ DDJ-REV7 scratch-style DJ controller, top viewPick onePioneer DJ DDJ-REV72-Channel Motorized Scratch DJ Controller$2,159.00Coming soon

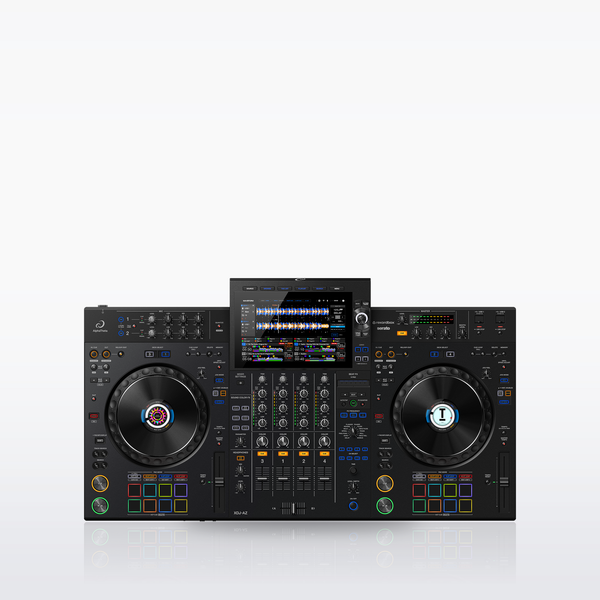

AlphaTheta XDJ-AZ 4-channel all-in-one DJ system, top viewPick oneAlphaTheta XDJ-AZ4-Channel Professional All-in-One DJ System$3,449.00Coming soon
Yorkville YXL12P 12-inch powered loudspeaker, front view× 2Yorkville YXL12P12" Powered Loudspeaker$499.00 eachComing soonYorkville YXL18SP 18-inch powered subwoofer, front viewYorkville YXL18SP18" Powered Subwoofer$799.00Coming soonPioneer DJ HDJ-X10 DJ headphones, Black, three-quarter viewPioneer DJ HDJ-X10Professional Over-Ear DJ Headphones$449.00Coming soon

Sound flow

Tap a piece to swap it in the builder.

LaptopYour deviceUSB-CDDJ-FLX10Pioneer DJ
LaptopYour deviceUSB (Type-B)DDJ-REV7Pioneer DJ
USB driveYour devicerekordbox library, no laptopXDJ-AZAlphaTheta
DDJ-FLX10Pioneer DJ XLR pair from the master outputsYXL18SPYorkville
DDJ-REV7Pioneer DJ XLR pair from the master outputsYXL18SPYorkville
XDJ-AZAlphaTheta XLR pair from the master outputsYXL18SPYorkville
YXL18SPYorkville XLR link out, one per topYXL12PYorkville
DDJ-FLX10Pioneer DJ 1/4-inch headphone jackHDJ-X10Pioneer DJ
DDJ-REV7Pioneer DJ 1/4-inch headphone jackHDJ-X10Pioneer DJ
XDJ-AZAlphaTheta 1/4-inch headphone jackHDJ-X10Pioneer DJ
Set total $4,136.805 pieces and 4 cables, at today's prices.With the DDJ-REV7: $4,566.80.With the XDJ-AZ: $5,856.80.Shop all DJ equipment

Cables you need

Cables total$161.80

How it connects, step by step

  1. FLX10 to laptop over USB; on Windows, install AlphaTheta's DDJ-FLX10 audio driver first. It has two USB-C ports, so a second DJ can connect a laptop for back-to-back sets.
  2. Two XLR cables from the XLR master outputs (left and right) into the sub's two combo inputs.
  3. XLR cable from each of the sub's two link outputs into a YXL12P top, one per side. Set the tops to sub mode so they only play what the sub does not.
  4. HDJ-X10 into the 1/4-inch headphone jack, using its threaded 1/4-inch adapter.
  5. Put one YXL12P on a speaker pole in the sub's pole mount and the other on a speaker stand, horns above head height. We do not stock poles or stands.
  6. Set the sub level first with a bass-heavy track, then match the top. Use the 1/4-inch TRS booth output for a separate monitor speaker in the booth.
  7. A 3-pin XLR DMX cable from the DMX output runs lighting from rekordbox.

Every step is from the makers' own manuals and product pages, checked October 2026.

Advanced DJ setupSet total From $4,136.80
Or start from scratch

Create your flow

Pick a piece for each role and we draw how the sound flows, add up the price and list the cables as you go. Bring the link to the store and we will check it with you.
