XDJ-AZ

Description

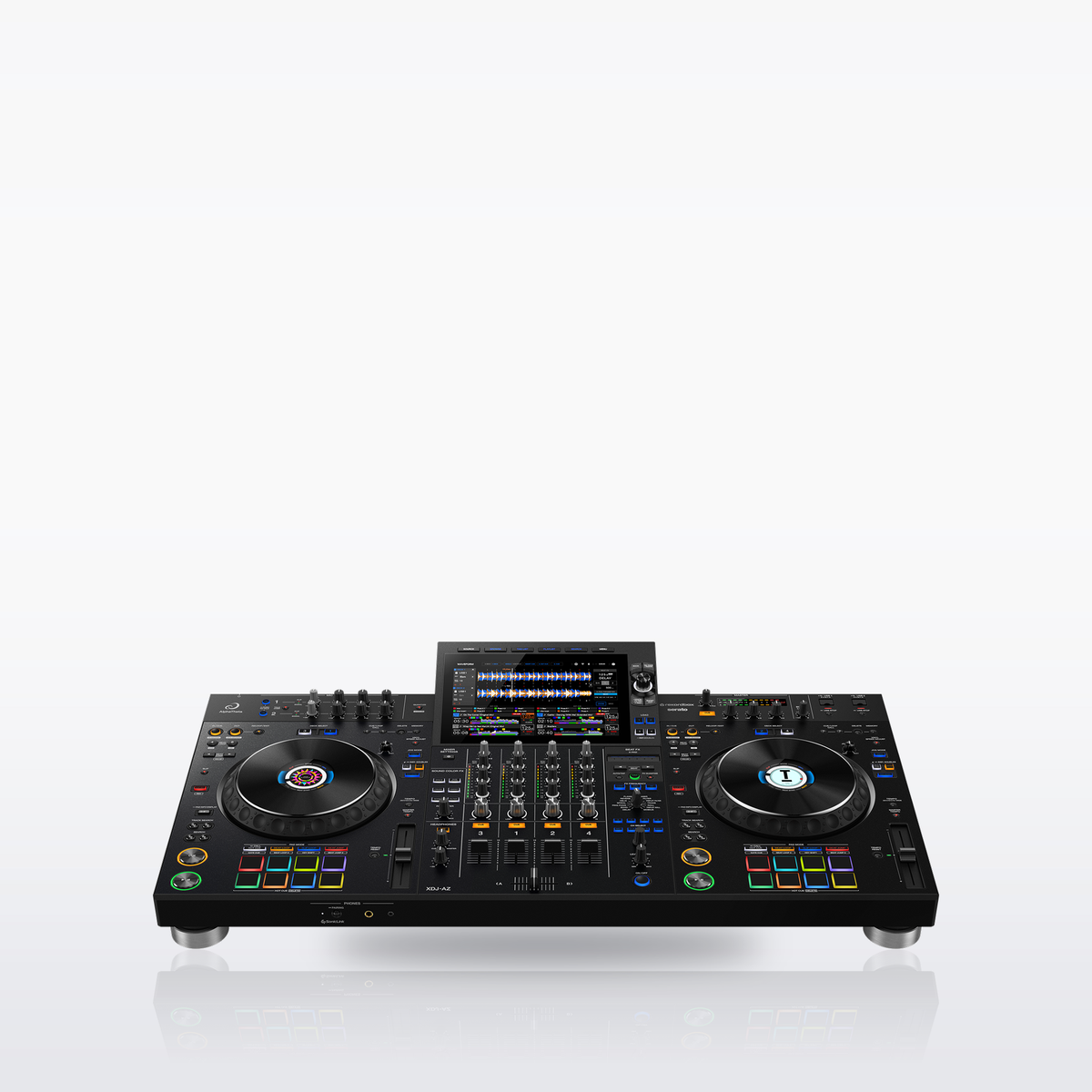

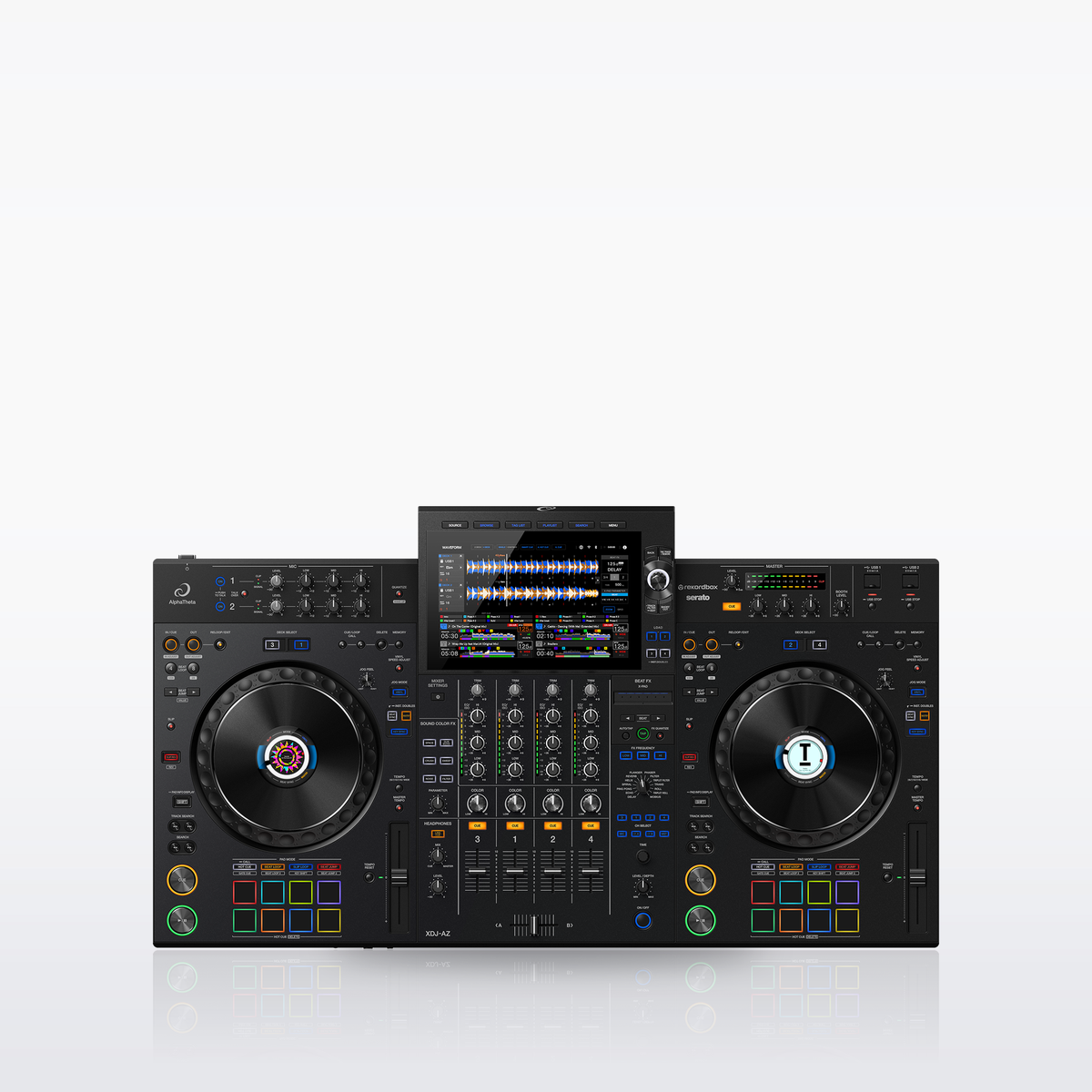

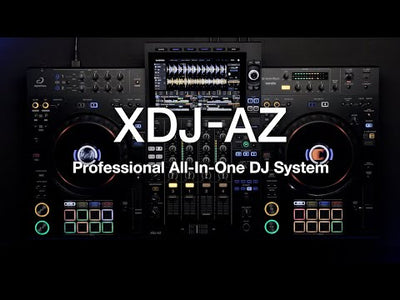

The XDJ-AZ is AlphaTheta's 4-channel professional all-in-one DJ system, with the layout and feel of the flagship CDJ-3000 and DJM-A9. It plays four decks standalone from USB drives, from a cloud rekordbox library via CloudDirectPlay, or from Apple Music, Beatport Streaming, Spotify and Tidal via StreamingDirectPlay over built-in Wi-Fi, all browsed on a 10.1-inch capacitive touchscreen. Connect a PC/Mac over USB Type-C to run rekordbox for Mac/Windows in Performance mode or Serato DJ Pro, with no paid plan needed for either. A built-in SonicLink transmitter, Bluetooth 5.3 audio input, two mic inputs and XLR, RCA and booth outputs cover home, mobile and club setups.

Key Features

• Standalone 4-deck playback from USB drives, with PRO DJ LINK for syncing beat and on-air information with CDJs
• 206 mm full-size jog wheels with the feel of the CDJ-3000 and Jog Feeling adjustment
• Mixer section laid out like the DJM-A9, with 6 Sound Color FX, 14 Beat FX and a 3-band master EQ
• 10.1-inch capacitive touchscreen showing up to 13 tracks, with Playlist Bank, Touch Preview and Touch Cue
• StreamingDirectPlay for Apple Music, Beatport Streaming, Spotify and Tidal, with waveform, BPM and grid analysis (service subscriptions required, Spotify Premium for Spotify; Spotify and Apple Music need firmware 2.00 or later)
• rekordbox CloudDirectPlay (rekordbox Creative or Professional plan, or Cloud Option, required) and rekordbox Link Export over Wi-Fi, USB or LAN
• Hardware Unlock for rekordbox for Mac/Windows, and plug-in support for Serato DJ Pro
• SonicLink ultra-low-latency wireless monitoring with the HDJ-F10 headphones, plus Bluetooth 5.3 audio input
• 8 backlit rubber Performance Pads for Hot Cue, Beat Loop, Slip Loop and Beat Jump, plus Gate Cue
• 3 USB ports (2 top-loading Type-A for USB devices, 1 Type-C for a laptop) for back-to-back sets
• 32-bit D/A converter from ESS Technology
• Single-unit design with grab handles

Specifications

• Channels: 4; deck control: 4 (USB storage) / 4 (DJ software)

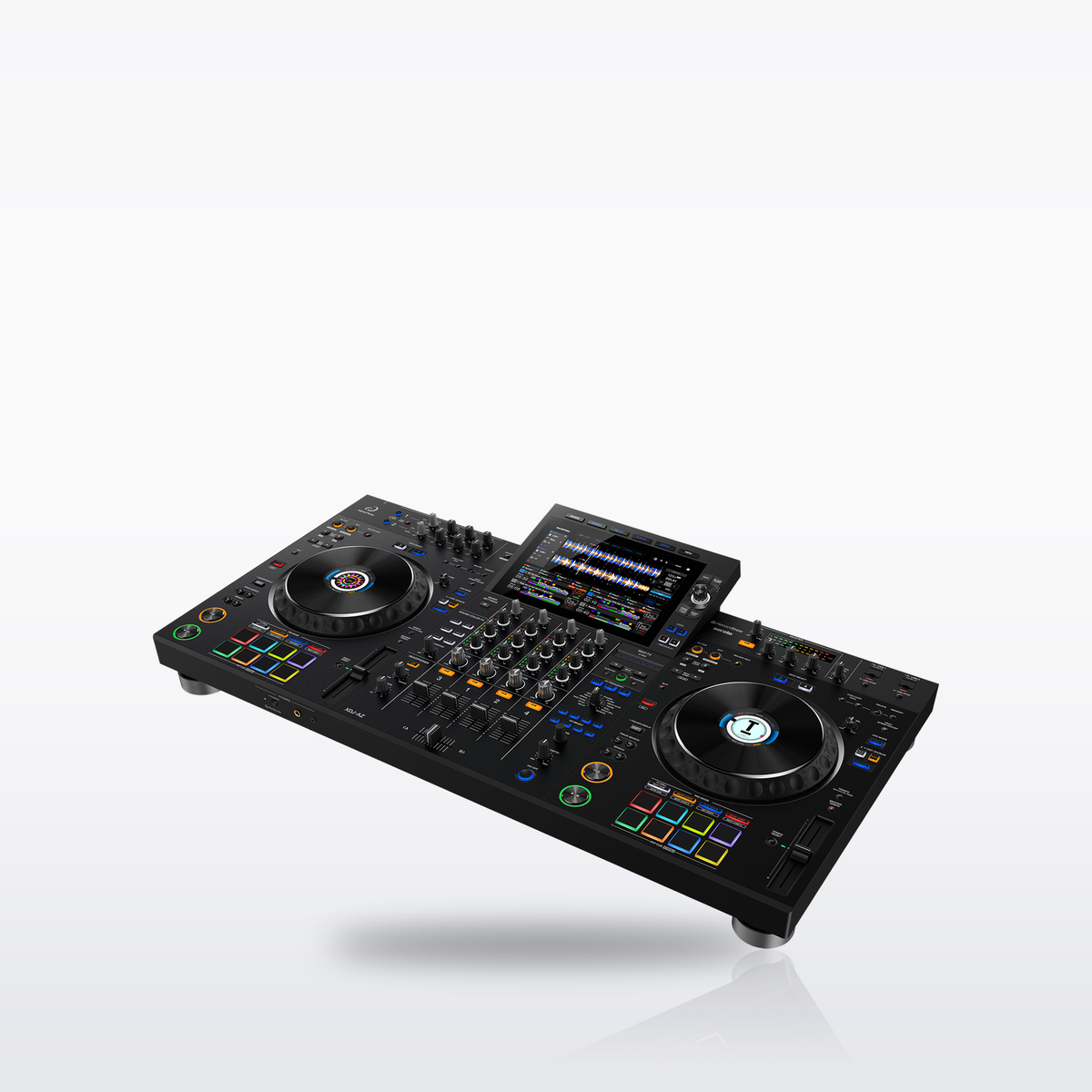

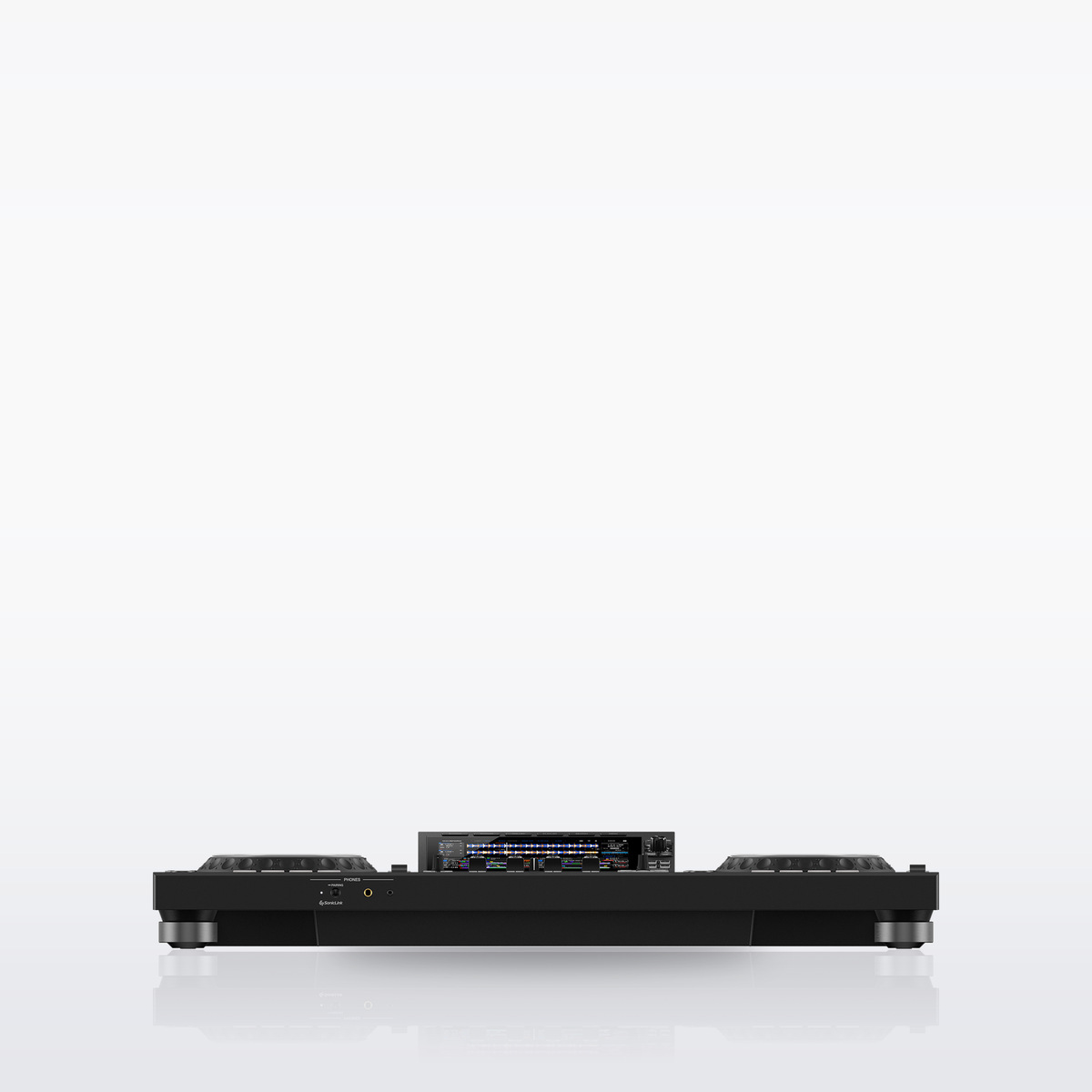

• Display: 10.1-inch capacitive touchscreen
• Jog wheel: 206 mm with Jog Feeling adjustment
• Sound Color FX: Dub Echo, Noise, Sweep, Filter, Space, Crush
• Beat FX: Delay, Echo, Ping Pong, Spiral, Reverb, Trans, Filter, Triplet Filter, Flanger, Phaser, Roll, Triplet Roll, Helix, Mobius

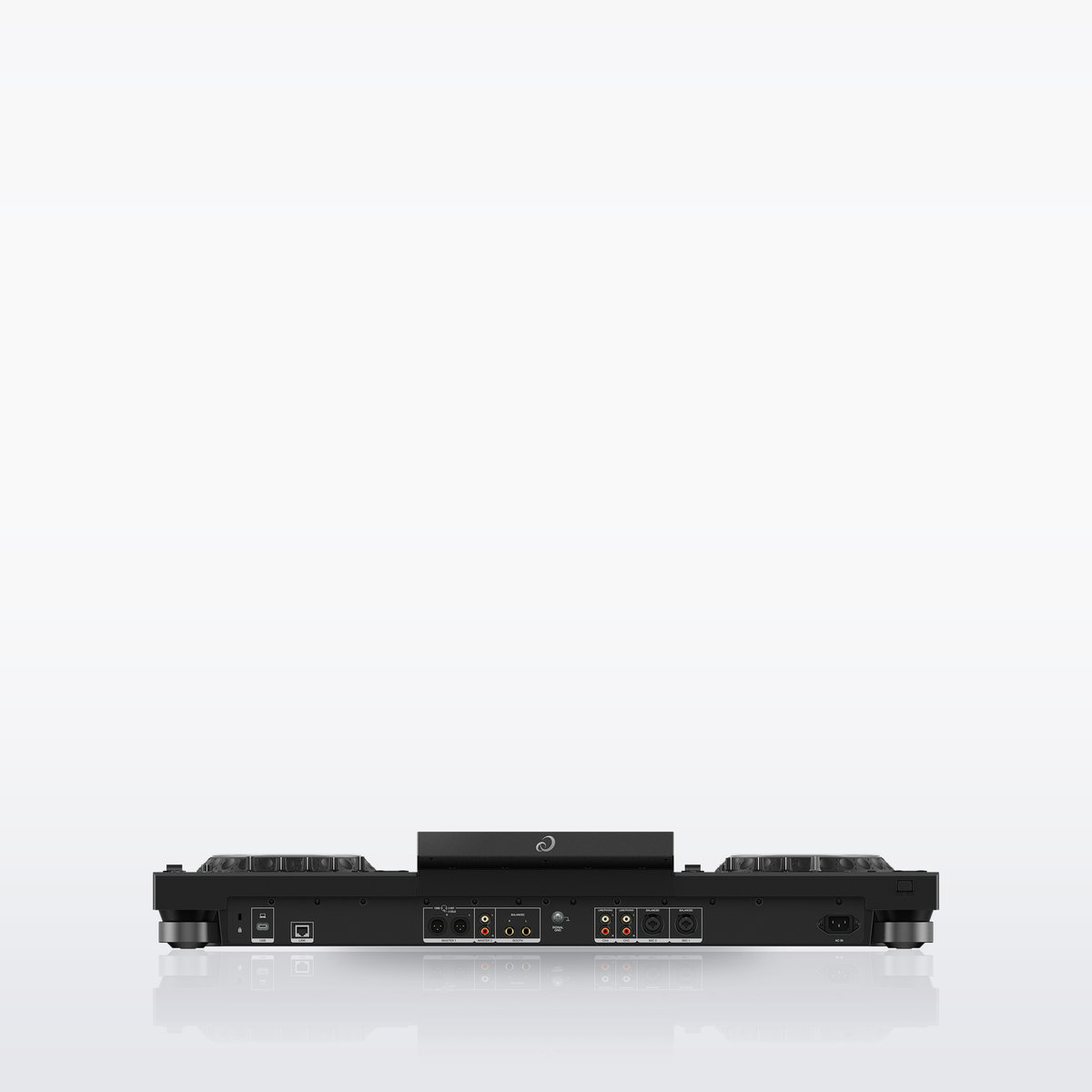

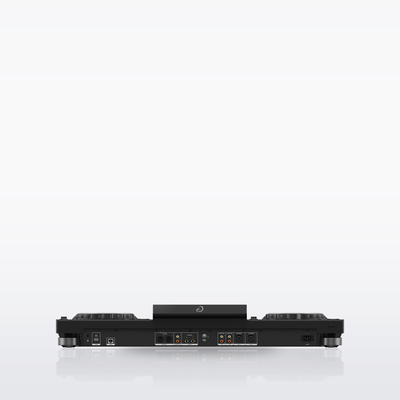

• Inputs: 2 x Line/Phono (RCA), 2 x Mic (each XLR / 1/4" TRS)
• Outputs: 2 x Master (1 x XLR,
  1 x RCA),
  1 x Booth (1/4" TRS), 2 x Phones (1/4" stereo, 3.5 mm stereo mini)
• USB: 2 x USB Type-A,
  1 x USB Type-C
• LAN:
  1 x 100BASE-TX
• Wi-Fi: IEEE 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)
• Bluetooth: version 5.3 (SBC, AAC), audio input
• SonicLink: 2.4 GHz
• Frequency response: 20 Hz–20 kHz (USB)
• S/N ratio: 115 dB (USB)
• Total harmonic distortion: 0.0018% (USB)
• Supported USB formats: FAT16, FAT32, exFAT, HFS+ (NTFS not supported)
• Compatible software: rekordbox for Mac/Windows, rekordbox for iOS/Android, Serato DJ Pro
• Power: AC 110–240 V, 50/60 Hz; 60 W
• Dimensions (W x D x H): 895 x 504.1 x 133.4 mm (35.24" x 19.85" x 5.25")
• Weight: 13.5 kg (29.8 lb)

What's in the Box

• 1 x XDJ-AZ
• 1 x Power cord
• 1 x Quick Start Guide
• 1 x Precautions for Use
• 1 x Warranty card
