DJM-V5

Description

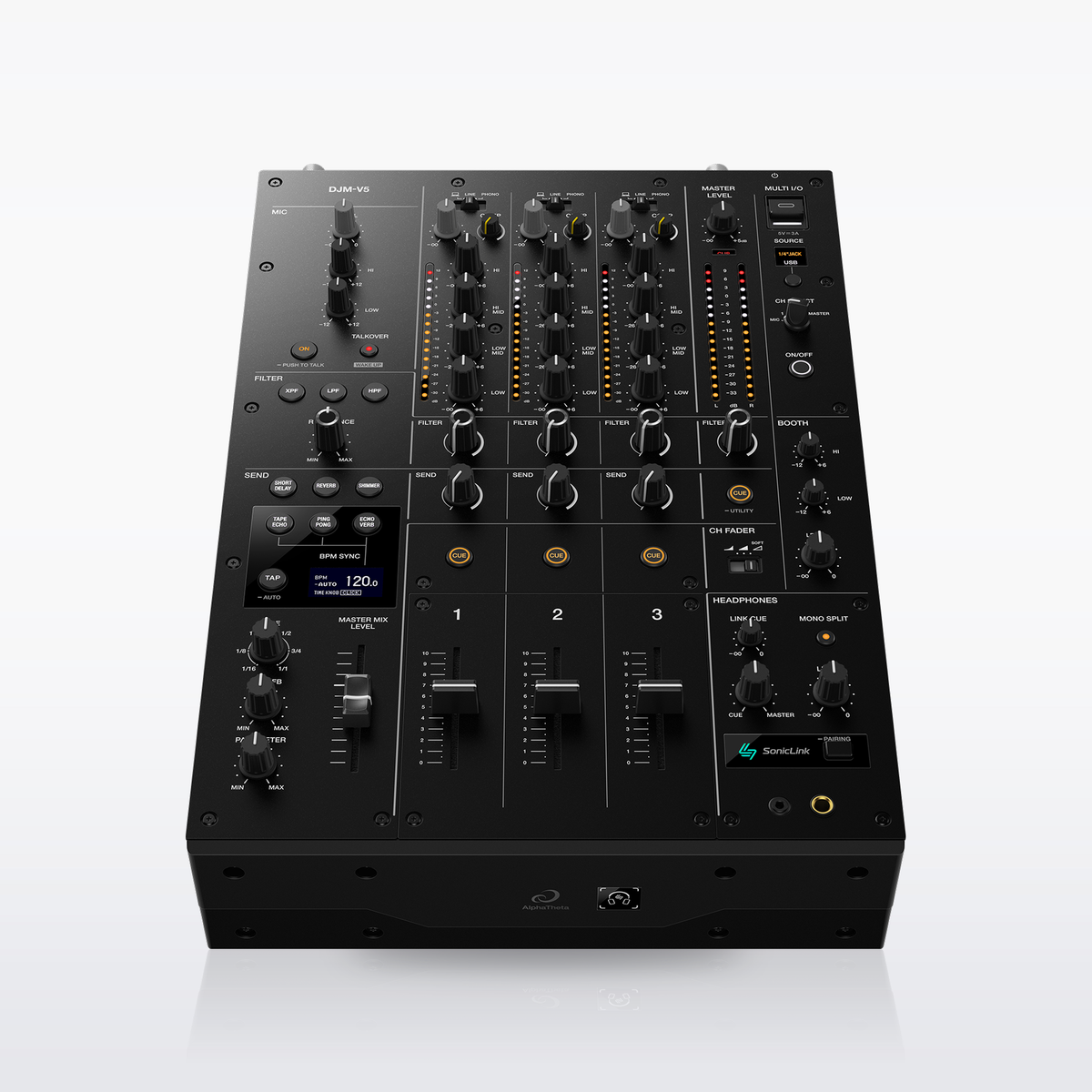

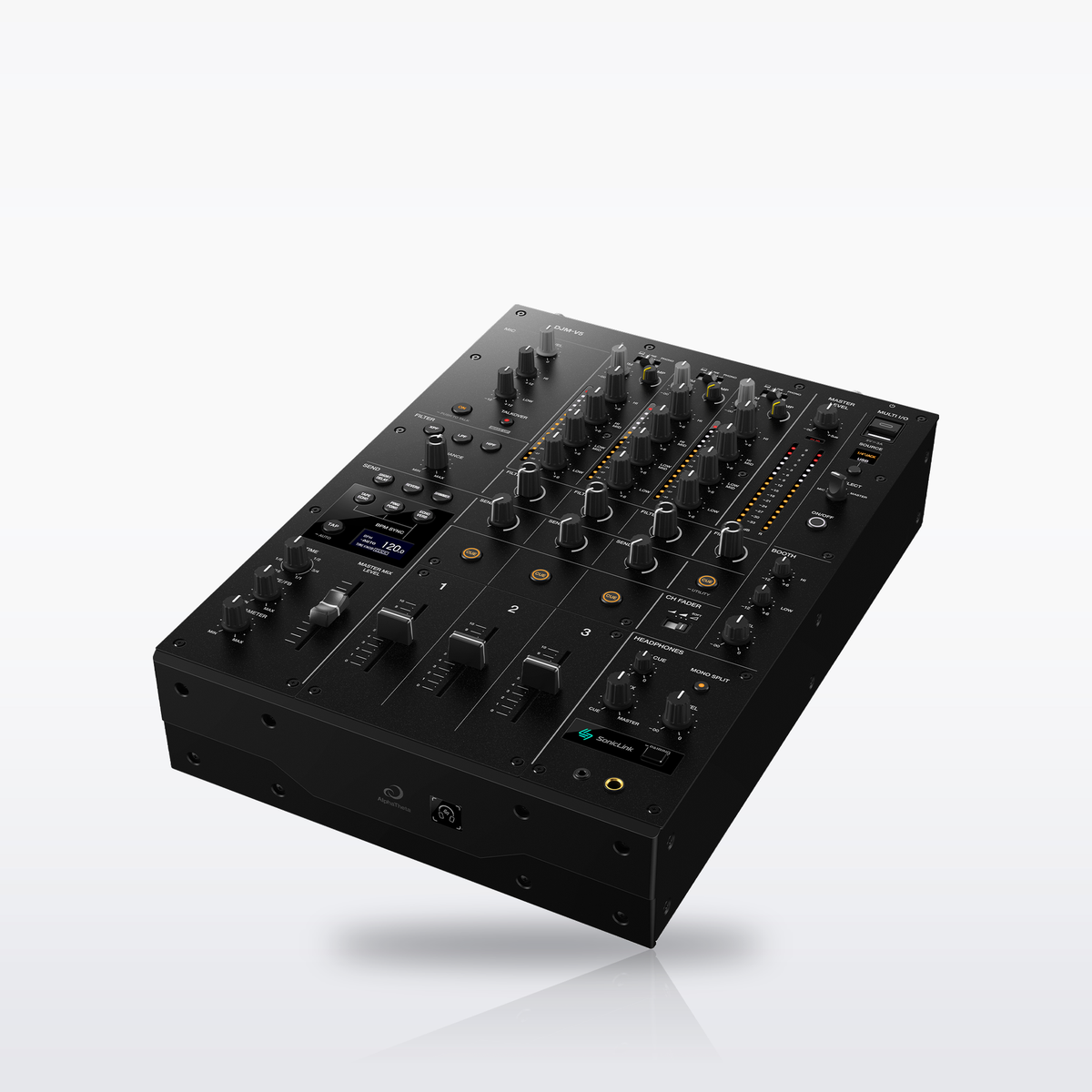

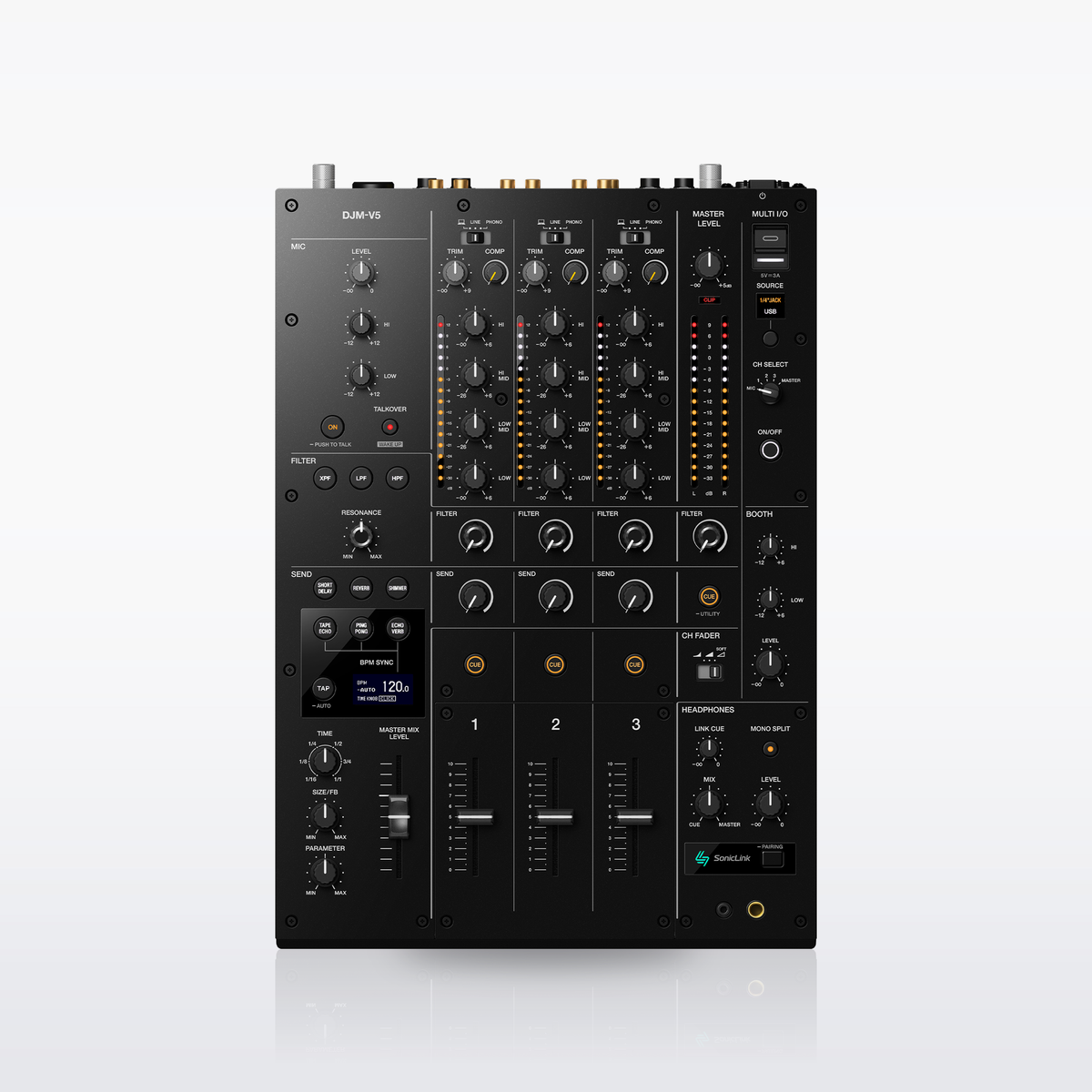

The DJM-V5 is AlphaTheta's compact 3-channel DJ mixer, 302 mm (11.89") wide. Each channel has a compressor, a 4-band EQ inherited from the DJM-V10 and a 60 mm long-throw fader from the DJM-V10-LF, and the mixer adds six Send FX, three filter types including a new cross-pass filter, and a built-in SonicLink transmitter for wireless monitoring. PRO DJ LINK connects it to the CDJ-3000X, CDJ-3000 and rekordbox for BPM-synced effects and Link Cue. A USB Type-C port for PC/Mac runs djay Pro, rekordbox and Serato DJ Pro including DVS, and a second MULTI I/O USB Type-C port connects an iPhone, iPad or USB effects unit.

Key Features

• 4-band EQ (HI, HI MID, LOW MID, LOW) on each channel, inherited from the DJM-V10
• 60 mm long-throw channel faders from the DJM-V10-LF, with a new Soft Mix Curve that gently reduces high frequencies as the incoming track is raised
• Compressor (COMP) knob on each channel
• Six Send FX (Short Delay, Reverb, Shimmer, Tape Echo, PingPong, Echo-Verb) on a dedicated send knob per channel, with a time knob that combines BPM sync and smooth adjustment
• Three filter types: low-pass, high-pass and a new cross-pass filter that keeps low-end energy while shaping mids and highs
• Built-in SonicLink transmitter for ultra-low-latency wireless monitoring, paired by button press or NFC touch

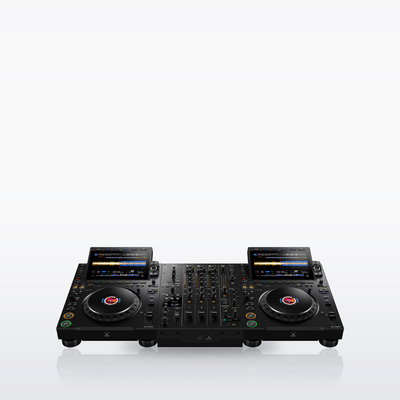

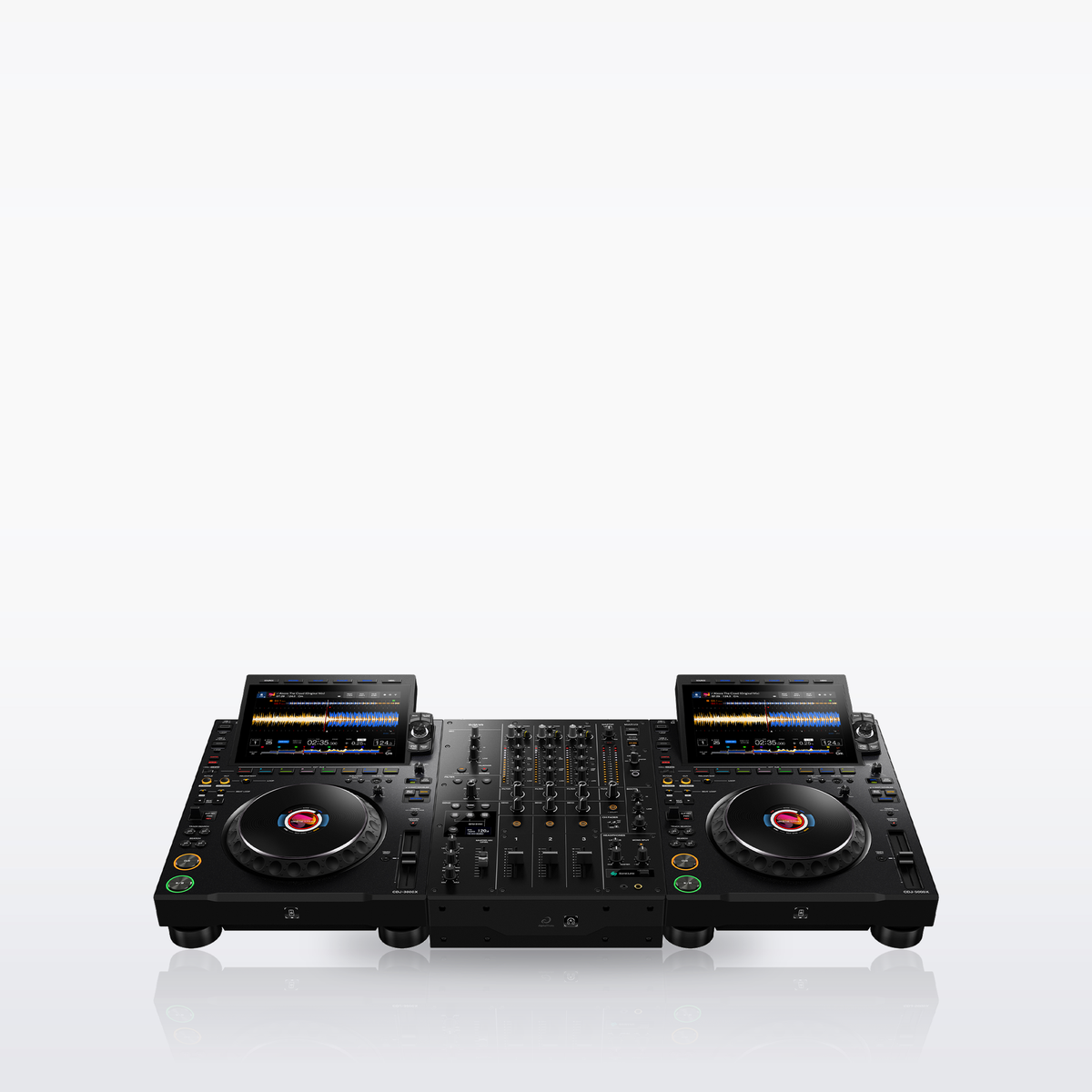

• PRO DJ LINK and Link Cue with the CDJ-3000X, CDJ-3000 and rekordbox, with a dedicated Link Cue volume knob
• USB Type-C (PC/Mac) for djay Pro, rekordbox for Mac/Windows and Serato DJ Pro, including DVS (djay Pro and Serato DJ Pro licenses sold separately)
• MULTI I/O USB Type-C for iPhone and iPad (DJM-REC and RMX-1000 for iPad apps) and USB effects units such as the RMX-IGNITE
• Send/return insert for external effects units, and full assignable MIDI control
• Signal path tuned to the sound character of the DJM-V10, with high-quality converters through the master, booth, send and REC outputs
• 2-band booth EQ

Specifications

• Channels: 3

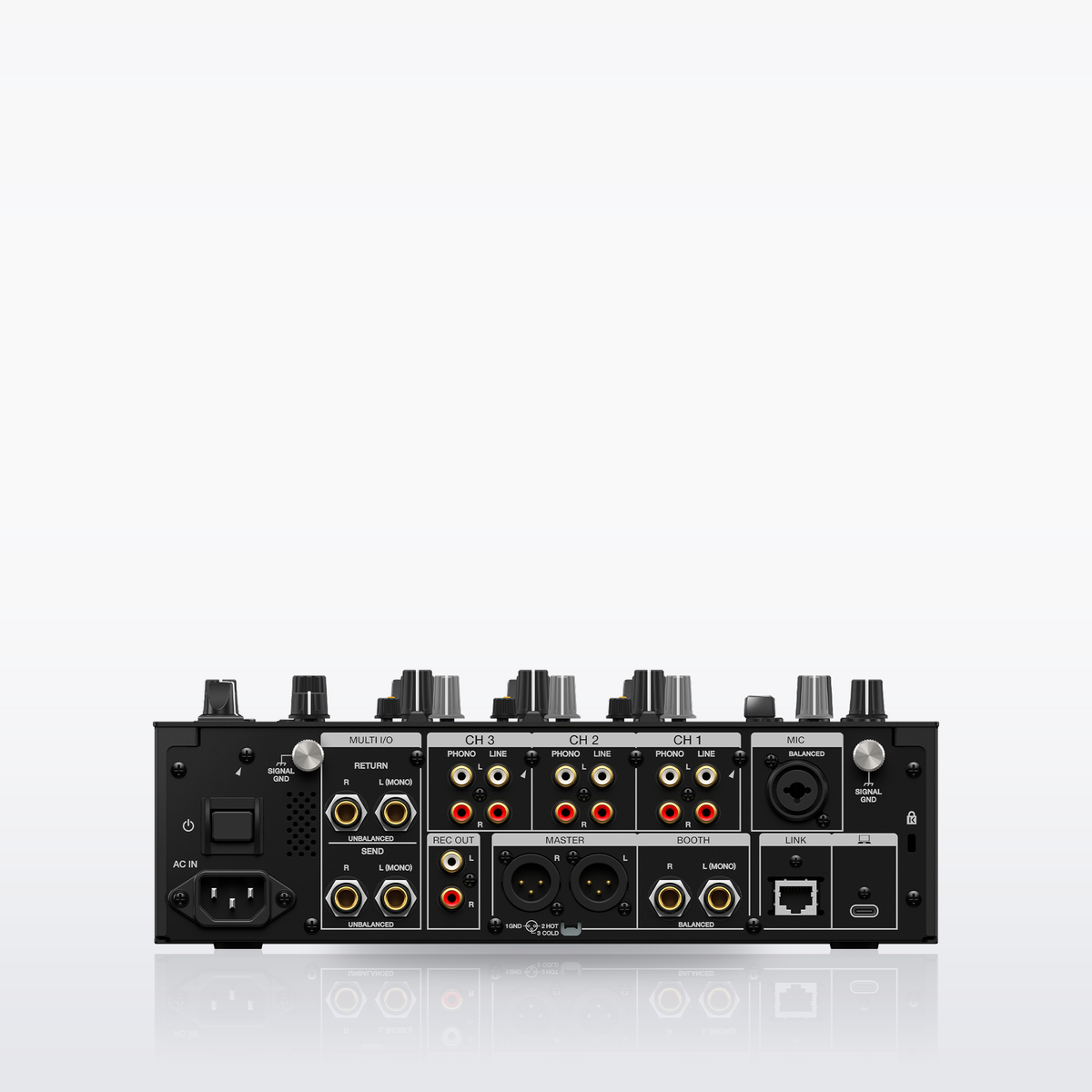

• Inputs: 3 x Phono (RCA), 3 x Line (RCA),
  1 x Mic (XLR / 1/4" TRS),
  1 x Return (1/4" TS)
• Outputs:
  1 x Master (XLR),
  1 x Booth (1/4" TRS),
  1 x Rec Out (RCA),
  1 x Send (1/4" TS), 2 x Phones (1/4" and 3.5 mm)
• USB: 2 x USB Type-C (1 x MULTI I/O,
  1 x PC/Mac)
• LAN:
  1 x (PRO DJ LINK)
• Wireless monitoring: built-in SonicLink transmitter
• DVS control: djay Pro, rekordbox, Serato DJ Pro
• Sampling rate: 96 kHz
• A/D and D/A converters: 32-bit
• S/N ratio: 105 dB (line), 88 dB (phono), 79 dB (mic)
• Frequency response: 20 Hz–40 kHz (line)
• Total harmonic distortion: 0.005% (line to master)
• EQ: 4-band channel EQ, 2-band mic EQ, 2-band booth EQ
• Power: AC 110–240 V, 50/60 Hz; 47 W
• Dimensions (W x D x H): 302.0 x 437.5 x 107.9 mm (11.89" x 17.22" x 4.25")
• Weight: 8.0 kg (17.6 lb)

What's in the Box

• 1 x DJM-V5
• 1 x Power cord
• 1 x Quick Start Guide
• 1 x Precautions for Use
