ND76

Description

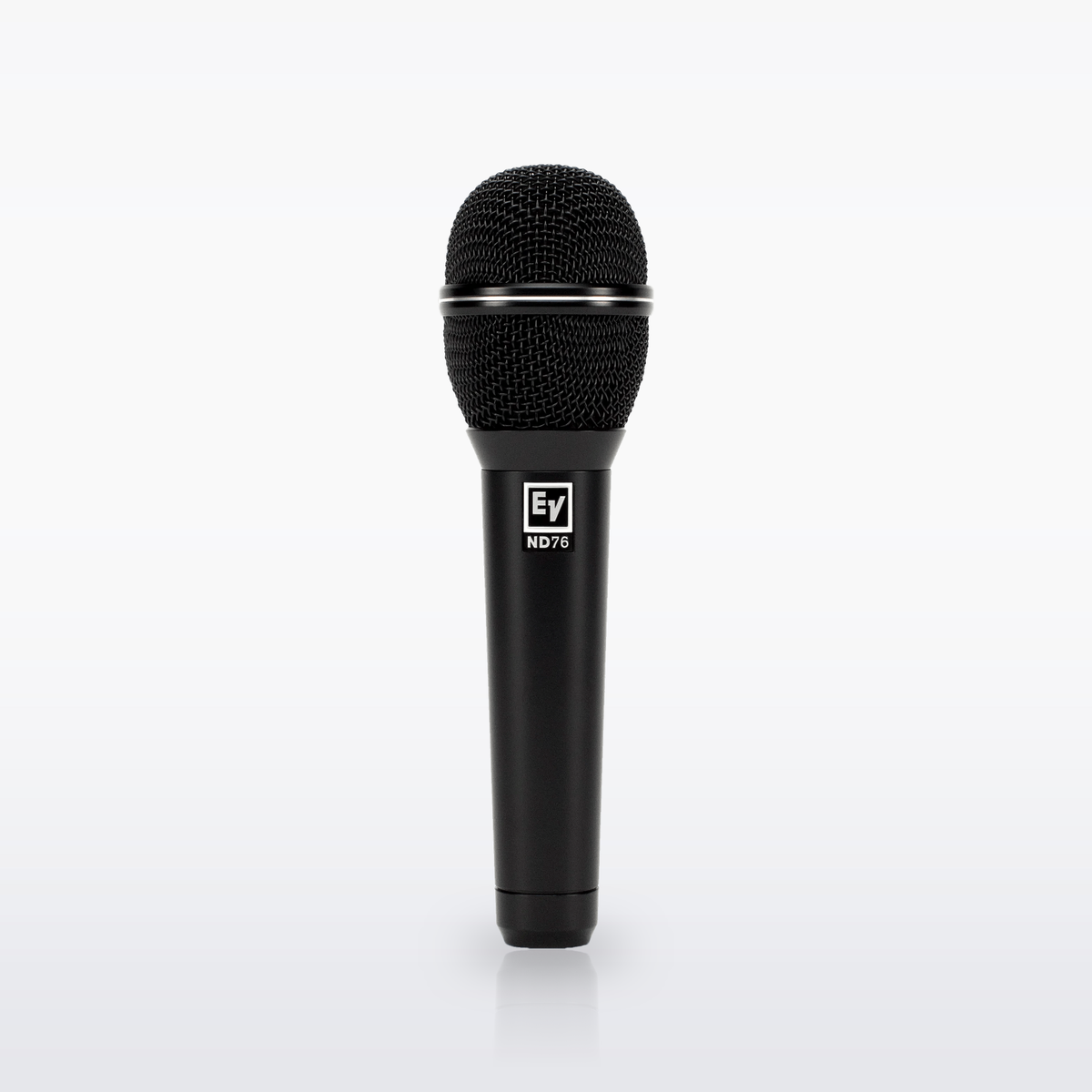

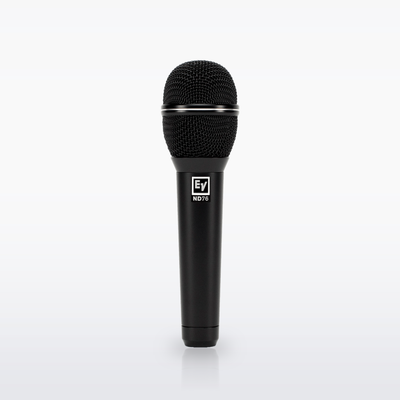

The Electro-Voice ND76 is a wired dynamic cardioid vocal microphone for live and all-around voice use. Its large Mylar diaphragm and tuned capsule give a crisp, clear, balanced vocal sound with good isolation from the rest of the stage.

A 4-point capsule suspension with a tuned pneumatic pump reduces handling noise, a humbucking coil guards against hum from nearby equipment, and a tight-mesh Memraflex grille resists denting. It connects with a standard 3-pin XLR cable and comes with a stand clip, Euro thread adapter and gig bag.

Key Features

• Tuned cardioid capsule for crisp, balanced vocal presence and stage isolation
• Large Mylar diaphragm for a rich, detailed response and fast transients
• 4-point shock mount and tuned pneumatic pump for low handling noise
• Humbucking coil reduces AC hum and electromagnetic interference
• Hydrophobic cloth membrane keeps moisture and debris off the diaphragm
• Durable tight-mesh Memraflex grille; replacement grille and transition ring available
• Close response from 30 Hz to 17 kHz

Specifications

• Element: dynamic, neodymium magnet structure
• Polar pattern: cardioid
• Frequency response: 30 Hz–17 kHz (close), 70 Hz–17 kHz (far)
• Sensitivity (open circuit voltage at 1 kHz): 2.4 mV/Pa
• Impedance: 350 ohms balanced (low-Z)
• Maximum SPL: 140 dB
• Polarity: pin 2 positive with respect to pin 3 for positive pressure on the diaphragm
• Connector: 3-pin XLR
• Materials: zinc die-cast handle, Memraflex grille screen; black polyurethane paint
• Dimensions: 182.5 mm (7.2") long; 50.5 mm (2.0") diameter; 24.3 mm (0.96") shank
• Weight: 323 g (11.4 oz)

What's in the Box

• 1 x ND76 microphone
• 1 x gig bag
• 1 x stand clip
• 1 x Euro thread adapter
• 1 x Engineering data sheet
• 1 x Warranty and product documentation card
