MG06X

Description

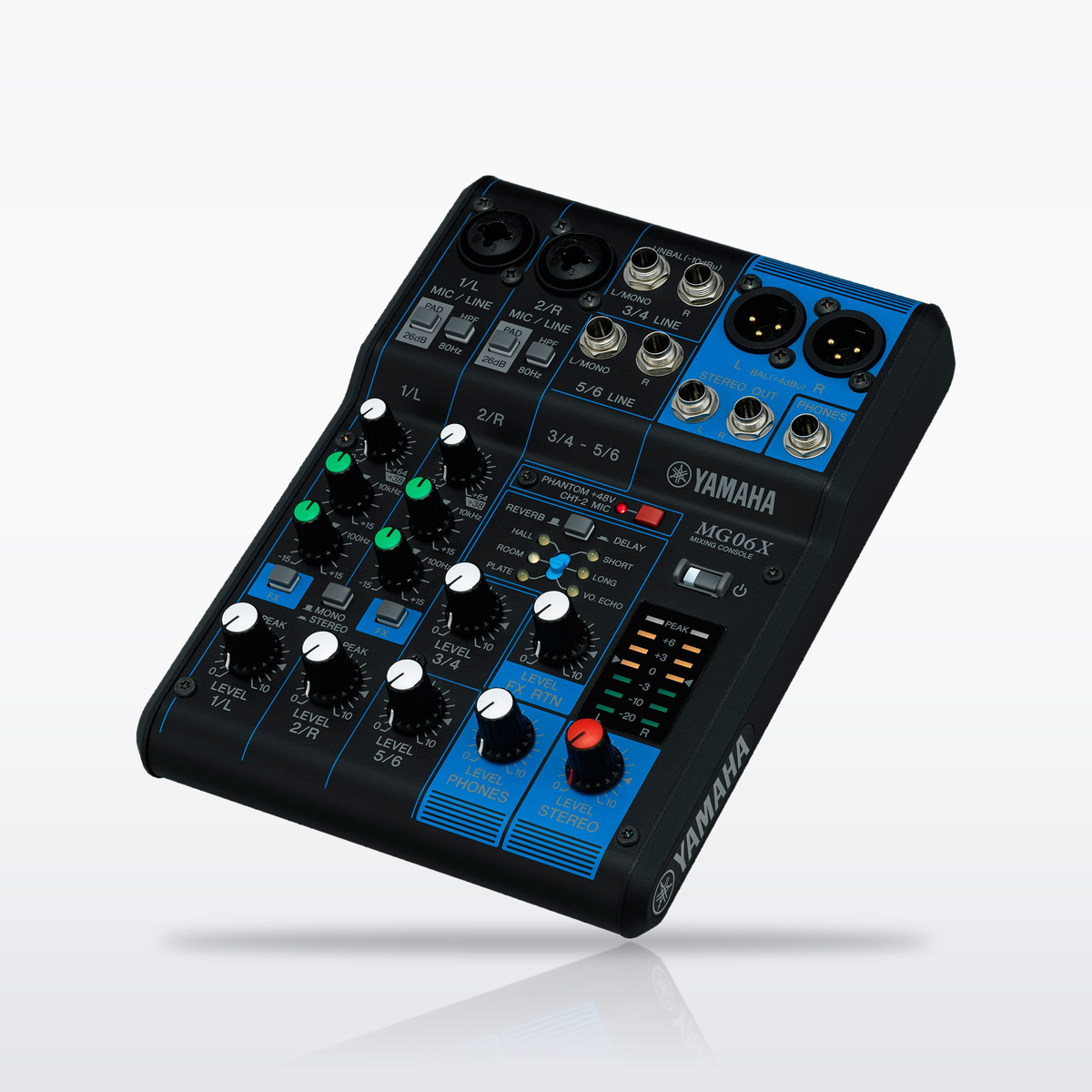

The MG06X is a compact 6-channel analog mixer with built-in SPX digital effects. It takes up to 2 mics or 6 line sources across 2 mono and 2 stereo channels, with D-PRE mic preamps, a 26 dB pad and 80 Hz high-pass filter on the mono inputs, and balanced XLR main outputs. It runs from an external AC adapter and suits small gigs, podcasts and rehearsals.

Key Features

• 6 channels: up to 2 mic or 6 line inputs (2 mono + 2 stereo)
• 1 stereo bus
• D-PRE discrete class-A mic preamps with an inverted Darlington circuit
• SPX effects with 6 preset programs: hall, room and plate reverb; short and long delay; vocal echo
• 26 dB pad and 80 Hz high-pass filter on mono inputs
• +48 V phantom power
• Balanced XLR main outputs
• Powder-coated metal chassis

Specifications

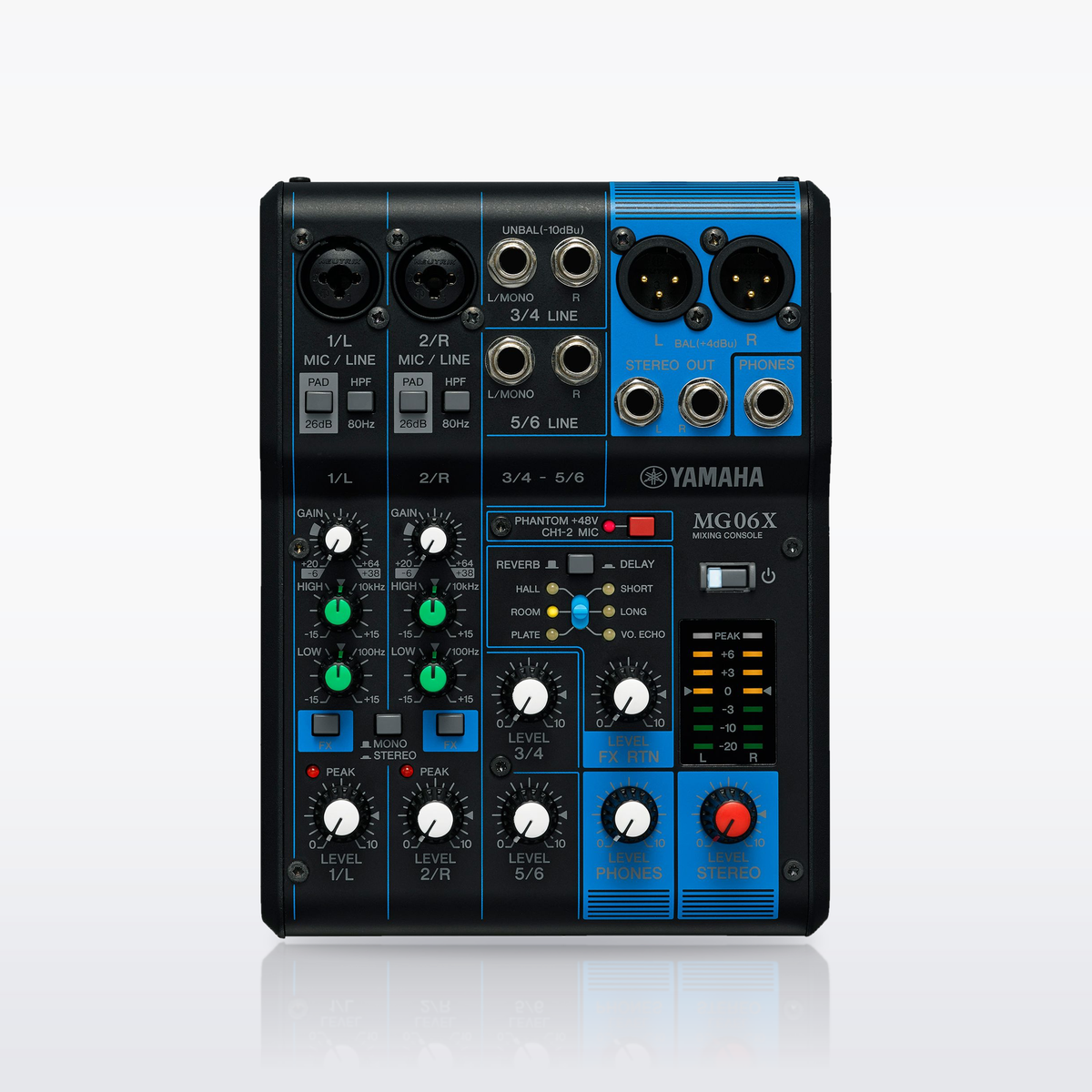

• Input channels: 2 mono (mic/line), 2 stereo (line)
• Mic inputs: XLR/TRS combo jacks on channels 1 and 2

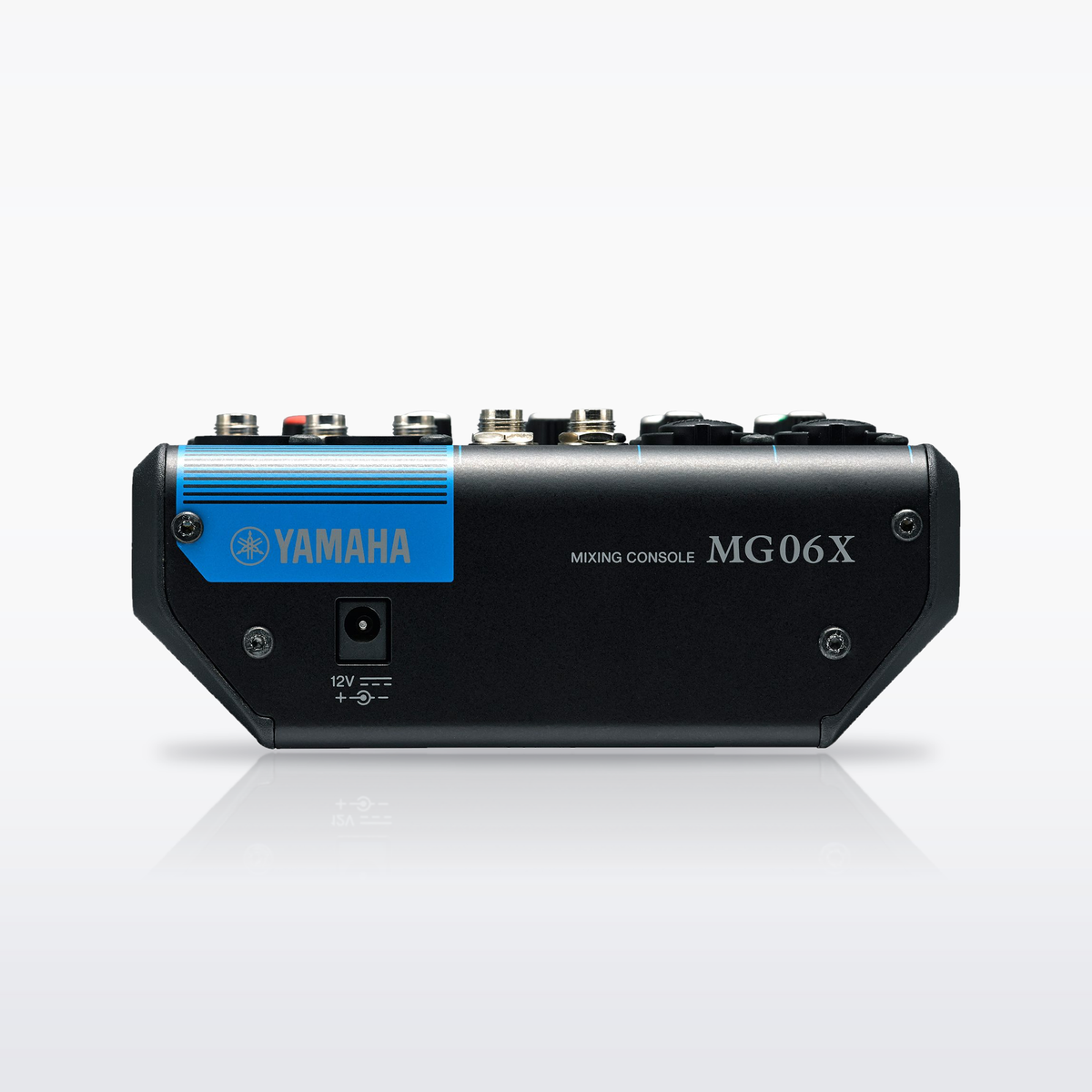

• Outputs: stereo out (XLR and 1/4" TRS, balanced); phones (1/4" stereo)
• Buses: stereo 1
• Channel EQ: 2-band on mono channels, ±15 dB (high 10 kHz shelving, low 100 Hz shelving)
• High-pass filter: 80 Hz, 12 dB/oct (mono channels)
• Pad: 26 dB (mono channels)
• Phantom power: +48 V
• Effects: SPX, 6 programs (not editable)
• Frequency response: +0.5/−0.5 dB, 20 Hz–20 kHz
• Equivalent input noise: −128 dBu
• Total harmonic distortion: 0.01% at +8 dBu (20 Hz–20 kHz); 0.003% at +18 dBu (1 kHz)
• Power: external AC adapter (Yamaha PA-130, DC 12 V, 1.0 A, for 120 V); 12 W consumption
• Dimensions (W x H x D): 149 x 62 x 202 mm (5.9" x 2.4" x 7.9")
• Net weight: 0.9 kg (1.98 lb)
• Optional accessories: BMS-10A mic stand adapter

What's in the Box

• 1 x MG06X mixing console
• 1 x AC adapter
• 1 x Owner's manual
• 1 x Technical specifications sheet
