DM-50D-BT

Description

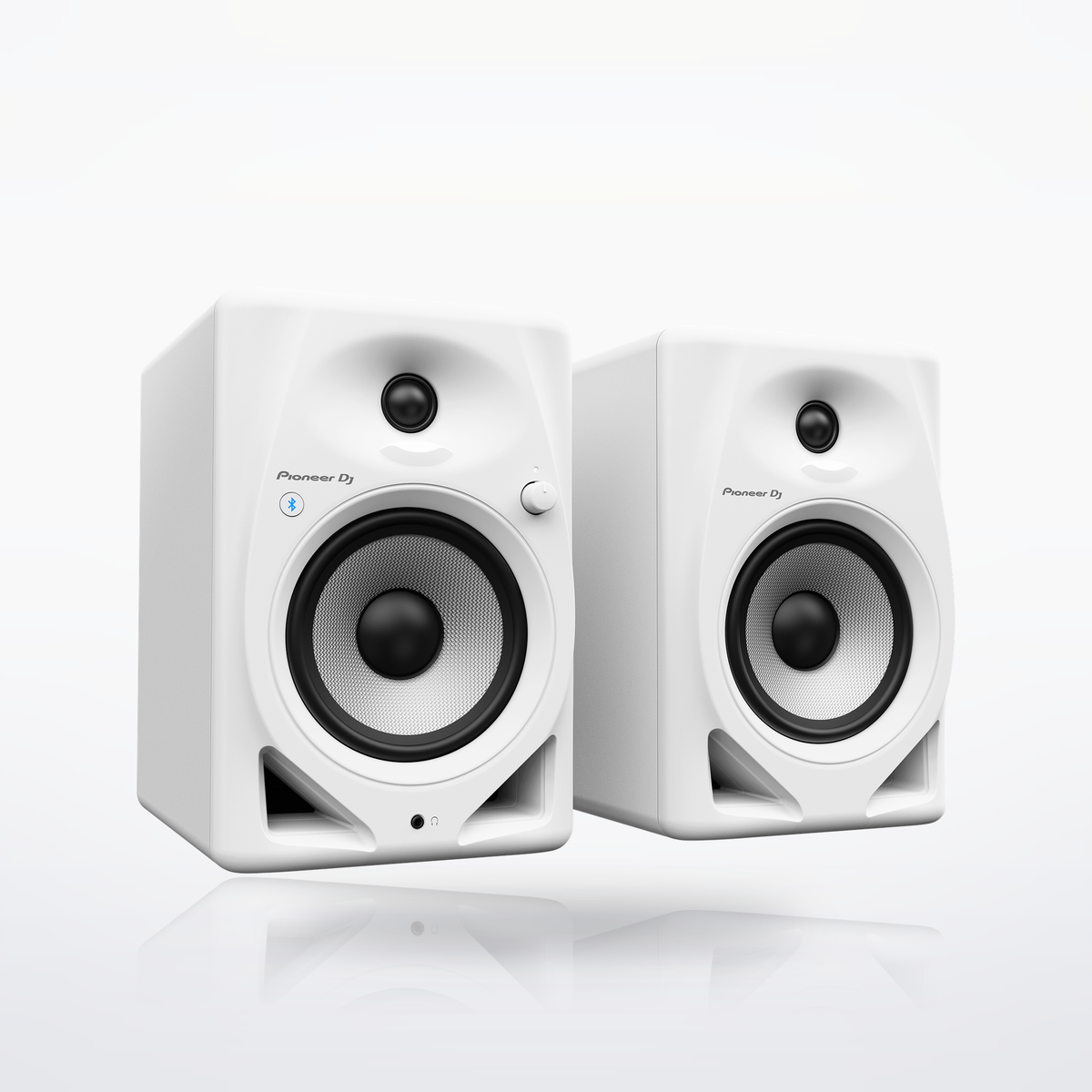

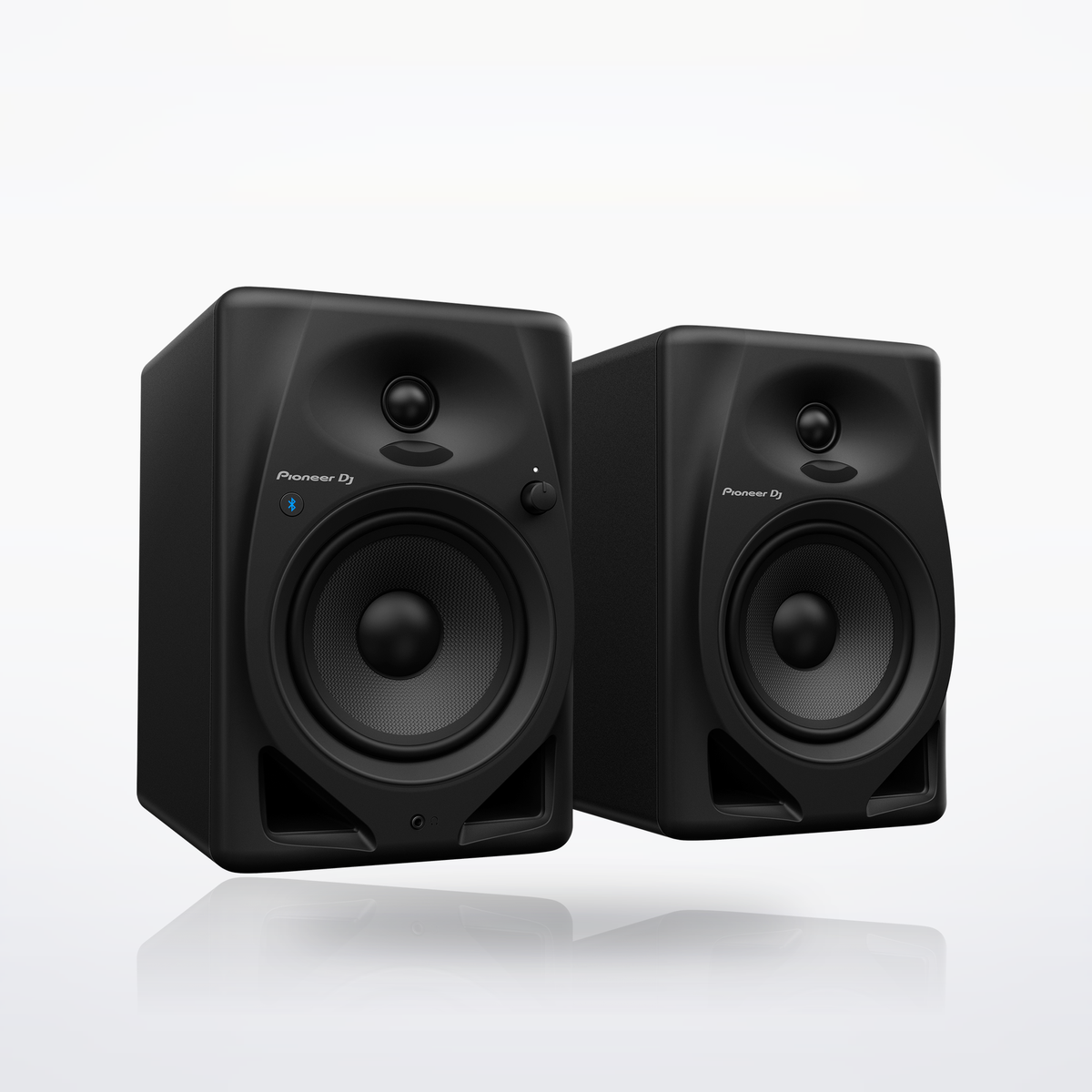

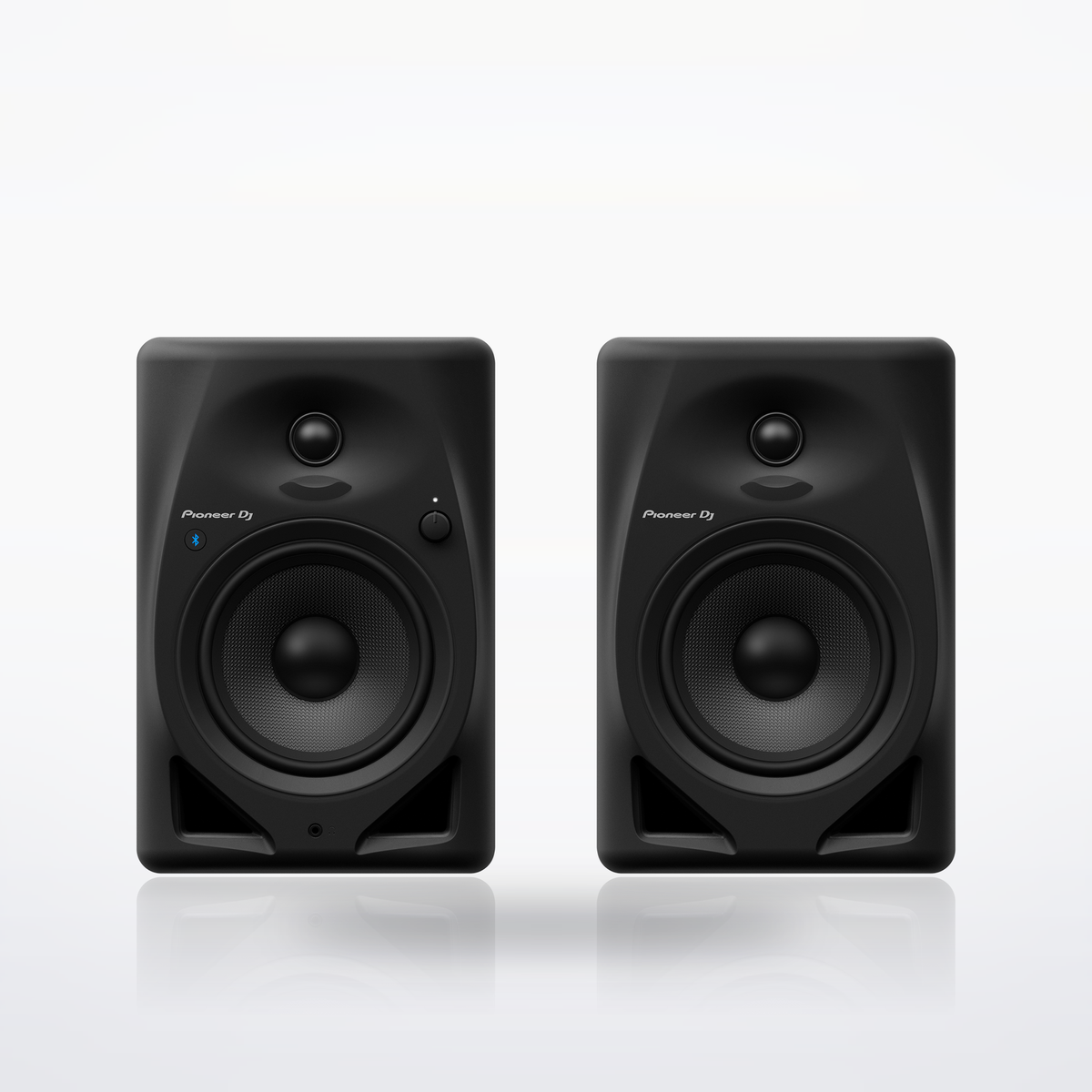

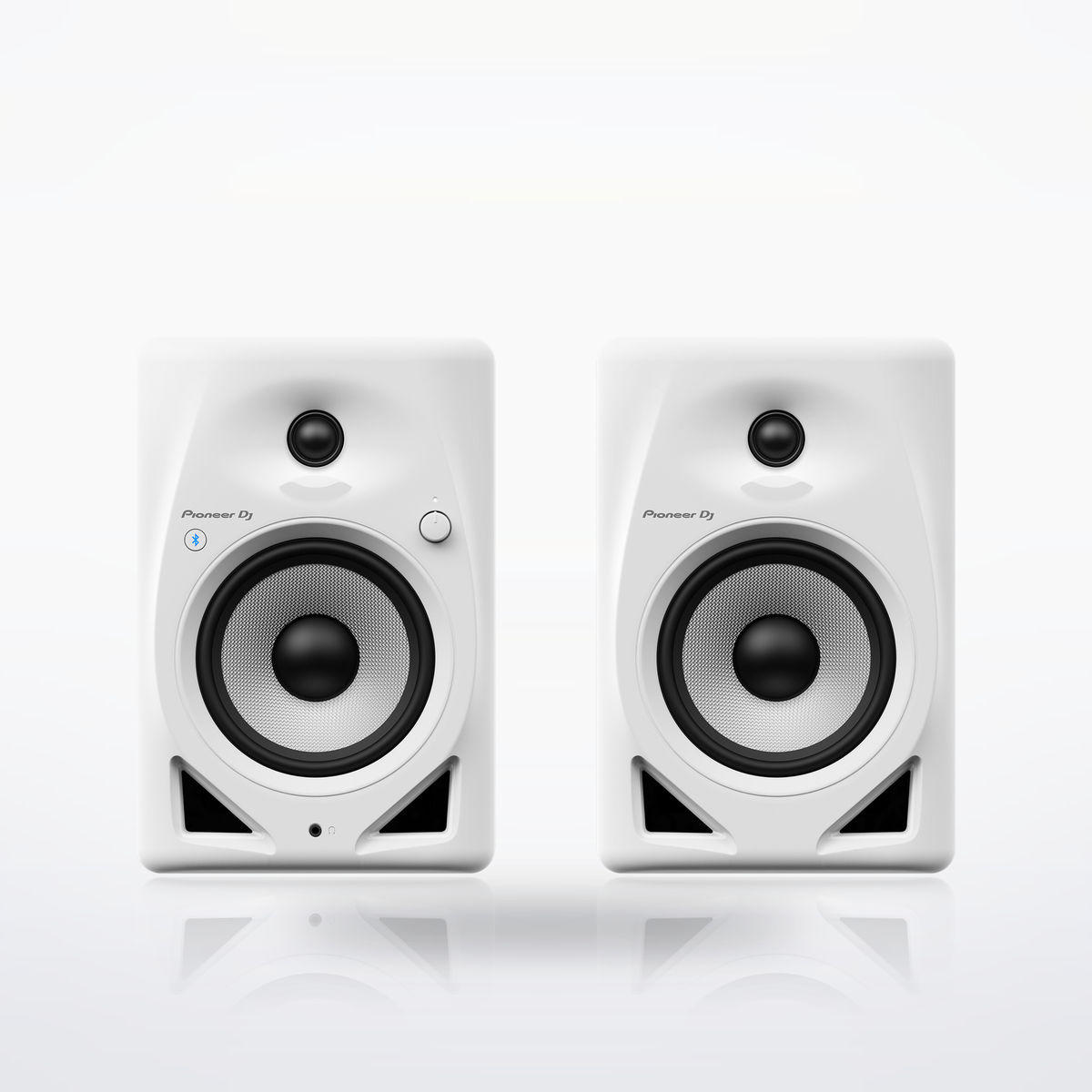

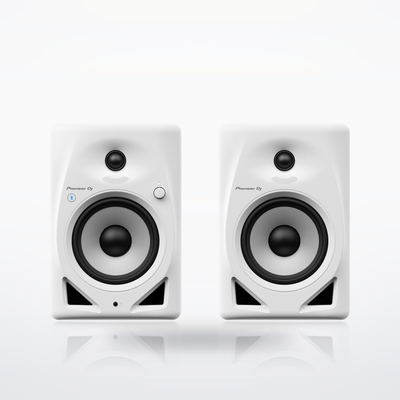

The DM-50D-BT is the DM-50D pair with Bluetooth added: 5-inch desktop monitor speakers from Pioneer DJ for DJing and music production at home that also play music wirelessly from a phone, tablet or computer. A SOUND MODE switch on the back sets the tuning: DJ mode for a punchy sound when you mix, Production mode for a flat response that accurately reproduces what you send it. The left speaker has the inputs and the power connection, and it drives the right speaker through the included speaker cord. Balanced 1/4-inch TRS inputs join the RCA and 3.5 mm inputs, so it takes a DJ controller, a mixer, a computer or an audio interface. On the front are the LEVEL knob, a headphone jack and a pairing button that also plays and pauses your Bluetooth music.

Key Features

• Sold as a pair: left (powered) and right speaker
• Bluetooth 5.0 with SBC, AAC, Qualcomm aptX and aptX Low Latency; the front pairing button also plays and pauses
• SOUND MODE switch: DJ mode for a punchy sound, Production mode for a flat response
• 5" glass fiber woofer and 3/4" soft dome tweeter in each speaker, time-aligned
• Class D amplifier with 96 kHz DSP, 25 W + 25 W
• DECO convex diffusers spread the high frequencies for a wide sweet spot
• Grooved bass reflex ducts keep the bass tight, even with the speakers against a wall

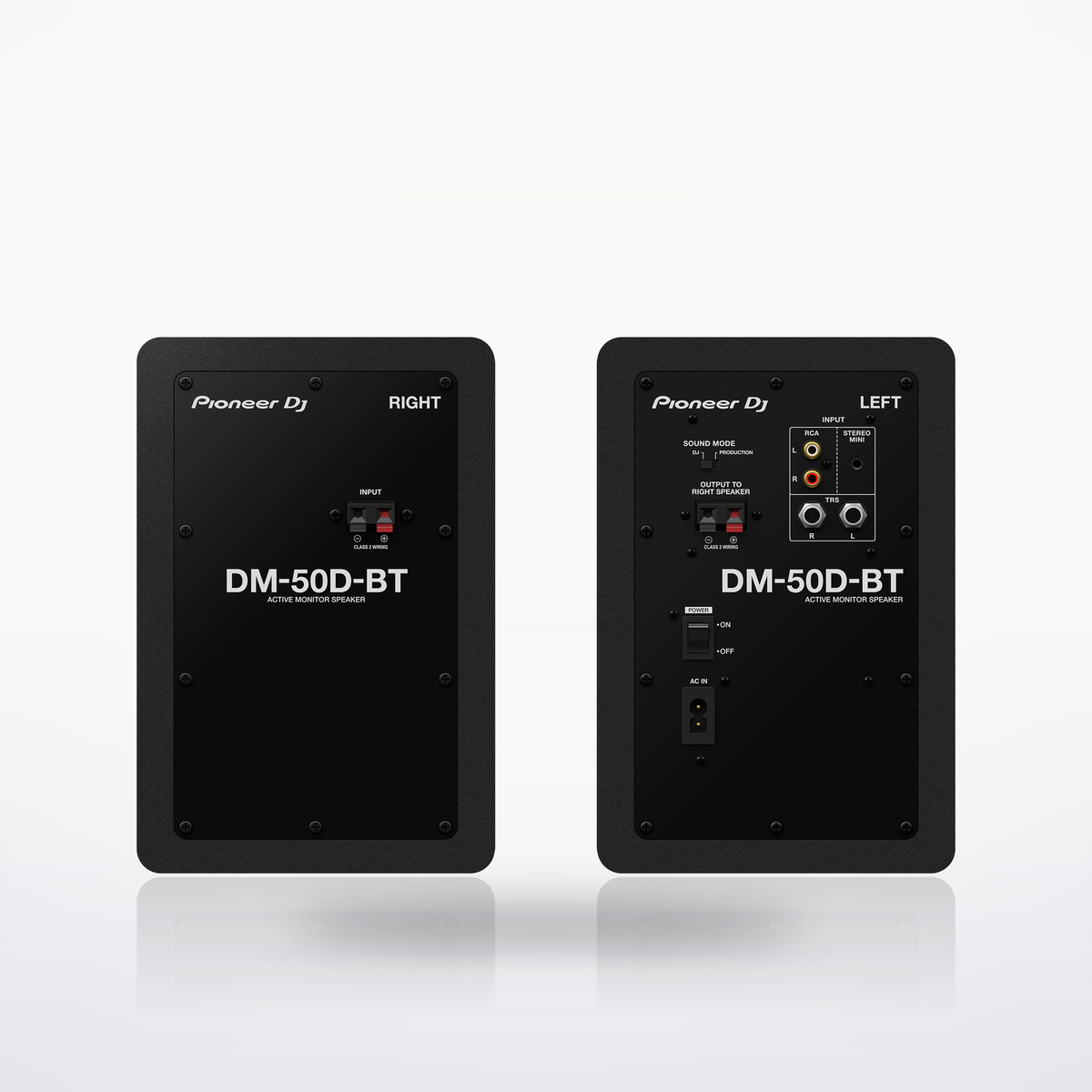

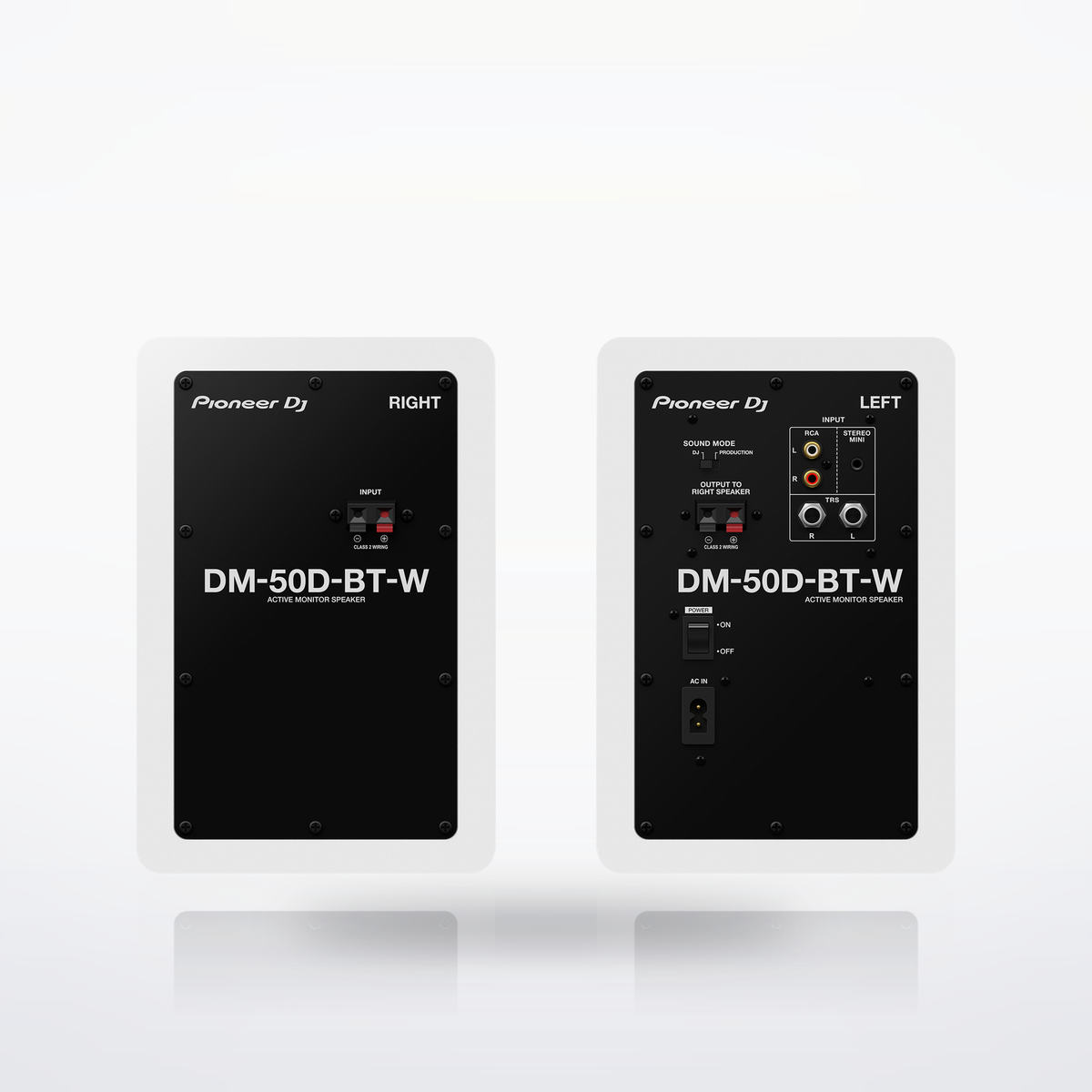

• Balanced TRS, RCA, 3.5 mm and Bluetooth inputs, all live at once (their signals are mixed)
• LEVEL knob and 3.5 mm headphone jack on the front; plugging in headphones mutes the speakers

Specifications

• Type: 2-way active speaker, bass reflex
• Packaging: Pair (left and right)
• Woofer: 5" (127 mm) glass fiber cone
• Tweeter: 3/4" (19 mm) soft dome
• Amplifier: Class D with DSP, 25 W + 25 W (4 Ω)
• Frequency range: 55 Hz–22 kHz (-10 dB)
• Maximum sound pressure: 106 dB (at 1 m, calculated peak)
• Inputs (balanced): 1/4" TRS (L/R)
• Inputs (unbalanced): RCA (L/R), 3.5 mm stereo mini jack
• Input impedance: 10 kΩ
• Output: 3.5 mm stereo mini headphone jack
• Sound modes: DJ, Production
• Bluetooth: version 5.0; A2DP and AVRCP; SBC, AAC, Qualcomm aptX and aptX Low Latency codecs; about 10 m (33 ft) range with nothing in the way
• Auto standby: after about 20 minutes with no sound, even with Bluetooth connected (this ends the Bluetooth connection); wakes when a signal comes in or the pairing button is pressed; cannot be turned off
• Power: AC 110–240 V, 50/60 Hz
• Power consumption: 25 W; 0.2 W in standby
• Cabinet: MDF, vinyl laminate
• Dimensions (W x H x D): left 175 x 262 x 257 mm (6.89" x 10.32" x 10.12"); right 175 x 262 x 247 mm (6.89" x 10.32" x 9.72")
• Weight: left 3.9 kg (8.6 lb); right 3.5 kg (7.7 lb)
• Colors: Black (DM-50D-BT) or white (DM-50D-BT-W)

What's in the Box

• 1 x DM-50D-BT left speaker
• 1 x DM-50D-BT right speaker
• 1 x Speaker cord (links the two speakers)
• 1 x Audio cable, 3.5 mm stereo mini plug to RCA
• 1 x Power cord
• 2 x Sheets of bottom cushions (4 per sheet)
• 1 x Quick Start Guide
• 1 x Precautions for Use (with the North American warranty)
