HS5I

Description

The HS5I is the installation version of Yamaha's HS5 powered studio monitor: a 2-way bi-amplified nearfield monitor with a 5" cone woofer and a 1" dome tweeter, plus bracket mounting points on all four sides for wall or ceiling installation. It is sold individually (one speaker). Brackets are optional and sold separately; the two screws needed to attach a bracket are included. Installation should be done by a professional, with a safety wire.

Key Features

• 2-way bass-reflex bi-amp design with a 5" cone woofer and 1" dome tweeter
• 70 W total amplification (LF 45 W, HF 25 W)
• 54 Hz–30 kHz frequency response (-10 dB)

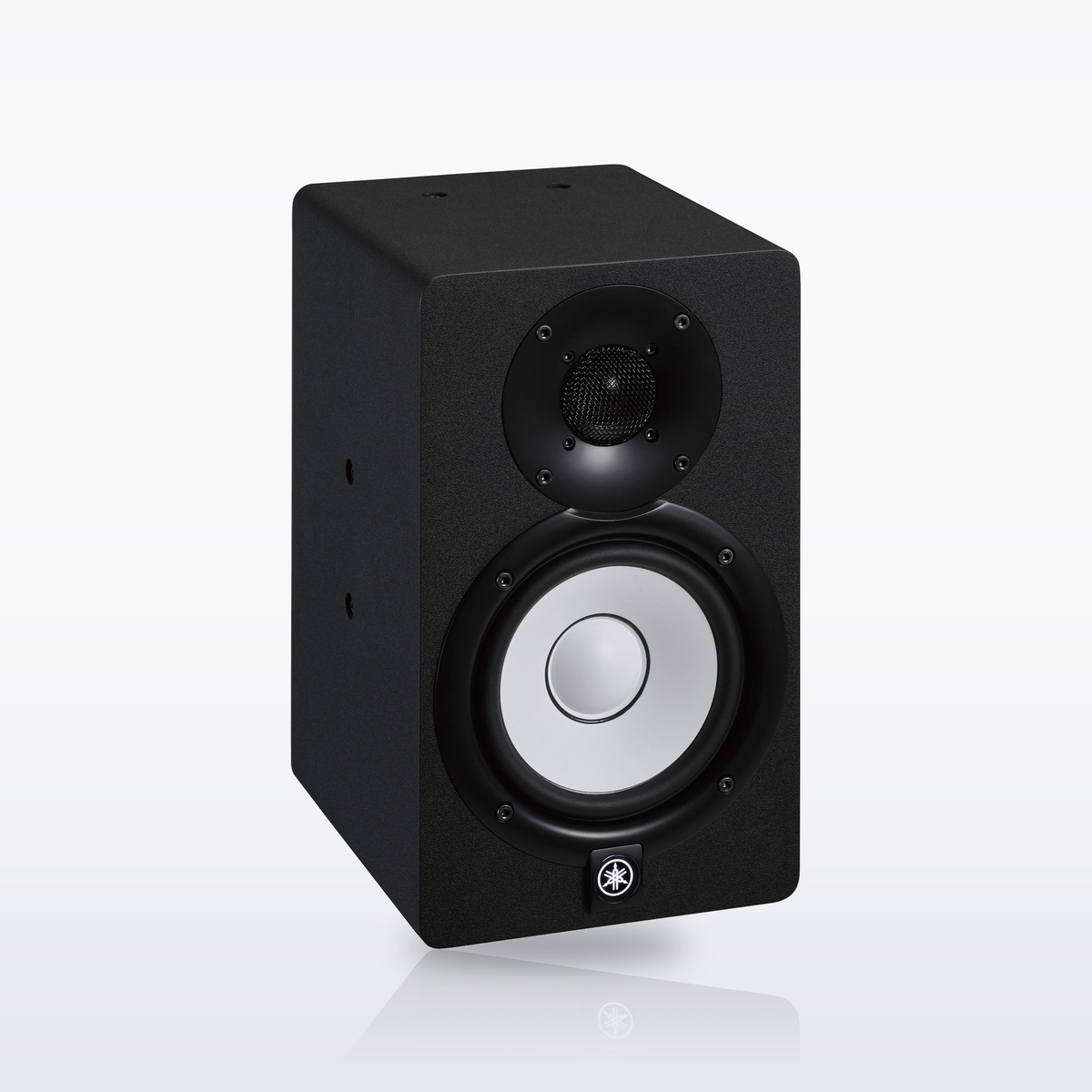

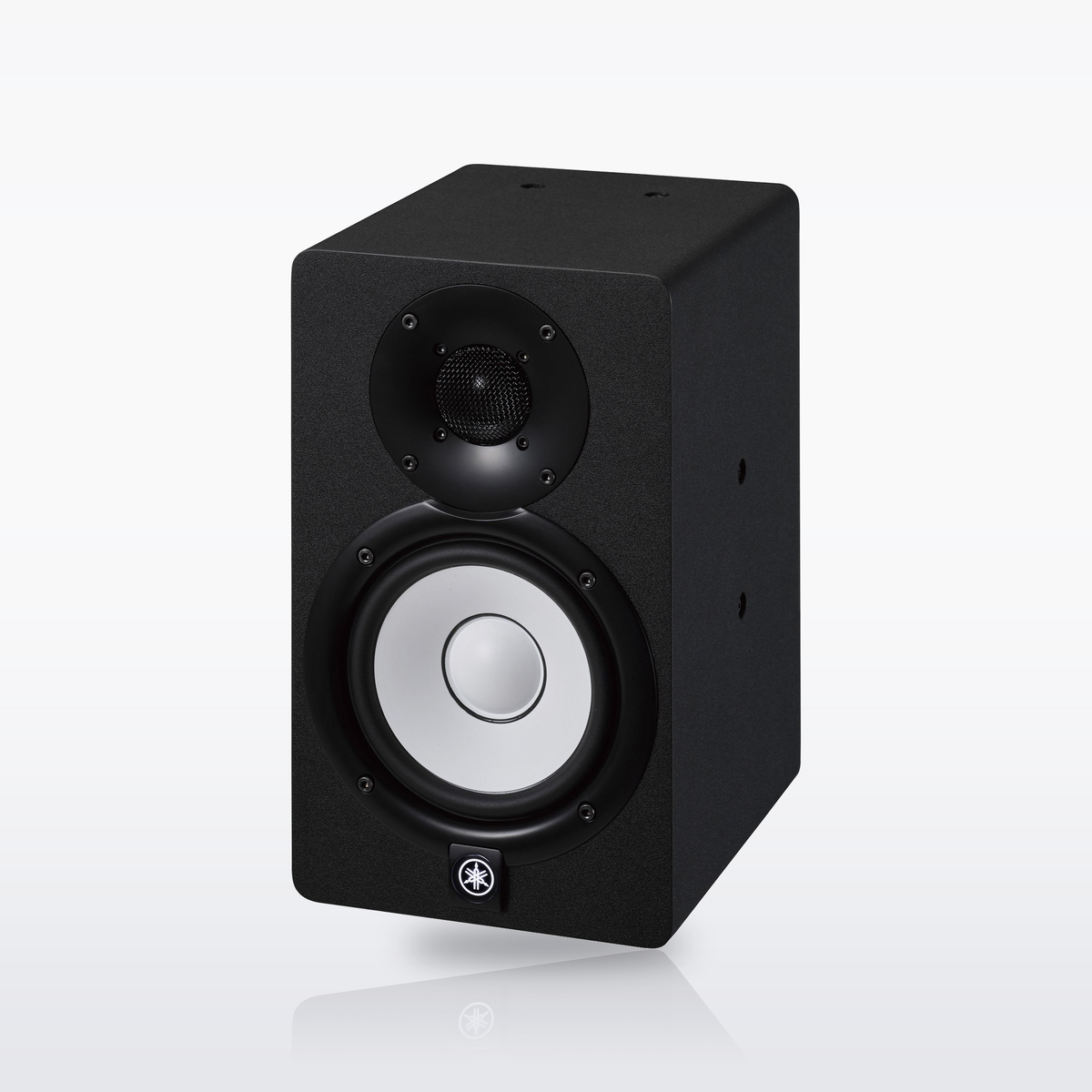

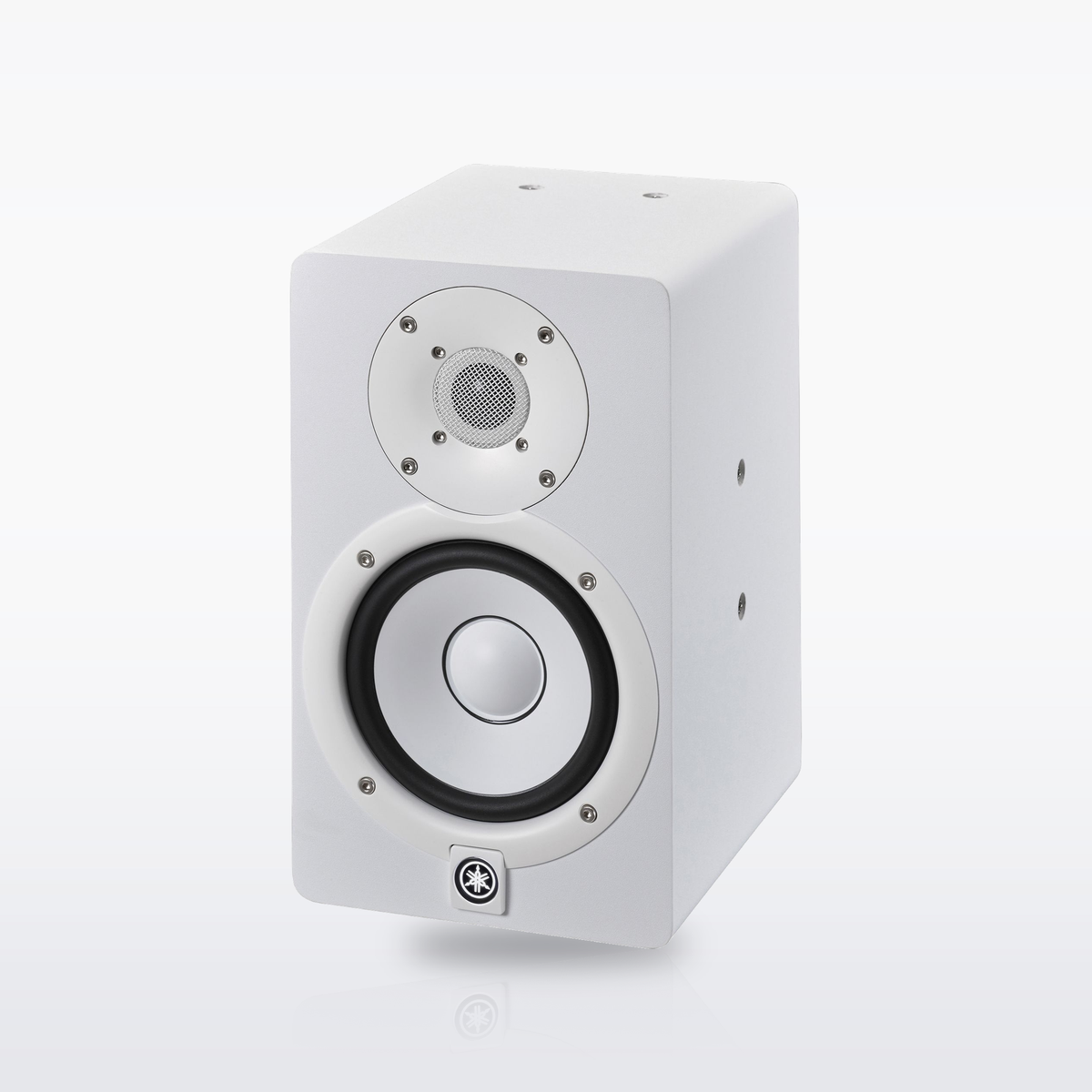

• Mounting points: 2 x M5 on each of four surfaces (top, bottom, left, right), 60 mm pitch
• XLR and TRS phone inputs accept balanced or unbalanced signals (use one input at a time)
• ROOM CONTROL and HIGH TRIM switches plus a LEVEL control to match the room
• Sold individually

Specifications

• Type: 2-way bi-amp powered studio monitor, bass-reflex
• Packaging: Single
• Frequency response (-10 dB): 54 Hz–30 kHz
• Frequency response (-3 dB): 74 Hz–24 kHz
• Drivers: LF 5" cone, HF 1" dome
• Crossover: 2 kHz
• Output power: 70 W (LF 45 W, HF 25 W)
• Inputs:
  1 x XLR3-31 (balanced),
  1 x TRS phone (balanced)
• Input sensitivity: -10 dBu / 10 kΩ
• Controls: LEVEL (+4 dB at center click); ROOM CONTROL (0/-2/-4 dB below 500 Hz); HIGH TRIM (±2 dB at HF)
• Indicator: Power on (white LED)
• Power consumption: 45 W
• Cabinet: MDF
• Mounting points: Four surfaces x 2 x M5 (60 mm pitch)
• Optional brackets (sold separately): K&M 19440 wall/ceiling bracket
• Dimensions (W x H x D): 170 x 285 x 222 mm (6-11/16" x 11-1/4" x 8-3/4")
• Weight: 5.5 kg (12.1 lb)

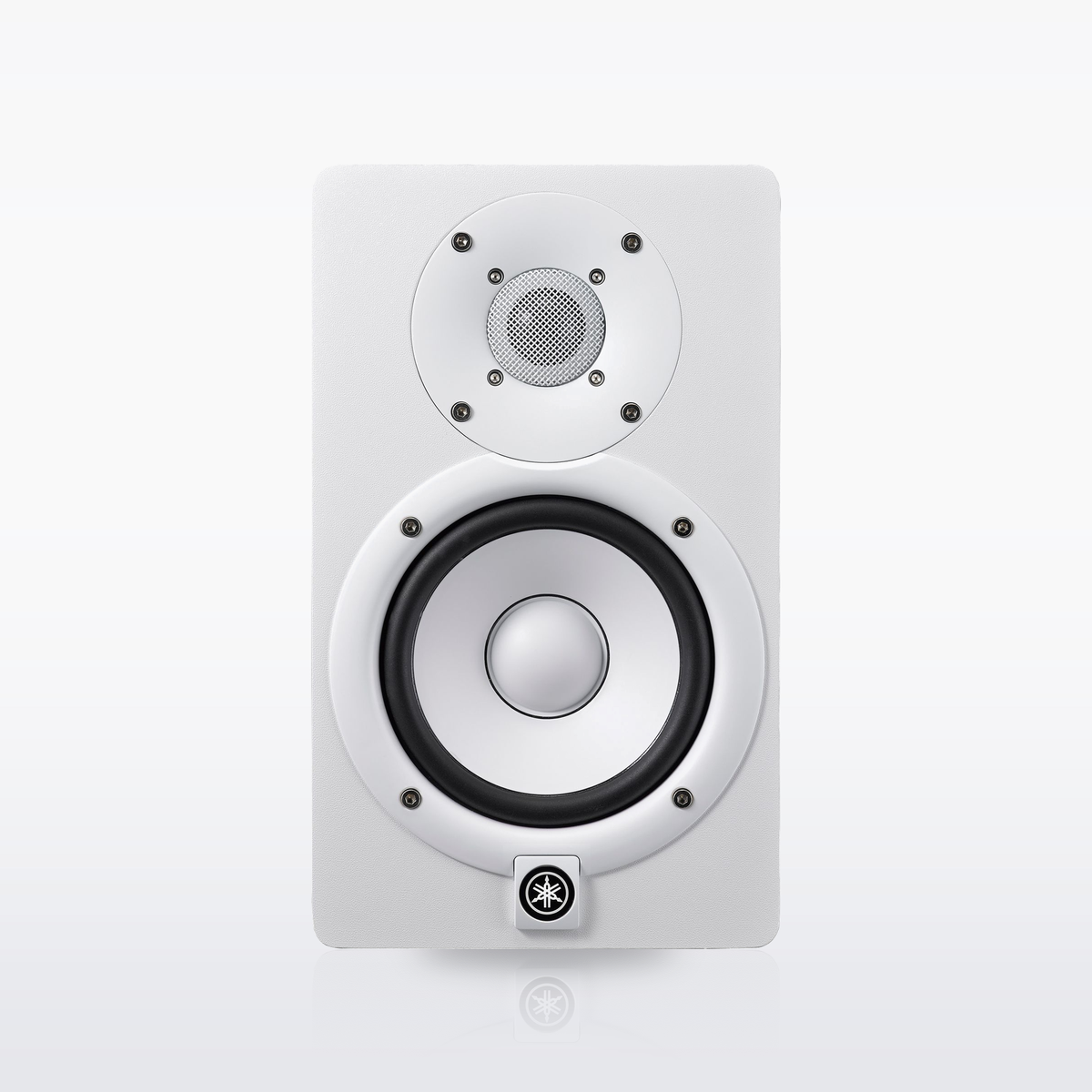

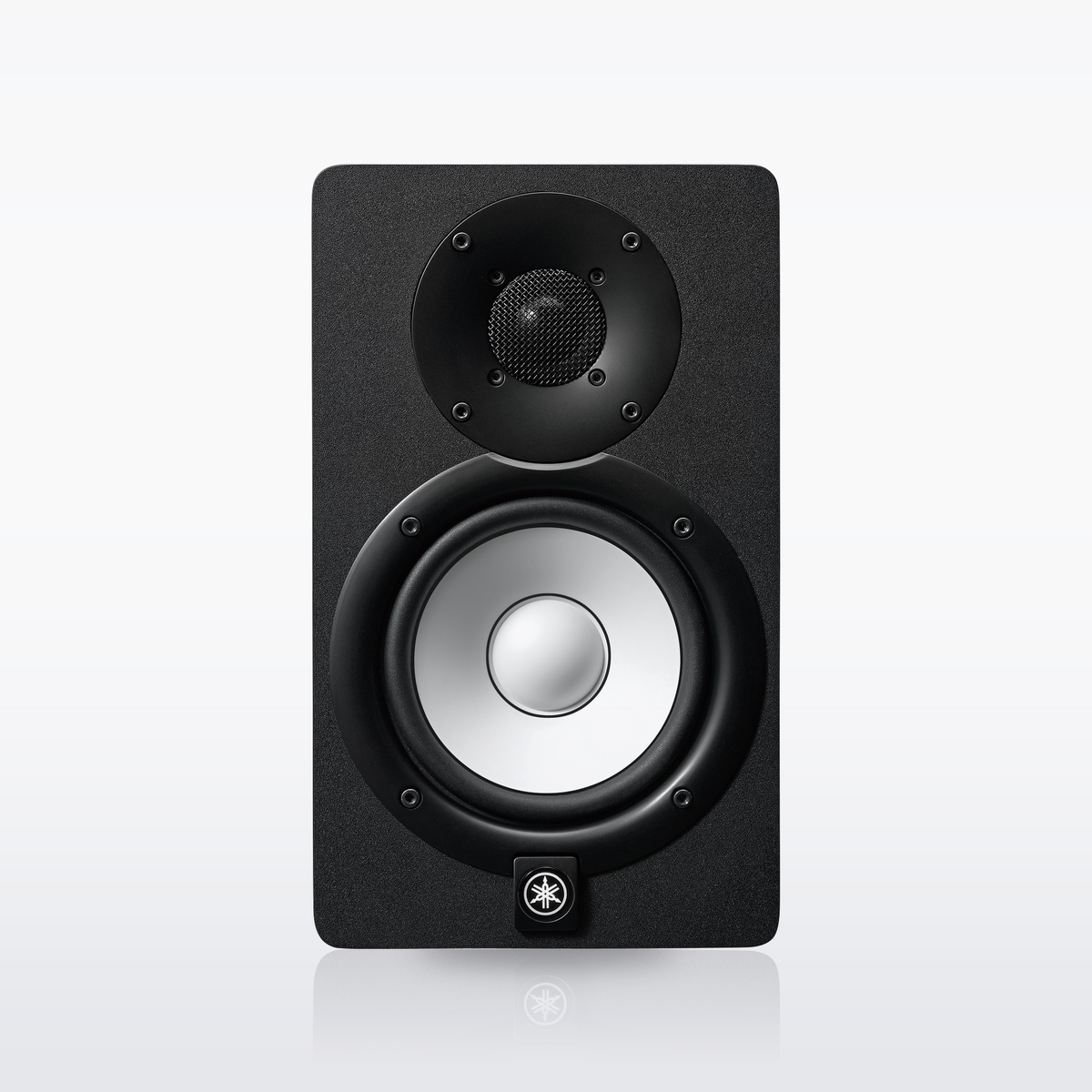

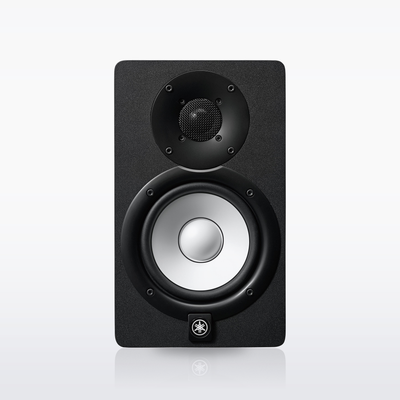

• Colors: Black or white

What's in the Box

• 1 x HS5I powered studio monitor
• 1 x Power cord
• 2 x Screws for bracket installation
• 1 x Owner's manual
