UR22MK3

Description

The UR22MK3 is a 2-in/2-out USB-C audio interface with two mic/line combo inputs and +48 V phantom power for a stereo pair of microphones, plus a guitar jack on input 2 for an electric guitar or bass. Record a vocal on input 1 and a guitar at the same time; plugging into the guitar jack turns off the MIC/LINE 2 combo input. It records and plays back at up to 24-bit/192 kHz, has direct monitoring (mono or stereo) and a loopback function for live streaming, and comes with Cubase AI and Steinberg Plus license cards. It is bus-powered from a computer, with a separate USB-C power input for iPhone/iPad use.

Key Features

• 2 mic/line combo inputs with +48 V phantom power
• Guitar (Hi-Z) jack on input 2; using it turns off the MIC/LINE 2 combo input
• 24-bit/192 kHz recording and playback over USB-C
• Direct monitoring sends the inputs straight to the line and headphone outputs without going through the computer; mono or stereo monitoring selectable
• Loopback mixes your mic/guitar with computer playback and sends it back to the computer for live streaming
• Separate main and headphones volume controls
• Mute switches on both inputs
• Bus-powered from a computer over USB-C; a separate 5 V DC IN USB-C port takes a USB power adapter or battery (not included) for devices that do not supply enough bus power, such as iPhone/iPad
• Works with iPhone/iPad (Apple accessories may be required; Lightning models need the Apple Lightning to USB 3 Camera Adapter)
• Cubase AI and Steinberg Plus license cards included

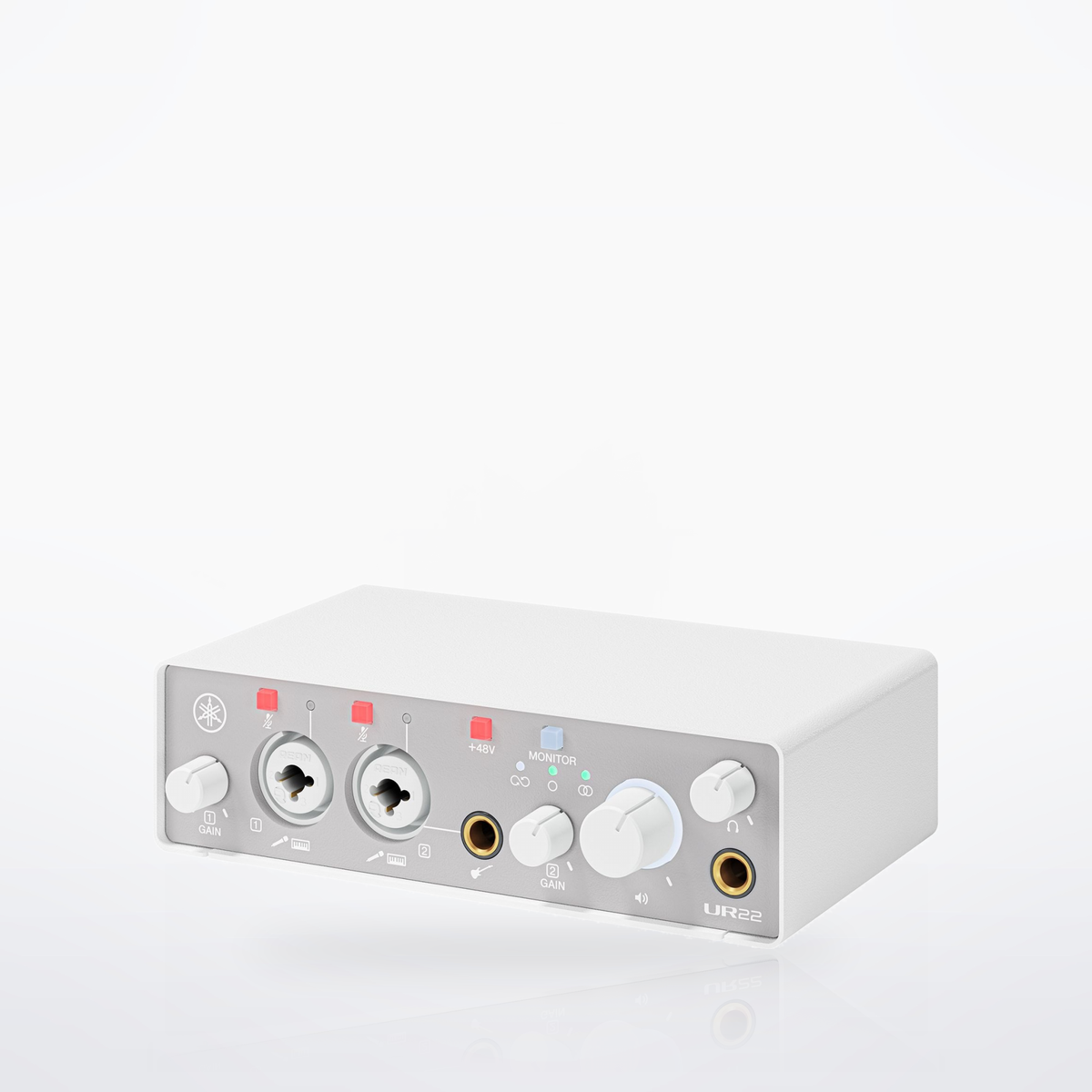

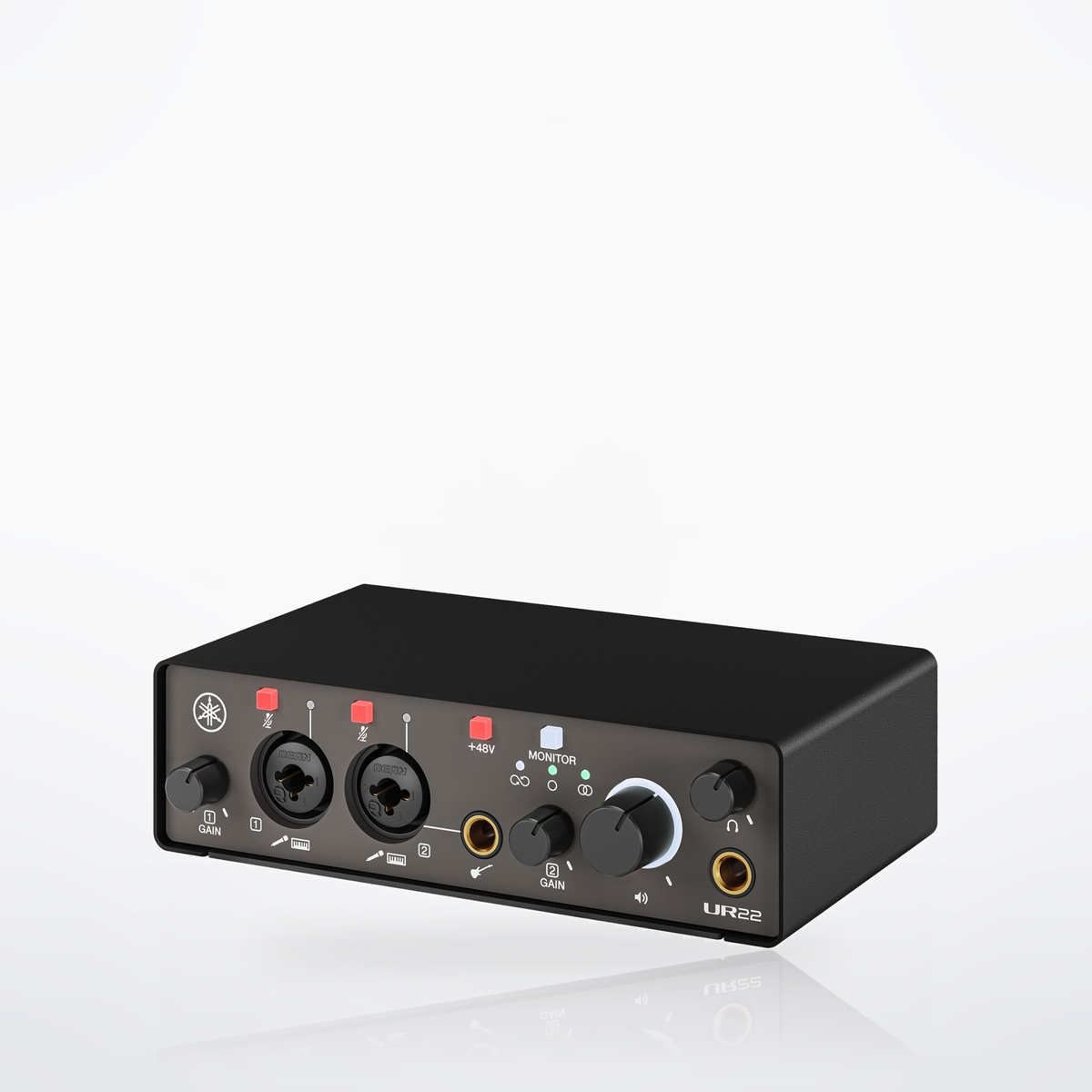

• Available in black or white

Specifications

• Analog inputs: 2 mic/line combo (XLR/TRS), 1 guitar (Hi-Z, 1/4" unbalanced) shared with input 2
• Mic inputs 1/2: gain range +6 dB to +60 dB, max. input +6 dBu, impedance 3 kΩ, EIN −128 dBu
• Line inputs 1/2: gain range −12 dB to +42 dB, max. input +24 dBu, impedance 12 kΩ
• Hi-Z input 2: gain range 0 dB to +54 dB, max. input +9.8 dBV, impedance 1 MΩ
• Gain range: 54 dB
• Analog outputs: 2 x 1/4" TRS (impedance balanced), max. +12 dBu
• Headphones:
  1 x 1/4" TRS, 40 mW + 40 mW at 40 Ω
• USB audio: 2 in/2 out, 24-bit, 44.1/48/88.2/96/176.4/192 kHz
• Frequency response: +0.0/−0.3 dB, 20 Hz–20 kHz
• Dynamic range: 106 dB (mic/line/Hi-Z), 107 dB (main output)
• Total harmonic distortion: 0.004% at 1 kHz, 20 kHz LPF (mic/line/Hi-Z and main output)
• Phantom power: +48 V
• Controls: input gain, mute, +48 V, monitor switch, main volume, headphones volume
• Connections: USB Type-C to host (USB 2.0, bus power), USB Type-C 5 V DC IN
• Power: 5 V DC, 0.5 A (2.5 W)
• Dimensions (W x H x D): 158 x 47 x 102 mm (6.2" x 1.9" x 4.0")
• Net weight: 450 g (1.0 lb)
• Colors: black, white

What's in the Box

• 1 x Yamaha UR22MK3 audio interface
• 1 x USB 2.0 cable, USB Type-C to Type-A, 4.9 ft (1.5 m)
• 1 x Cubase AI license card
• 1 x Steinberg Plus license card
• 1 x Setup guide
