EL18S
Elite 18" Powered Subwoofer
In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details
We’ll email you once, when it’s available.
- 15-day returns. Return policy
- Warranty: 2 years · 10 years on wooden enclosure components. Full terms
Is it right for you?
Yorkville's new Elite 18-inch powered sub, made in Canada: 3200 W peak, 140 dB peak, down to 35 Hz.
Great for
- Front-of-house low end
- One sub feeding a stereo pair of tops
Description

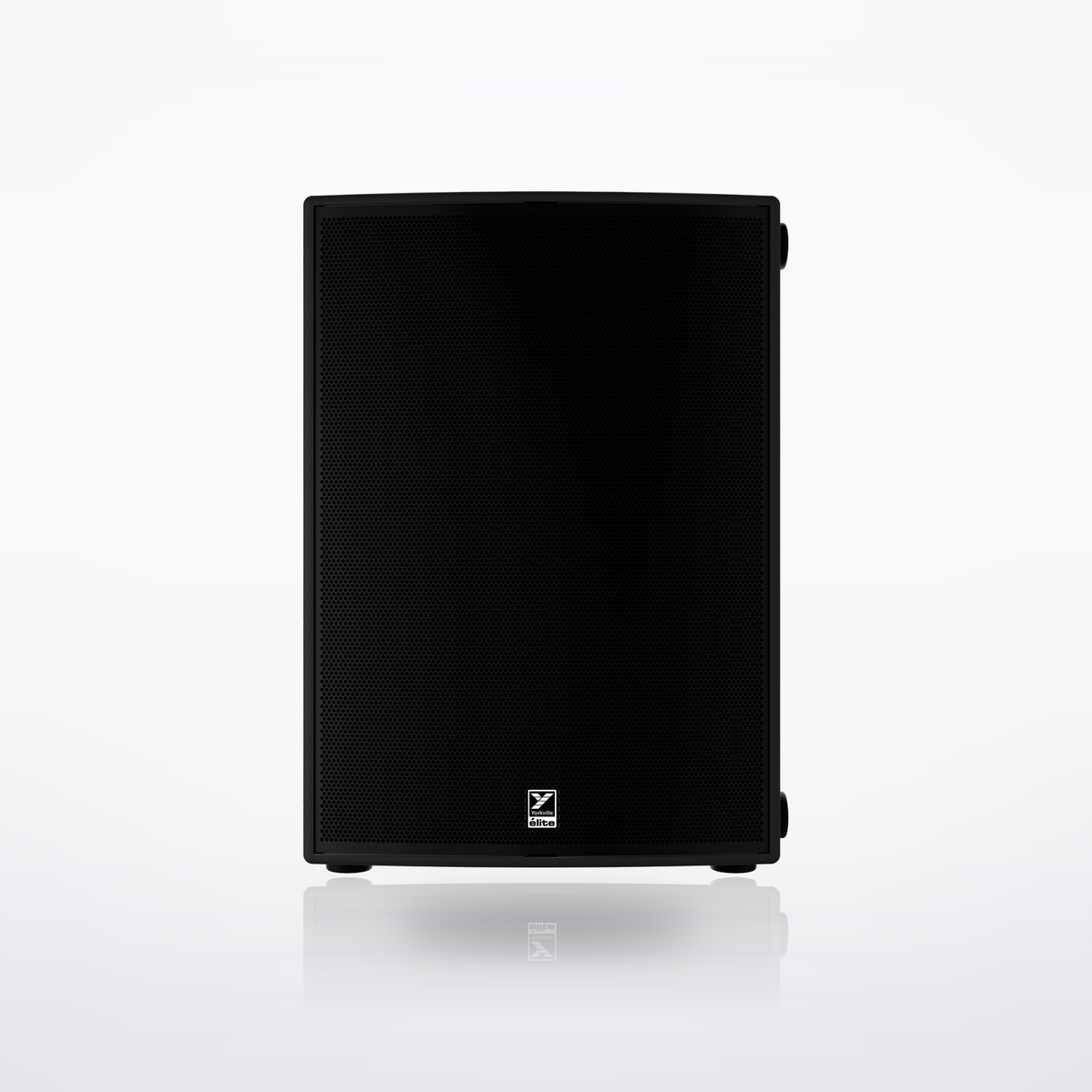

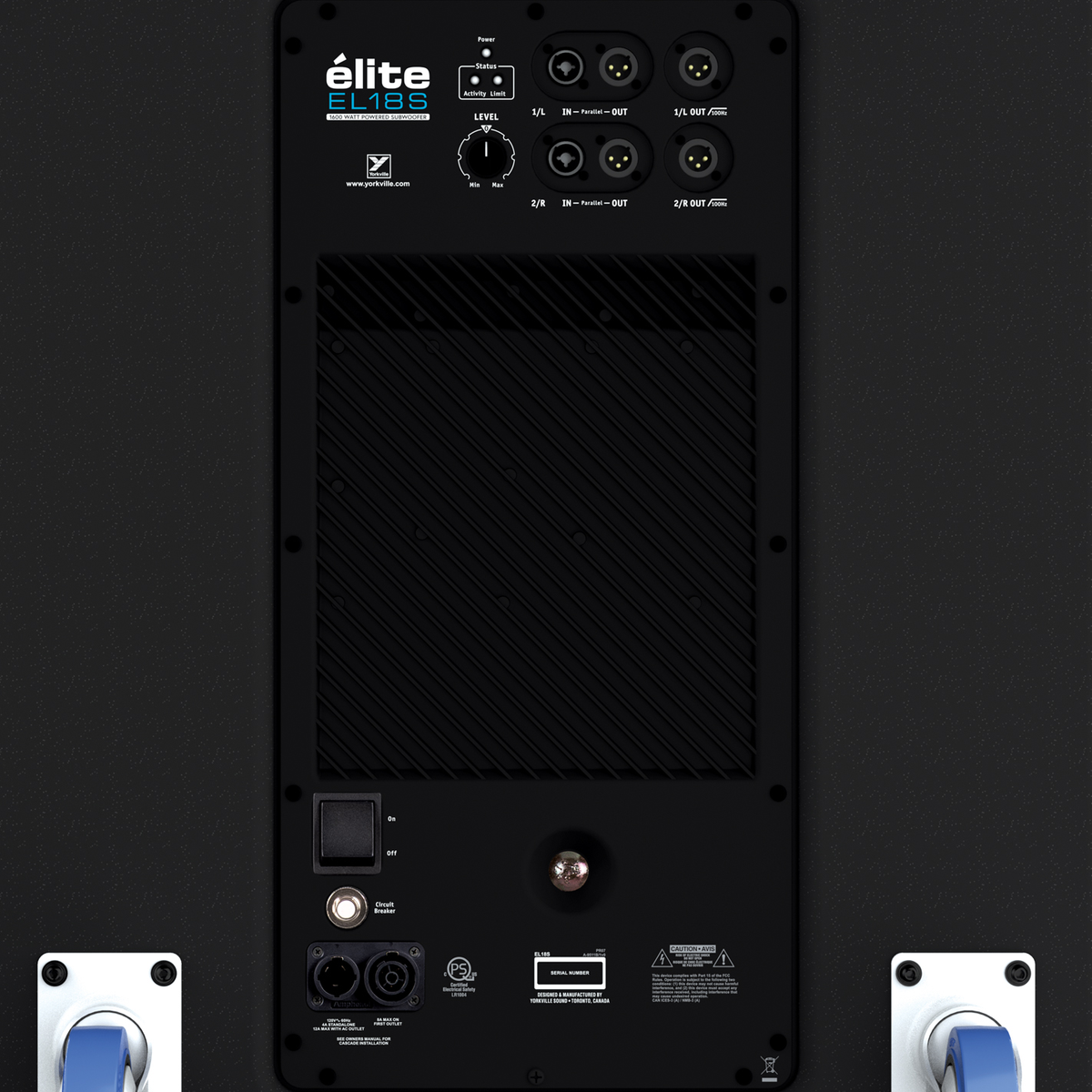

The EL18S is a powered subwoofer from Yorkville's new Élite range, built for front-of-house use and made in Canada. Its 18-inch woofer delivers 3200 watts of peak power (1600 watts program) and reaches down to 35 Hz. The birch cabinet has pole mount adapters on the top and side, and the rear panel has two combo inputs, full-range and high-passed XLR outputs, and powerCON® TRUE1 compatible power in and out.
Key Features
- 3200 W peak power (1600 W program)
- 18" woofer with 4" voice coil
- Onboard limiter
- 2 XLR / 1/4" combo inputs with full-range parallel outputs
- 2 XLR outputs high-passed at 100 Hz
- 15 mm birch plywood construction
- Made in Canada
Specifications
- System type: powered subwoofer
- Power rating: 3200 W peak (1600 W program)
- Max SPL: 140 dB peak (134 dB continuous)
- Frequency response (±3 dB): 35 Hz–100 Hz
- Crossover frequency: 100 Hz
- LF driver: 18" with 4" voice coil, ceramic magnet
- Inputs: 2x XLR / 1/4" TRS combo
- Outputs: 2x XLR high-pass; 2x XLR link (full range)
- Power: powerCON® TRUE1 compatible input and output; 4 A typical, 10 A max
- LED indicators: power, activity, protection

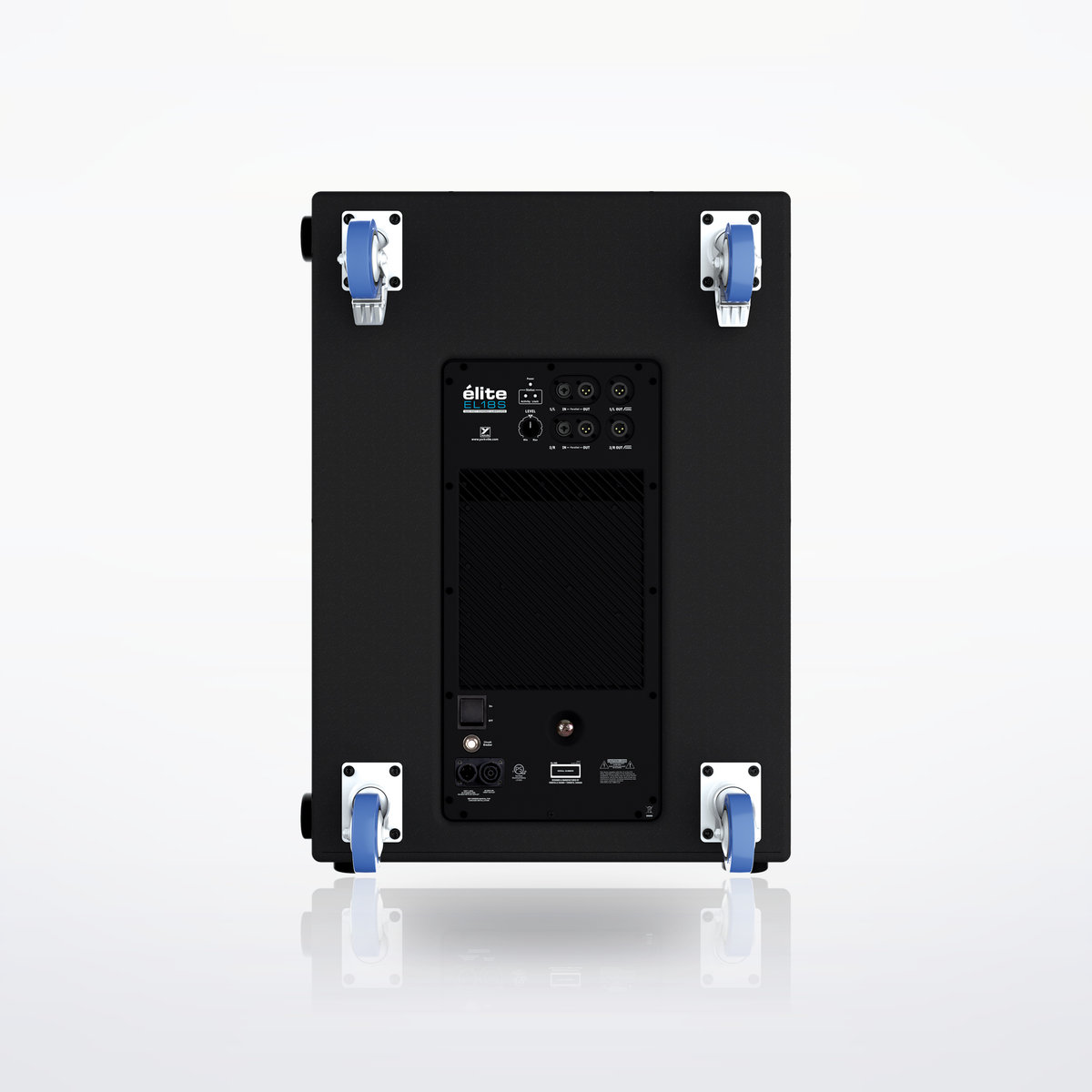

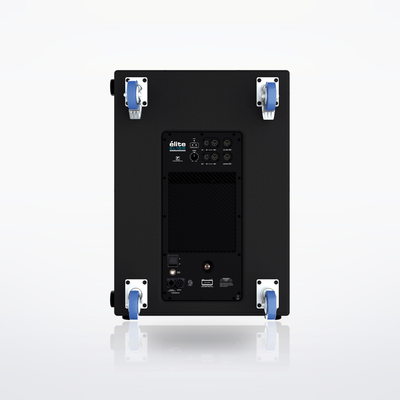

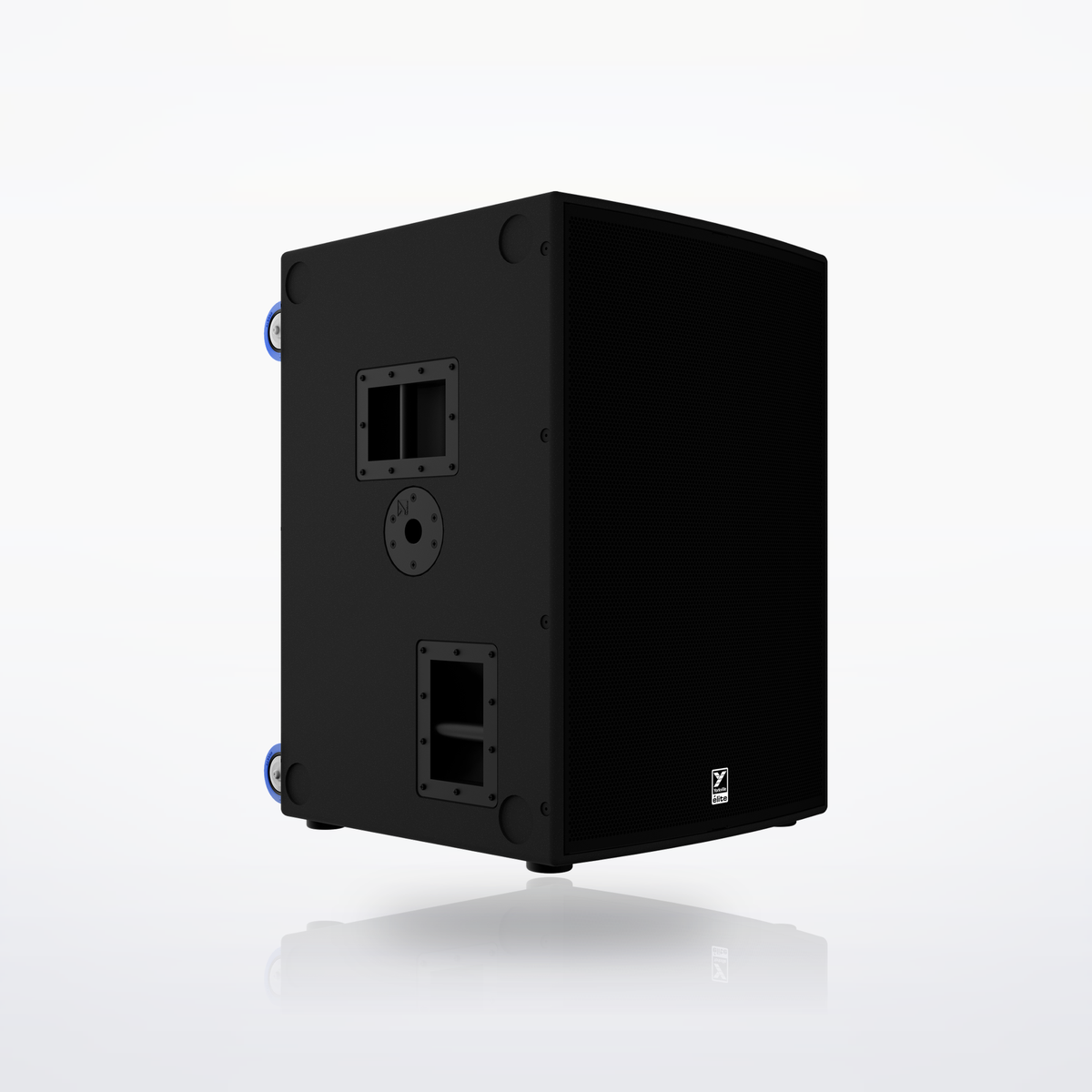

- Handles: 1 top, 4 side, 1 bottom; casters on the back
- Pole mount adapters: 1 top, 1 side
- Enclosure: 15 mm birch plywood, powder-coated steel grille, textured paint
- Dimensions (D x W x H): 24.8" x 25.7" x 35.7" (63 x 65.3 x 90.7 cm); 29.8" (75.7 cm) deep with casters
- Weight: 176.5 lb (80 kg)
Pairs well with
Make it work
What you need with the EL18S
You also need
-
Top speakers. Tops with their own high-pass filter, like the EF12P, go on the full-range link outputs (press Sub on each EF12P); tops without one go on the high-passed outputs.
-
A mixer or DJ gear with XLR outputs to feed it.Pick one
-
Two XLR cables from the mixer's left and right outputs into the sub's two combo inputs.
2 × CMI-100 Quad Microphone Cable25 ft
$89.90$44.95 each
-
One XLR cable from an output to the top on the sub's pole mount.
CMI-100 Quad Microphone Cable10 ft
$26.95
-
One XLR cable from the other output to the top on a speaker stand.
CMI-100 Quad Microphone Cable25 ft
$44.95
