MG16XU

Description

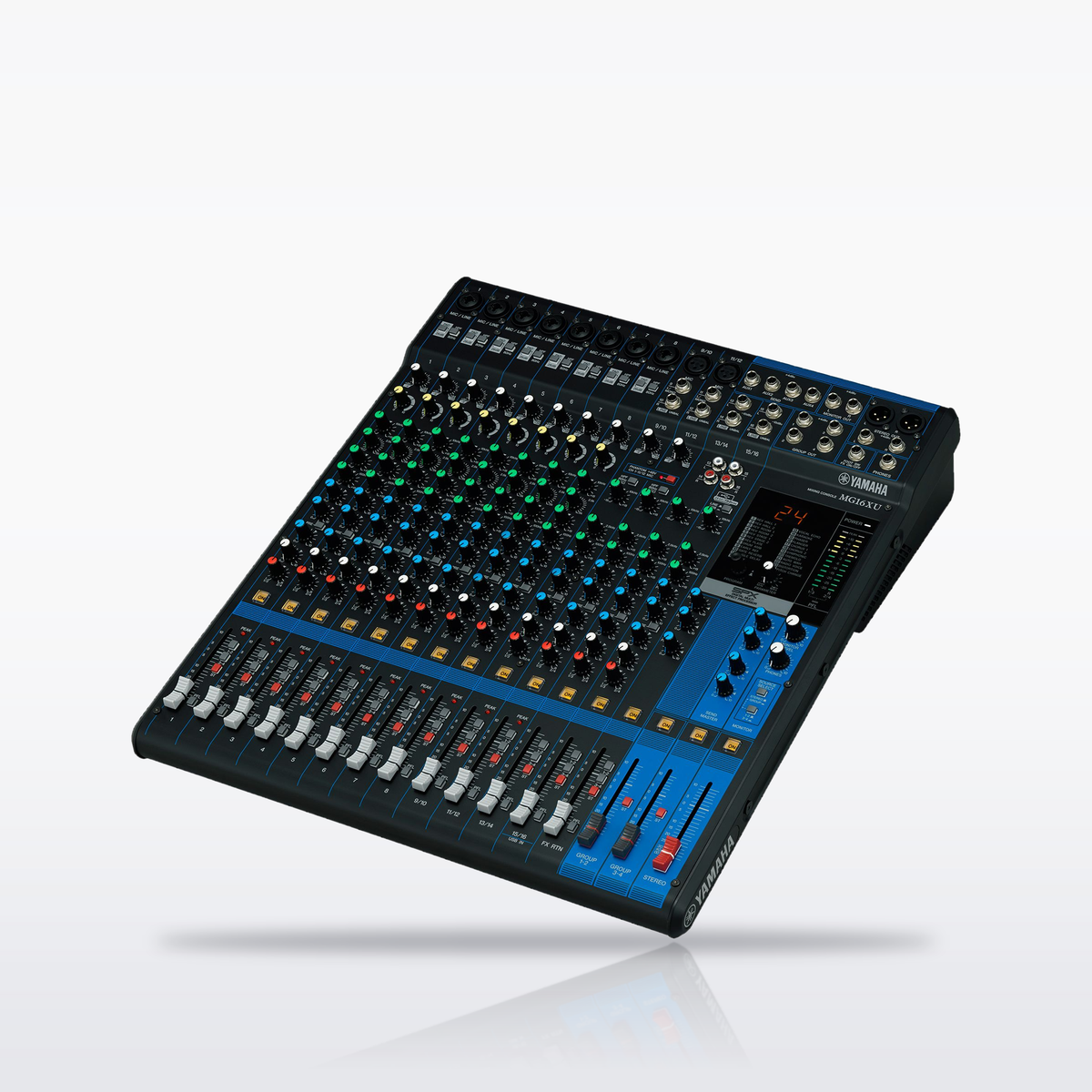

The MG16XU is a 16-channel analog mixer with built-in SPX effects and a 2-in/2-out USB audio interface. It takes up to 10 microphones (8 mono combo channels plus the mic inputs of 2 mono/stereo channels), has 4 group buses and 4 aux sends (incl. FX), and sends the stereo mix to a computer at up to 24-bit/192 kHz while the show runs. An internal power supply and an included rack-mount kit suit both portable and installed use.

Key Features

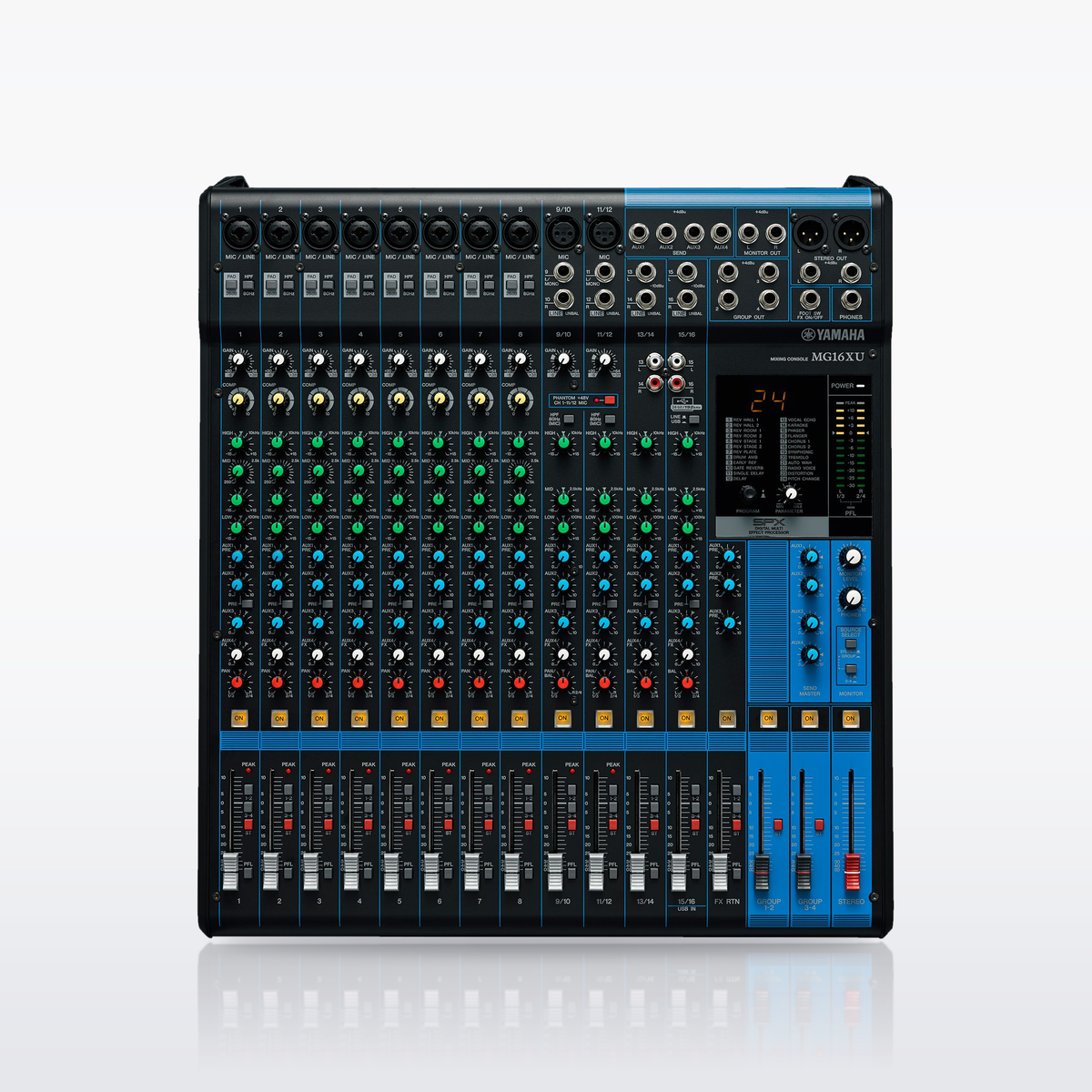

• 16-channel mixer: max. 10 mic / 16 line inputs (8 mono + 4 stereo)
• 4 group buses + 1 stereo bus
• 4 aux sends (incl. FX)
• D-PRE discrete Class-A mic preamps with an inverted Darlington circuit
• 1-knob compressors (threshold, ratio and output gain set together with one control)
• SPX digital effects: 24 editable programs with a parameter knob
• Footswitch jack to turn the effect return on and off (Yamaha FC5 sold separately)
• 2-in/2-out USB audio interface, 24-bit/192 kHz, USB Audio Class 2.0 compliant; sends the stereo bus to the computer and returns computer playback to channel 15/16
• Works with iPad (2 or later) through the Apple iPad Camera Connection Kit or Lightning to USB Camera Adapter
• Cubase AI DAW software download (access code included)
• 26 dB PAD switch on mono inputs; 80 Hz high-pass filter (12 dB/oct) on mono channels and stereo-channel mic inputs
• +48 V phantom power
• Locking XLR balanced main stereo outputs
• Internal universal power supply (AC 100–240 V), no external adapter
• Rack-mount kit included (rack ears)
• Metal chassis

Specifications

• Inputs: 10 mic / 16 line max.; 8 mono mic/line combo channels + 2 mono/stereo channels (XLR mic, 1/4" phone line) + 2 stereo line channels (1/4" phone or RCA)
• Buses: stereo 1, group 4, aux 4 (incl. FX)

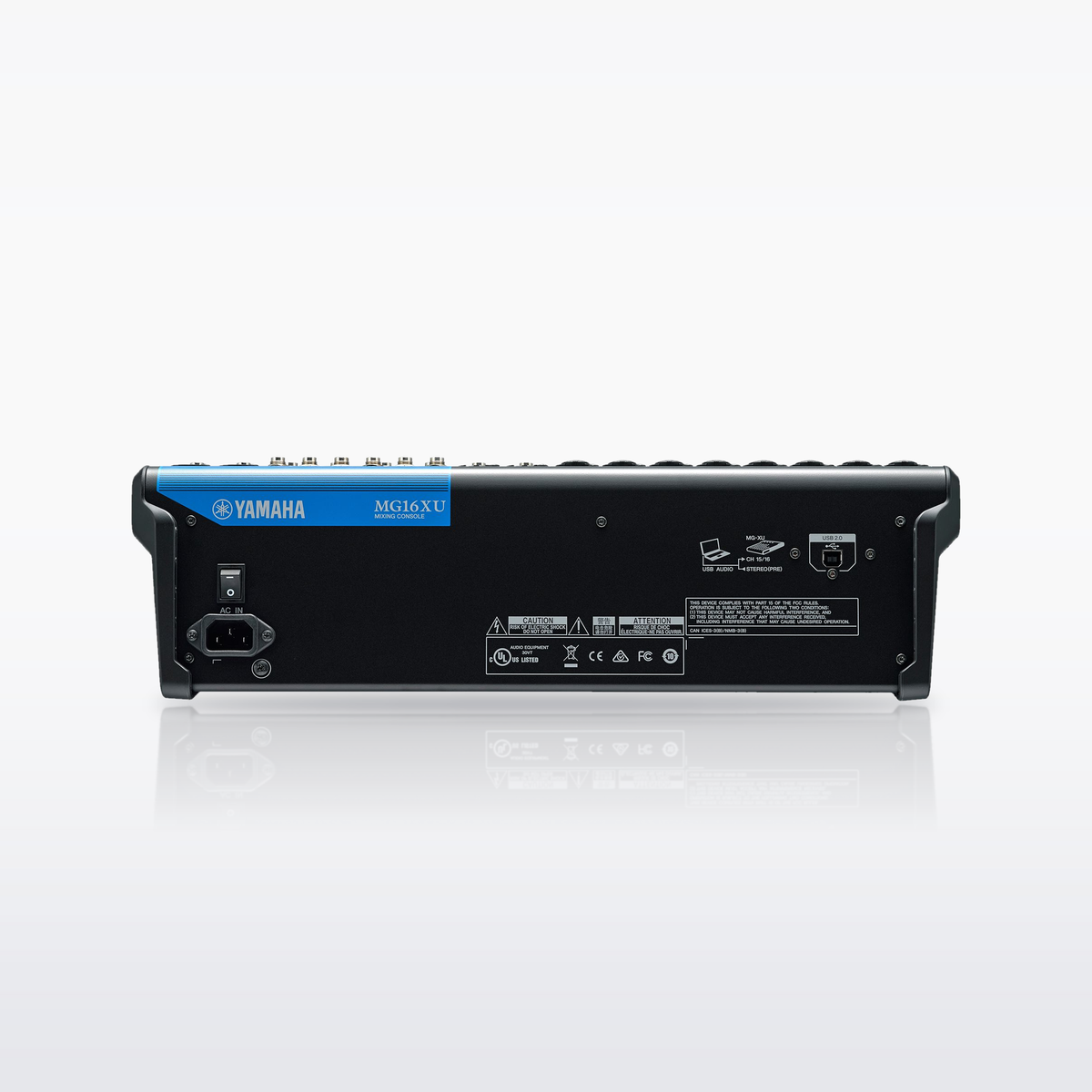

• Outputs: stereo out (XLR L/R and 1/4" TRS L/R), 4 group out, 4 aux send, monitor out L/R, phones
• Phantom power: +48 V
• PAD: 26 dB (mono channels)
• High-pass filter: 80 Hz, 12 dB/oct (mono channels; stereo channels mic input only)
• Compressor: 1-knob; threshold +22 dBu to −8 dBu, ratio 1:1 to 4:1, output 0 dB to +7 dB, attack approx. 25 ms, release approx. 300 ms
• EQ: 3-band, ±15 dB; high 10 kHz shelving, mid 250 Hz–5 kHz peaking on mono channels, 2.5 kHz peaking on stereo channels, low 100 Hz shelving
• Effects: SPX, 24 programs, 1 parameter control, footswitch jack (effect return on/off)
• USB audio: 2 in/2 out, USB Audio Class 2.0 compliant, up to 24-bit/192 kHz
• Frequency response: +0.5 dB/−1.5 dB, 20 Hz–48 kHz
• Total harmonic distortion: 0.03% at +14 dBu (20 Hz–20 kHz); 0.005% at +24 dBu (1 kHz)
• Equivalent input noise: −128 dBu (mono channel, Rs 150 Ω, gain max.)
• Level meter: 2 x 12-segment LED
• Power: AC 100–240 V, 50/60 Hz, internal; 30 W consumption
• Dimensions (W x H x D): 444 x 130 x 500 mm (17.5" x 5.1" x 19.7")
• Net weight: 6.8 kg (15.0 lb)

What's in the Box

• 1 x MG16XU mixer
• 1 x AC power cord
• 1 x Rack-mount kit
• 1 x Cubase AI download information
• 1 x Owner's manual
• 1 x Technical specifications
