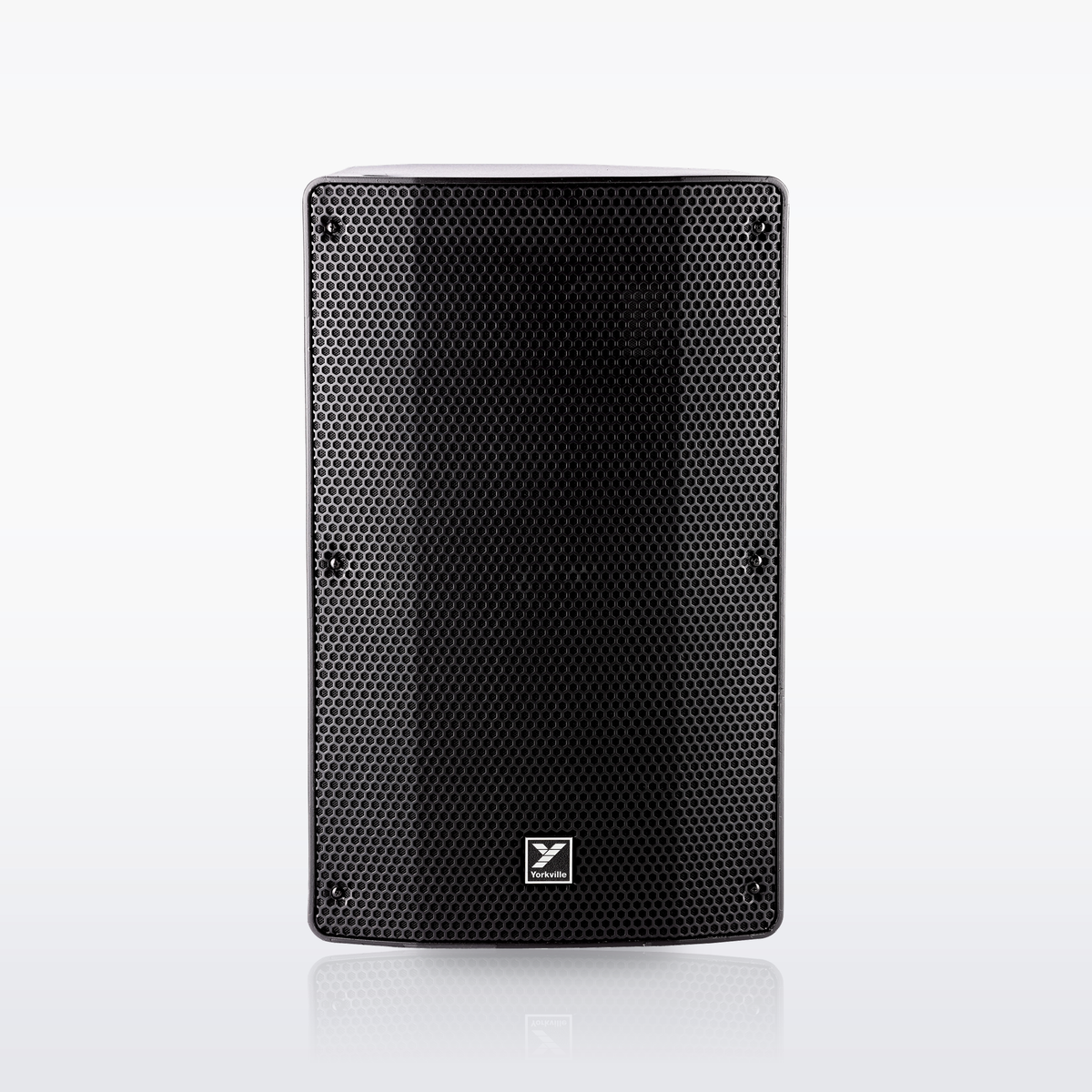

Yorkville YXL10 10-inch unpowered loudspeaker, front view

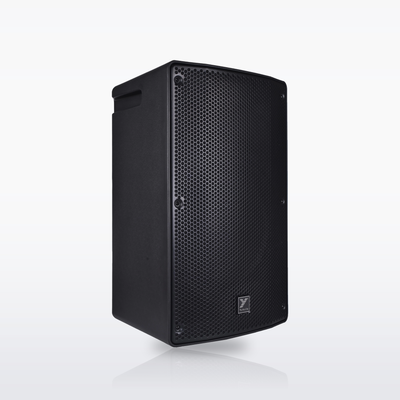

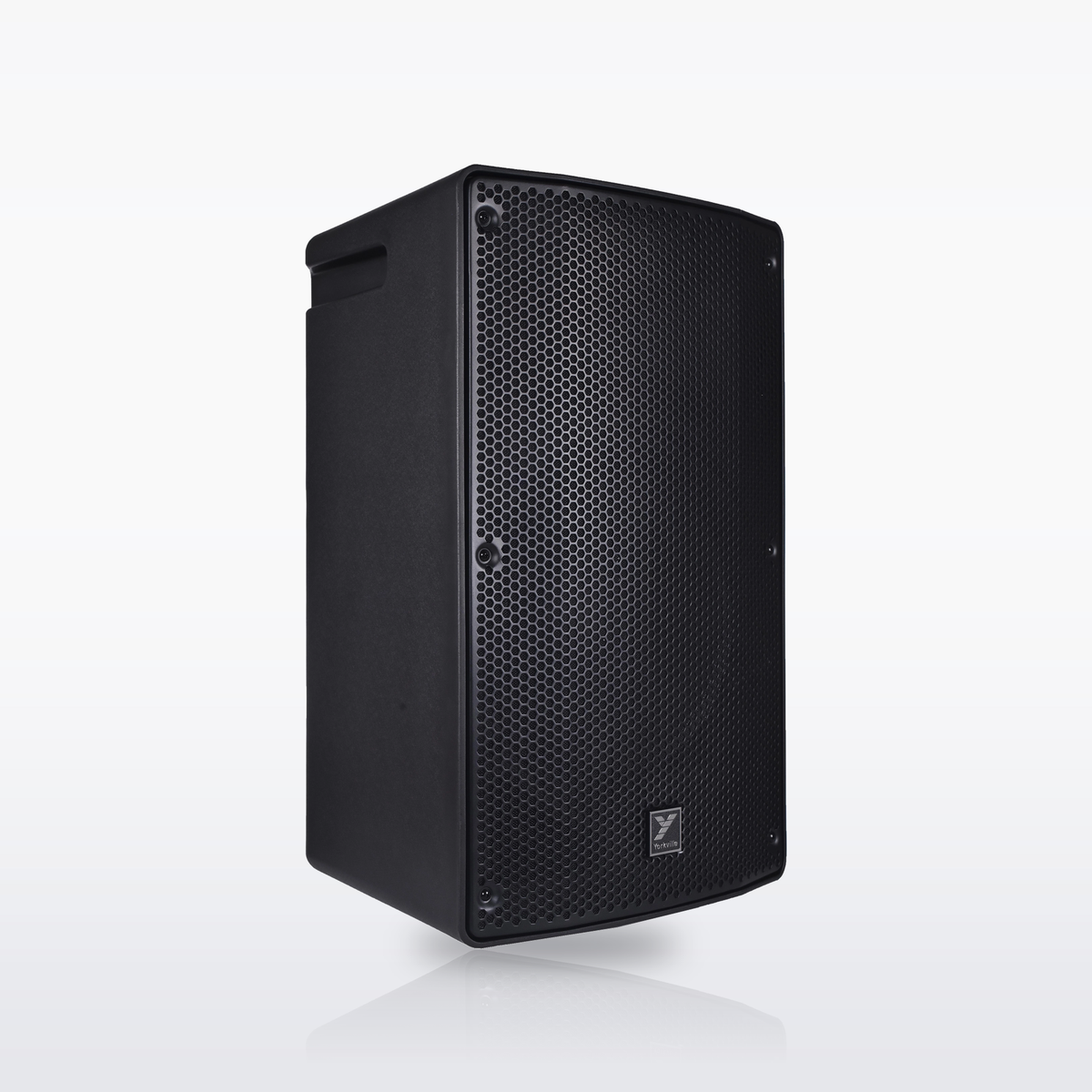

Yorkville YXL10 unpowered loudspeaker, angled view

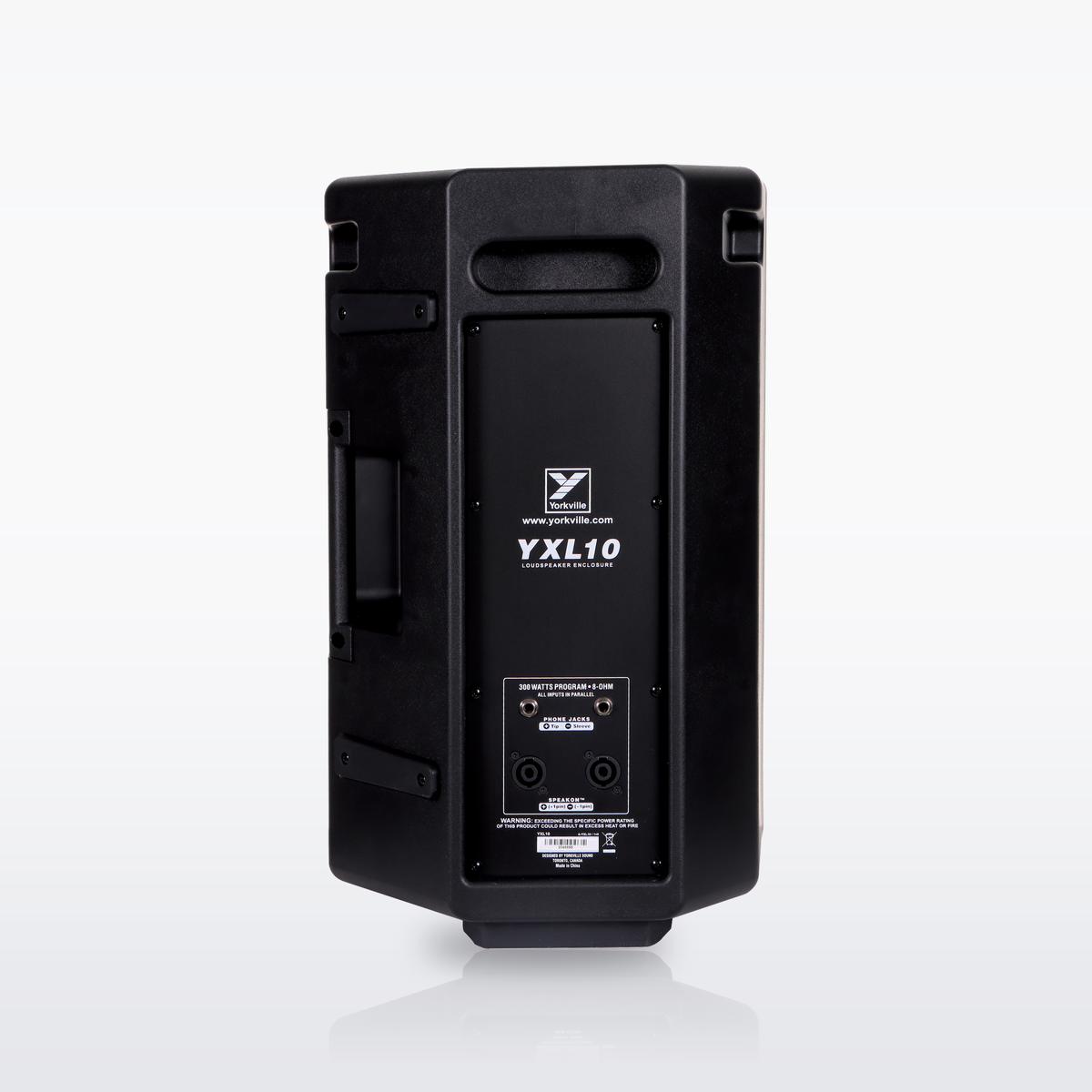

Yorkville YXL10 unpowered loudspeaker, rear view

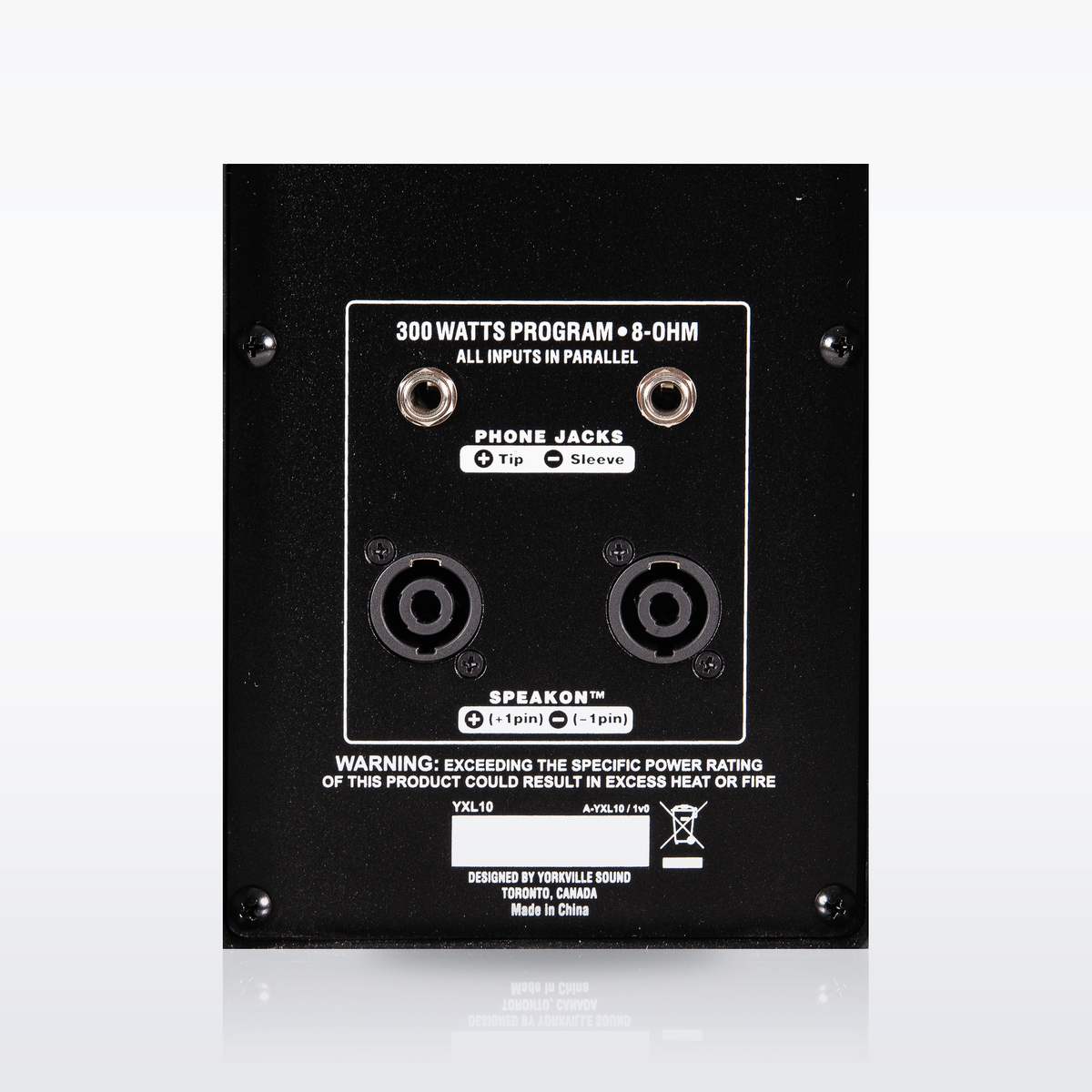

Yorkville YXL10 rear panel with Speakon and 1/4-inch inputs

Vendor:Yorkville

YXL10

10" Unpowered Loudspeaker

$339.00

In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details

Is it right for you?

The unpowered YXL10: a 10-inch speaker with no amplifier inside, for rooms that already run external power amplifiers.

Great for

  • Rehearsal spaces and small venues with power amps
  • Stage wedge monitors run from an amplifier
  • Flown or pole-mounted installs
What you need to use it

Description

The YXL series is Yorkville Sound's most affordable and versatile speaker lineup, and the YXL10 is the lightest, most compact YXL unpowered loudspeaker. Designed for rehearsal spaces and small venues with external power amplifiers, YXL unpowered loudspeakers can be used vertically on the floor or a speaker stand, wedged as a stage monitor, or flown.

The YXL10 uses a single 10-inch woofer and a 90° x 40° horn with a 1-inch throat and 1-inch compression driver. The cabinet is constructed with strong polypropylene for reliability and durability.

Key Features

  • 600 W peak power (300 W program) at 8 ohms
  • 10" woofer with 2" voice coil
  • 1" compression driver
  • Polypropylene cabinet, usable upright, as a stage wedge or flown
  • 122 dB continuous SPL, 55 Hz–16 kHz frequency response

Specifications

  • System type: unpowered loudspeaker
  • Power rating: 600 W peak (300 W program)
  • Nominal impedance: 8 ohms; sensitivity 97 dB (1 W / 1 m)
  • Max SPL: 122 dB continuous
  • Frequency response: 55 Hz–16 kHz
  • Dispersion (H x V): 90° x 40°; crossover 1.6 kHz
  • HF driver: 1" compression driver on a horn integrated into the baffle
  • LF driver: 10" with 2" voice coil
  • Inputs: 2x Speakon, 2x 1/4"
  • Pole mount adapter: dual angle; M8 fly points
  • Enclosure: polypropylene
  • Handles: 2 (side and back)
  • Dimensions (D x W x H): 11" x 13.3" x 20.5" (28 x 33.5 x 52 cm)
  • Weight: 29.9 lb (13.6 kg)

Pairs well with

Make it work

What you need with the YXL10

You also need

  • It needs an external power amplifier, which we do not sell. Yorkville rates it at 8 ohms, 300 W program (600 W peak).

  • A speakON speaker cable from the amplifier to one of the speaker's two speakON inputs, if your amp has speakON outputs.

    SKT-400 Pro Speaker Cable25 ft $71.95
