YXL10P
10" Powered Loudspeaker
In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details
We’ll email you once, when it’s available.
- 15-day returns. Return policy
- Warranty: 2 years. Full terms
Is it right for you?
The lightest, most compact YXL powered speaker: a 10-inch woofer, 1000 W peak, and a 3-channel mixer with Bluetooth built in.
Great for
- DJs and musicians, with a 3-channel mixer built in
- Open mic nights with one or two singers
- Upright on a stand or as a stage monitor wedge
Description

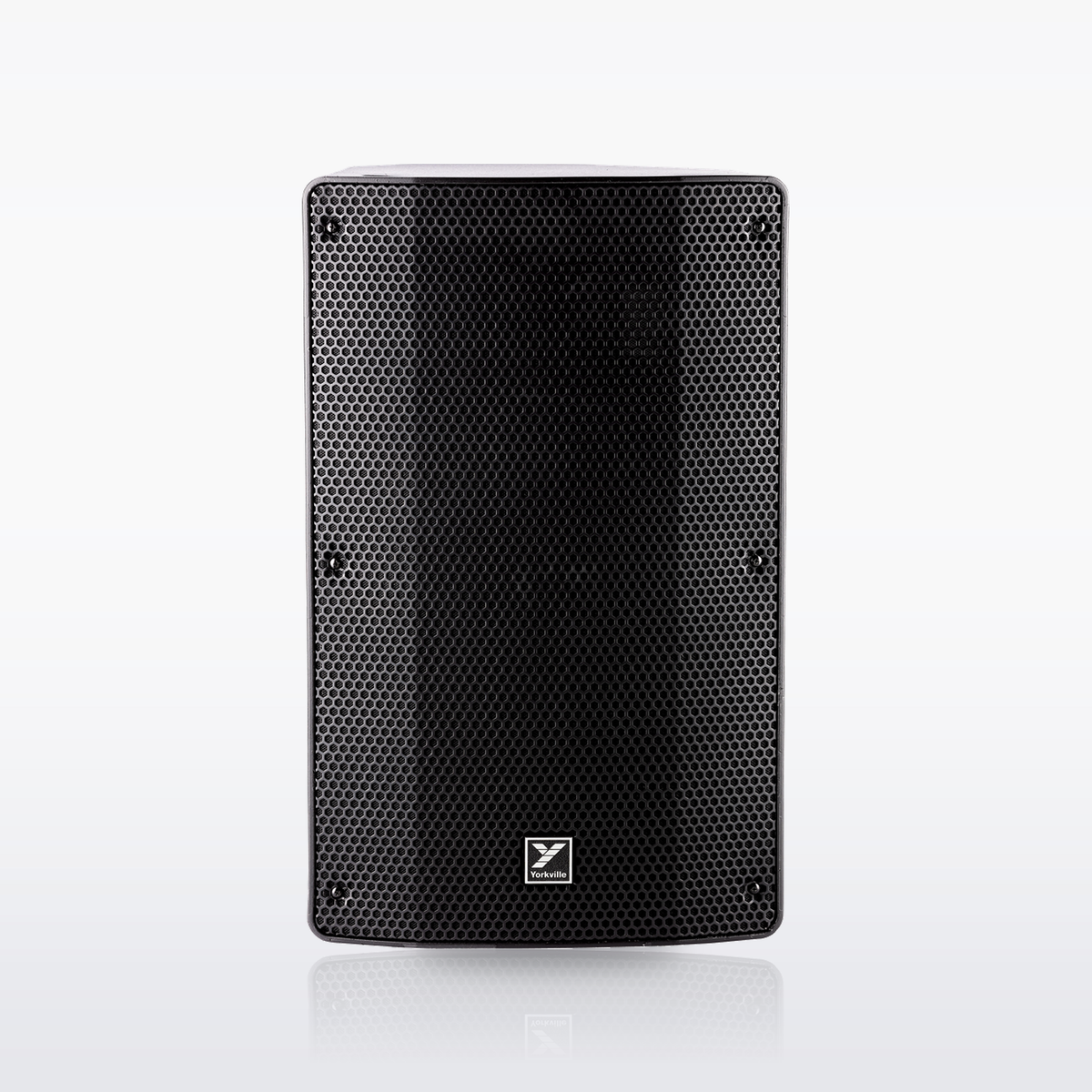

The YXL series is Yorkville Sound's most affordable and versatile speaker lineup, and the YXL10P is the lightest, most compact YXL powered loudspeaker. Designed with the DJ and musician in mind, each YXL powered speaker can be used vertically on the floor or a speaker stand, or wedged as a stage monitor.
YXL powered speakers feature an advanced acoustic package, a 3-channel mixer, Bluetooth audio streaming and three selectable voicing modes. The controls are simple.
Key Features
- 1000 W peak power (500 W program)
- 10" woofer with 2" voice coil
- 1" compression driver
- Integrated 3-channel mixer with 2x 1/4", 2x XLR and 1/8" inputs
- Bluetooth audio streaming
- Concert, Club and Monitor voicing modes

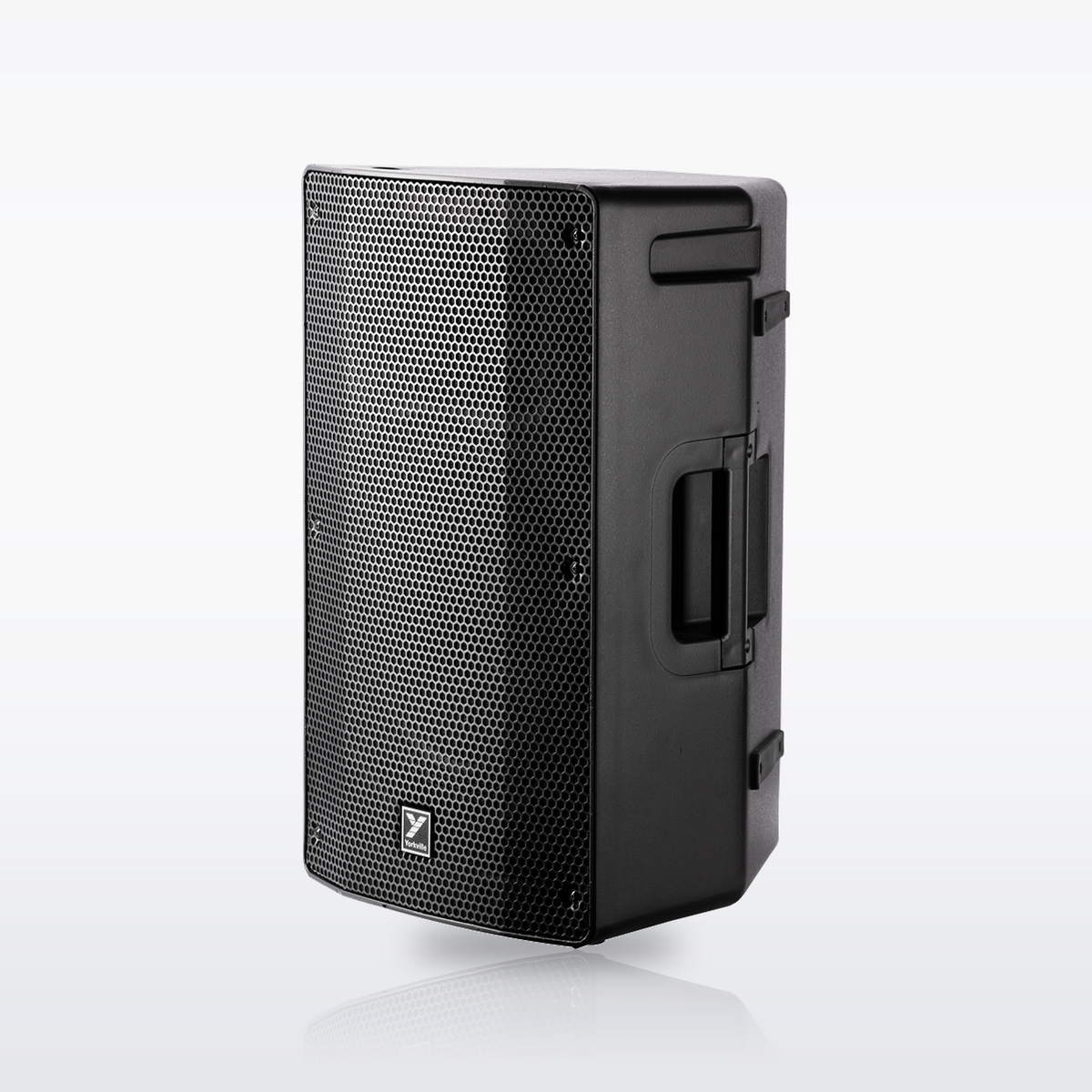

- Polypropylene cabinet, usable upright or as a stage wedge
- 126 dB peak SPL, 55 Hz–16 kHz frequency response
Specifications
- System type: powered loudspeaker
- Power rating: 1000 W peak (500 W program); LF 900 W peak, HF 100 W peak
- Max SPL: 126 dB peak
- Frequency response: 55 Hz–16 kHz
- Dispersion (H x V): 90° x 40°; crossover 1.6 kHz
- LF driver: 10" with 2" voice coil; HF horn integrated into the baffle
- Amplifiers: Class D (LF), Class A/B (HF); speed-controlled fan cooling
- Channel 1: XLR and 1/4" line; Channel 2: XLR and 1/4" instrument; Channel 3: 1/8" and Bluetooth

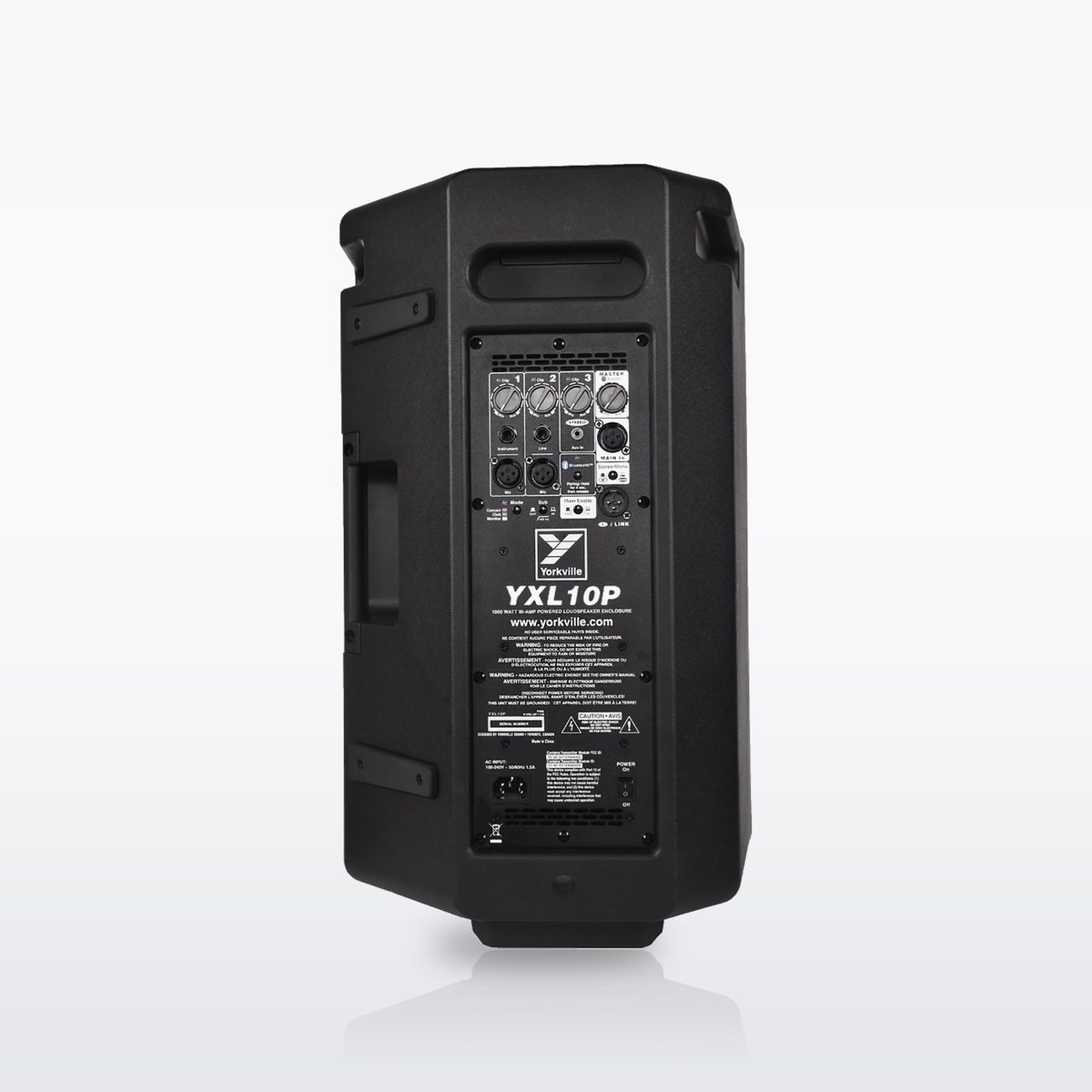

- Main in and link out: XLR; stereo / mono out; sub-mode high-pass filter
- Limiter: multiband excursion, RMS and rail
- Pole mount adapter: dual angle; M8 fly points
- Enclosure: polypropylene
- Handles: 2 (side and back)
- Dimensions (D x W x H): 11" x 13.3" x 20.5" (28 x 33.5 x 52 cm)
- Weight: 31 lb (14 kg)
Pairs well with
Make it work
What you need with the YXL10P
You also need
Music plays straight from your phone over Bluetooth. For a voice, a mic plugs into one of its two XLR inputs, no mixer needed.
-
A vocal mic. These dynamic mics need no phantom power.Pick one
-
One XLR cable from the mic to the speaker. Our mics do not include one.
CMI-100 Quad Microphone Cable25 ft
$44.95
-
For a second speaker, one XLR cable from this speaker's link output into the next.
CMI-100 Quad Microphone Cable25 ft
$44.95
Works with
See it in a full setup
- Live venue guideOpen mic: one speaker, one mixer
- SetupsBeginner live venue setup
- Create your flowStart with the YXL10P DJLive Venue
