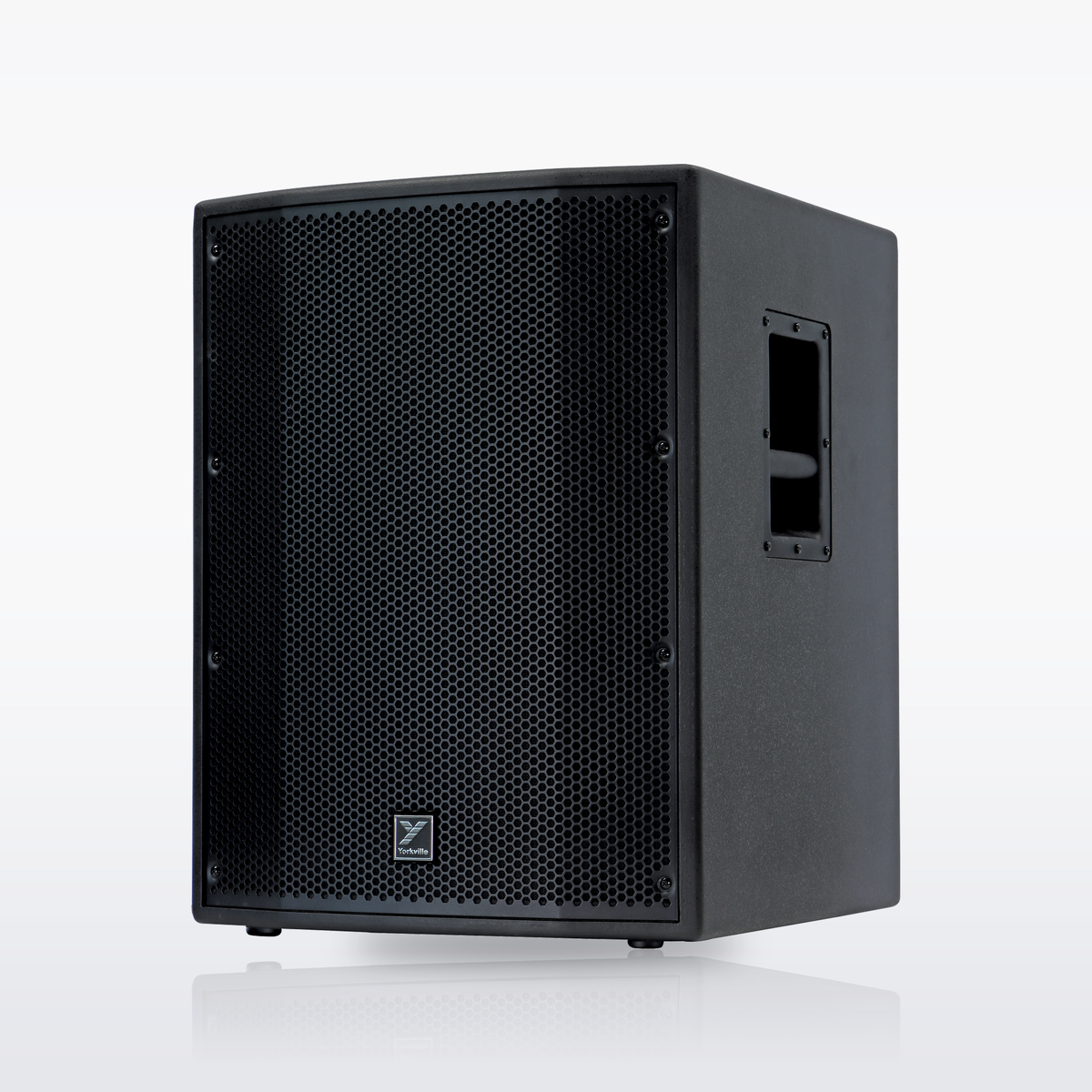

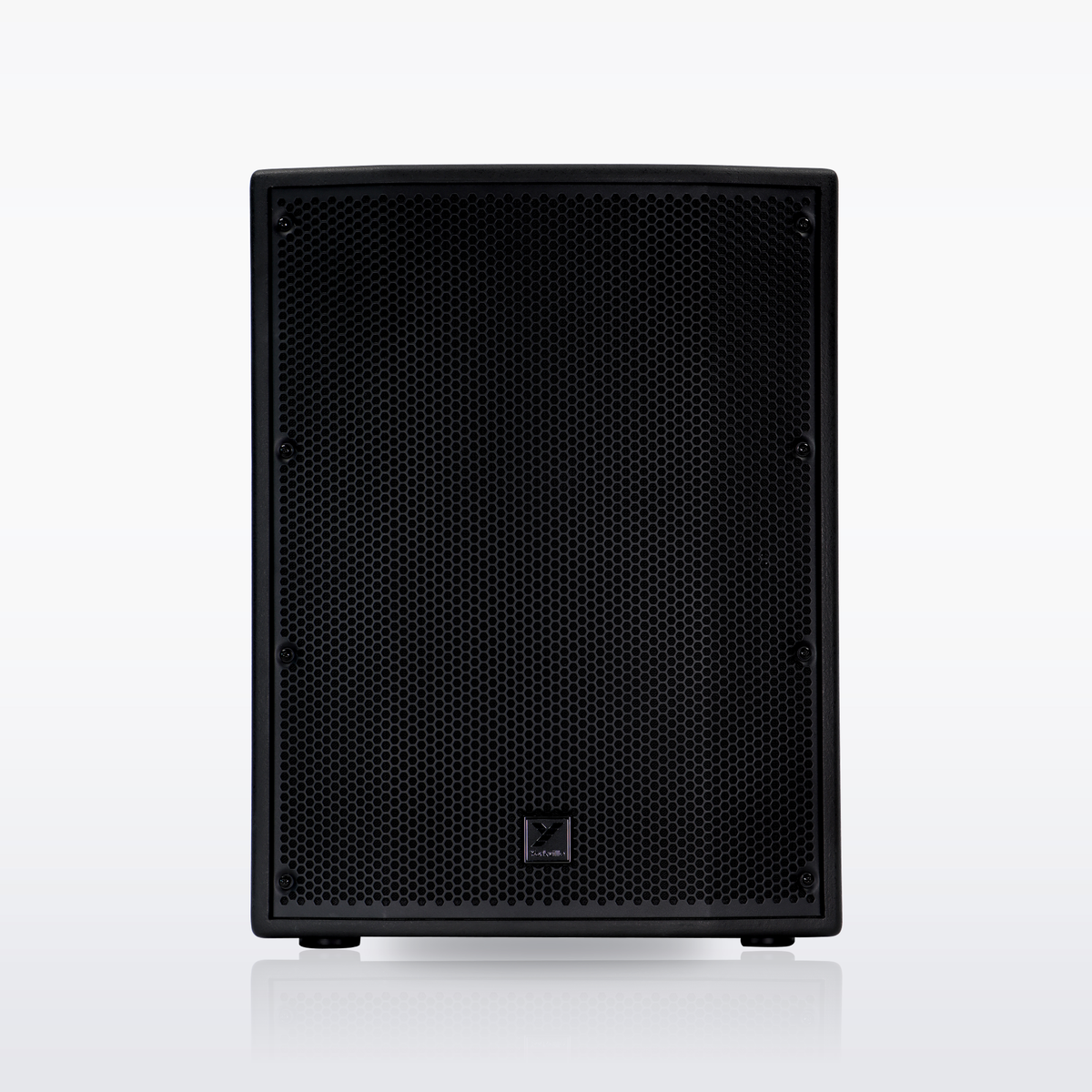

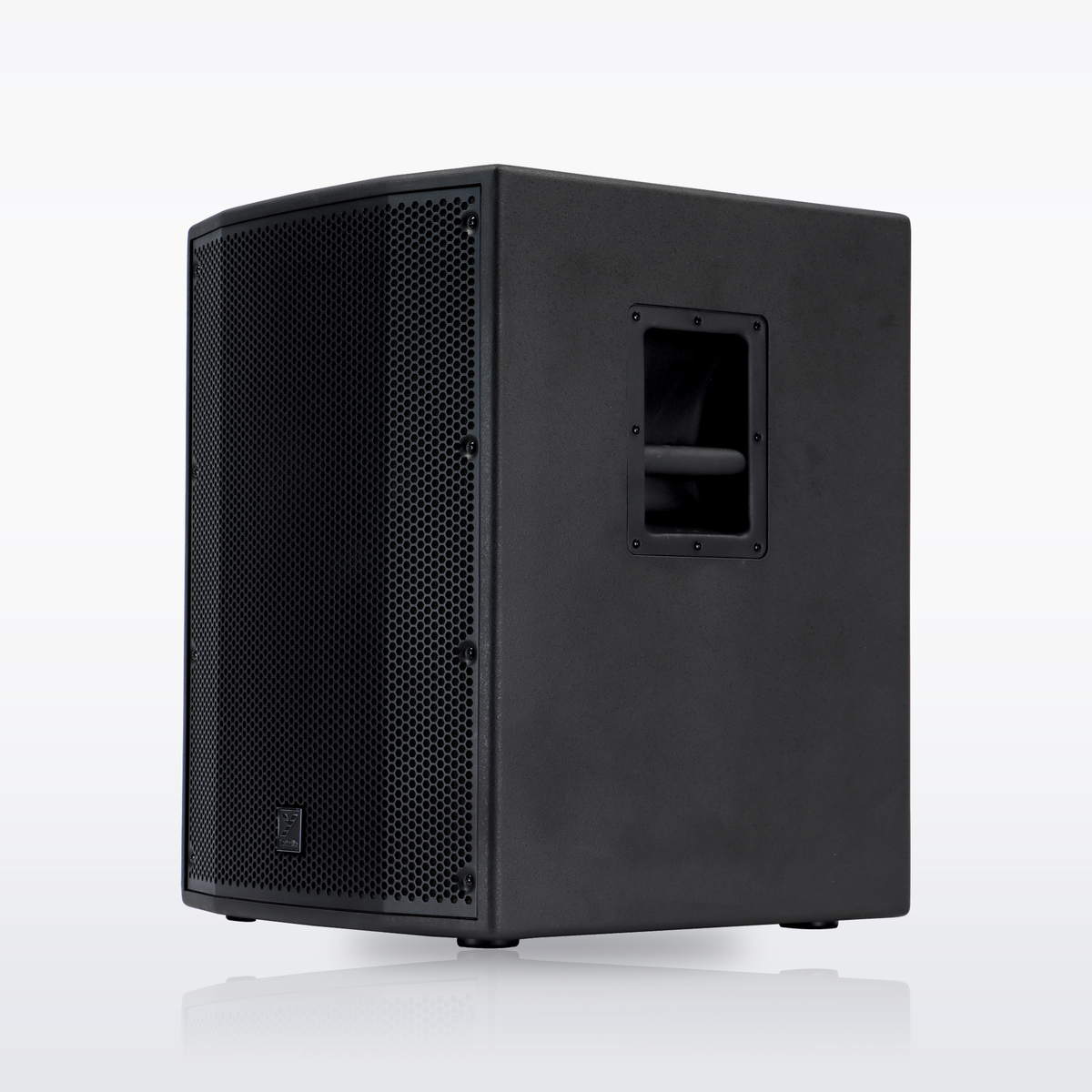

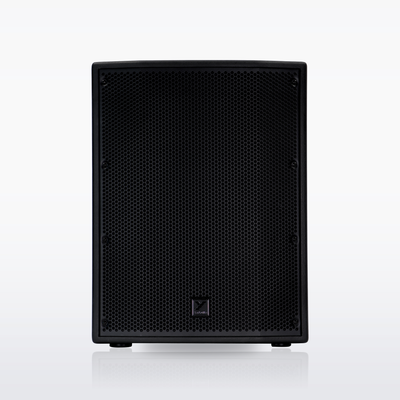

YXL15SP
15" Powered Subwoofer
In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details
We’ll email you once, when it’s available.
- 15-day returns. Return policy
- Warranty: 2 years · 10 years on wooden enclosure components. Full terms
Is it right for you?
The middle YXL powered sub: a 15-inch woofer, 1000 W peak and 128 dB, for YXL tops in mid-sized and large venues.
Great for
- Band nights under a pair of YXL12P tops
- DJ gigs in mid-sized rooms
- Adding bass to any full-range powered speaker
Description
The YXL series is Yorkville Sound's most affordable and versatile speaker lineup, and the YXL15SP powered subwoofer provides a middle option between the compact 10-inch and flagship 18-inch versions.
Featuring 1000 watts of peak power and three selectable voicing modes, it was designed to be an ideal accompaniment for YXL top boxes in mid-sized and large venues, and can be paired with any full-range speaker.
Key Features
- 1000 W peak power (500 W program)
- 15" woofer with 3" voice coil
- 2x XLR / 1/4" combo-jack inputs, 2x XLR link outputs
- Advanced DSP with component protection
- Punch, Smooth and Deep voicing modes
- 12 mm plywood enclosure with pole mount adapter
- 128 dB peak SPL, 45 Hz–100 Hz frequency response
Specifications
- System type: powered subwoofer
- Power rating: 1000 W peak (500 W program), Class D
- Max SPL: 128 dB peak
- Frequency response: 45 Hz–100 Hz
- LF driver: 15" with 3" voice coil

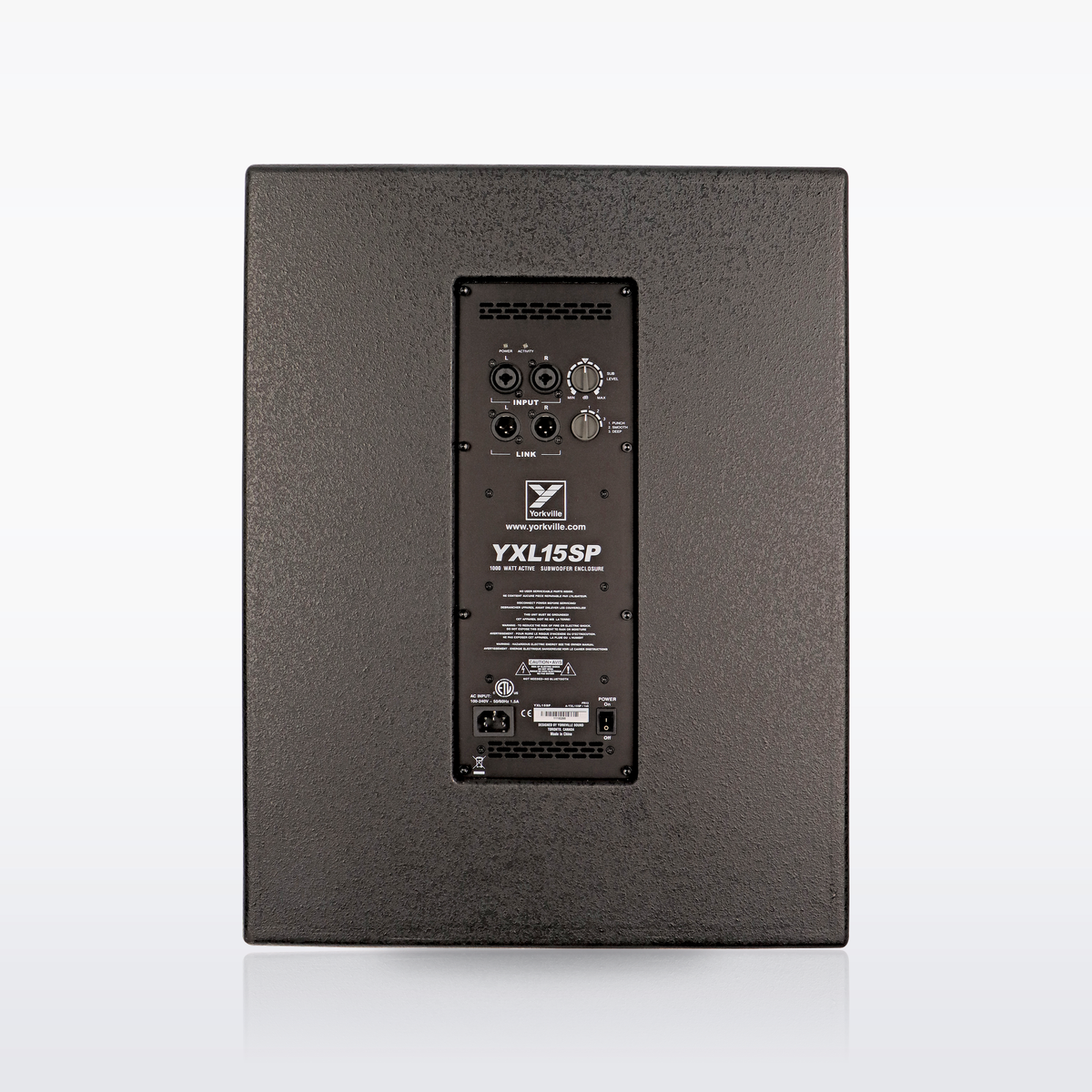

- Inputs: 2x combo jack (XLR / 1/4"); 2x XLR link outputs
- Controls: master level; Punch, Smooth and Deep voicing modes
- Limiter: multiband excursion, RMS and rail; speed-controlled fan cooling
- Handles: 2 (one each side); pole mount adapter on top
- Enclosure: 12 mm plywood, painted
- Dimensions (D x W x H): 19" x 18" x 24" (48 x 46 x 61 cm)
- Weight: 62 lb (28.1 kg)
Pairs well with
Make it work
What you need with the YXL15SP
You also need
-
Top speakers: one on its single pole mount, the other on a speaker stand. The sub plays only 45 Hz to 100 Hz; set YXL tops to sub mode.Pick one
-
A mixer or DJ controller with XLR outputs to feed the sub.Pick one
-
Two XLR cables from the mixer's stereo out into the sub's two combo inputs.
2 × CMI-100 Quad Microphone Cable25 ft
$89.90$44.95 each
-
One XLR cable from a link output to the top on the sub's pole mount.
CMI-100 Quad Microphone Cable10 ft
$26.95
-
One XLR cable from the other link output to the top on a speaker stand.
CMI-100 Quad Microphone Cable25 ft
$44.95
Works with
See it in a full setup
- Live venue guideBand night: tops, sub and mixer
- SetupsIntermediate live venue setup
- Create your flowStart with the YXL15SP DJLive Venue
