ELX200-12SP

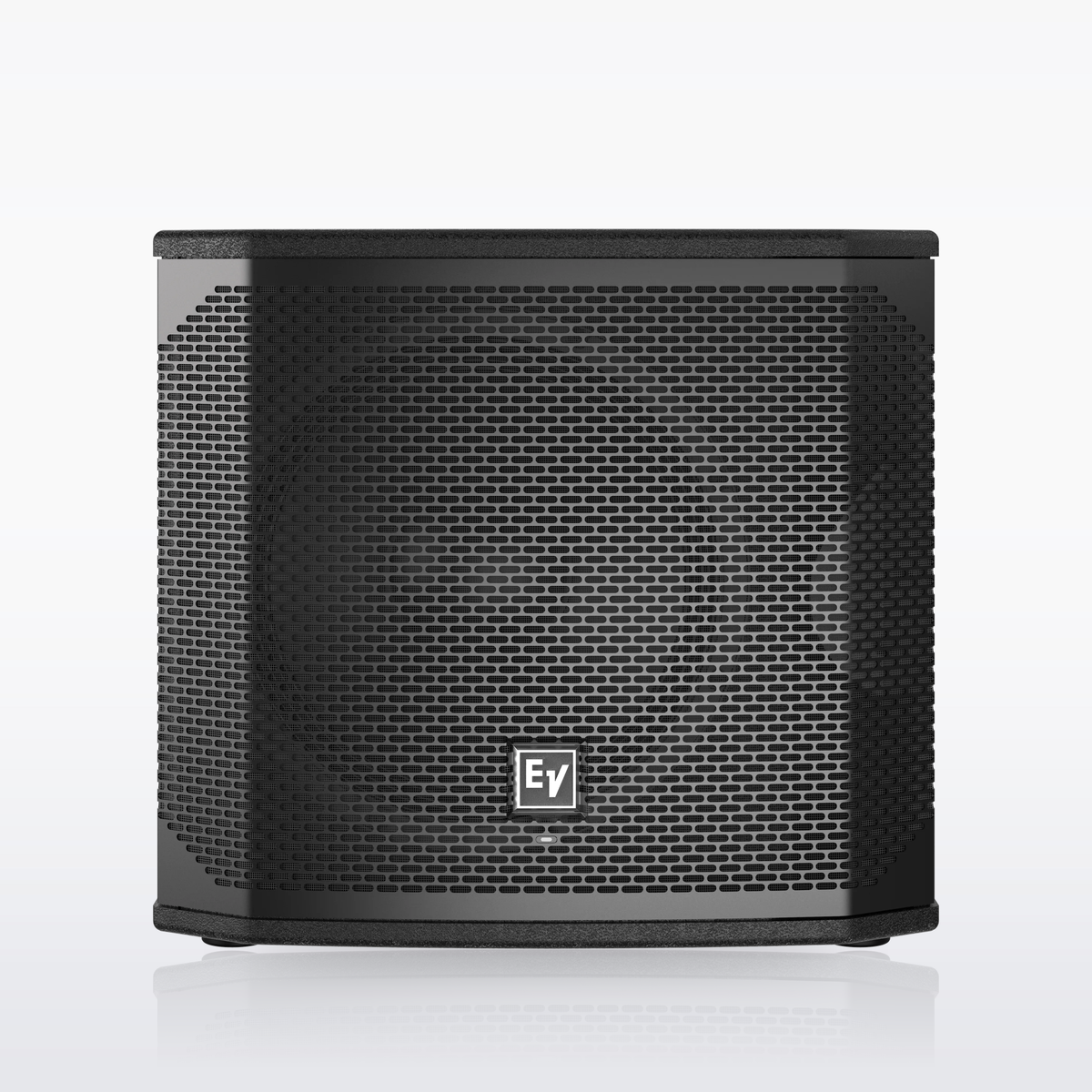

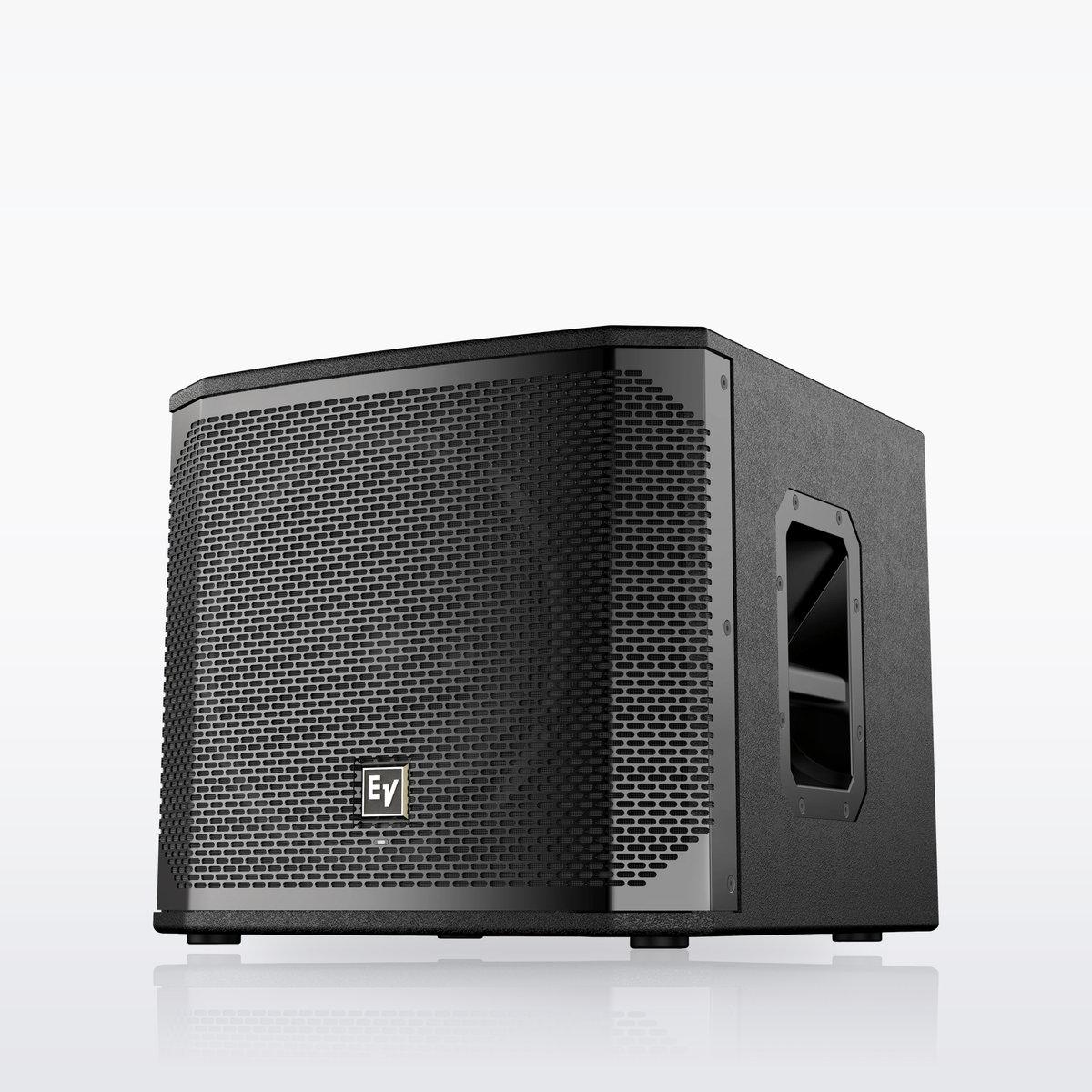

12" 1,200 W Powered Subwoofer
In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details
We’ll email you once, when it’s available.
- 15-day returns. Return policy
- Warranty: 5 years when registered with Electro-Voice. Full terms
Is it right for you?
A compact 12-inch powered subwoofer: 1,200 W and 129 dB at 42.2 lb, with two combo inputs and two XLR link outputs for the tops.
Great for

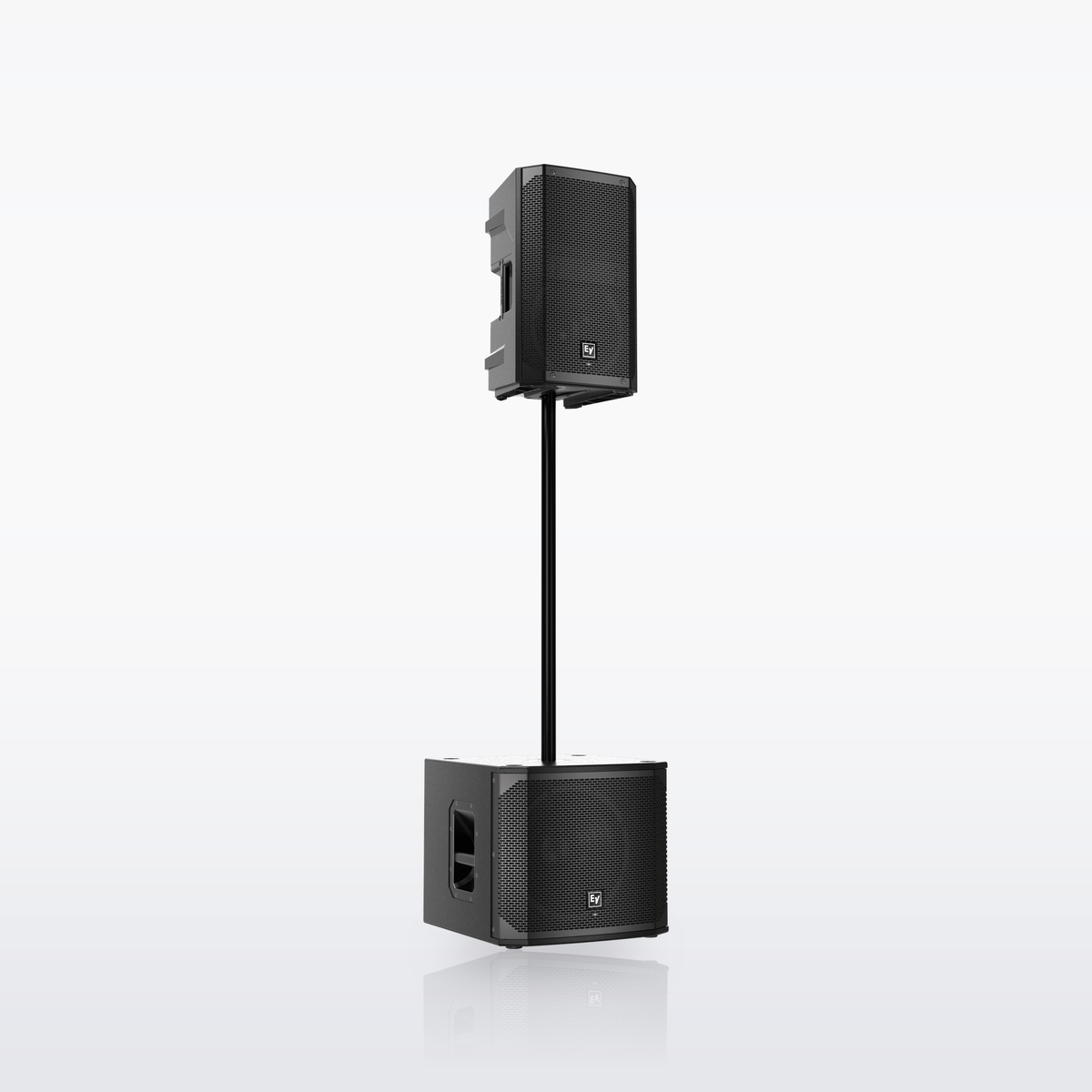

- Adding bass under ELX200 or ZLX G2 tops
- Small venues and mobile DJs who lift it solo
Description
The ELX200-12SP is a powered subwoofer with a custom EVS-12L 12-inch woofer, up to 1,200 W of Class-D power and built-in QuickSmartDSP, reaching up to 129 dB maximum SPL. Choose Music, Live or Club, set the sub/top crossover and save five presets of your own. The QuickSmart app over Bluetooth LE lets you monitor and adjust up to six speakers from out front.
Key Features
- Up to 1,200 W Class-D, up to 129 dB maximum SPL
- QuickSmart app over Bluetooth LE controls up to six speakers
- Music, Live and Club presets, sub/top crossovers, three-band EQ and five user presets
- Onboard limiter keeps the system safe when pushed
- Integrated M20 pole-mount plate and two-handle design in a compact 15 mm plywood cabinet

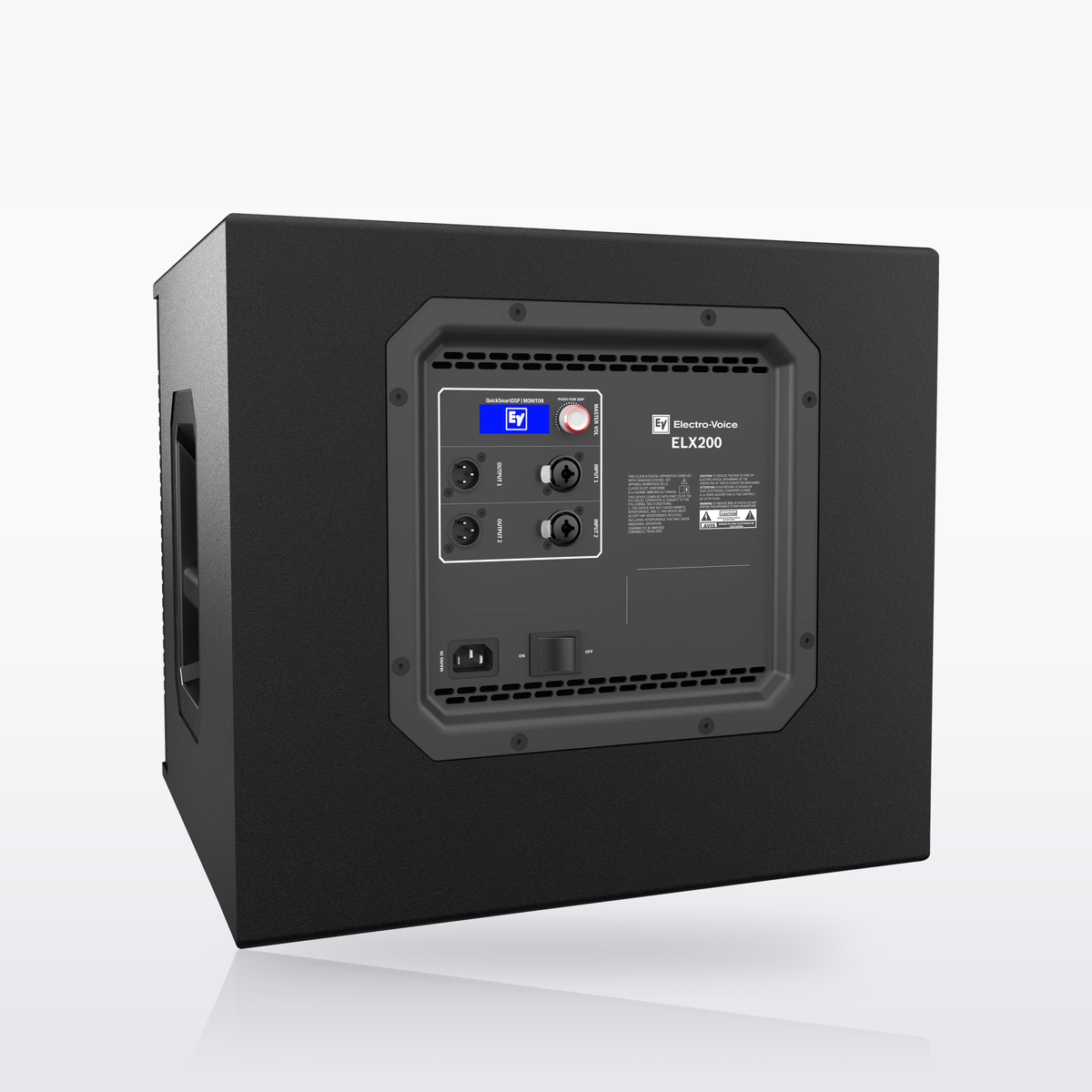

- Two XLR/TRS combo inputs and two XLR link outputs pass signal to the next speaker
Specifications
- Type: powered subwoofer
- Woofer: EVS-12L 12" (300 mm)
- Amplifier power: 1,200 W Class-D
- Maximum SPL: 129 dB
- Frequency response: 49 Hz–135 Hz
- Frequency range (−10 dB): 41 Hz–165 Hz
- Connectivity: 2 x XLR/TRS combo inputs, 2 x XLR link outputs
- Control: QuickSmart app over Bluetooth LE
- Enclosure: 15 mm plywood with EVCoat finish
- Grille: 18 AWG powder-coated steel
- Mounting: integrated M20 pole-mount plate
- AC power: 100–240 V, 50–60 Hz, 1.2–0.6 A
- Dimensions (H x W x D): 397 x 445 x 457 mm (15.6" x 17.5" x 18.0")
- Net weight: 19.1 kg (42.2 lb)
Pairs well with
Make it work
What you need with the ELX200-12SP
You also need
The source goes into the sub first; each XLR link output feeds a top. Set each EV top's Sub menu to ELX200-12SP.
-
One or two powered tops.Pick one
-
Two XLR cables from a mixer's stereo outputs into the sub's two inputs.
2 × CMI-100 Quad Microphone Cable25 ft
$89.90$44.95 each
-
Two XLR cables from the sub's link outputs, one to each top.
2 × CMI-100 Quad Microphone Cable10 ft
$53.90$26.95 each
