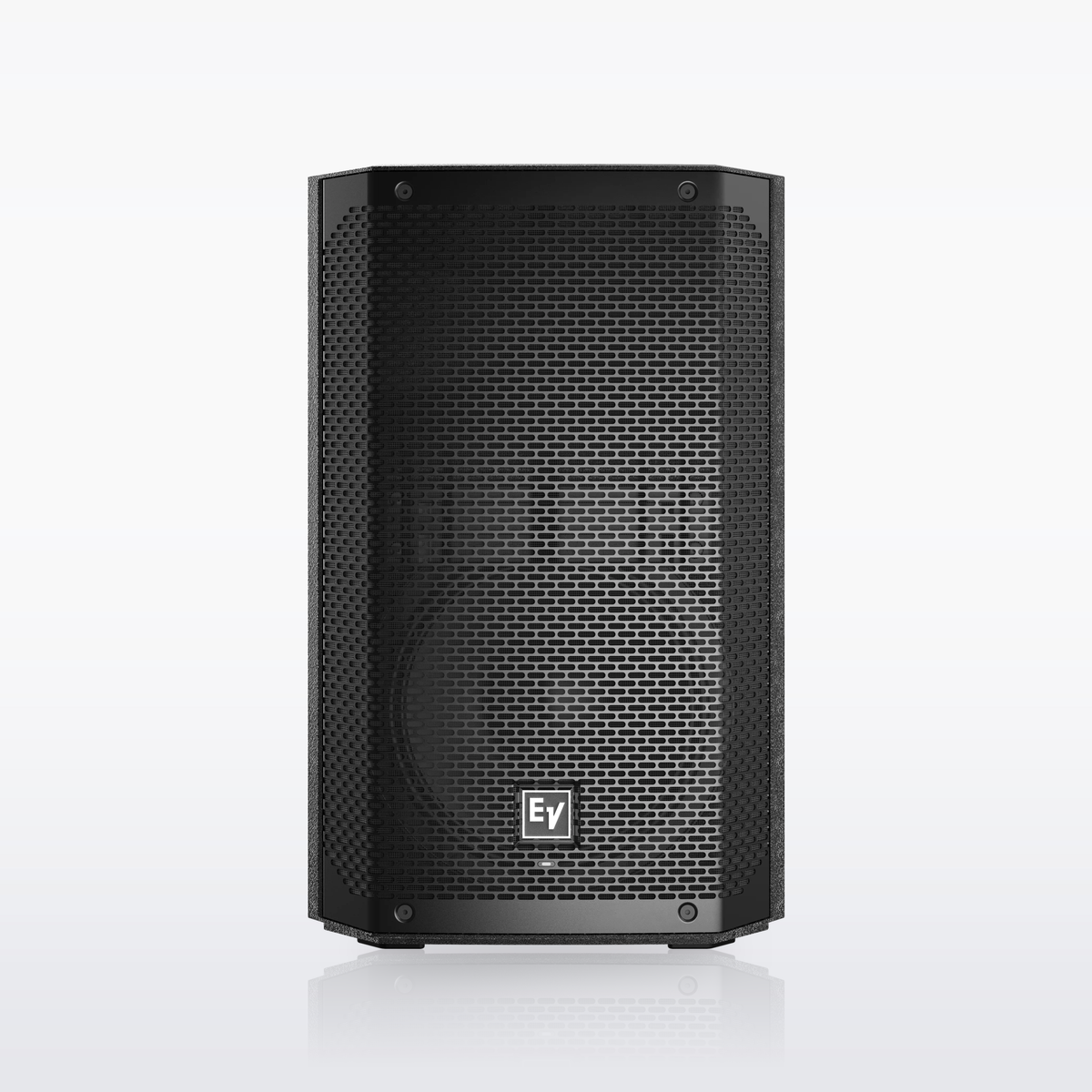

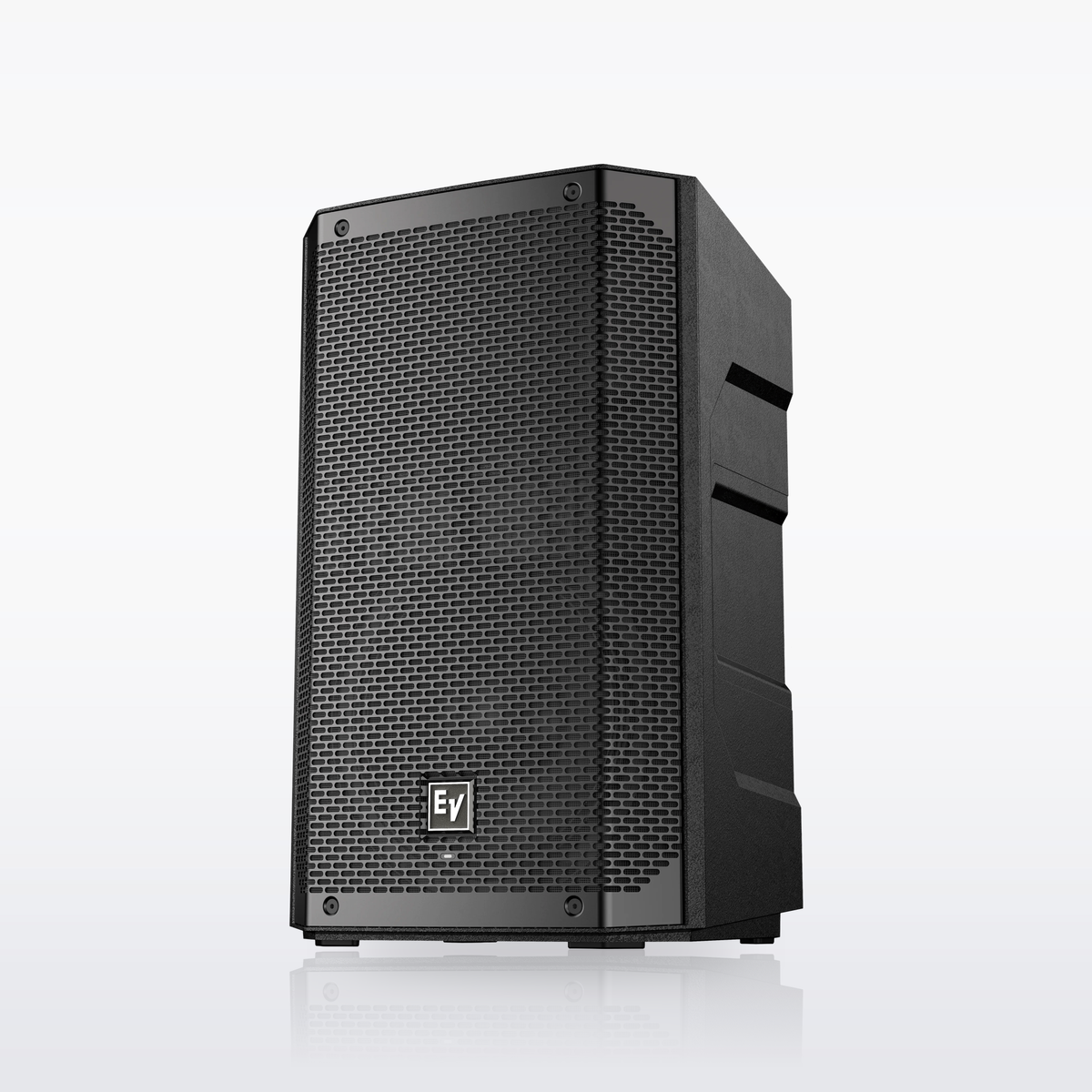

ELX200-10P
10" 1,200 W Powered Loudspeaker
In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details
We’ll email you once, when it’s available.
- 15-day returns. Return policy
- Warranty: 5 years when registered with Electro-Voice. Full terms
Is it right for you?
A light 10-inch powered speaker: 1,200 W and 130 dB at 29.9 lb, with QuickSmartDSP presets and app control over Bluetooth.
Great for
- Mobile DJs who carry their own rig
- Speech and music in small rooms
- A DJ controller plugged straight in over RCA
Description
The ELX200-10P drives an EV-engineered EVS-10M 10-inch woofer and a DH-1L 1-inch titanium compression driver with up to 1,200 W of Class-D power for up to 130 dB SPL. QuickSmartDSP brings four presets, system-match crossovers, three-band EQ and limiting to the rear panel, and the QuickSmart app controls multiple speakers over Bluetooth. It suits mobile DJs, bands and houses of worship.
Key Features
- Up to 1,200 W Class-D amplifier, up to 130 dB maximum SPL
- EVS-10M 10-inch woofer with a DH-1L 1-inch titanium compression driver
- QuickSmartDSP with four presets, three-band EQ, system-match crossovers and limiting
- QuickSmart app over Bluetooth controls up to six speakers from out front
- Lightweight polypropylene cabinet with the ZLX handle design
- Three M10 threaded mounting points built into the cabinet
Specifications
- Configuration: 2-way powered loudspeaker
- Woofer: EVS-10M 10"
- HF driver: DH-1L 1" titanium compression driver
- Amplifier power: 1,200 W Class-D
- Maximum SPL: 130 dB
- Frequency response: 59 Hz–18 kHz
- Frequency range (−10 dB): 53 Hz–20 kHz
- Coverage: 90° x 60°

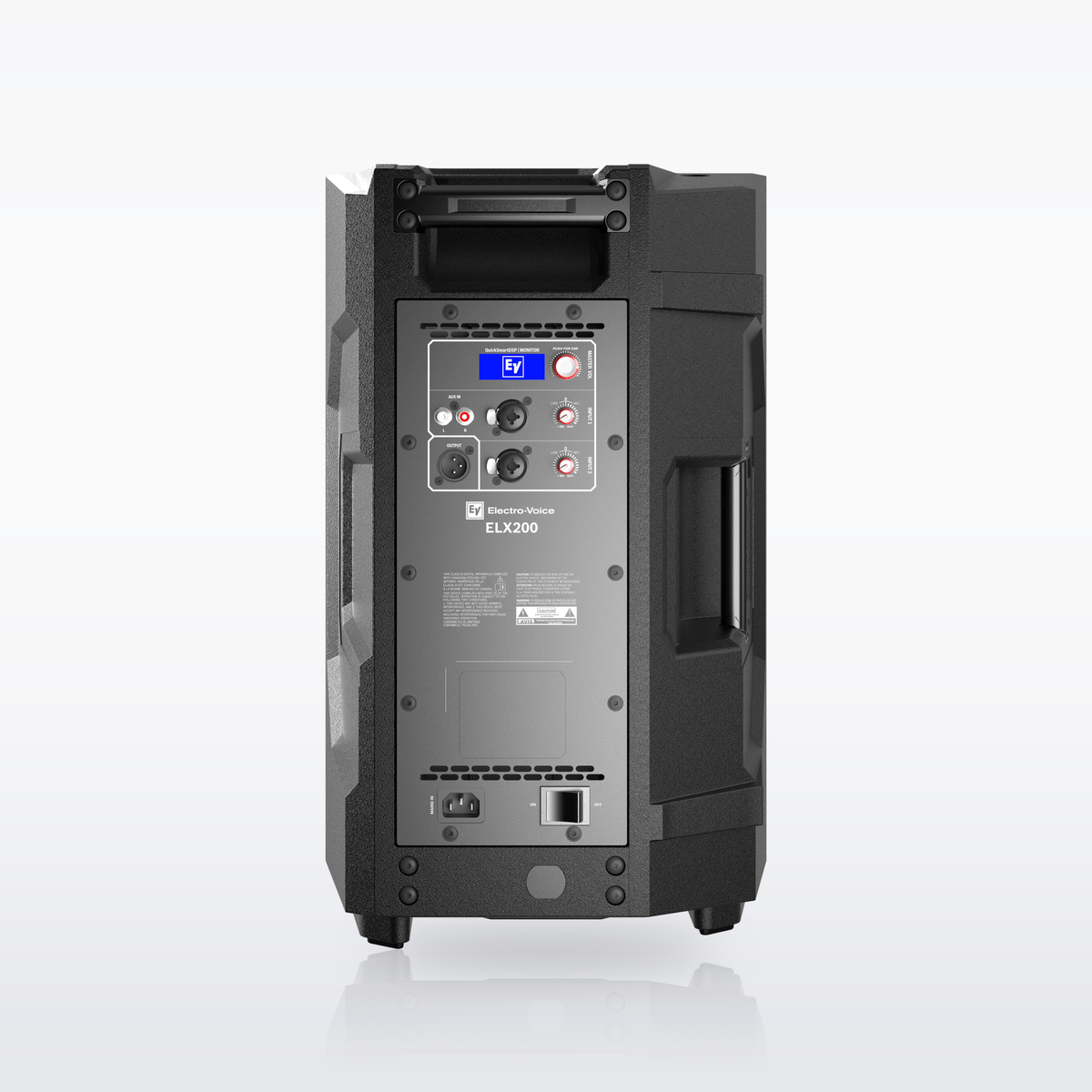

- Connectivity: 2 x XLR/TRS combo inputs,
1 x stereo RCA input,
1 x XLR - Control: QuickSmart app over Bluetooth
- Enclosure: polypropylene
- Grille: 18 AWG powder-coated steel
- Mounting: 3 x M10 suspension points
- AC power: 100–240 V, 50–60 Hz, 1.2–0.6 A
- Dimensions (H x W x D): 531 x 330 x 319 mm (20.9" x 13.0" x 12.6")
- Net weight: 13.5 kg (29.9 lb)
Pairs well with
Make it work
What you need with the ELX200-10P
You also need
Sold as one speaker; buy two for stereo. Bluetooth is for the QuickSmart app; music goes into the stereo RCA aux input.
-
A vocal mic for input 1 or 2; set that input's level to the mic range.Pick one
-
An XLR cable from the mic, or from a mixer's XLR output, to the speaker.
CMI-100 Quad Microphone Cable25 ft
$44.95
-
A 3.5 mm to RCA cable from a phone's headphone jack to the RCA aux input.
CMR-200 Stereo Breakout6 ft
$14.95
