ELX200-12P
12" 1,200 W Powered Loudspeaker
In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details
We’ll email you once, when it’s available.
- 15-day returns. Return policy
- Warranty: 5 years when registered with Electro-Voice. Full terms
Is it right for you?
A 12-inch powered speaker: 1,200 W and 130 dB at 34.4 lb, with QuickSmartDSP presets and app control for up to six speakers.
Great for
- Bands, mobile DJs and houses of worship
- Bands, mobile DJs, houses of worship and installs, as a pair on poles

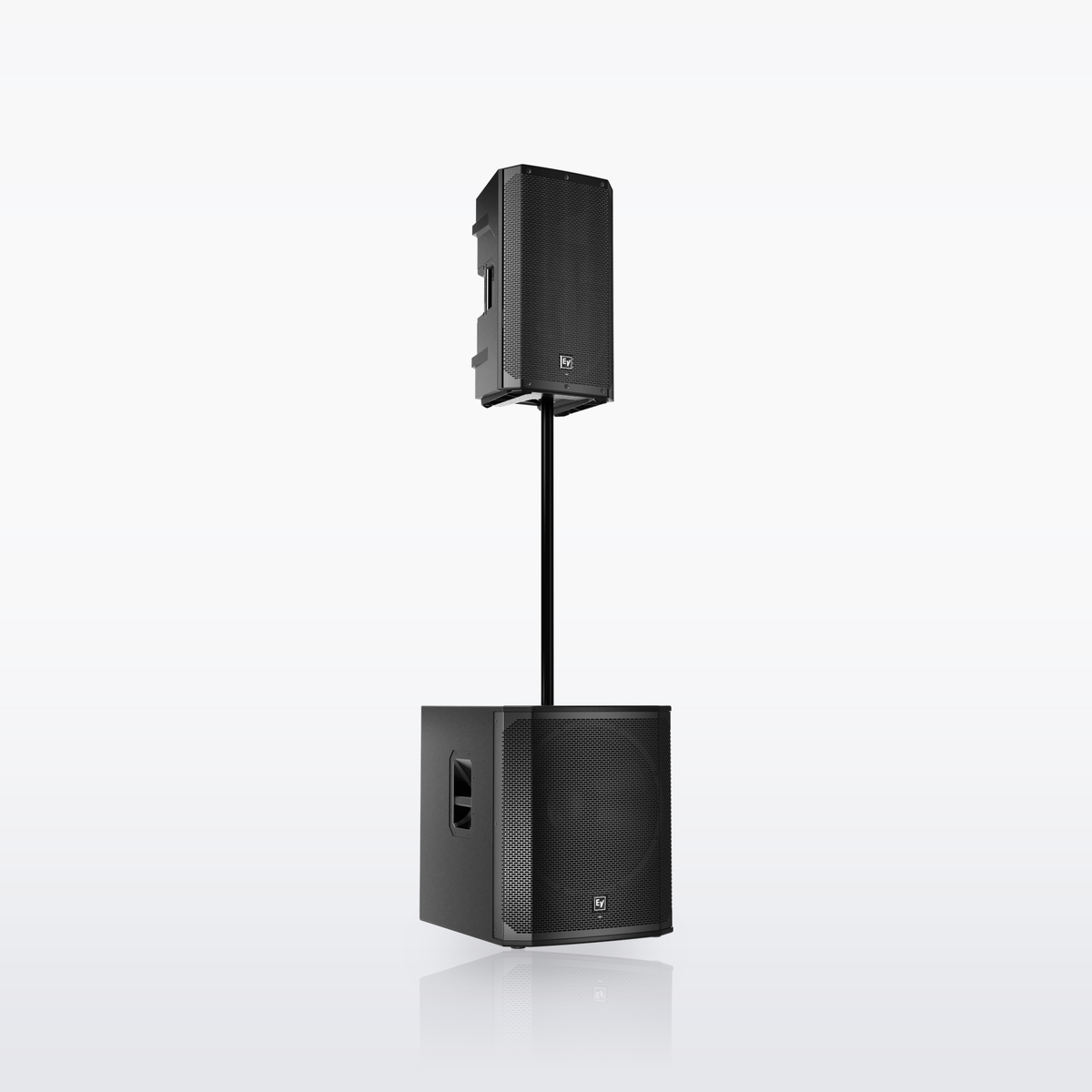

- A top over an ELX200 subwoofer
Description
The ELX200-12P pairs an EV-engineered EVS-12M 12-inch woofer and a DH-1L 1-inch titanium compression driver with up to 1,200 W of Class-D power for up to 130 dB SPL. QuickSmartDSP puts four presets, three-band EQ, system-match crossovers and limiting on the rear panel, and the QuickSmart app controls up to six speakers over Bluetooth. It suits bands, mobile DJs, houses of worship and installs.
Key Features
- Up to 1,200 W Class-D amplifier, up to 130 dB maximum SPL
- EVS-12M 12-inch woofer with a DH-1L 1-inch titanium compression driver
- QuickSmartDSP with four presets, three-band EQ, system-match crossovers and limiting
- QuickSmart app over Bluetooth controls up to six speakers from out front
- Lightweight polypropylene cabinet with the ZLX handle design
- Three M10 threaded mounting points for portable or installed use
Specifications
- Configuration: 2-way powered loudspeaker
- Woofer: EVS-12M 12"
- HF driver: DH-1L 1" titanium compression driver
- Amplifier power: 1,200 W Class-D
- Maximum SPL: 130 dB
- Frequency response: 57 Hz–16 kHz
- Frequency range (−10 dB): 51 Hz–20 kHz
- Coverage: 90° x 60°
- Connectivity: 2 x XLR/TRS combo inputs,
1 x stereo RCA input,
1 x XLR - Control: QuickSmart app over Bluetooth
- Enclosure: polypropylene
- Grille: 18 AWG powder-coated steel
- Mounting: 3 x M10 suspension points
- AC power: 100–240 V, 50–60 Hz, 1.2–0.6 A
- Dimensions (H x W x D): 629 x 363 x 344 mm (24.8" x 14.3" x 13.5")
- Net weight: 15.6 kg (34.4 lb)
Pairs well with
Make it work
What you need with the ELX200-12P
You also need
Sold as one speaker; buy two for stereo. Bluetooth is for the QuickSmart app; music goes into the stereo RCA aux input.
-
A source: a mixer for several mics, or one vocal mic straight into input 1 or 2.Pick one
-
XLR cables: one from the mixer or mic into the first speaker, one from its XLR output to the second.
2 × CMI-100 Quad Microphone Cable25 ft
$89.90$44.95 each
Works with
See it in a full setup
- Create your flowStart with the ELX200-12P DJLive Venue
See it in action
