ELX200-18SP
18" 1,200 W Powered Subwoofer
In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details
We’ll email you once, when it’s available.
- 15-day returns. Return policy
- Warranty: 5 years when registered with Electro-Voice. Full terms
Is it right for you?
An 18-inch powered subwoofer: 1,200 W and 132 dB, down to 40 Hz (-10 dB), with a selectable 80 to 150 Hz low-pass.
Great for
- DJ events and dance floors
- Bands in larger rooms

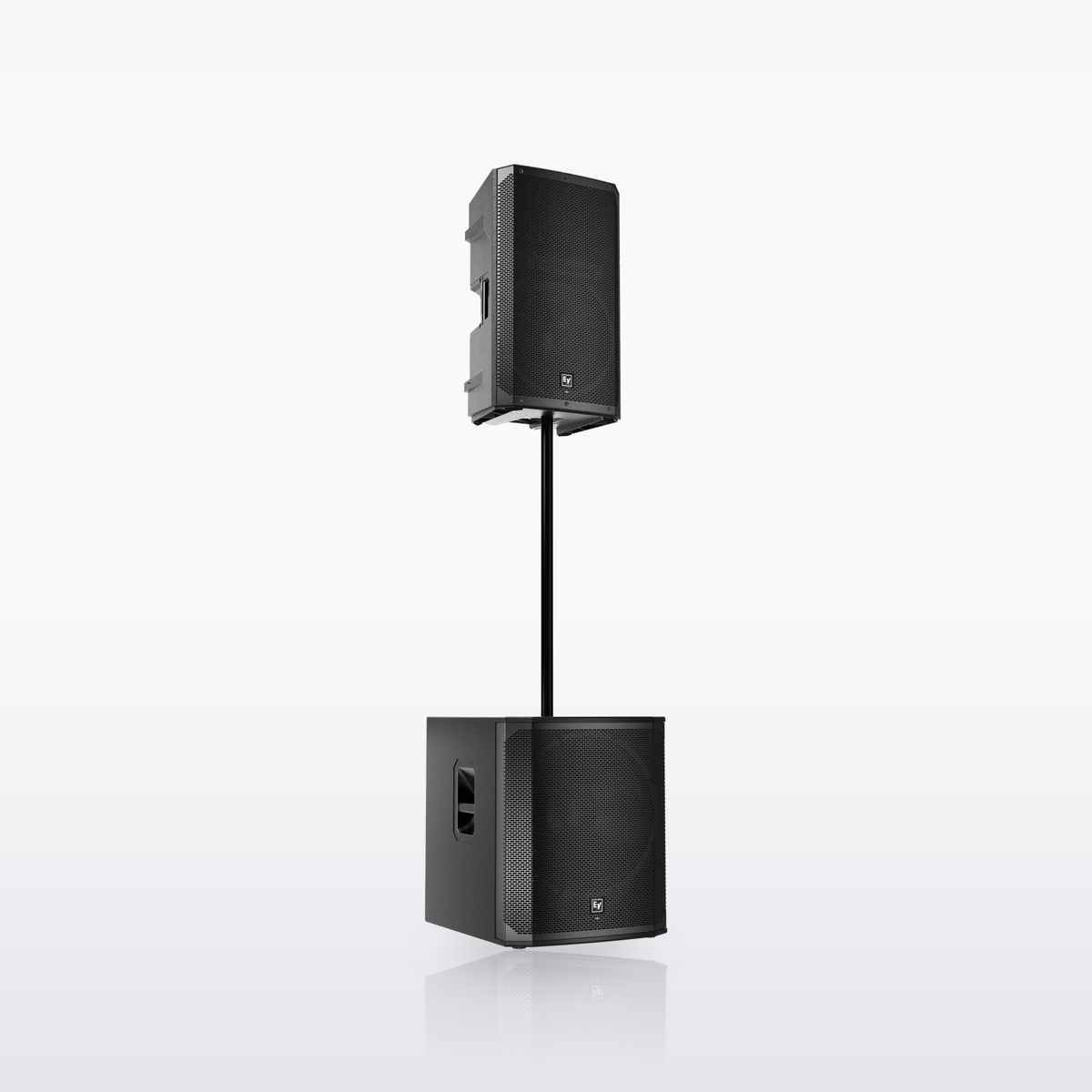

- Under ELX200-15P or ZLX G2 tops
Description
The ELX200-18SP is a powered subwoofer with a custom EVS-18L 18-inch woofer, up to 1,200 W of Class-D power and QuickSmartDSP, reaching up to 132 dB maximum SPL. Set the low-pass at 80, 100, 120 or 150 Hz, choose Music, Live or Club, and save five presets of your own. The QuickSmart app over Bluetooth LE adjusts up to six speakers from out front.
Key Features
- Up to 1,200 W Class-D, up to 132 dB maximum SPL
- Selectable 80, 100, 120 or 150 Hz low-pass plus Music, Live and Club presets
- Five user presets
- QuickSmart app over Bluetooth LE manages up to six speakers
- Onboard limiter protects the system at full output
- Integrated M20 pole-mount plate and two-handle design
- 18 AWG powder-coated steel grille over an EVCoat-finished 15 mm plywood enclosure
Specifications
- Type: powered subwoofer
- Woofer: EVS-18L 18" (457 mm)
- Amplifier power: 1,200 W Class-D
- Maximum SPL: 132 dB
- Frequency response: 47 Hz–105 Hz
- Frequency range (−10 dB): 40 Hz–145 Hz

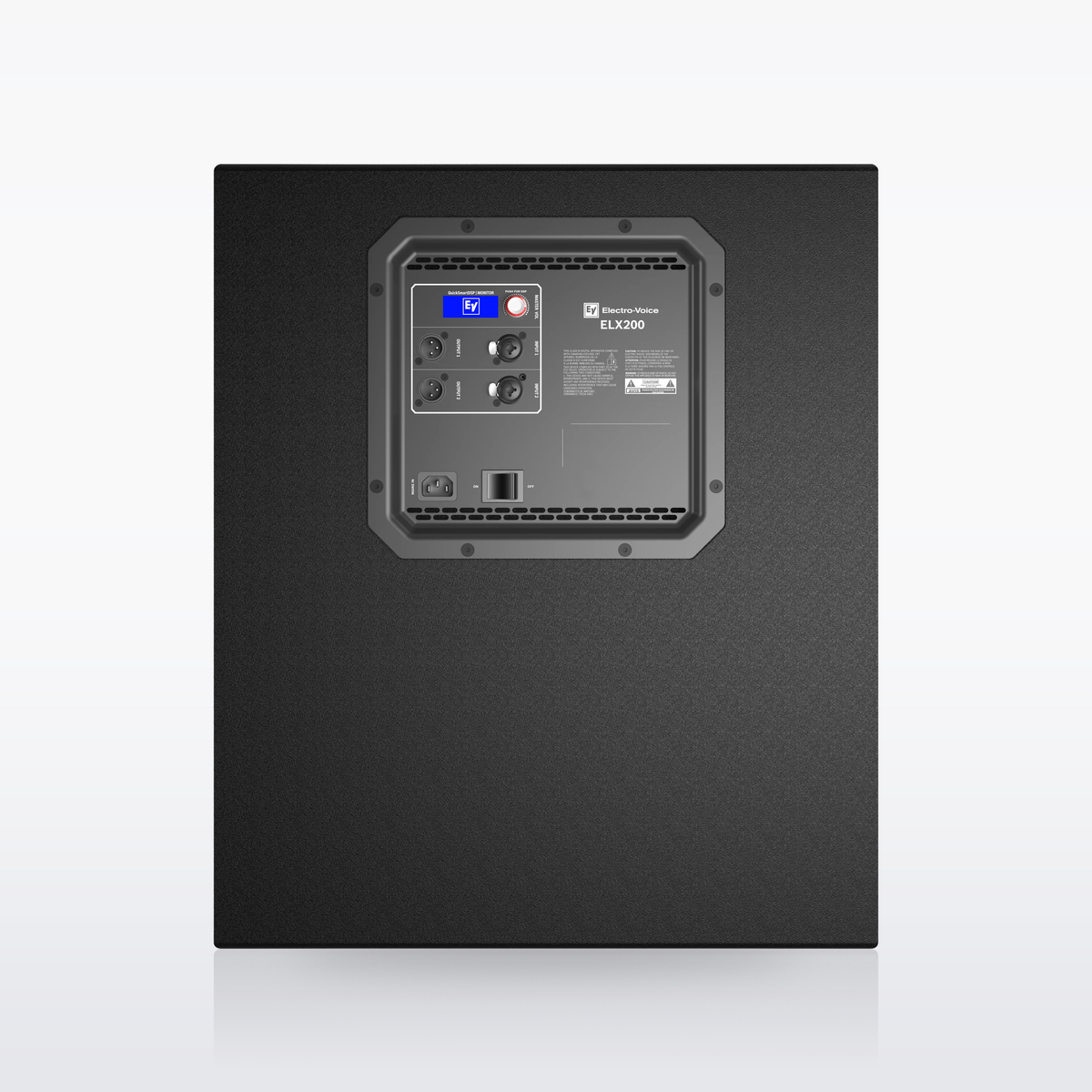

- Connectivity: 2 x XLR/TRS combo inputs, 2 x XLR link outputs
- Control: QuickSmart app over Bluetooth LE
- Enclosure: 15 mm plywood with EVCoat finish
- Grille: 18 AWG powder-coated steel
- Mounting: integrated M20 pole-mount plate
- AC power: 100–240 V, 50–60 Hz, 1.2–0.6 A
- Dimensions (H x W x D): 600 x 507 x 574 mm (23.6" x 20.0" x 22.6")
- Net weight: 29.0 kg (64 lb)
Pairs well with
Make it work
What you need with the ELX200-18SP
You also need
The source goes into the sub first; each XLR link output feeds a top. Set each EV top's Sub menu to ELX200-18SP.
-
One or two powered tops.Pick one
-
Two XLR cables from a mixer's stereo outputs into the sub's two inputs.
2 × CMI-100 Quad Microphone Cable25 ft
$89.90$44.95 each
-
Two XLR cables from the sub's link outputs, one to each top.
2 × CMI-100 Quad Microphone Cable10 ft
$53.90$26.95 each
See it in a full setup
- Create your flowStart with the ELX200-18SP DJLive Venue
See it in action
Questions are always welcome. We usually reply within one business day.
-
