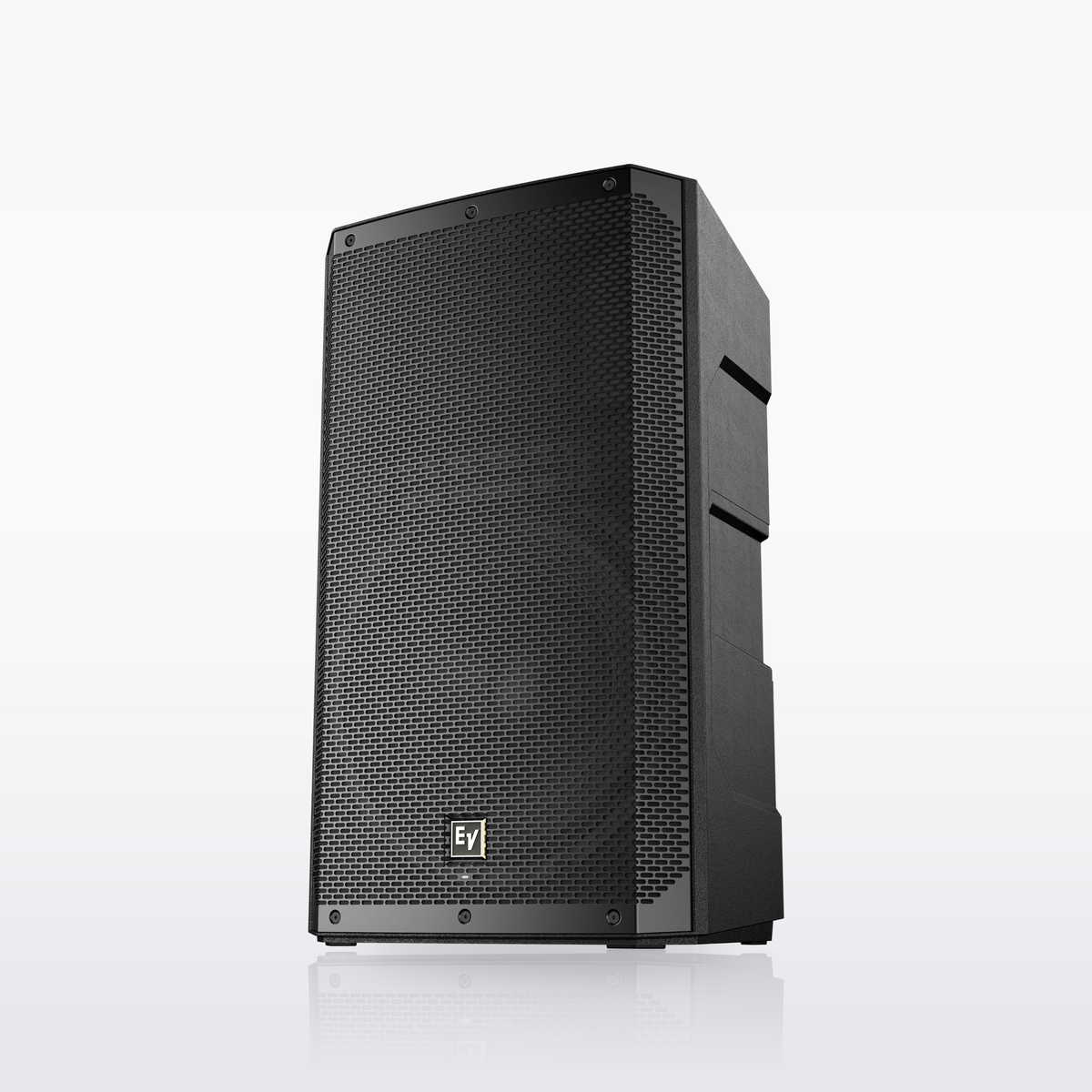

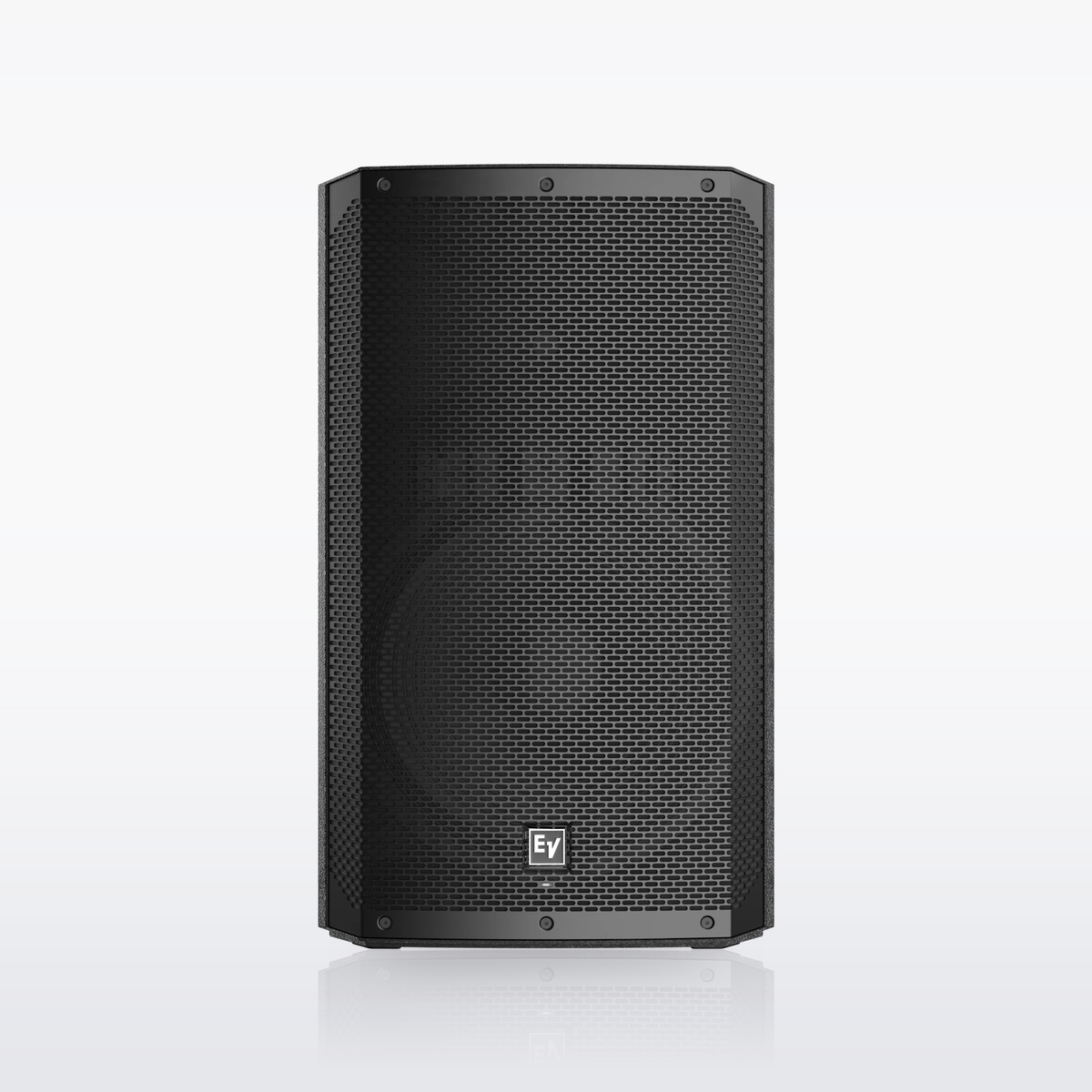

ELX200-15P
15" 1,200 W Powered Loudspeaker
In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details
We’ll email you once, when it’s available.
- 15-day returns. Return policy
- Warranty: 5 years when registered with Electro-Voice. Full terms
Is it right for you?
The biggest ELX200 top: a 15-inch woofer, 1,200 W and 132 dB at 41.7 lb, with QuickSmartDSP and five user presets.
Great for
- Bigger rooms and dance music
- DJs and bands who want more low end from the top
- Stacked over an ELX200-18SP subwoofer
Description
The ELX200-15P drives a custom EVS-15M 15-inch woofer and a DH-1L 1-inch titanium compression driver with up to 1,200 W of Class-D power and QuickSmartDSP, reaching up to 132 dB maximum SPL. Choose Music, Live, Speech or Club, match sub and top, and store five presets of your own. The QuickSmart app over Bluetooth LE manages up to six speakers from out front, and the polypropylene cabinet with the ZLX-style handle is light to carry.
Key Features
- Up to 1,200 W Class-D amplifier, up to 132 dB maximum SPL
- EVS-15M 15-inch woofer with a DH-1L 1-inch titanium compression driver
- QuickSmartDSP with Music, Live, Speech and Club presets, three-band EQ, five user presets, system-match crossovers and limiting
- QuickSmart app over Bluetooth LE controls up to six speakers from out front
- Lightweight polypropylene cabinet with the ZLX handle design
- Three M10 threaded mounting points for portable or installed use

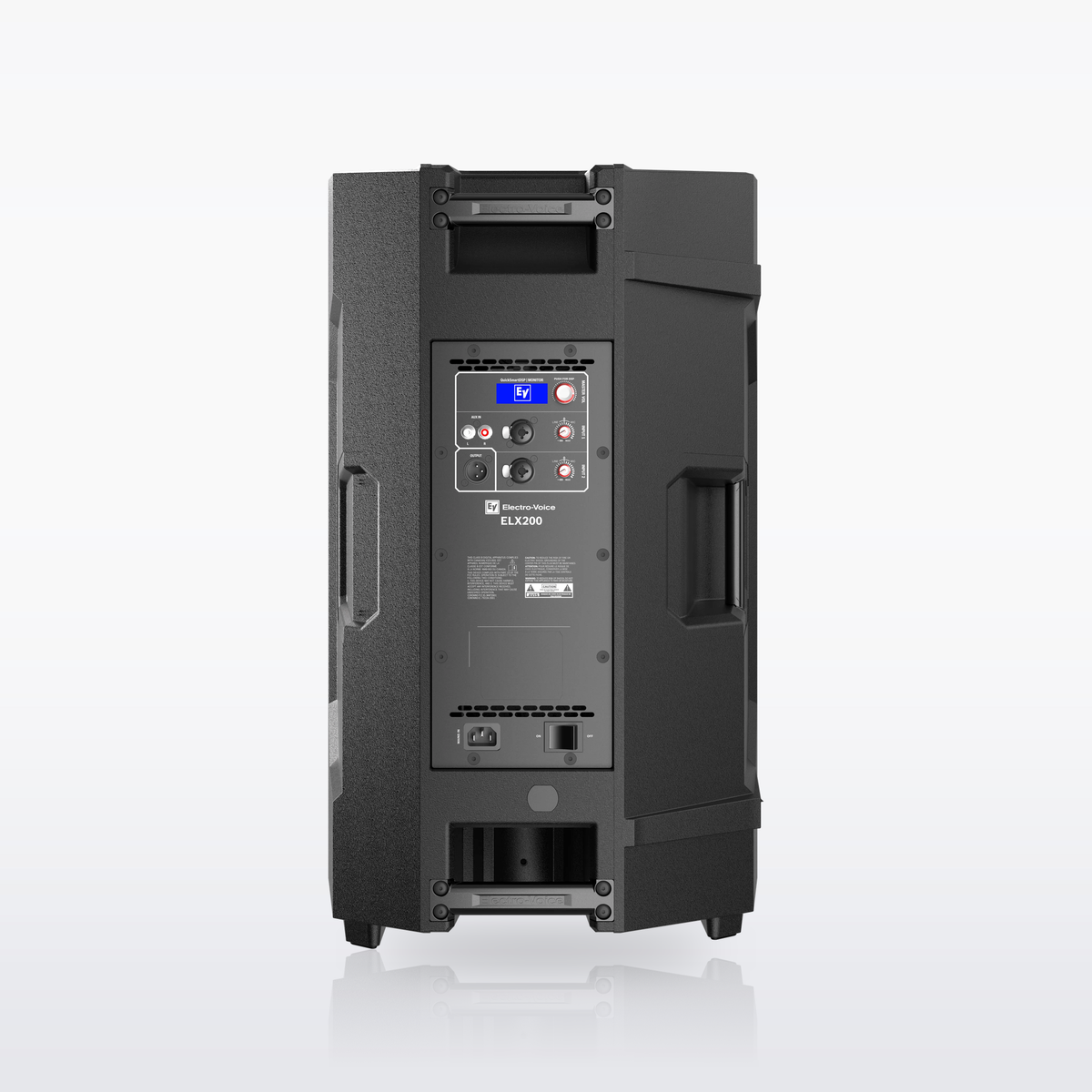

- Input level meters and master volume for setting gain structure
Specifications
- Configuration: 2-way powered loudspeaker
- Woofer: EVS-15M 15"
- HF driver: DH-1L 1" titanium compression driver
- Amplifier power: 1,200 W Class-D
- Maximum SPL: 132 dB
- Frequency response: 55 Hz–16 kHz
- Frequency range (−10 dB): 48 Hz–19 kHz
- Coverage: 90° x 60°
- Connectivity: 2 x XLR/TRS combo inputs,
1 x stereo RCA input,
1 x XLR - Control: QuickSmart app over Bluetooth
- Enclosure: polypropylene
- Grille: 18 AWG powder-coated steel
- Mounting: 3 x M10 suspension points
- AC power: 100–240 V, 50–60 Hz, 1.2–0.6 A
- Dimensions (H x W x D): 710 x 423 x 384 mm (28.0" x 16.7" x 15.1")
- Net weight: 18.9 kg (41.7 lb)
Pairs well with
Make it work
What you need with the ELX200-15P
You also need
Sold as one speaker; buy two for stereo. Bluetooth is for the QuickSmart app; music goes into the stereo RCA aux input.
-
A source: a mixer for several mics, or one vocal mic straight into input 1 or 2.Pick one
-
XLR cables: one from the mixer or mic into the first speaker, one from its XLR output to the second.
2 × CMI-100 Quad Microphone Cable25 ft
$89.90$44.95 each
