R300-HD

Description

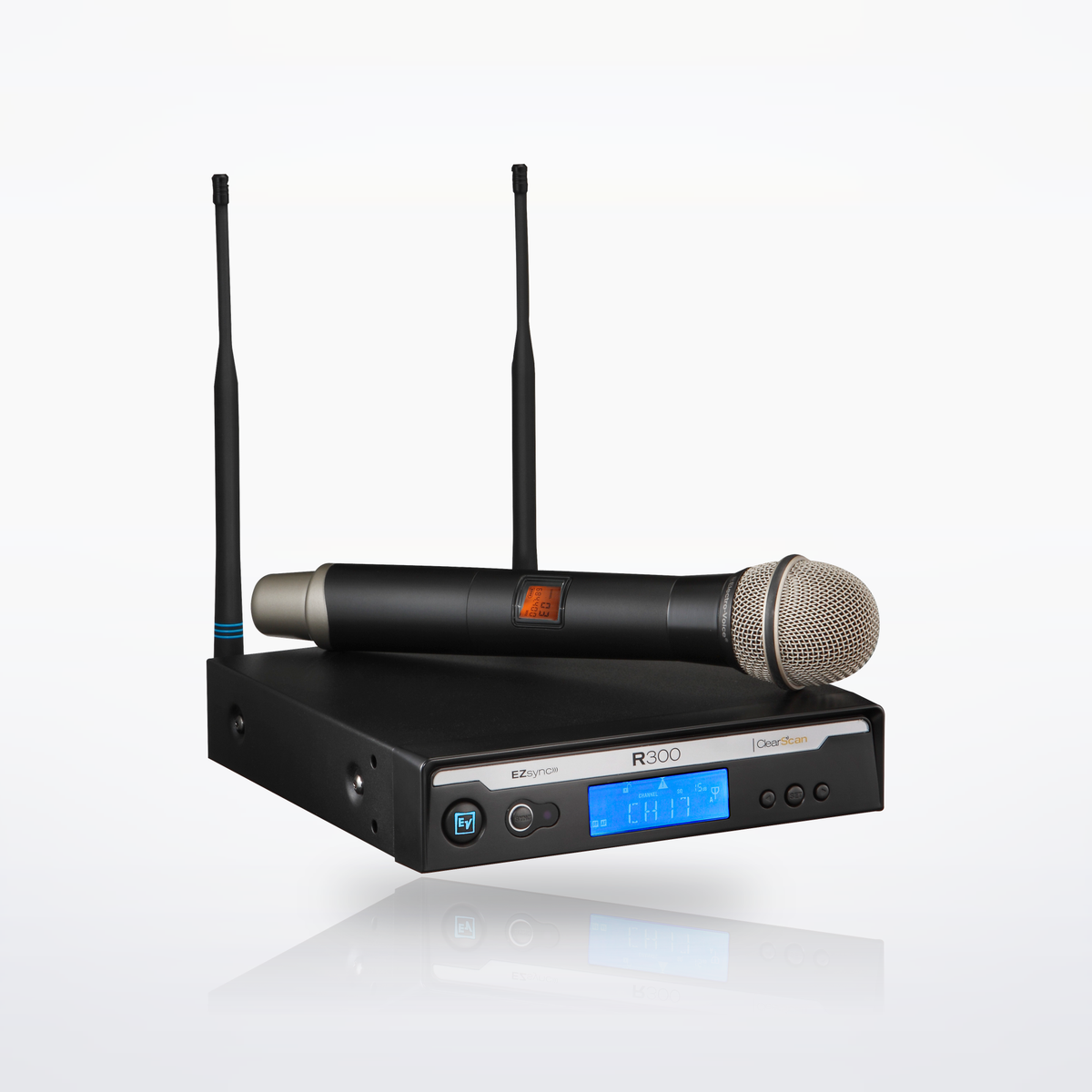

The R300-HD is Electro-Voice's UHF handheld wireless system: an HT-300 metal handheld transmitter with the PL22 cardioid dynamic head, and an R300 true-diversity receiver in a metal chassis. This is the C-band model (516–532 MHz), the R300 band Electro-Voice sells for the US. ClearScan finds the clearest of 32 channels and EZsync pairs the transmitter in one step. The backlit LCD shows channel, frequency, mute and battery, and two AA batteries last over 14 hours.

Key Features

• PL22 cardioid dynamic head for singing, speaking and emceeing
• ClearScan finds the clearest of 32 channels; EZsync pairs in one step
• True antenna diversity to help avoid dropouts
• Backlit LCD shows channel, frequency, mute and battery
• Over 14 hours on two AA alkaline batteries
• Rugged metal handheld transmitter; metal receiver chassis that rack-mounts with optional hardware
• XLR balanced output plus an adjustable 1/4" unbalanced output

Specifications

• Type: UHF wireless handheld system
• Polar pattern: cardioid (PL22 dynamic head)
• Frequency band (US): C band, 516–532 MHz
• Channels: 32
• Frequency response: 80 Hz–18 kHz ±2 dB
• Receiver: synthesized PLL, true antenna diversity
• RF sensitivity: <1.0 μV for 12 dB SINAD
• Receiver output: XLR balanced; 1/4" unbalanced, adjustable 8 mV to 0.755 V RMS
• Signal-to-noise ratio: >100 dB A-weighted
• Dynamic range: >95 dB
• Distortion: <1.0% (0.4% typical)
• Transmitter output: 8 mW typical
• Microphone head: Electro-Voice PL22 cardioid dynamic
• Mic battery: two AA batteries, over 14 hours (alkaline)
• Receiver power: 12–16 V DC, 500 mA max
• Receiver dimensions (H x W x D): 43 x 206 x 210 mm (1.72" x 7.8" x 8.0")
• Handheld length: 26.7 cm (10.57")
• Operating temperature: 5–45°C (41–113°F)

What's in the Box

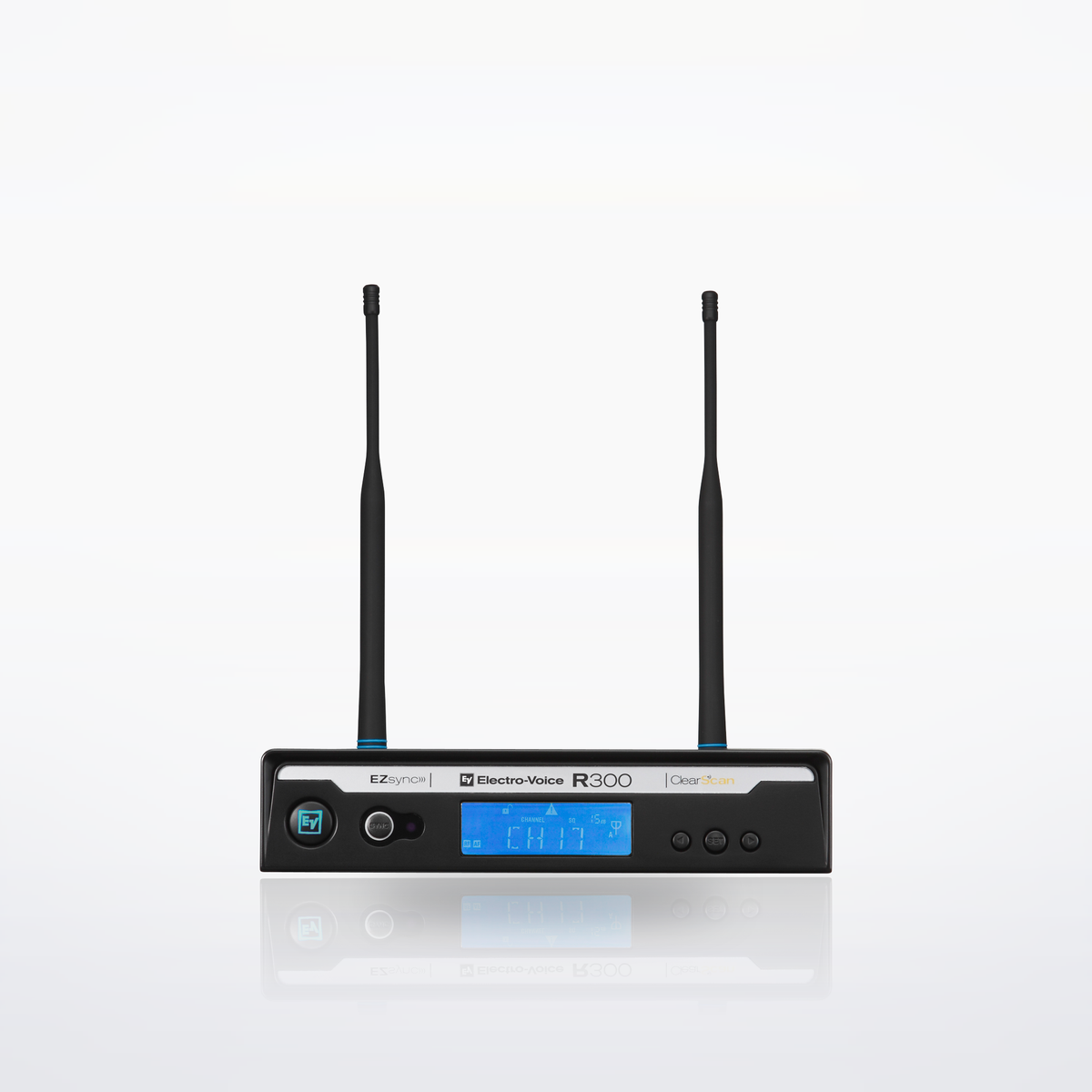

• 1 x R300 receiver

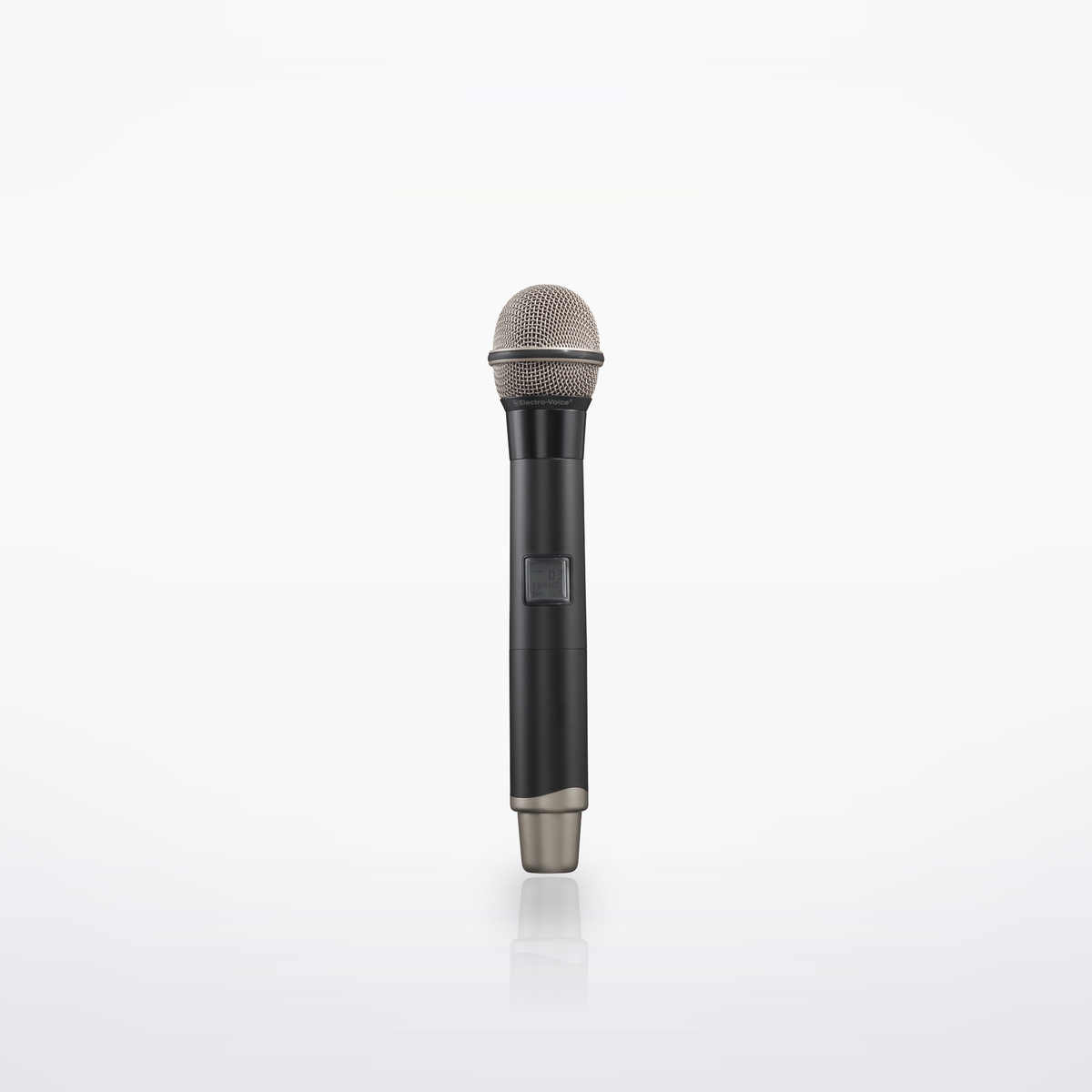

• 1 x HT-300 handheld transmitter with PL22 head
• 2 x Receiver antennas
• 1 x AC power adapter
• 1 x Carrying case
