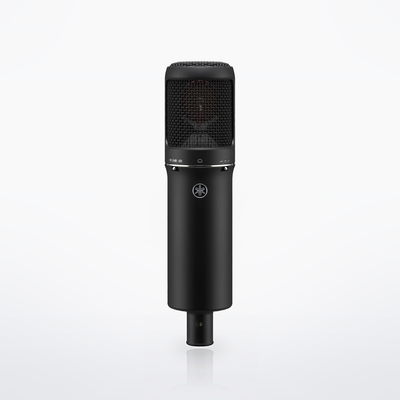

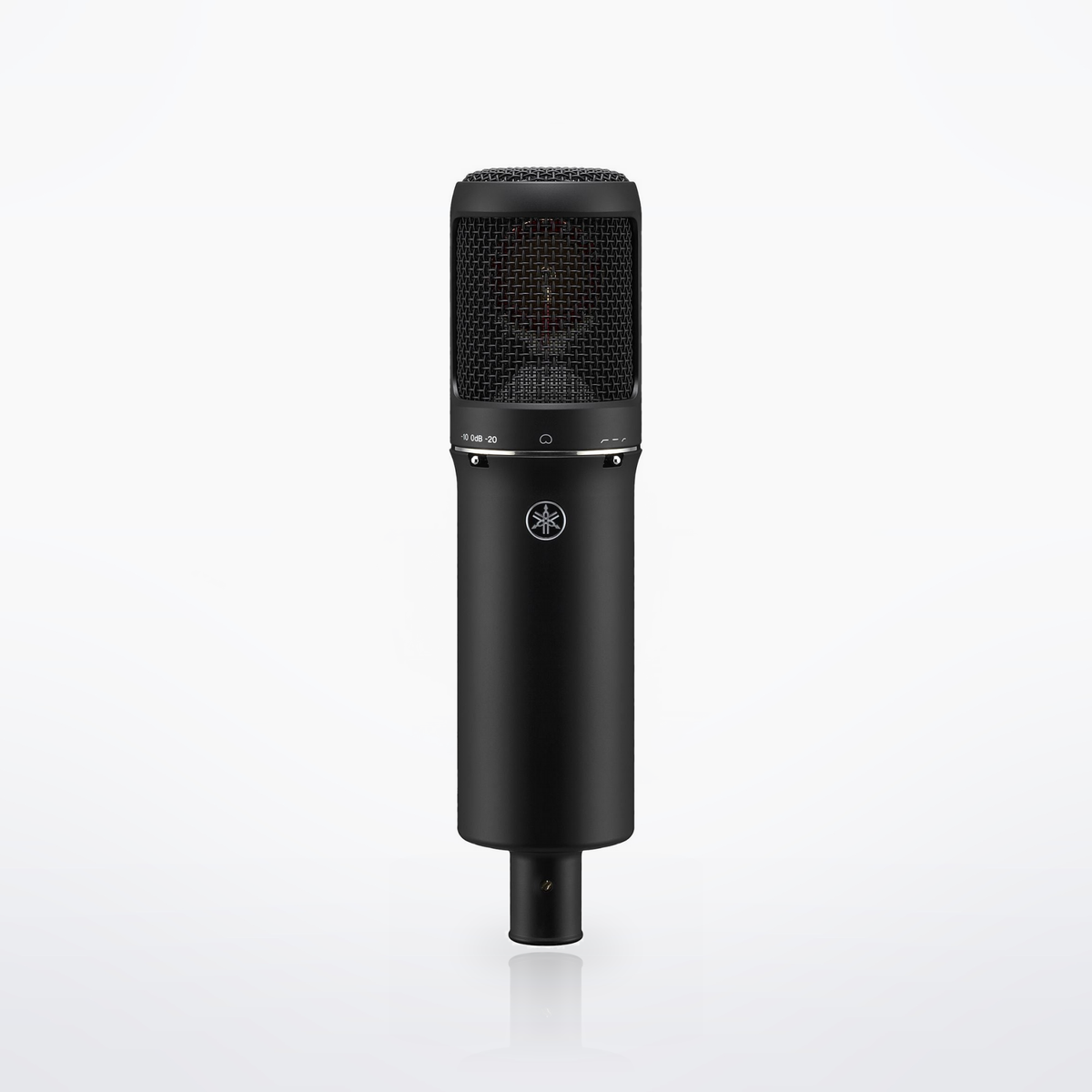

Yamaha YCM705 large-diaphragm condenser microphone, Black, front view

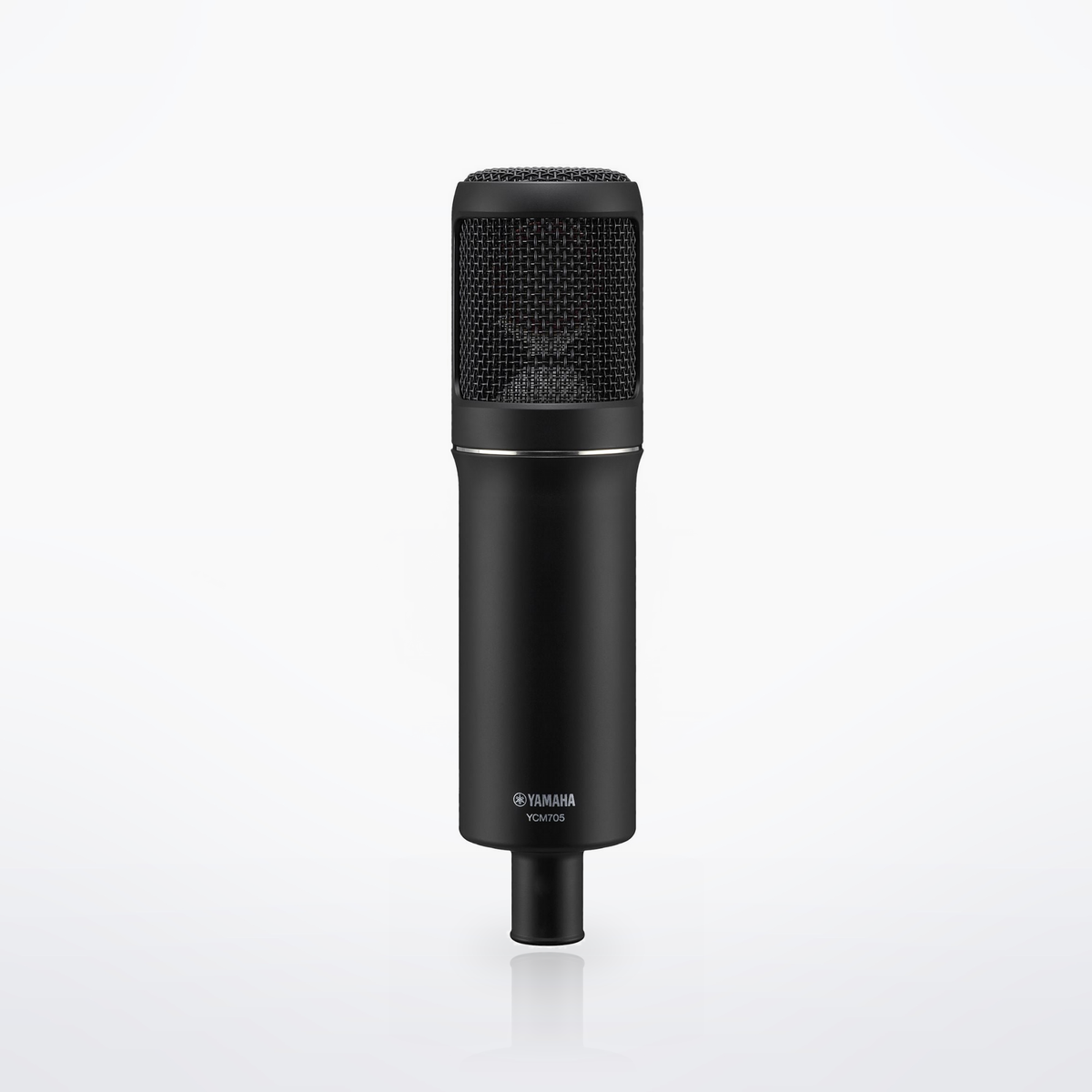

Yamaha YCM705, Black, rear view showing the pad and low-cut switches

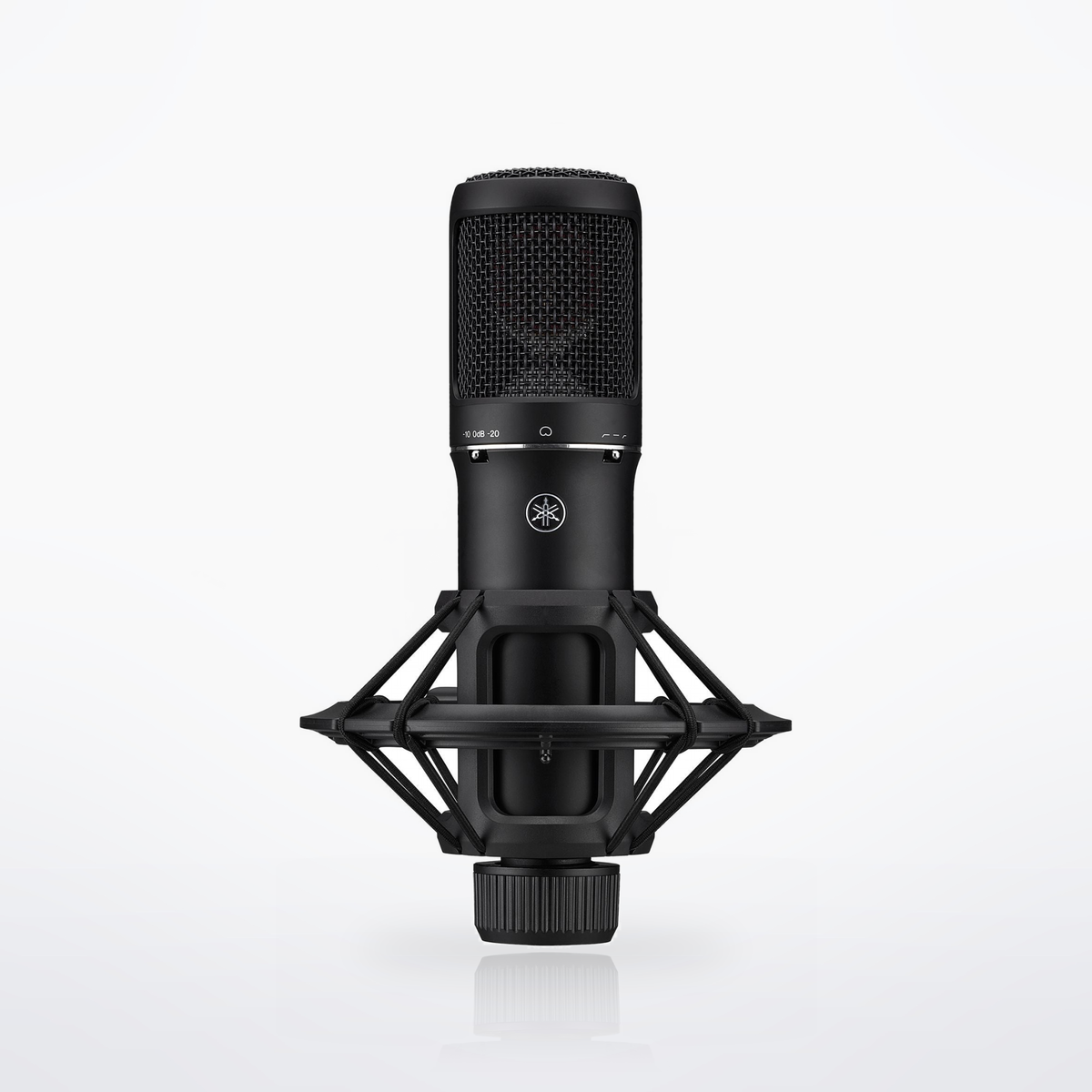

Yamaha YCM705, Black, suspended in its included shock mount

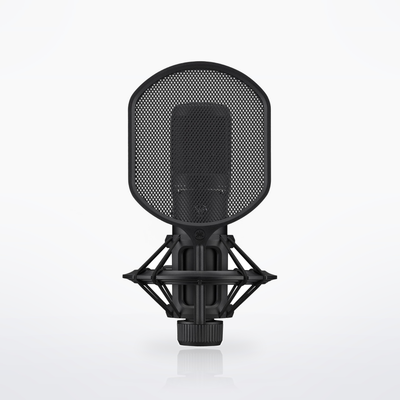

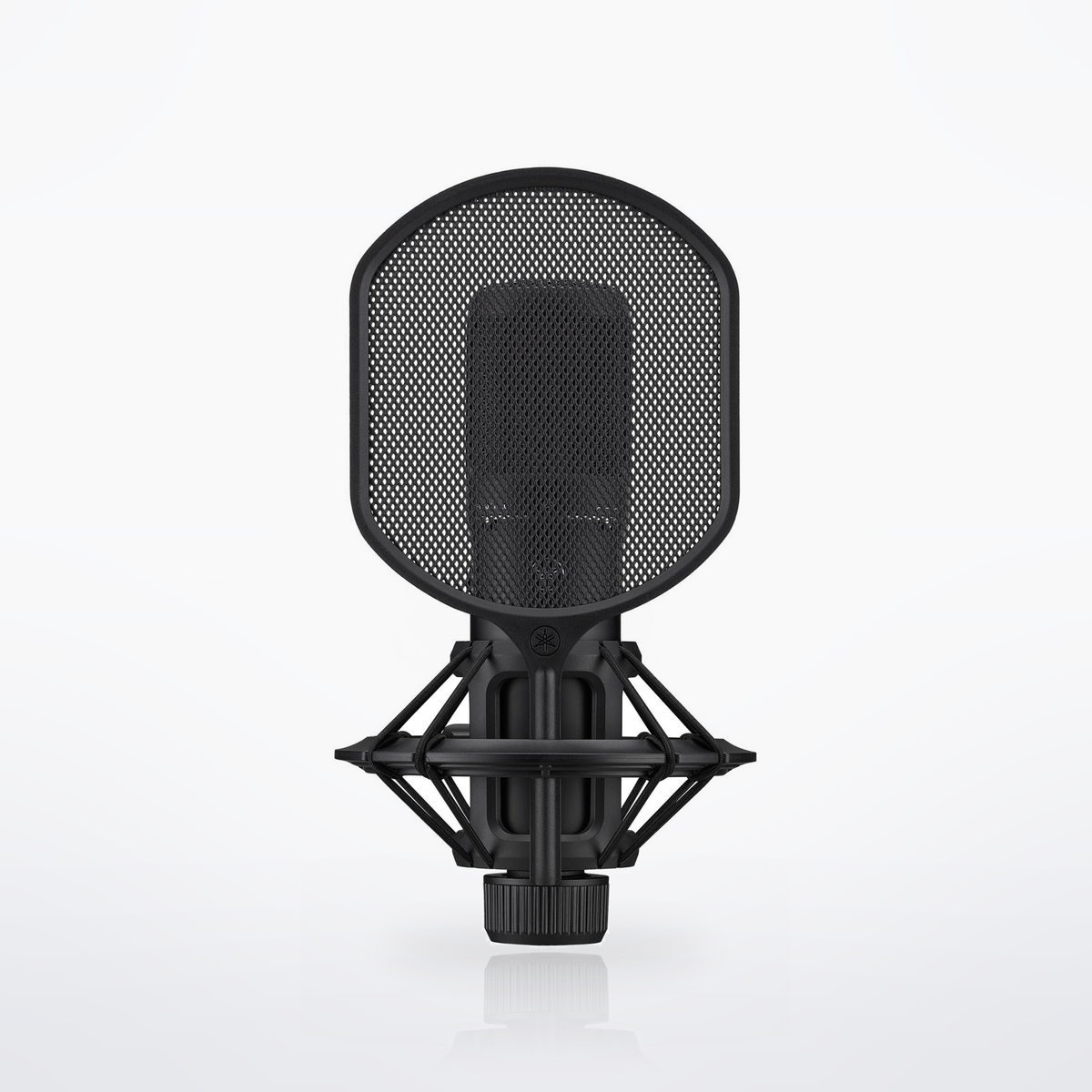

Yamaha YCM705, Black, in the shock mount with the pop filter fitted

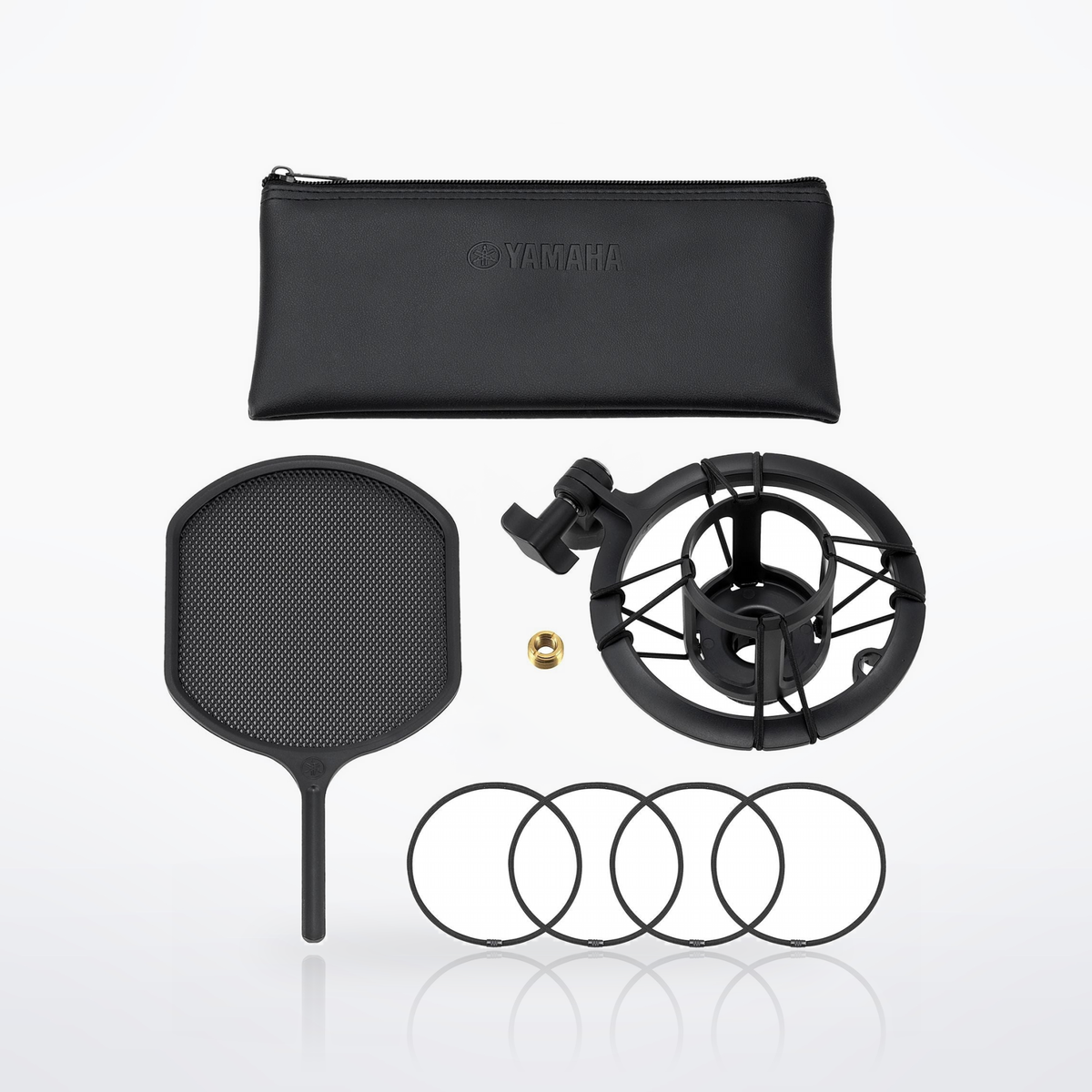

Yamaha YCM705, Black, with included shock mount, pop filter and pouch
Yamaha YCM705 product video
YCM705 Overview and Tips for Vocal Recording (official Yamaha video)

Vendor:Yamaha

YCM705

Large-Diaphragm Condenser Microphone

$349.99
Color
Color: Black
  • Free shipping on orders of $150 or more, $3 under $150 (lower 48). Shipping details
  • Or pick it up free in store, usually ready within 24 hours.
  • 15-day returns. Return policy
  • Warranty: 1 year. Full terms

Is it right for you?

Yamaha's 1-inch large-diaphragm XLR condenser, with a three-position pad, a low-cut filter, and the shock mount and pop filter in the box.

Great for

  • Lead vocals in a home studio
  • Loud sources like drums and brass, with the pad
  • Detailed voiceover and spoken word
What you need to use it

Description

The YCM705 is a side-address cardioid condenser microphone for music production, live streaming, and video recording at home, built around a custom 1" large-diaphragm, DC-biased capsule with a gold-sputtered dual diaphragm. A three-step pad (0/-10/-20 dB) raises maximum SPL from 120 dB to 140 dB for loud sources such as drums, brass, and piano, and a switchable low-cut filter (80 or 160 Hz) reduces low-frequency noise such as air-conditioner rumble. It requires 48 V phantom power, and a shock mount and pop filter are included. Available in black or white.

Key Features

  • Custom 1" large-diaphragm DC-biased condenser capsule with a gold-sputtered dual diaphragm
  • Cardioid, side-address pattern
  • 20 Hz–20 kHz frequency response
  • PAD switch: 0, -10 or -20 dB (maximum SPL 120, 130 or 140 dB)
  • Low-cut filter: off, 80 Hz or 160 Hz (6 dB/octave)
  • Metal body with a matte finish
  • Shock mount, pop filter and four spare shock-mount rubber rings included

Specifications

  • Microphone unit: 1" large-diaphragm DC-biased condenser
  • Polar pattern: Cardioid, side address
  • Frequency response: 20 Hz–20 kHz
  • Sensitivity: 24 mV/Pa (-32.5 dBV/Pa at 1 kHz, 0 dB pad)
  • Maximum input SPL: 120/130/140 dB (0/-10/-20 dB pad, 0.5% THD at 1 kHz)
  • Equivalent noise level: 12 dBA
  • Dynamic range: 108/118/128 dB (0/-10/-20 dB pad)
  • Signal-to-noise ratio: 82 dB
  • Output impedance: 200 Ω or less
  • Phantom power: 48 V, 4 mA
  • Connector: XLR, balanced 3-pin
  • Dimensions: Ø55 x 219 mm (Ø2.2" x 8.6")
  • Weight: 0.7 kg (1.5 lb), microphone only
  • Colors: Black or white

What's in the Box

  • 1 x YCM705 condenser microphone
  • 1 x Shock mount
  • 1 x 5/8" to 3/8" threaded adapter (attached to the shock mount)
  • 1 x Pop filter
  • 4 x Spare rubber rings for the shock mount
  • 1 x Microphone pouch
  • 1 x Owner's manual
