EF215P

Description

The EF215P is a 2-way active loudspeaker with onboard DSP. It is the only double 15-inch cabinet in the Elite series, and offers the best low-frequency projection of any full-range loudspeaker in the Yorkville catalog.

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4" TRS line-level connections. An internal mixer can be engaged to add 1/8" TRS and 1/4" TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

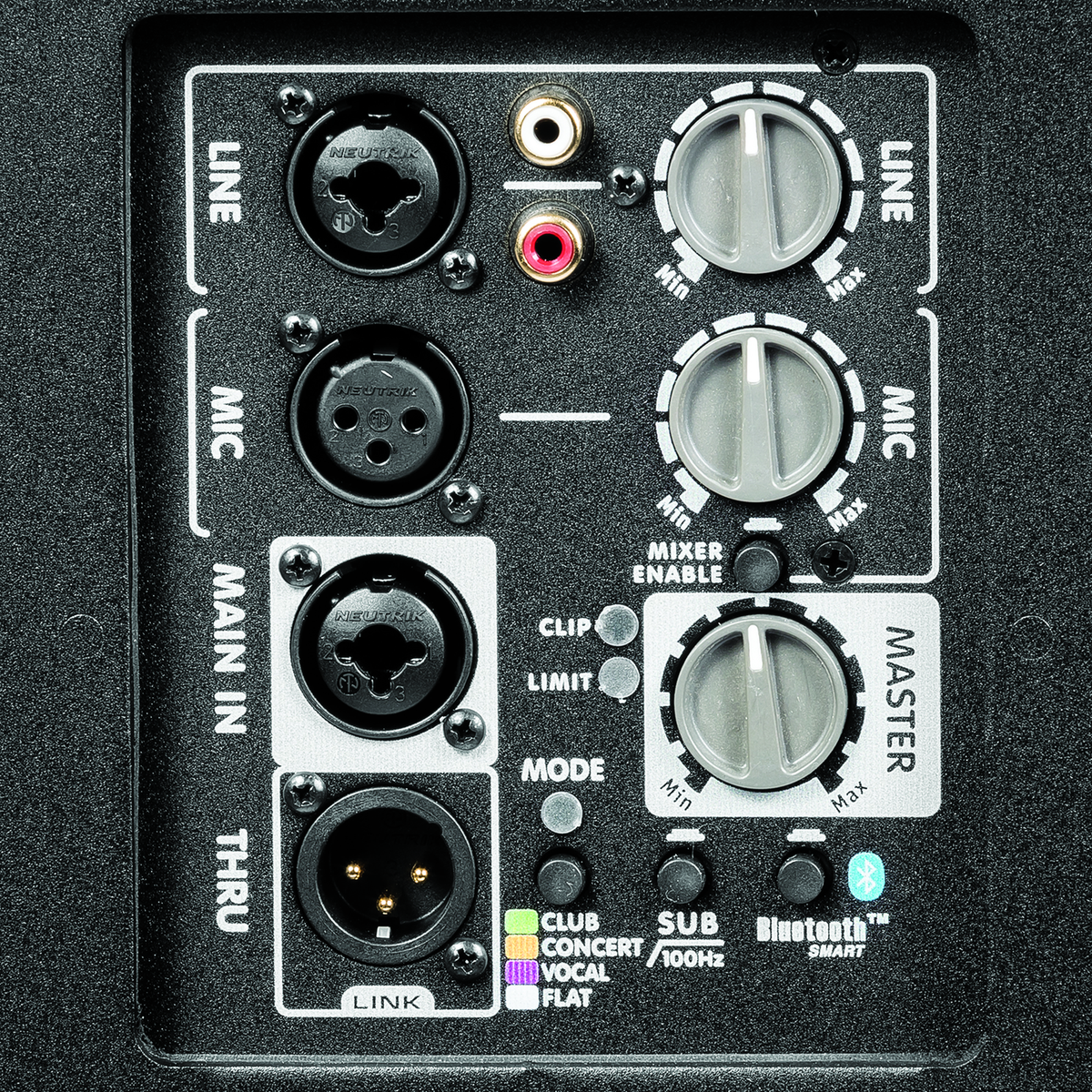

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn't required when using a subwoofer, and pair a Bluetooth device to control speaker parameters using the free companion app.

A 900-watt amplifier powers the 15-inch woofers, and a 3-tier 300-watt amplifier drives the 3-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs. Class D amplifiers, neodymium speaker magnets and Baltic birch construction keep the total weight below 95 pounds while maintaining classic Elite ruggedness and durability. The multi-angle enclosure lets the EF215P operate vertically on a stand or horizontally as a stage monitor.

Key Features

• 2400 W peak power (1200 W program)
• 2x 15" neodymium woofers with 3" voice coils
• 3" titanium-diaphragm compression driver
• Multiband DSP limiting with 4 preset playback performance modes
• iOS and Android app for added cabinet control
• ABS-coated birch plywood cabinet construction
• Made in Canada

Specifications

• System type: 2-way powered loudspeaker, 2x 15" / 3"
• Power rating: 2400 W peak (1200 W program); LF 900 W Class D, HF 300 W 3-tier high headroom
• Max SPL: 133 dB peak (127 dB continuous)
• Frequency response: 43 Hz–16 kHz; crossover 1100 Hz
• Dispersion (H x V): 60° x 40°
• LF drivers: 2x 15" neodymium magnets with 3" voice coils; HF driver: 3" voice coils, titanium diaphragm
• Power: removable IEC cable, power switch
• Inputs: 1x combo jack (XLR / 1/4") main input; mixer: 1x XLR mic input, 1x combo jack (XLR / 1/4") line input, 1/8" line input; 1x XLR thru
• Controls: mixer enable, DSP mode (Club, Concert, Vocal, Custom), sub (100 Hz high-pass filter), Bluetooth enable; mic level, line level, master volume
• Handles: 5 (2 each side, 1 top); fly points: 8 (2 top, 2 bottom, 2 each side) plus 2 pullback; no pole mount
• Fly hardware: 1/4-20
• Enclosure: ABS-coated Baltic birch plywood; perforated metal grille
• Dimensions (D x W x H): 14" x 18.5" x 44.5" (35.5 x 47 x 113 cm)
• Weight: 93 lb (42 kg)
