EXM Pro12

Description

The EXM Pro12 is a 3-way battery-powered PA speaker with a 48V battery, rated at 1600 watts peak (800 watts program) into a 12" neodymium woofer and a 6.5" / 1" coaxial high-frequency driver. Yorkville rates it for 12 hours on a single charge.

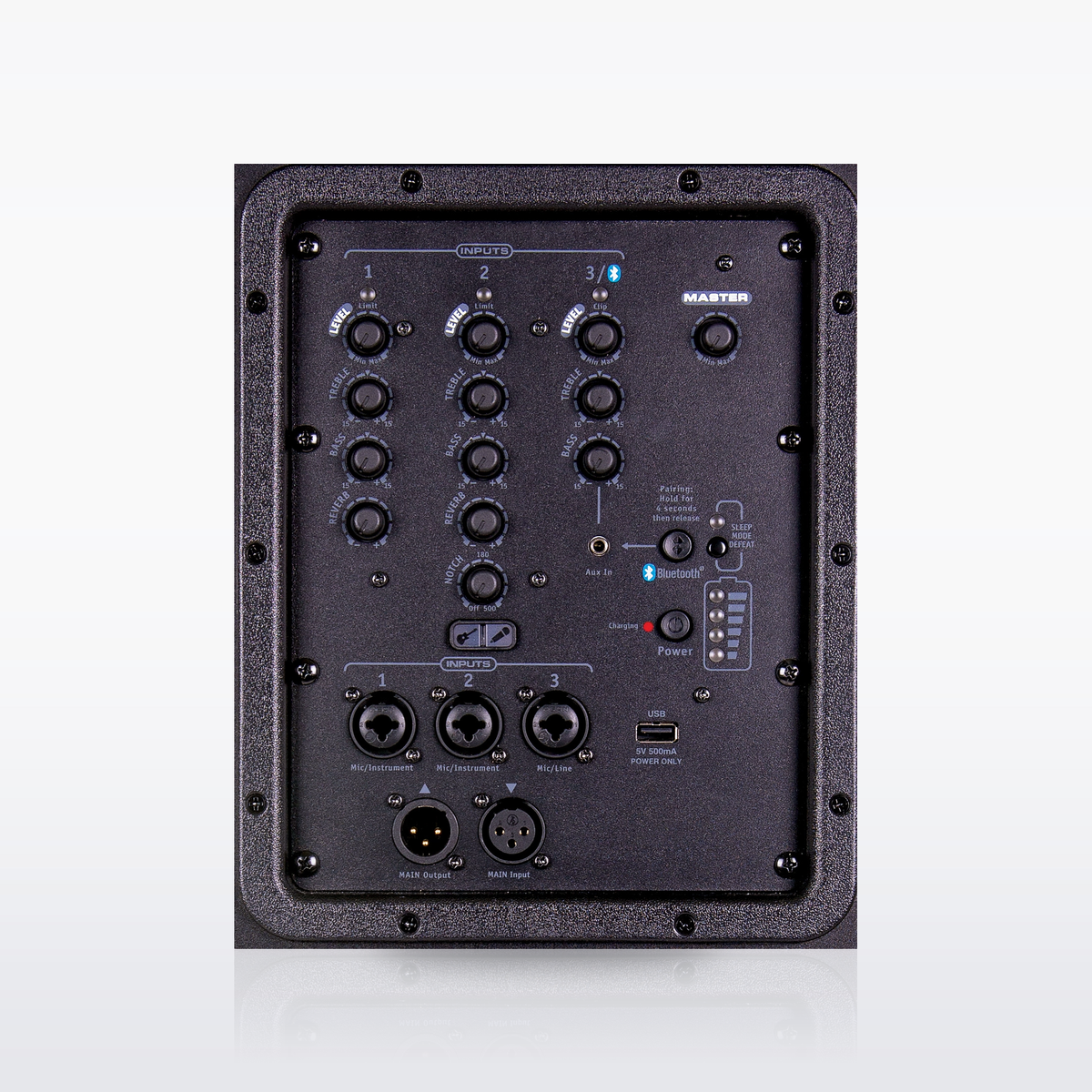

An onboard 3-channel mixer with bass, treble and reverb controls means it can run without an external console, and channel 2 adds an acoustic guitar EQ with a notch filter. Two cabinets can play a stereo Bluetooth stream, XLR main in / out links more EXM speakers or an EXM ProSub, and a USB port charges a phone. It is built in Canada in an ABS-coated birch plywood cabinet.

Key Features

• 48V battery rated for 12 hours per charge
• 12" neodymium woofer
• 6.5" / 1" coaxial HF driver
• Onboard mixer with 3 input channels; 48V phantom power on all XLR inputs
• Reverb on channels 1 and 2; acoustic guitar EQ and notch filter on channel 2
• Bluetooth streaming, with wireless stereo playback between two EXM Pro12 cabinets
• XLR main in / out to link additional EXM speakers or an EXM ProSub
• Can be used while charging
• USB charging port (5V, 500 mA) for external devices
• Integrated speaker stand mount
• ABS-coated birch plywood enclosure
• Made in Canada

Specifications

• System type: 3-way battery-powered PA speaker
• Power rating: 1600 W peak (800 W program)
• Max SPL: 131 dB peak
• Frequency response: 45 Hz–20 kHz
• Dispersion (H x V): 70° x 70°
• LF driver: 12" neodymium
• HF driver: 6.5" / 1" exit coaxial
• Channel 1: XLR / 1/4" combo input; level, bass, treble, reverb
• Channel 2: XLR / 1/4" combo input; level, bass, treble, reverb, acoustic guitar EQ and notch
• Channel 3: XLR / 1/4" combo input, 1/8" TRS stereo jack and Bluetooth; level, bass, treble
• Main in / out: XLR (1 x main input,
  1 x main output)
• Battery life: 12 hours per charge
• Battery life at full volume: 5.5 hours
• Charge time: about 98% in 4–5 hours
• Bluetooth range: 33 ft (10 m) line of sight
• USB output: 5V 500 mA (charging only)
• Power consumption while charging: 100 W (battery fully discharged, unit idling)
• Handles: 3 (2 side, 1 top); pole mount adapter: 1-3/8" (35 mm), bottom
• Enclosure: ABS-coated birch plywood; powder-coated perforated steel grille
• Dimensions (D x W x H): 356 x 406 x 686 mm (14" x 16" x 27")
• Weight: 30.3 kg (66.8 lb)

What's in the Box

• 1 x EXM Pro12 battery-powered loudspeaker
• 1 x AC power cord
