YDM505S
Live Performance Dynamic Microphone
We’ll email you once, when it’s available.
- Free shipping on orders of $150 or more, $3 under $150 (lower 48). Shipping details
- Or pick it up free in store, usually ready within 24 hours.
- 15-day returns. Return policy
- Warranty: 1 year. Full terms
Is it right for you?
Yamaha's cardioid dynamic vocal mic with a lockable on/off switch, so nobody can switch it off mid-set by accident.
Great for
- Solo performers who want an on/off switch
- Speeches, hosting and announcements
- Vocals in bars and small venues
Description

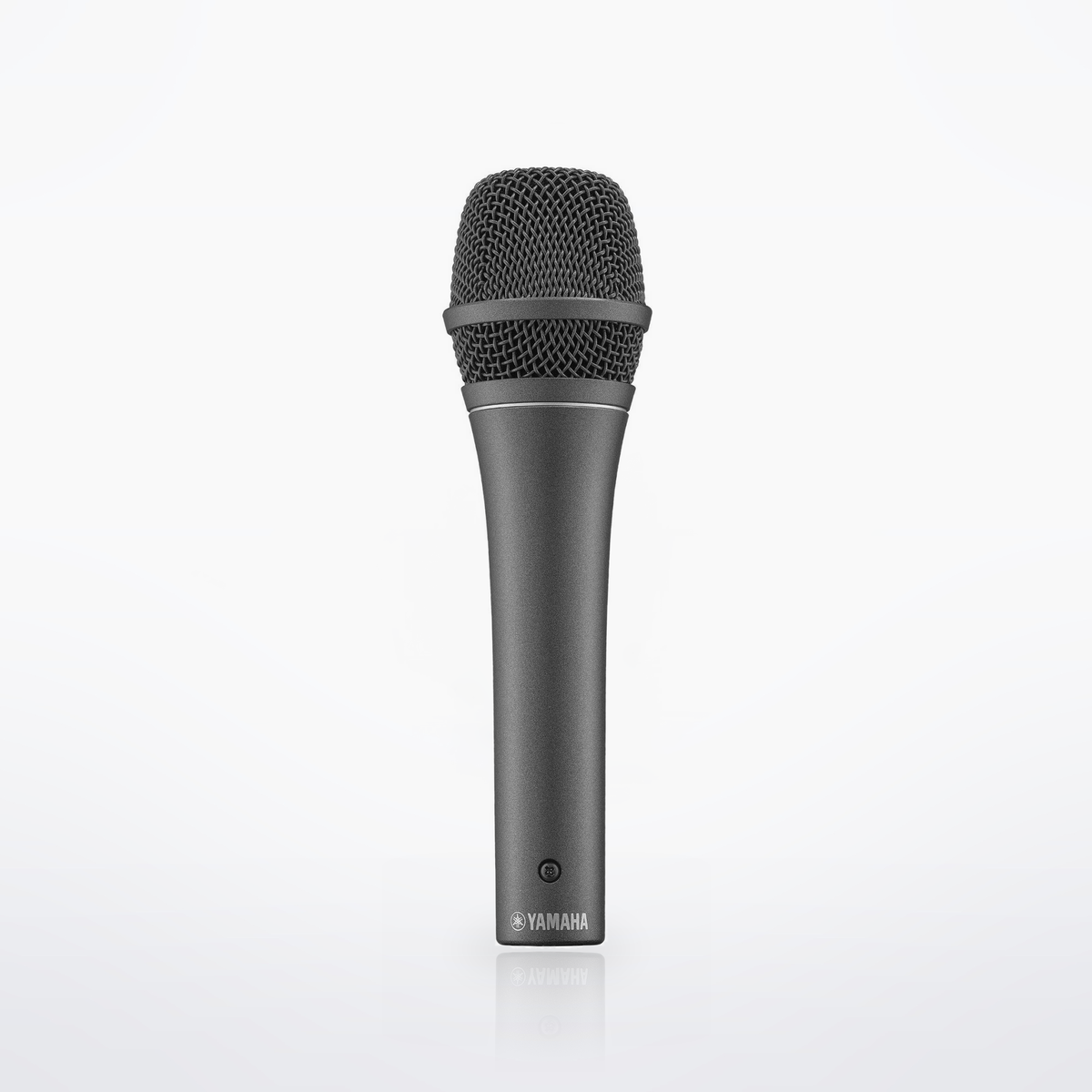

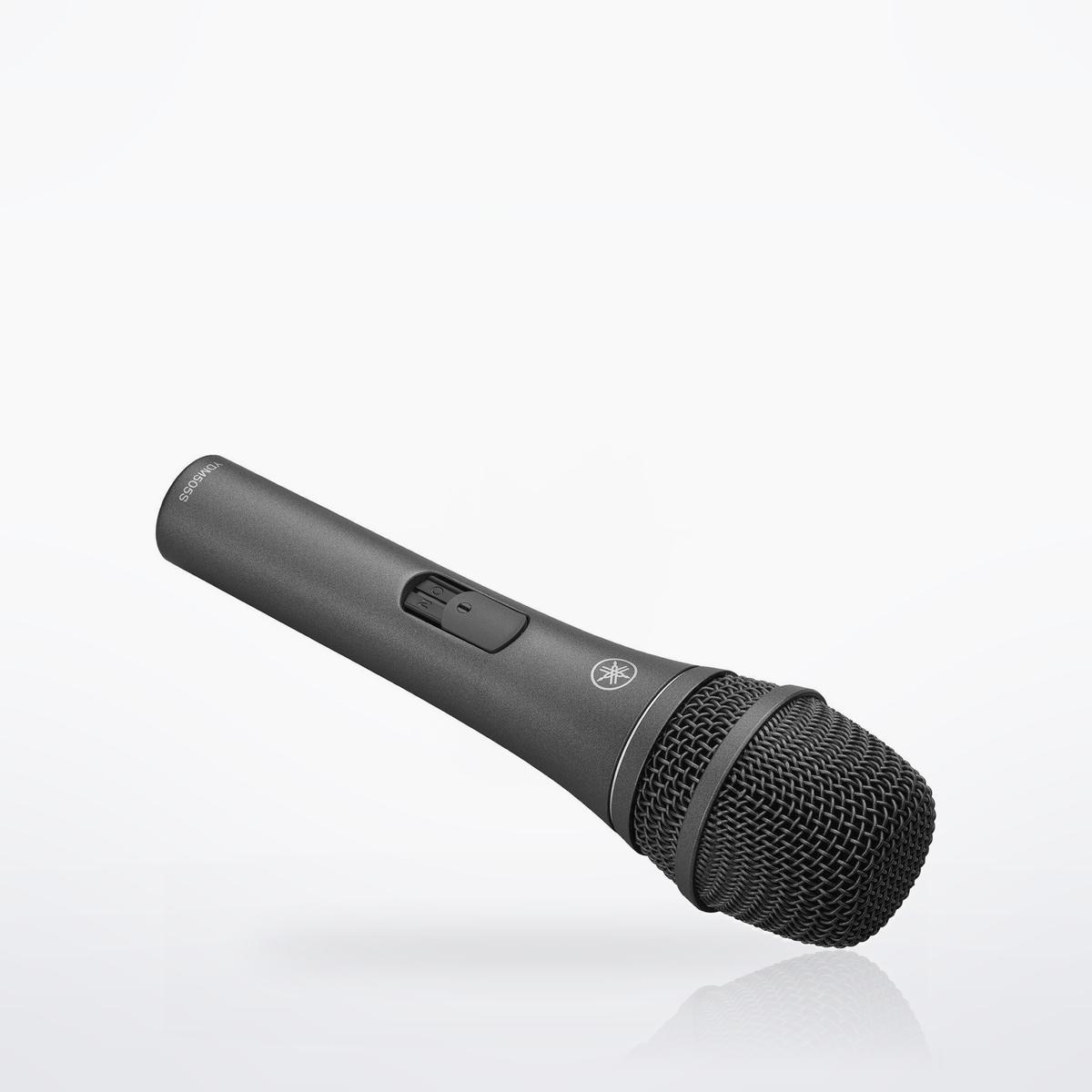

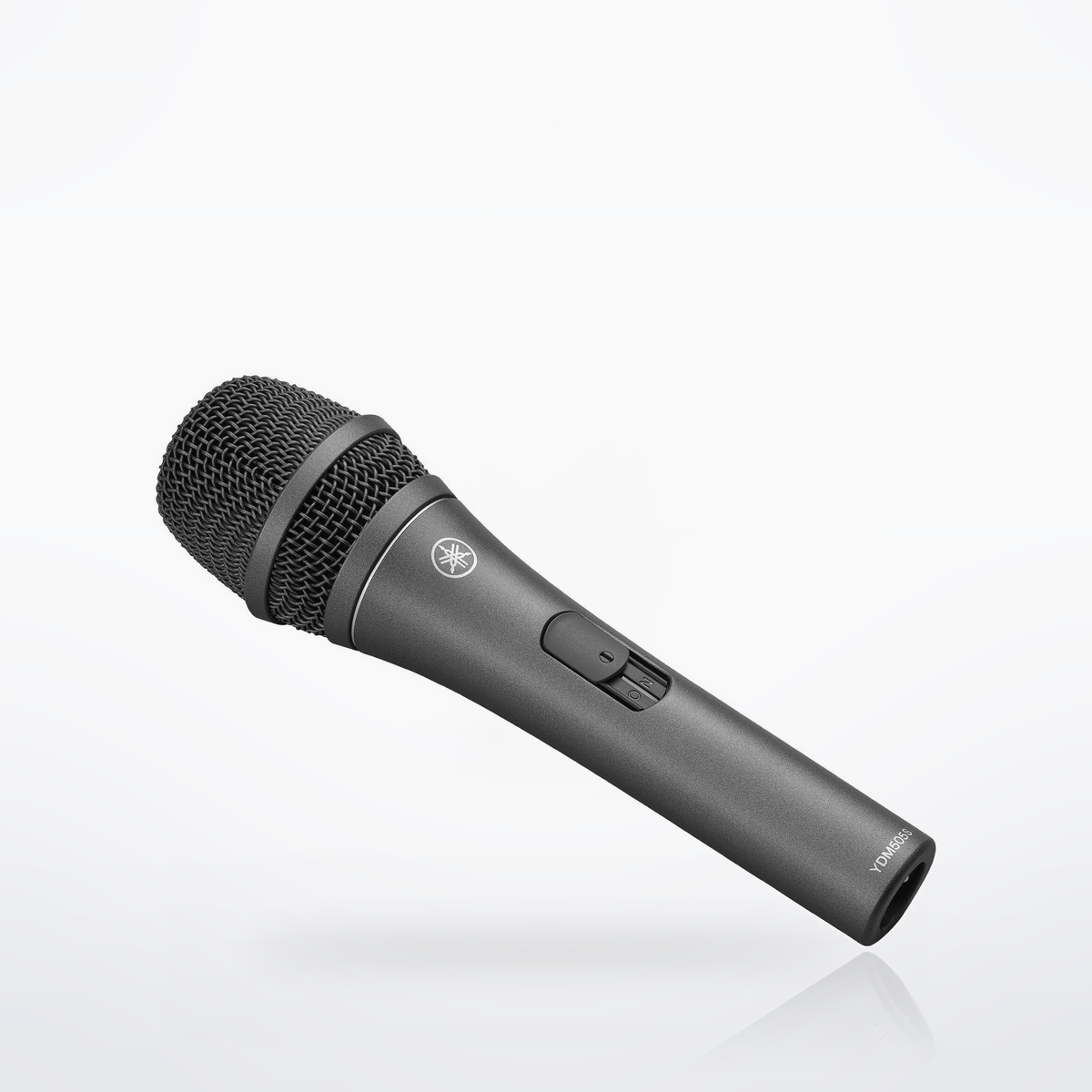

The YDM505S is a cardioid dynamic microphone for performers, with an on/off switch and a switch lock for solo gigs. Turning a screw 90 degrees locks the switch in the on position, so another performer cannot switch the mic off by accident during a show. An insulator made from proprietary materials reduces handling noise and vibration, and the metal body follows the curves of Yamaha's wind instruments, with a silver ring at the top of the grip.
Key Features
- Custom-designed cardioid dynamic capsule

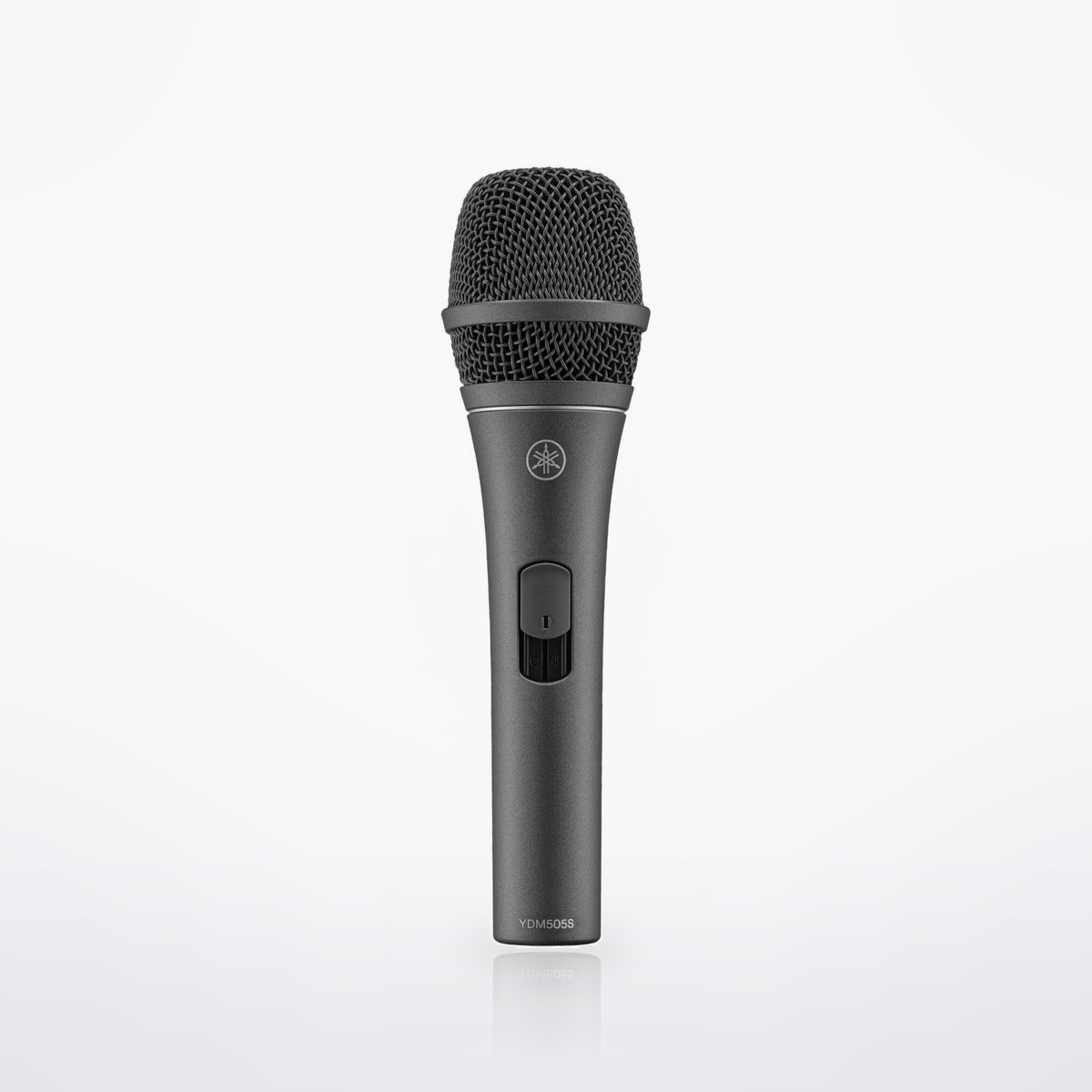

- On/off switch with a switch lock that holds it in the on position
- Insulator reduces handling noise and external vibration
- Metal body with a silver ring at the top of the grip; grip shape refined through prototype testing
- Replacement grille (GR-YDM505) sold separately
Specifications
- Microphone unit: Dynamic
- Polar pattern: Cardioid
- Frequency response: 60 Hz–15 kHz
- Sensitivity: 2.5 mV/Pa (-52 dBV/Pa) at 1 kHz, open circuit
- Nominal impedance: 600 Ω
- Minimum terminating impedance: 1,800 Ω
- Connector: XLR, balanced 3-pin
- Dimensions: Ø51 x 184 mm (Ø2.0" x 7.2")
- Weight: 290 g (10.2 oz), microphone only
What's in the Box
- 1 x YDM505S dynamic microphone

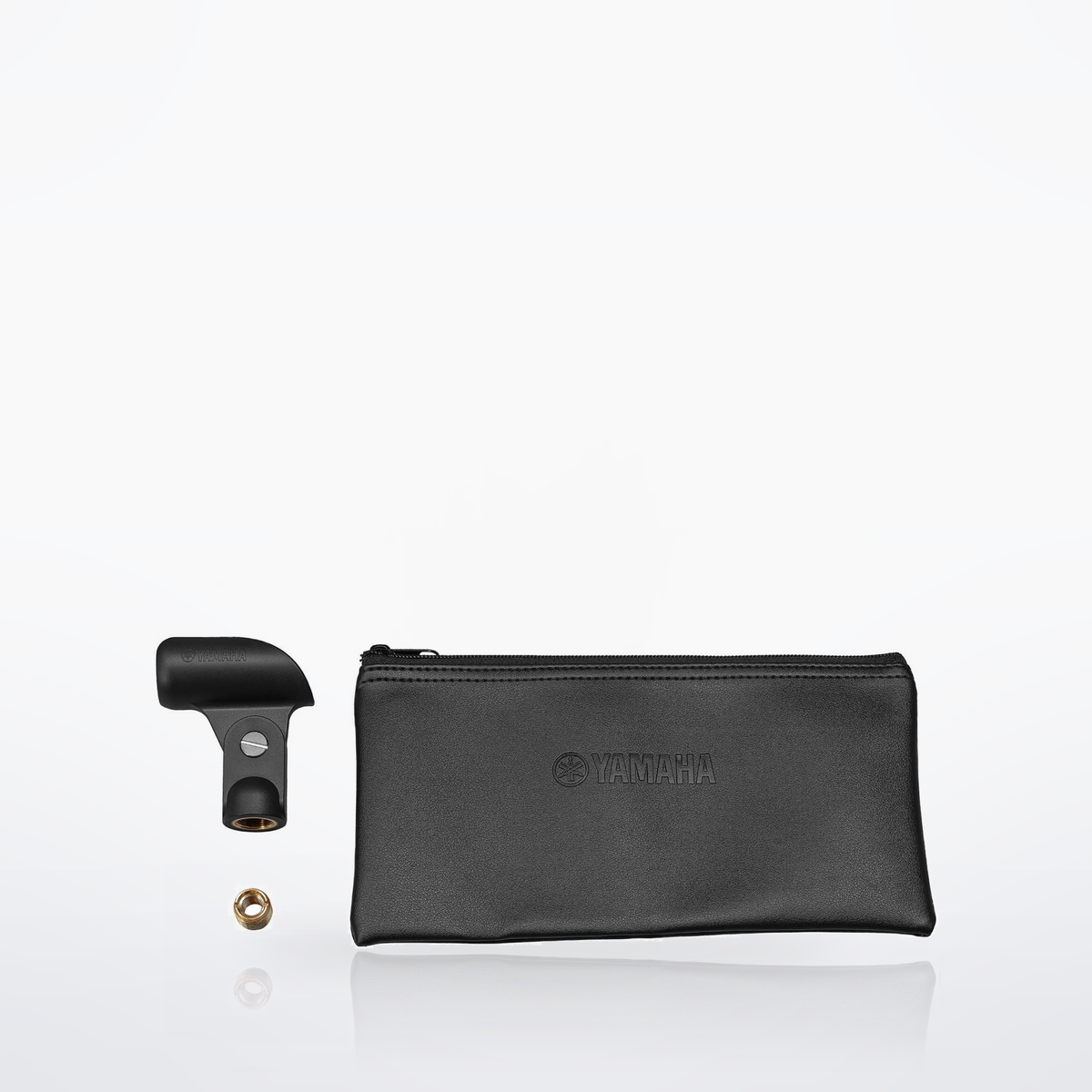

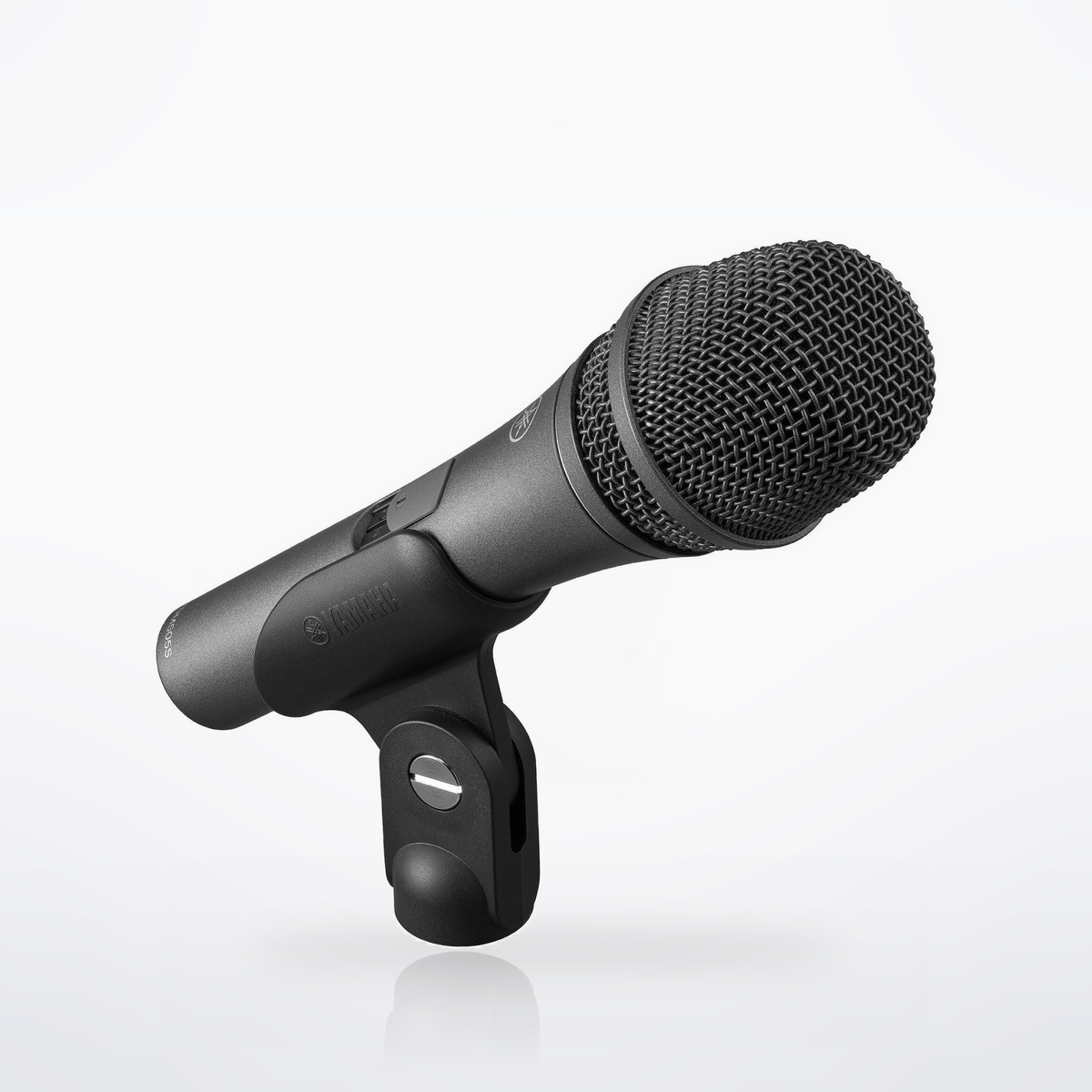

- 1 x Microphone holder
- 1 x 5/8" to 3/8" threaded adapter
- 1 x Microphone pouch
- 1 x Owner's manual
Pairs well with
Make it work
What you need with the YDM505S
You also need
-
A mixer, interface or powered speaker with an XLR mic input. It is a dynamic mic, so phantom power is not needed.Pick one
-
An XLR cable from the mic to the mixer or speaker.
