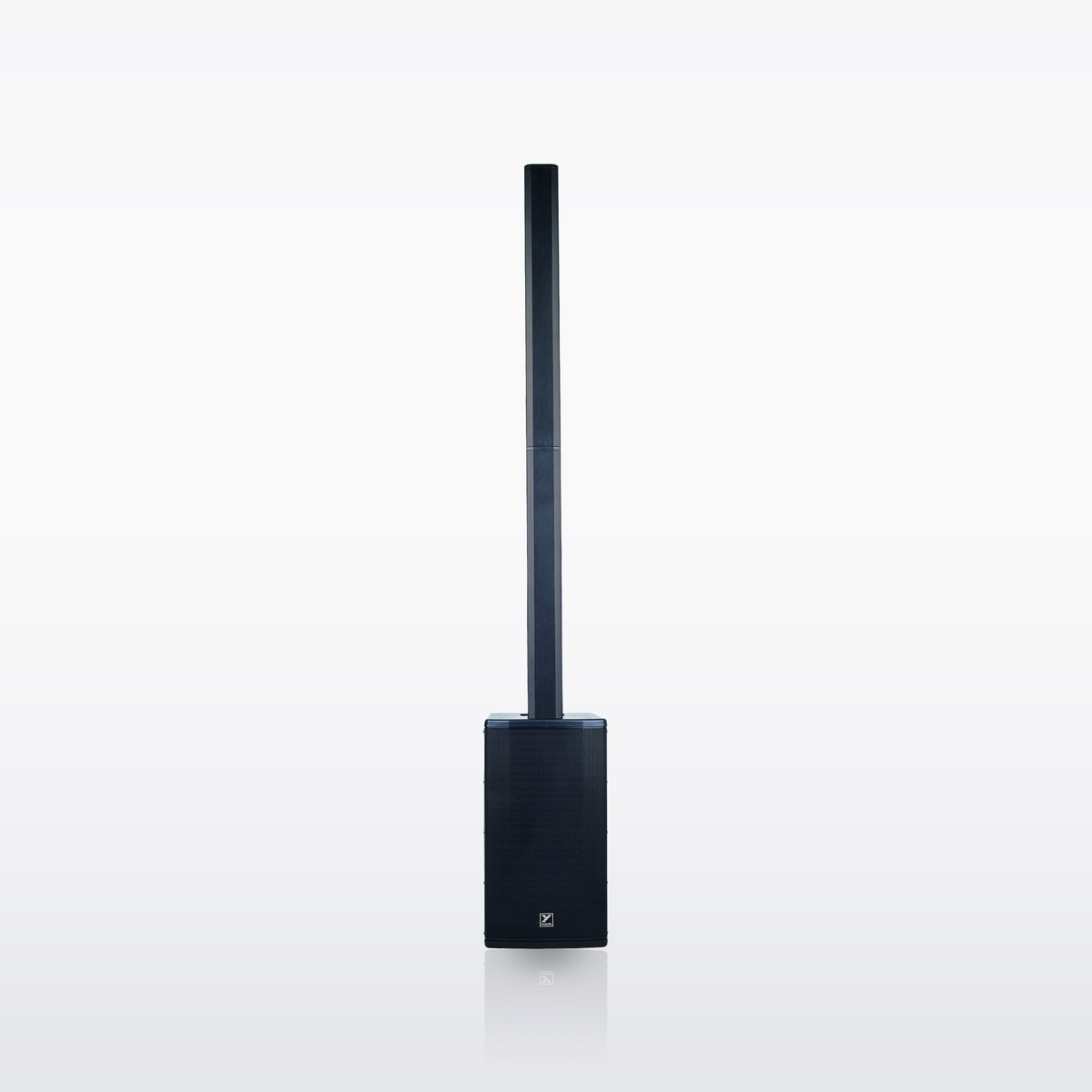

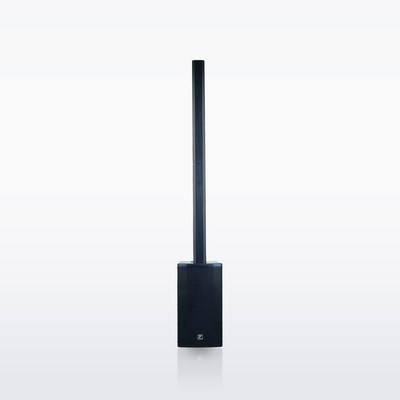

Yorkville YXL Tower12 column PA system, front view

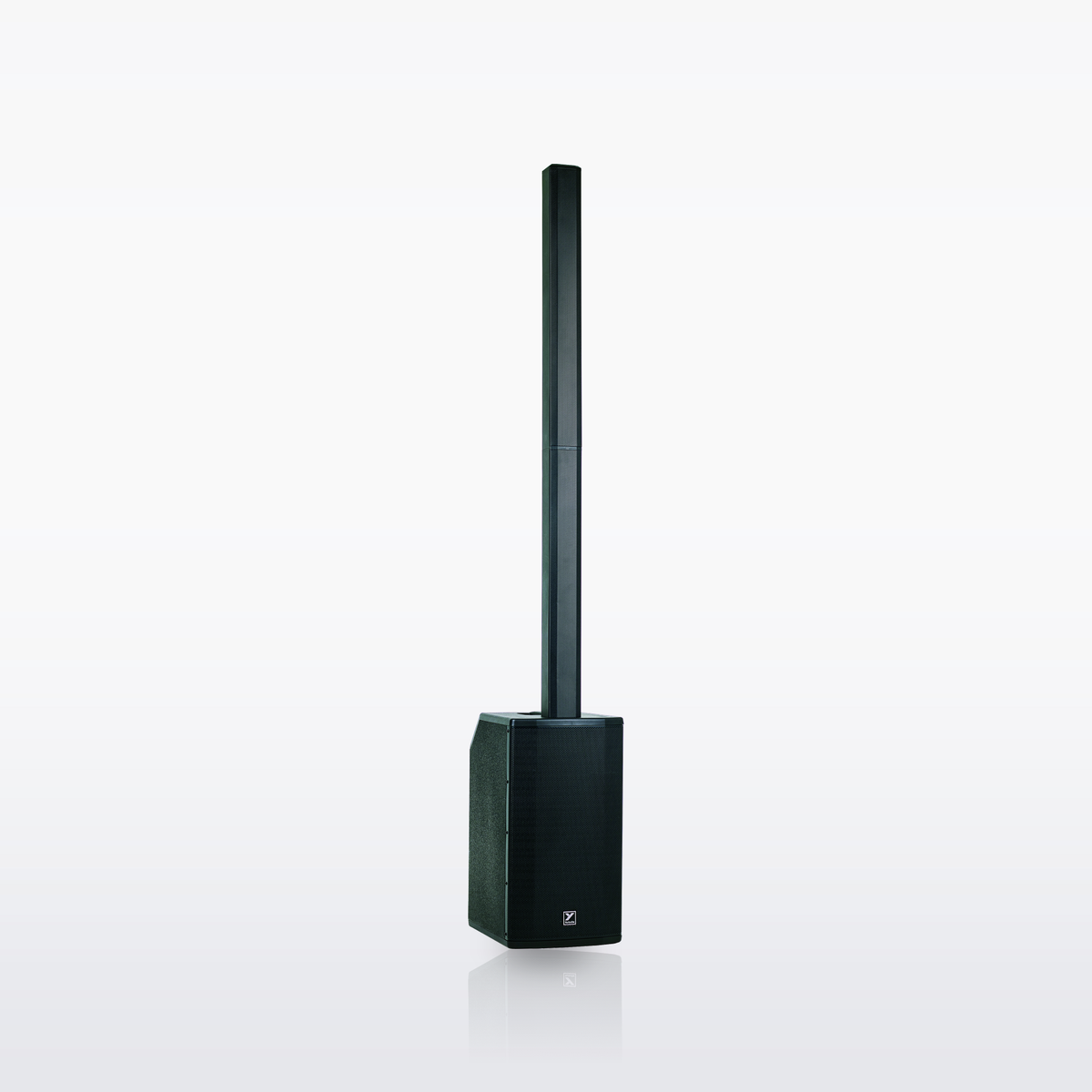

Yorkville YXL Tower12 column PA, angled view

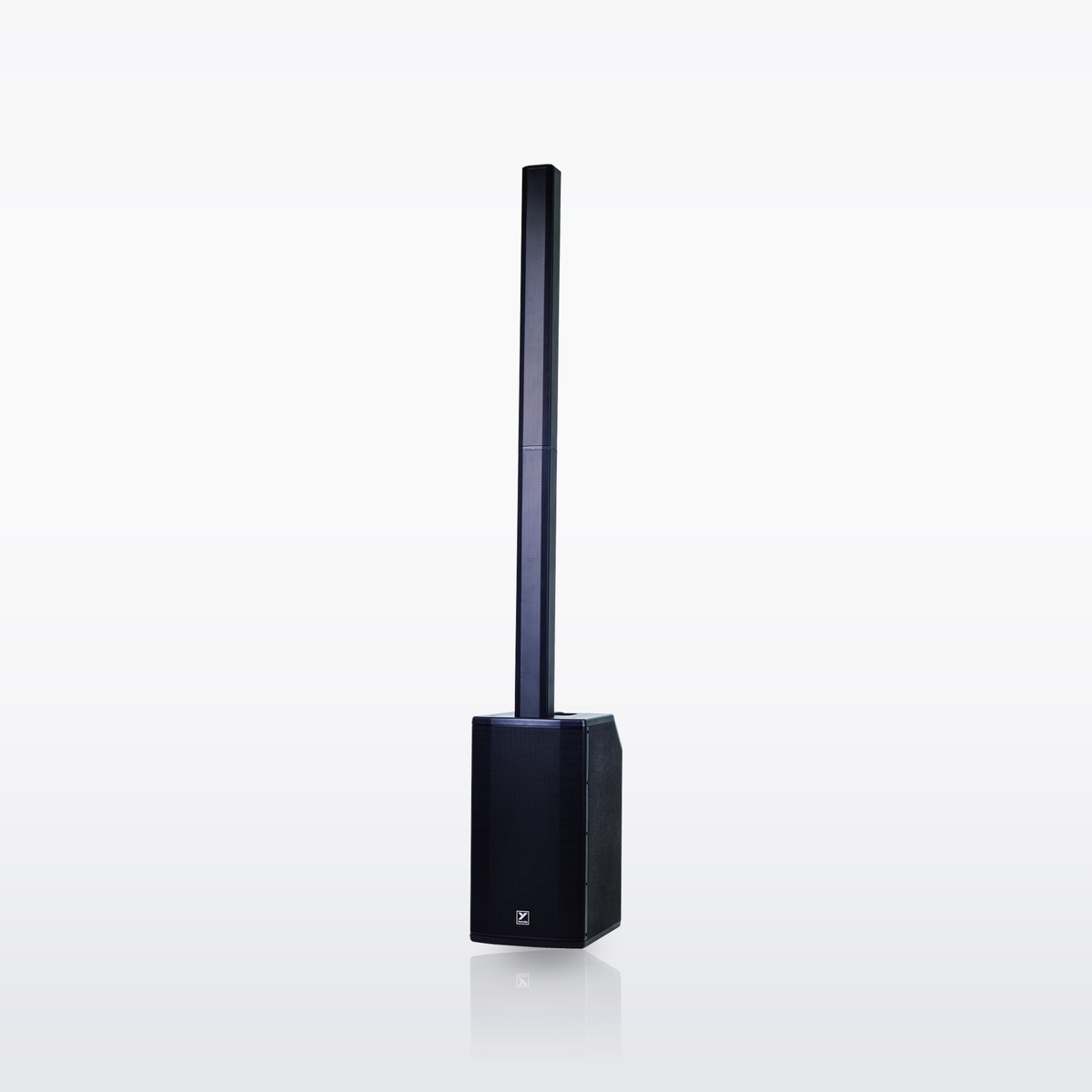

Yorkville YXL Tower12 column PA, angled view from the other side

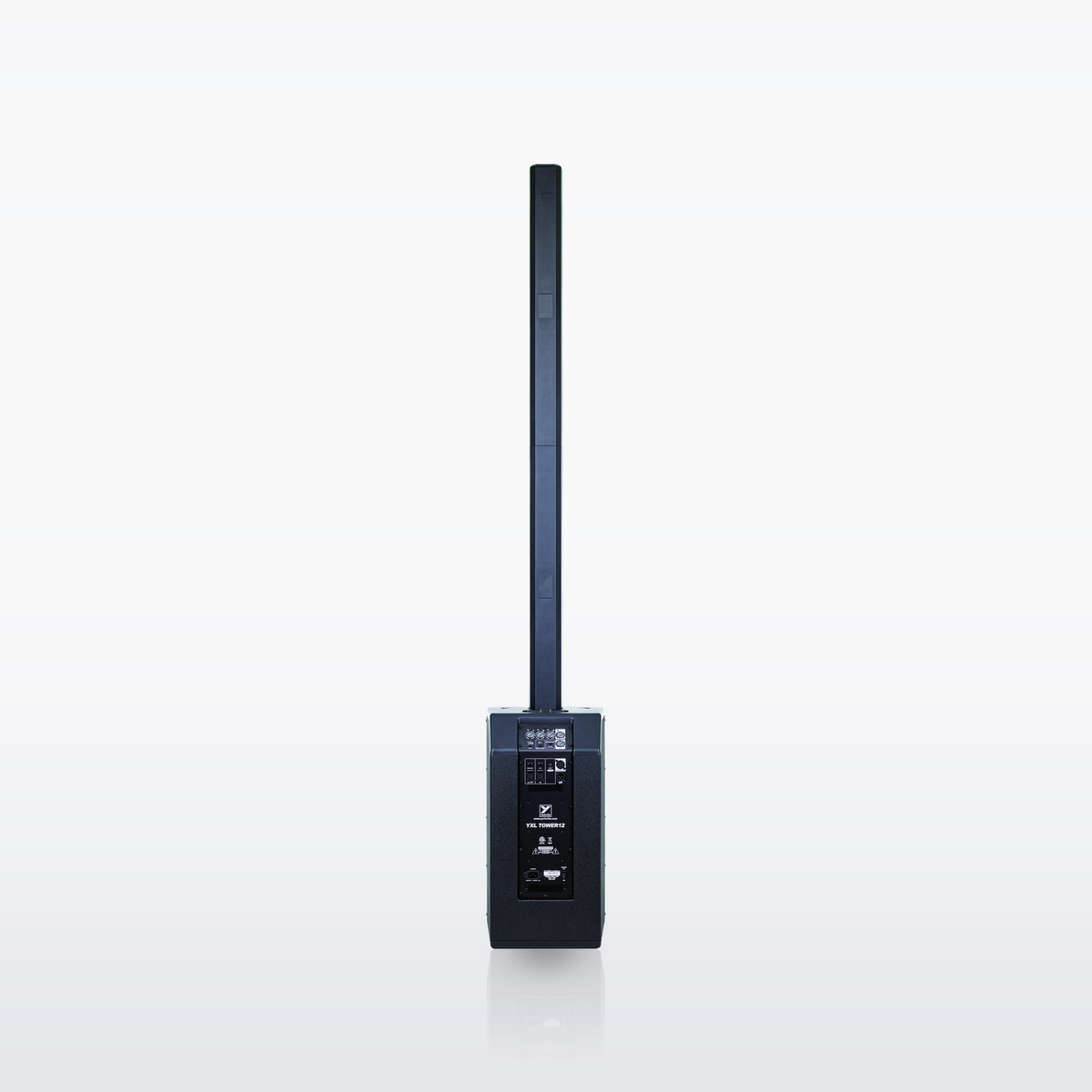

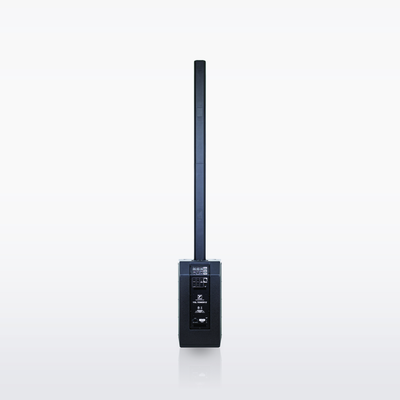

Yorkville YXL Tower12 column PA, rear view with mixer panel
Yorkville YXL Tower10 and Tower12 product video

Vendor:Yorkville

YXL Tower12

Column PA System with 12" Subwoofer

$999.00

In-store pickup only. We don't ship this item. Order online and collect it free in store, usually ready within 24 hours. Pickup details

Is it right for you?

A column PA with a 12-inch sub, 126 dB peak and a 3-channel mixer with Bluetooth, with a gig bag and sub cover included.

Great for

  • Musicians and presenters in smaller venues
  • Easy transport with the included gig bag, and the mixer built in
  • Linking several towers for a larger room
What you need to use it

Description

The YXL Tower12 is a column PA system with a 12" subwoofer, made for musicians and presenters who need portable sound for smaller venues. It delivers 1550 watts peak between a 3/4" compression driver, four 3" midrange drivers and the subwoofer, with an onboard 3-channel mixer, three voicing modes and Bluetooth, including wireless stereo playback between two systems.

Up to 16 YXL towers can be linked over XLR, with up to three onboard mixers active in a linked system. The speaker column mounts directly into the subwoofer or on top of the included extension column, and a gig bag and subwoofer cover are included for transport.

Key Features

  • 1550 W peak power (1250 W subwoofer, 300 W mid / high)
  • 126 dB peak SPL (119 dB continuous)
  • Neodymium drivers: 12" subwoofer, 4 x 3" midrange, 3/4" HF compression driver
  • Bluetooth receiver with wireless stereo playback between two YXL Towers
  • Onboard 3-channel mixer: two mic inputs with phantom power, instrument and line inputs, 1/8" aux
  • Concert, Club and Speech voicing modes
  • XLR main in and link out; link up to 16 YXL towers
  • Gig bag and subwoofer cover included

Specifications

  • System type: powered column PA system
  • Power rating: 1550 W peak (1250 W subwoofer, 300 W mid / high); 775 W program (625 W subwoofer, 150 W mid / high)
  • Max SPL: 126 dB peak (119 dB continuous)
  • Frequency response: 45 Hz–20 kHz
  • Dispersion (H x V): 100° x 35°
  • Drivers: 12" neodymium subwoofer, 4 x 3" neodymium midrange, 3/4" exit neodymium compression driver
  • Channel 1: mic (XLR) / instrument (1/4" TRS), fixed 90 Hz high-pass filter
  • Channel 2: mic (XLR) / line (1/4" TRS)
  • Channel 3: aux (1/8" stereo) / Bluetooth; both can be used at the same time
  • Phantom power: 24V on channel 1 and 2 XLR inputs
  • Controls: master level, sub level; Concert, Club and Speech modes
  • Link: XLR main in / link out (+4 dBu line level)
  • LED indicators: channel clip x 3, master activity, mode, Bluetooth status
  • Bluetooth range: 33 ft (10 m) line of sight
  • Construction: wood subwoofer cabinet, ABS column, full-length metal grille
  • Subwoofer (D x W x H): 406 x 320 x 607 mm (16" x 12.6" x 23.9")
  • Speaker column (D x W x H): 91 x 91 x 833 mm (3.6" x 3.6" x 32.8")
  • Extension column (D x W x H): 91 x 91 x 826 mm (3.6" x 3.6" x 32.5")
  • Assembled height: 2080 mm (81.9")
  • Weight: 18.6 kg (41.1 lb)

What's in the Box

  • 1 x YXL Tower12 subwoofer / control unit
  • 1 x speaker column
  • 1 x extension column
  • 1 x gig bag
  • 1 x subwoofer cover
