MG10

Description

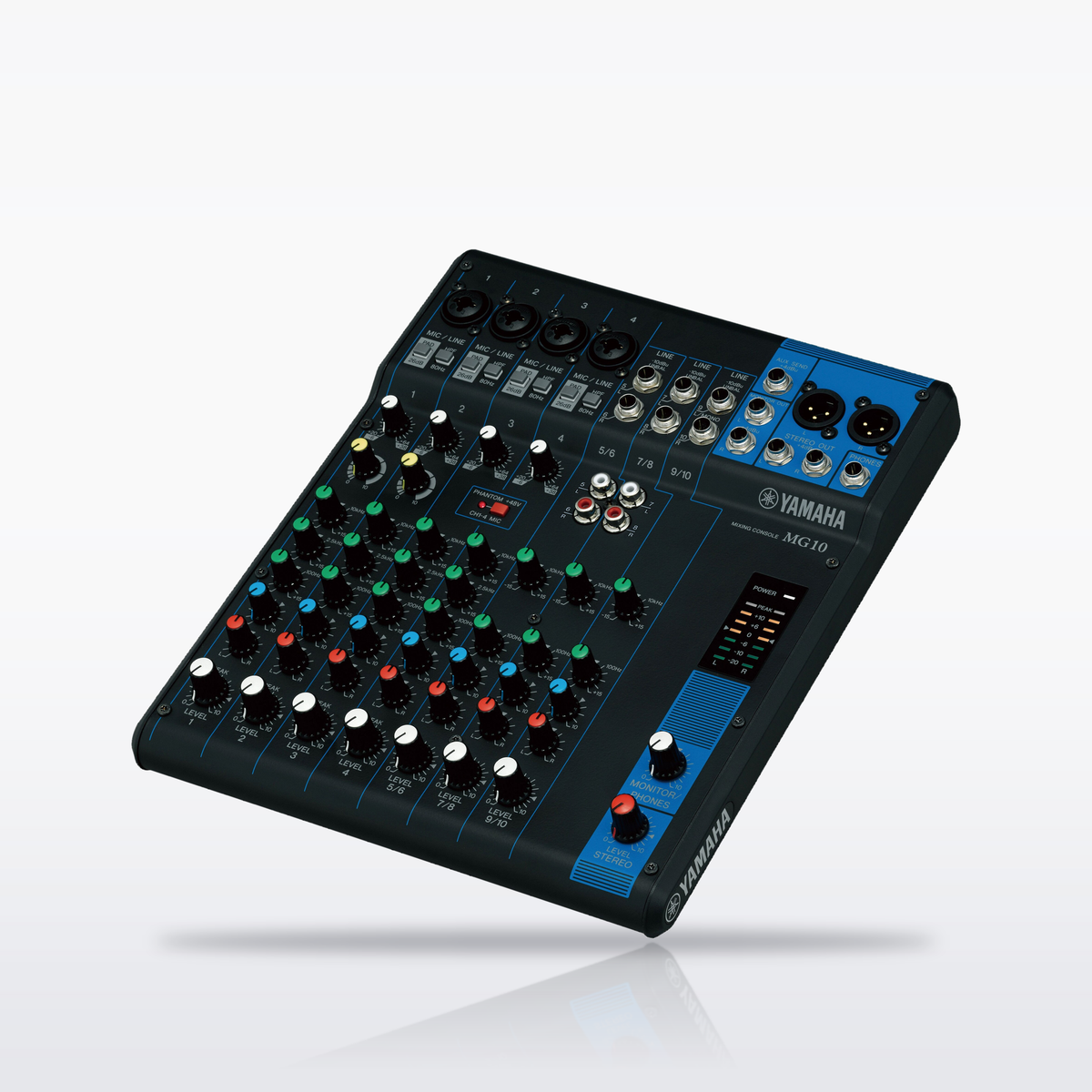

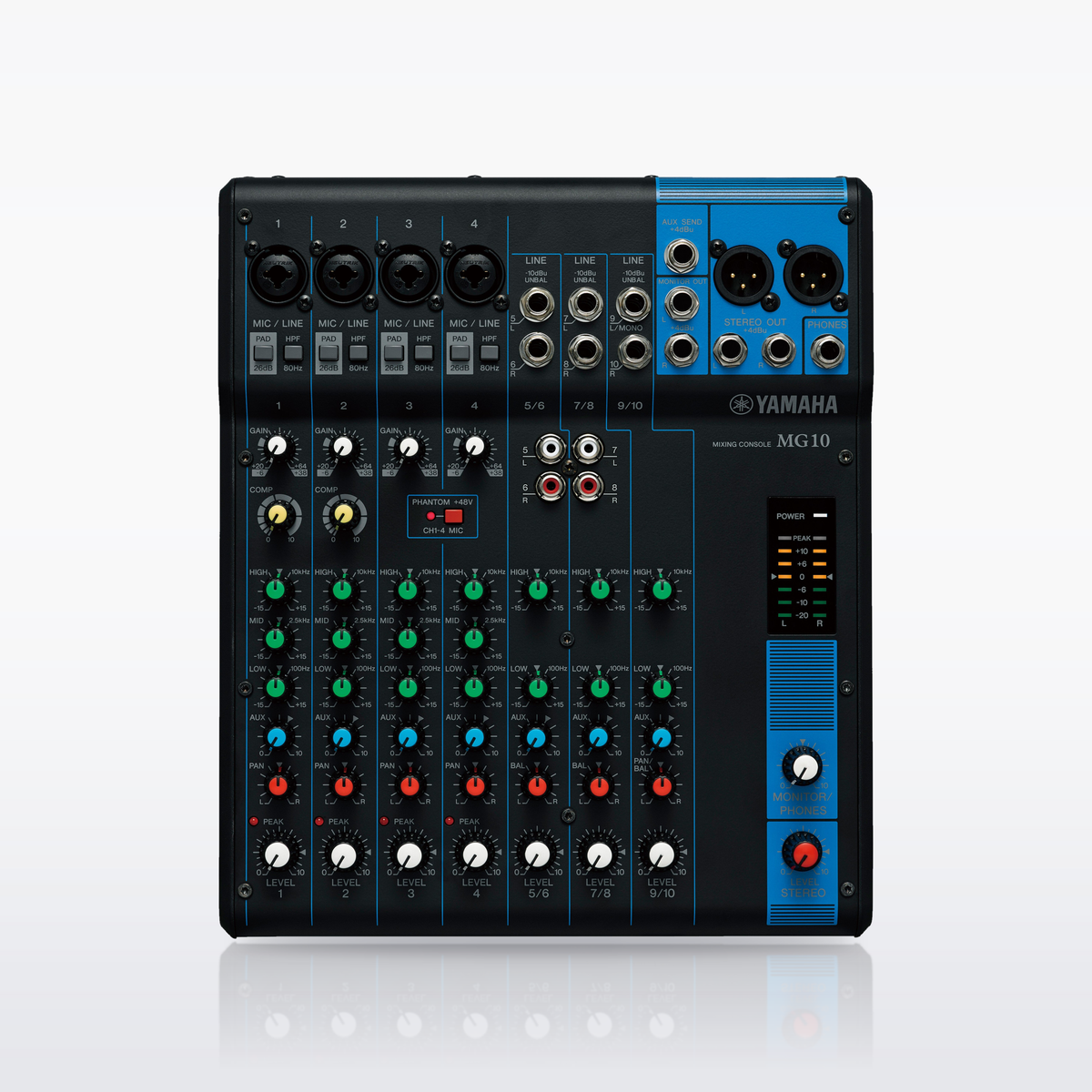

The MG10 is a compact 10-channel analog mixer. It takes up to 4 mics or 10 line sources across 4 mono and 3 stereo channels, with D-PRE mic preamps, 1-knob compressors and one aux send. It runs from an external AC adapter and suits small gigs, rehearsals and installs.

Key Features

• 10 channels: up to 4 mic or 10 line inputs (4 mono + 3 stereo)
• 1 stereo bus
• 1 aux send
• D-PRE discrete class-A mic preamps with an inverted Darlington circuit
• 1-knob compressors on channels 1 and 2
• 26 dB pad on mono inputs and 80 Hz high-pass filter
• +48 V phantom power
• Balanced XLR main outputs
• Powder-coated metal chassis

Specifications

• Input channels: 4 mono (mic/line), 3 stereo (line)
• Mic inputs: XLR/TRS combo jacks on channels 1–4

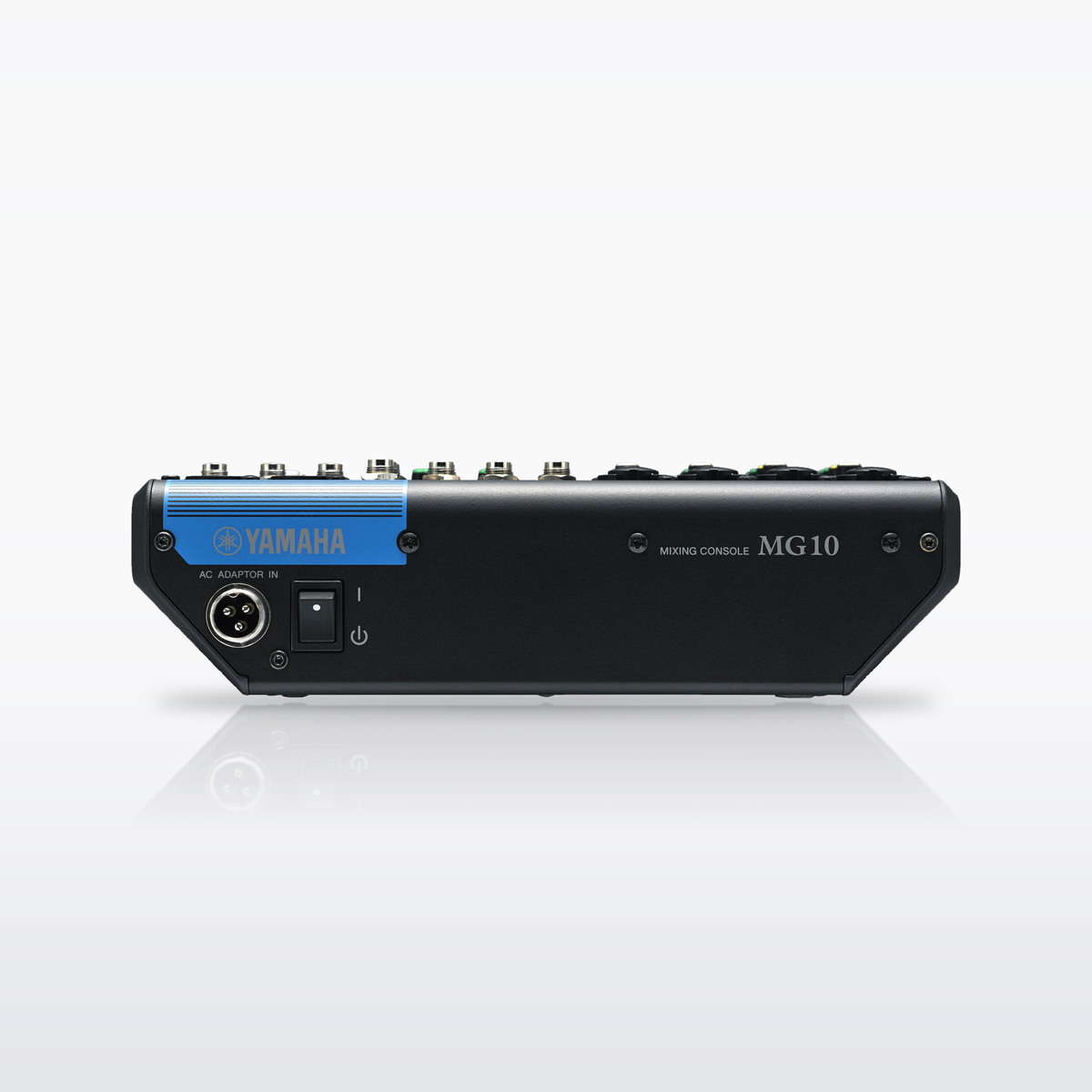

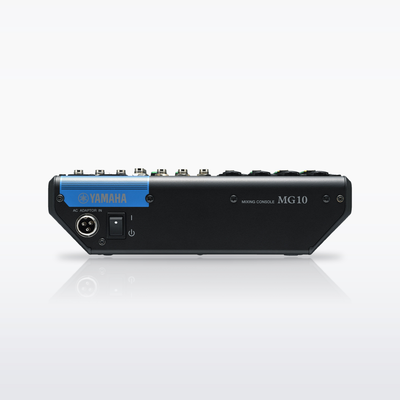

• Outputs: stereo out (XLR and 1/4" TRS, balanced); monitor out L/R and aux send (1/4" TRS, impedance balanced); phones (1/4" stereo)
• Buses: stereo 1, aux 1
• Channel EQ: 3-band, ±15 dB (high 10 kHz shelving, mid 2.5 kHz peaking, low 100 Hz shelving)
• High-pass filter: 80 Hz, 12 dB/oct (mono channels)
• Pad: 26 dB (mono channels)
• Phantom power: +48 V
• Frequency response: +0.5/−1.0 dB, 20 Hz–48 kHz
• Equivalent input noise: −128 dBu
• Total harmonic distortion: 0.02% at +14 dBu (20 Hz–20 kHz); 0.003% at +24 dBu (1 kHz)
• Power: external AC adapter (Yamaha PA-10, AC 38 V CT, 0.62 A); 22.9 W consumption
• Dimensions (W x H x D): 244 x 71 x 294 mm (9.6" x 2.8" x 11.6")
• Net weight: 1.9 kg (4.19 lb)
• Optional accessories: BMS-10A mic stand adapter

What's in the Box

• 1 x MG10 mixing console
• 1 x AC adapter
• 1 x Owner's manual
• 1 x Technical specifications sheet
