MG12

Description

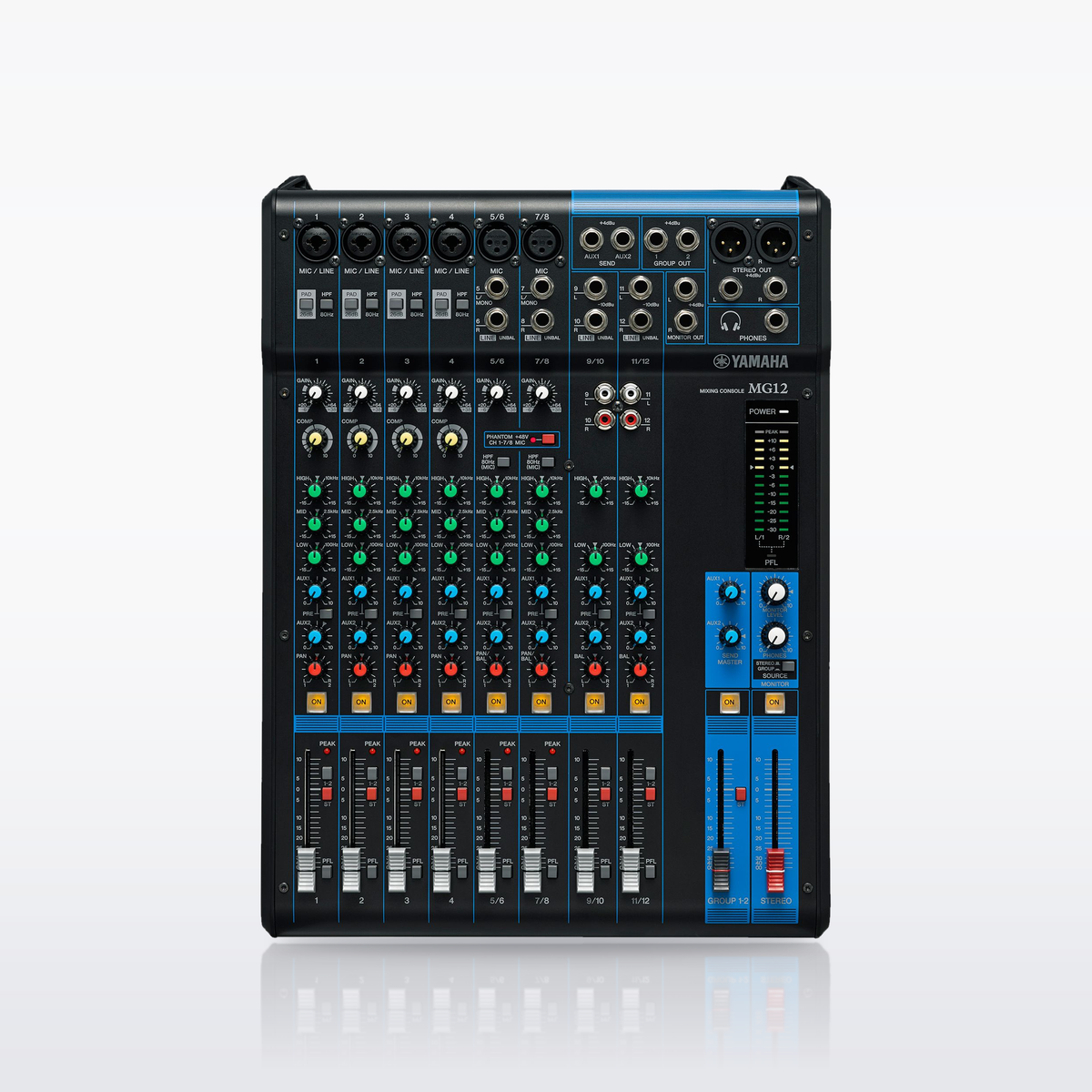

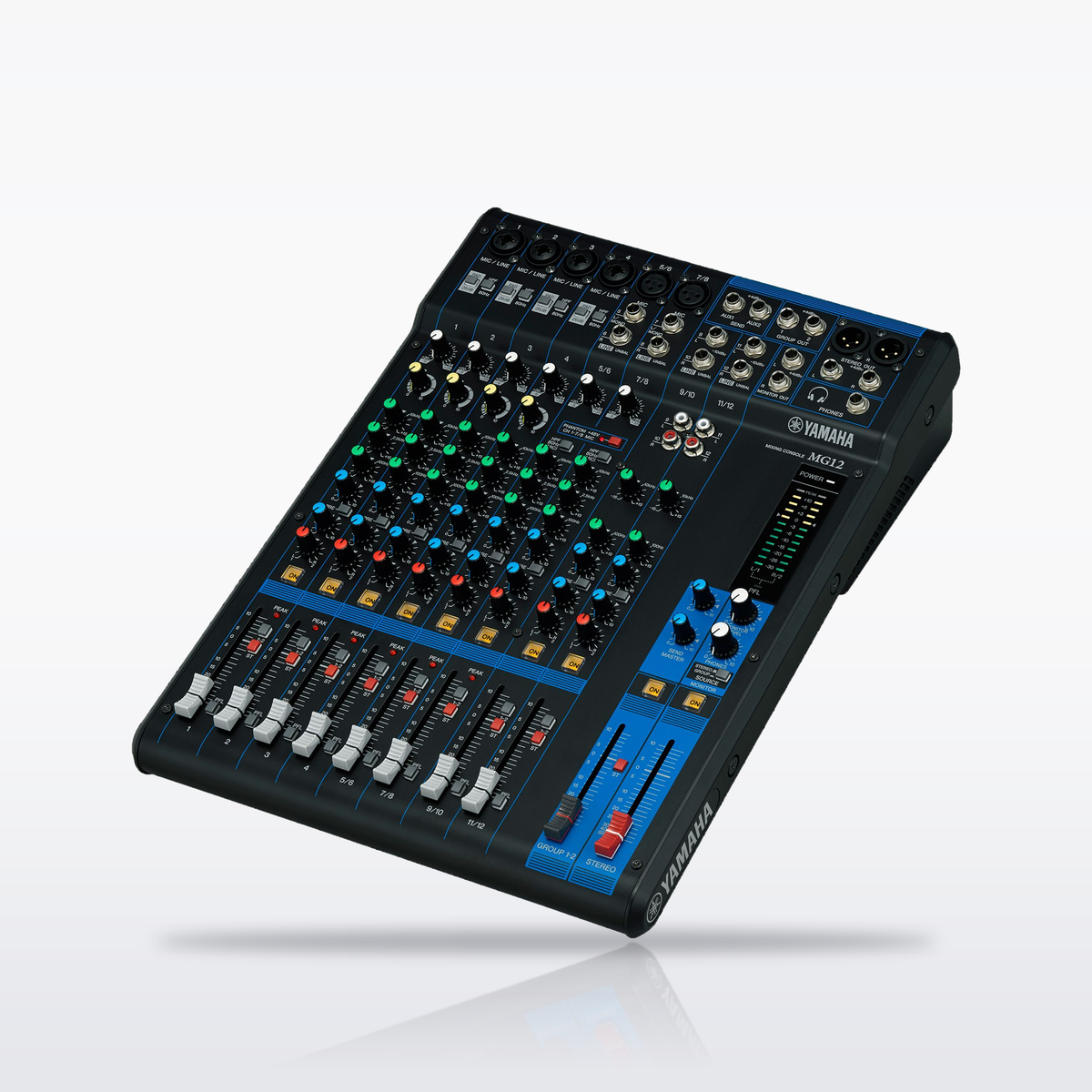

The MG12 is a 12-channel analog mixer. It takes up to 6 mics or 12 line sources across 4 mono and 4 stereo channels, with D-PRE mic preamps, 1-knob compressors, 2 group buses and 2 aux sends. An internal universal power supply, balanced XLR main outputs and a metal chassis suit bands, venues and installs.

Key Features

• 12 channels: up to 6 mic or 12 line inputs (4 mono + 4 stereo)
• 2 group buses plus 1 stereo bus
• 2 aux sends
• D-PRE discrete class-A mic preamps with an inverted Darlington circuit
• 1-knob compressors
• 26 dB pad on mono inputs and 80 Hz high-pass filter
• +48 V phantom power
• Balanced XLR main outputs
• Internal universal power supply for use worldwide
• Powder-coated metal chassis

Specifications

• Input channels: 4 mono (mic/line), 2 mono/stereo (mic/line), 2 stereo (line)
• Mic inputs: XLR/TRS combo jacks on channels 1–4, XLR on channels 5/6 and 7/8
• Outputs: stereo out (XLR and 1/4" TRS, balanced); monitor out L/R, group out 1–2 and aux send 1–2 (1/4" TRS, impedance balanced); phones (1/4" stereo)
• Buses: stereo 1, group 2, aux 2
• Channel EQ: 3-band, ±15 dB (high 10 kHz shelving, mid 2.5 kHz peaking, low 100 Hz shelving)
• High-pass filter: 80 Hz, 12 dB/oct
• Pad: 26 dB (mono channels)
• Phantom power: +48 V
• Frequency response: +0.5/−1.5 dB, 20 Hz–48 kHz
• Equivalent input noise: −128 dBu
• Total harmonic distortion: 0.03% at +14 dBu (20 Hz–20 kHz); 0.005% at +24 dBu (1 kHz)

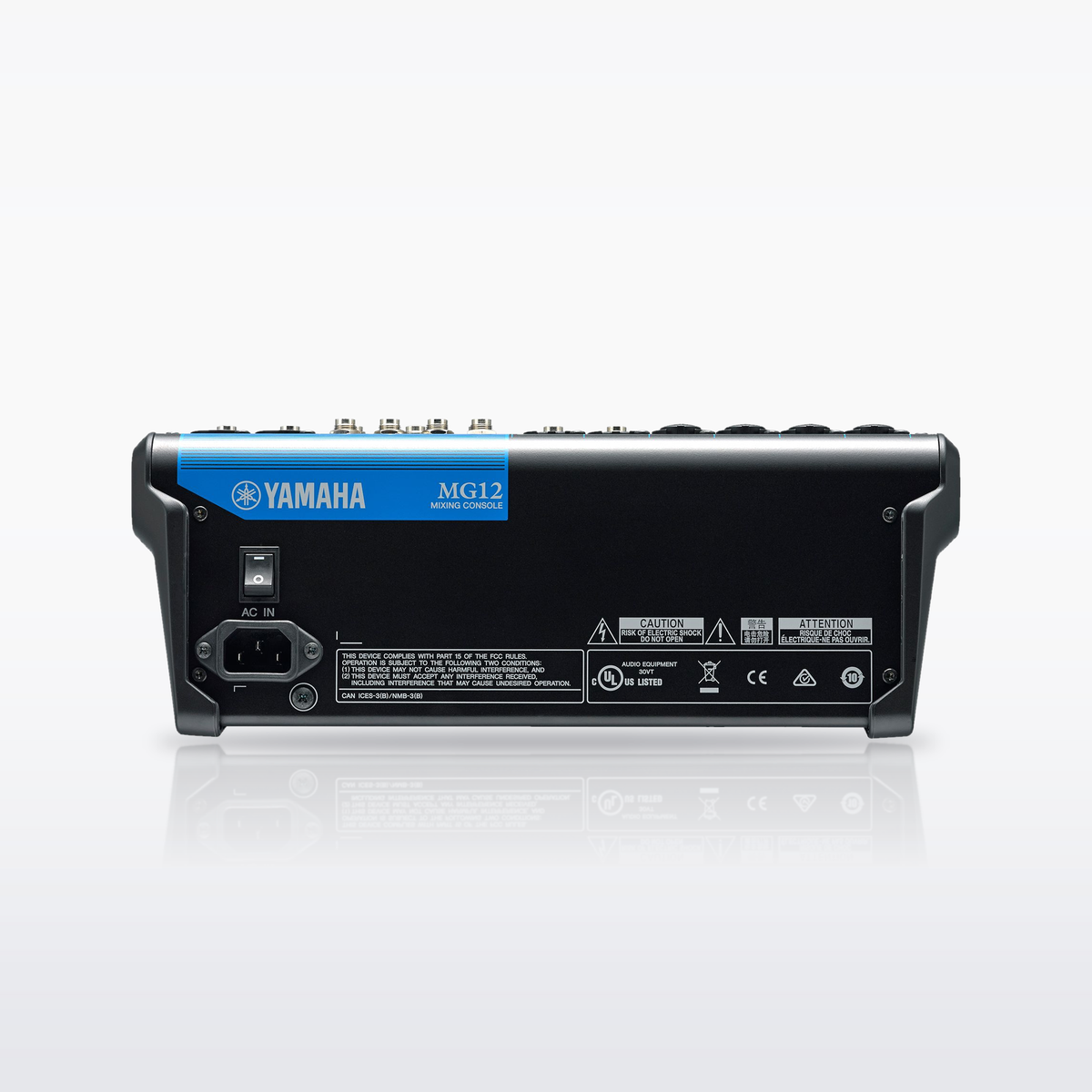

• Power: internal supply, AC 100–240 V, 50/60 Hz; 22 W consumption
• Dimensions (W x H x D): 308 x 118 x 422 mm (12.1" x 4.6" x 16.6")
• Net weight: 4.0 kg (8.8 lb)
• Optional accessories: RK-MG12 rack-mount kit

What's in the Box

• 1 x MG12 mixing console
• 1 x AC power cord
• 1 x Owner's manual
• 1 x Technical specifications sheet
