EF10P

Description

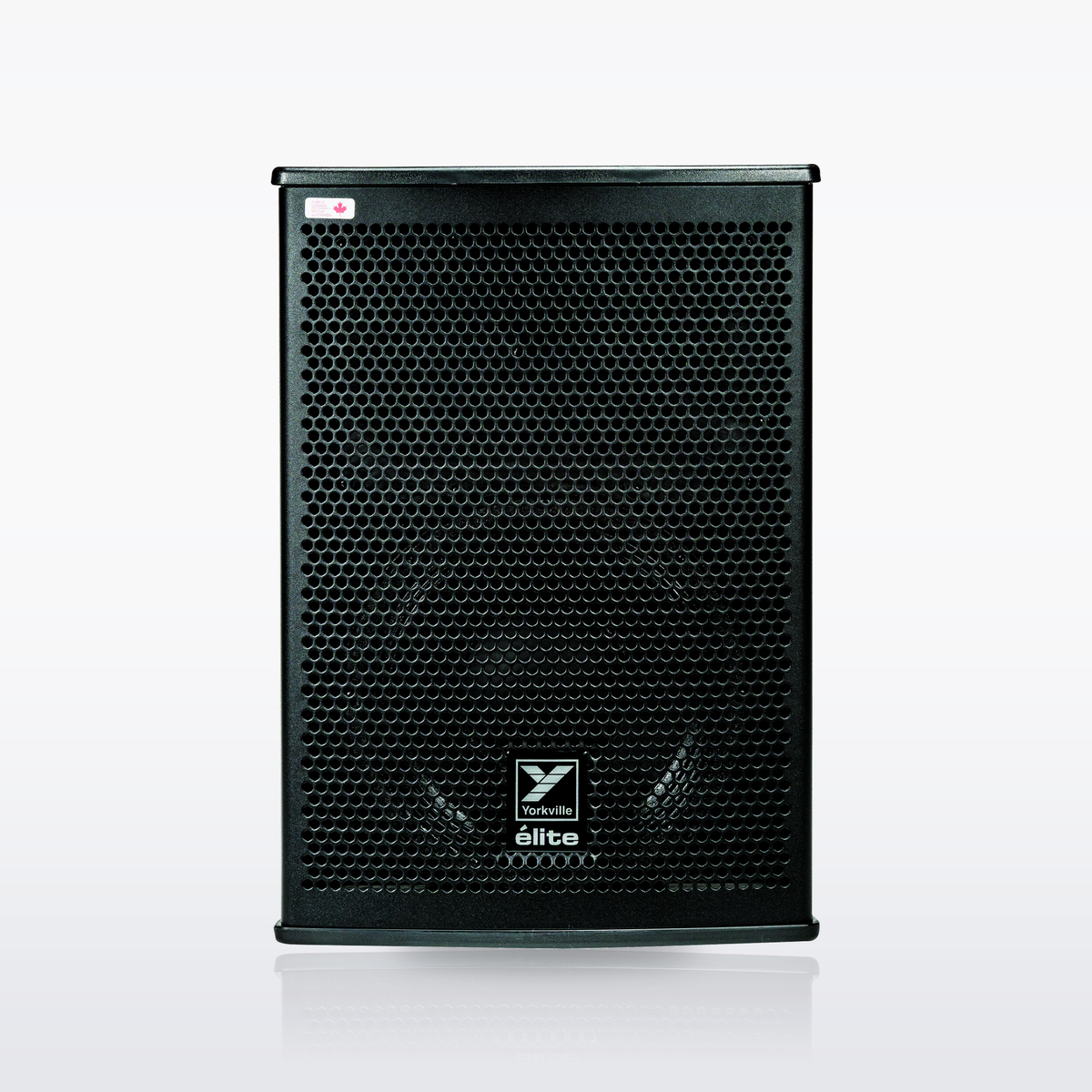

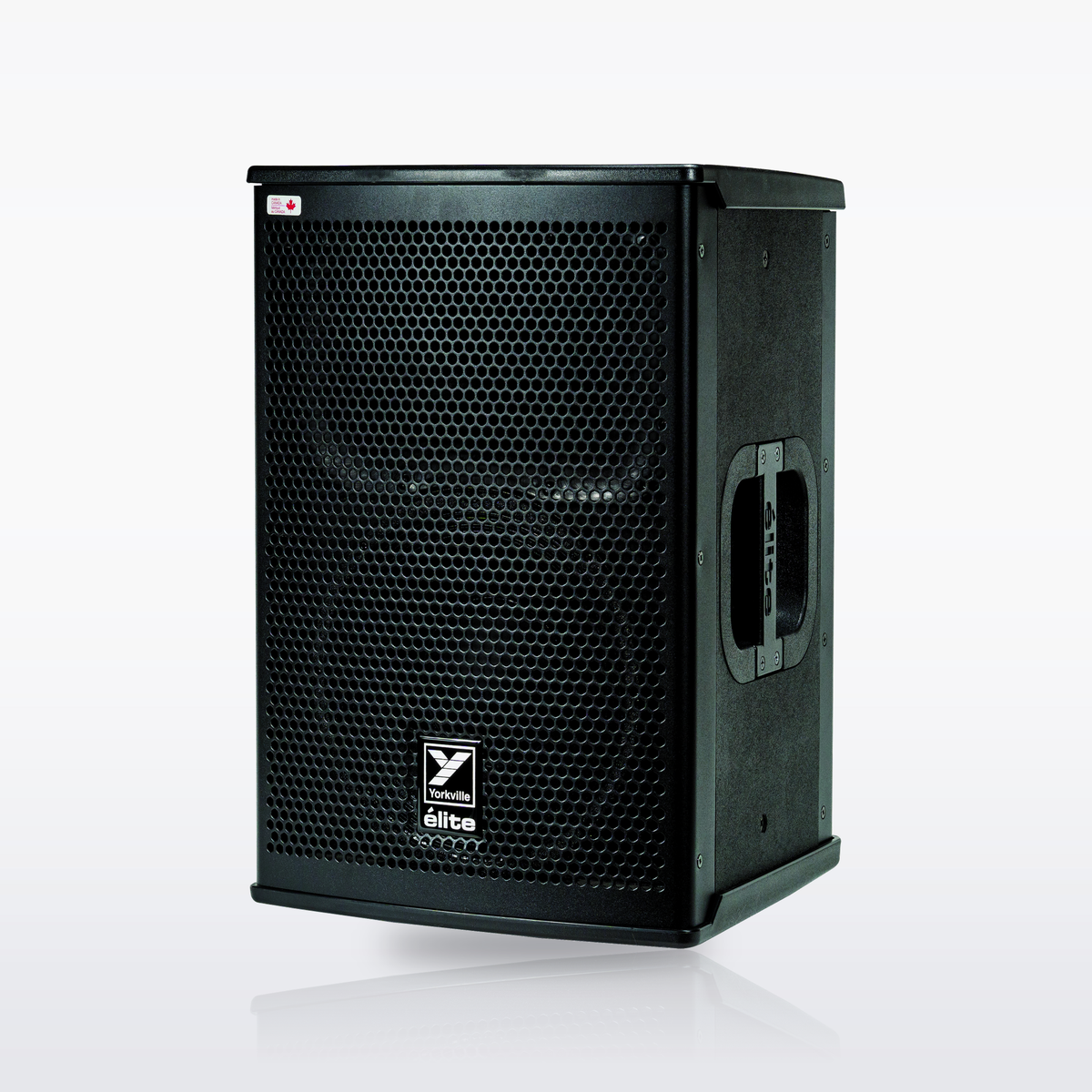

The EF10P is a compact 2-way active loudspeaker with onboard DSP. Use it as a front-of-house speaker, or as a self-contained compact PA for paging and playback with no mixer required.

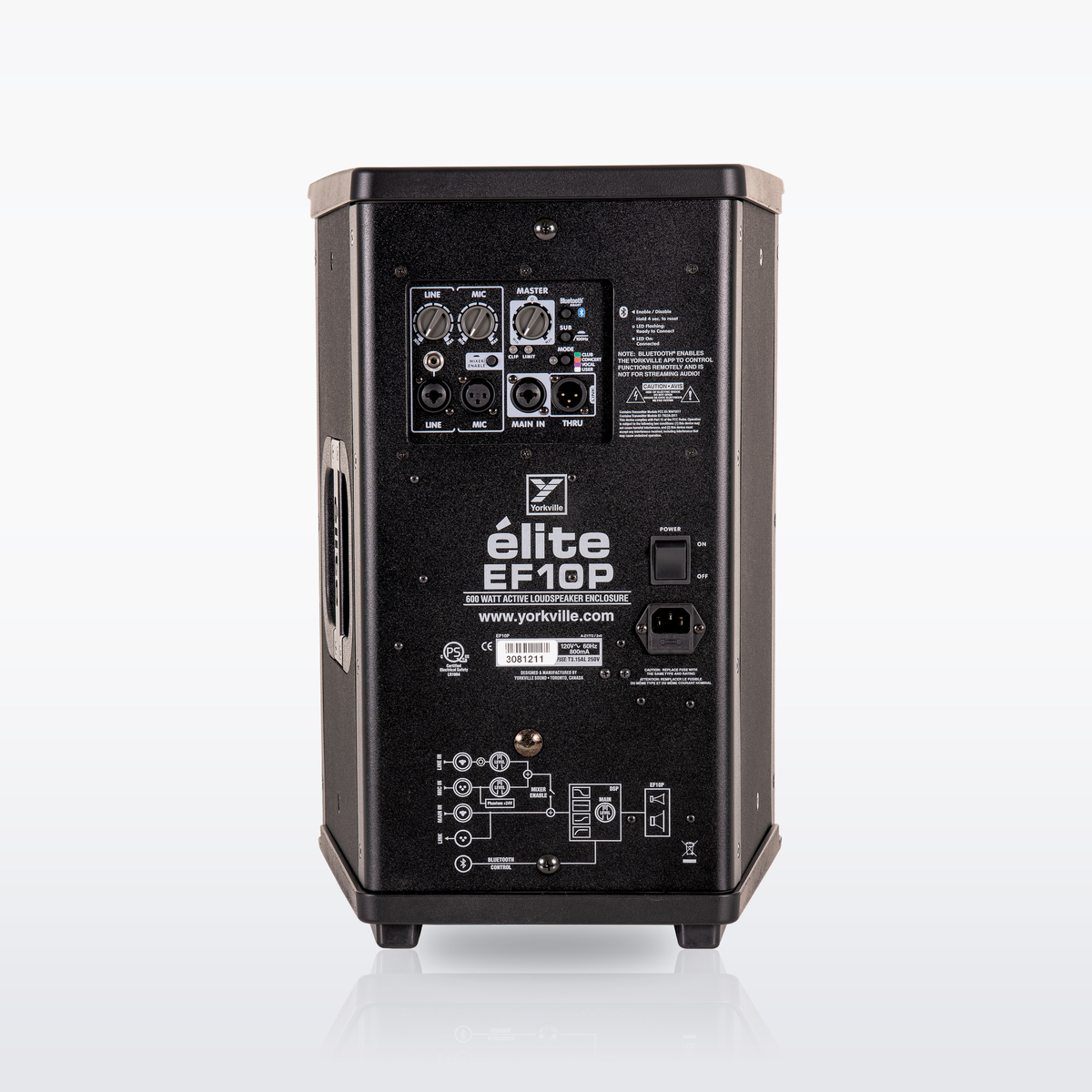

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4" TRS line-level connections. An internal mixer can be engaged to add 1/8" TRS and 1/4" TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

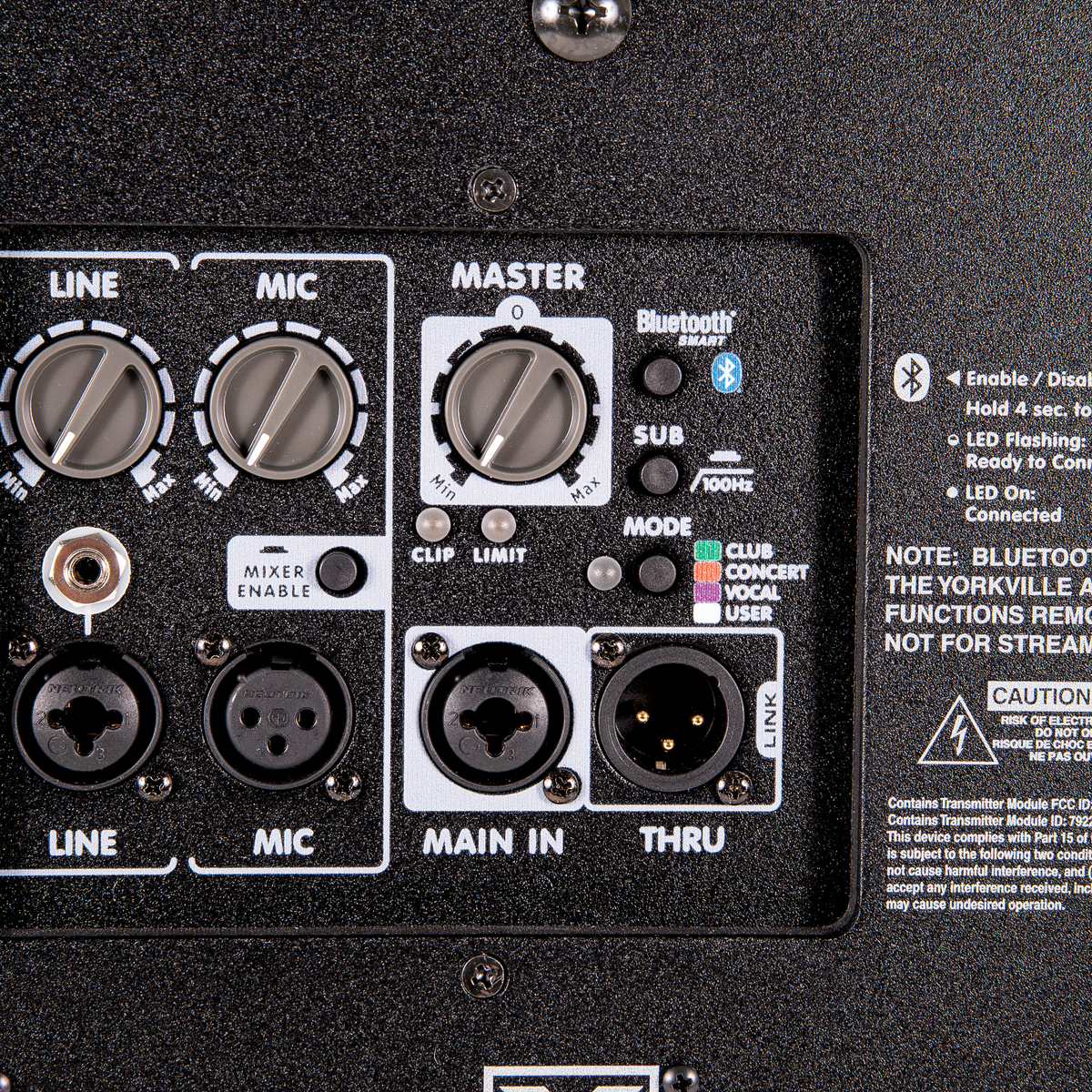

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn't required when using a subwoofer, and pair a Bluetooth device to control speaker parameters using the free companion app.

A 500-watt amplifier powers the 10-inch woofer, and a 2-tier 100-watt amplifier drives the 1.5-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs. The Class D amplifier, neodymium speaker magnets and Baltic birch construction keep the total weight below 45 pounds while maintaining classic Elite ruggedness and durability.

Key Features

• 1200 W peak power (600 W program)
• 10" neodymium woofer with 2.5" voice coil
• 1.5" titanium-diaphragm compression driver
• Multiband DSP limiting with 4 playback performance modes
• iOS and Android app for added cabinet control
• ABS-coated birch plywood cabinet construction
• Made in Canada

Specifications

• System type: 2-way powered loudspeaker
• Power rating: 1200 W peak (600 W program); LF 500 W Class D, HF 100 W 2-tier high headroom
• Max SPL: 129 dB peak (122 dB continuous)
• Frequency response: 48 Hz–20 kHz; crossover 1400 Hz
• Dispersion (H x V): 100° x 40°
• LF driver: 10" neodymium magnet with 2.5" voice coil; HF driver: 1.5" voice coil, titanium diaphragm
• Inputs: 1x combo jack (XLR / 1/4") main input; mixer: 1x XLR mic input, 1x combo jack (XLR / 1/4") line input, 1/8" line input; 1x XLR thru
• Controls: mixer enable, DSP mode (Club, Concert, Vocal, Custom), sub (100 Hz high-pass filter), Bluetooth enable; mic level, line level, master volume
• Handles: 2 (side and top); fly points: 4 (2 top, 2 bottom) plus pullback; pole mount adapter
• Fly hardware: 1/4-20
• Enclosure: ABS-coated Baltic birch plywood; perforated metal grille
• Dimensions (D x W x H): 13" x 13.7" x 20" (33 x 34.8 x 50.8 cm)
• Weight: 43 lb (19.5 kg)
