EF15P

Description

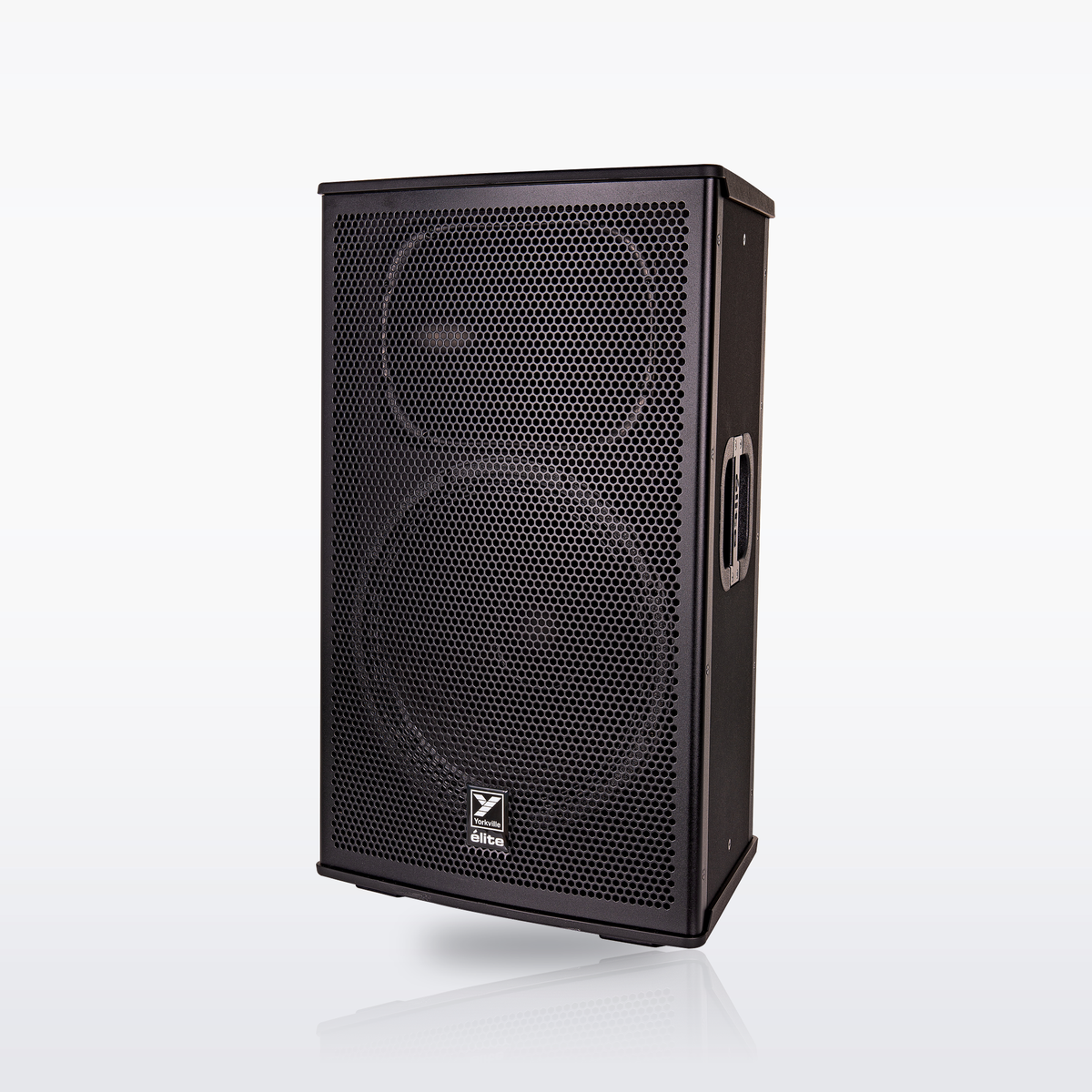

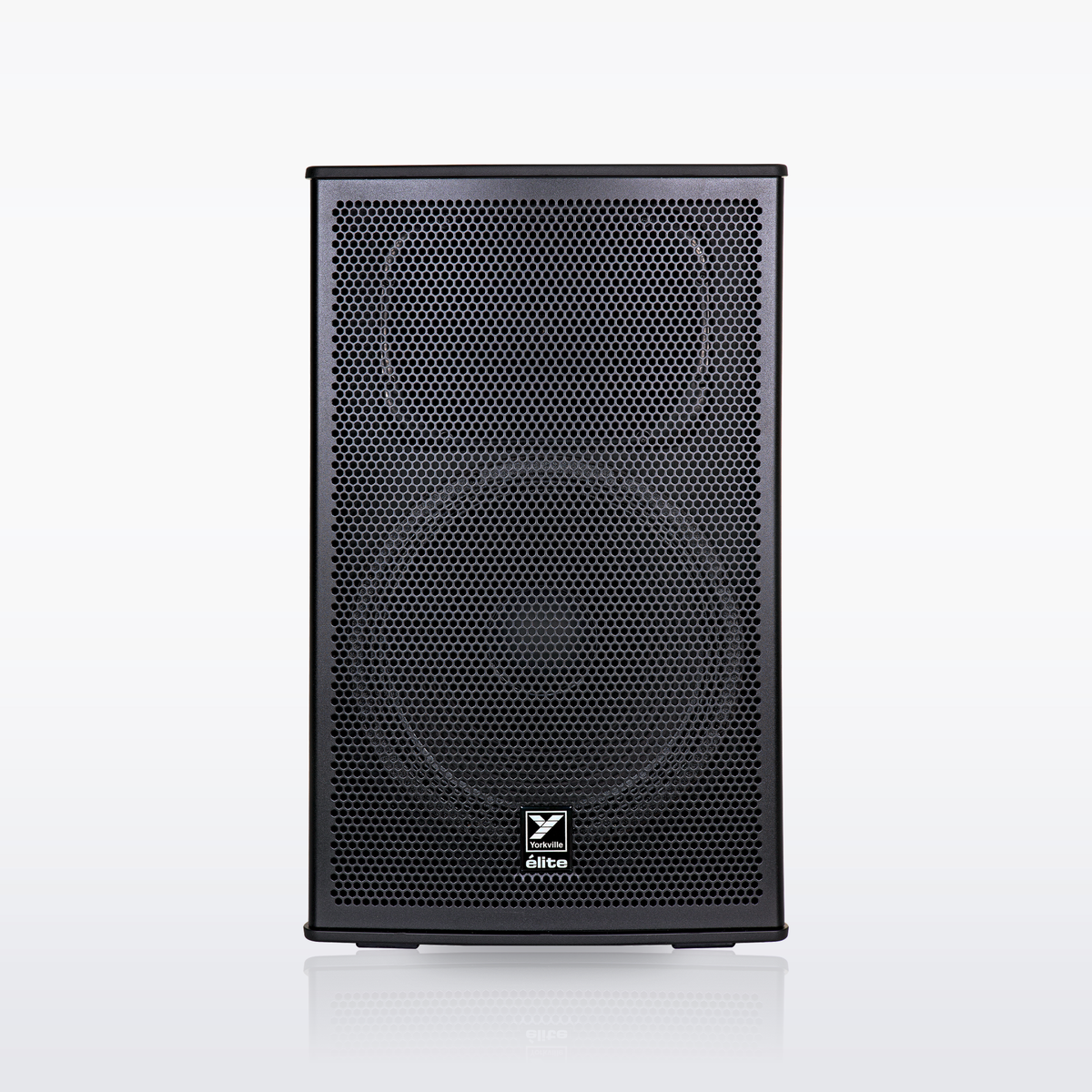

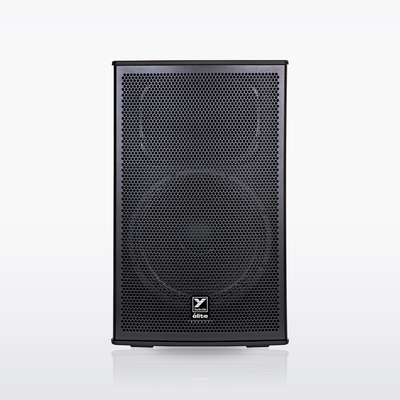

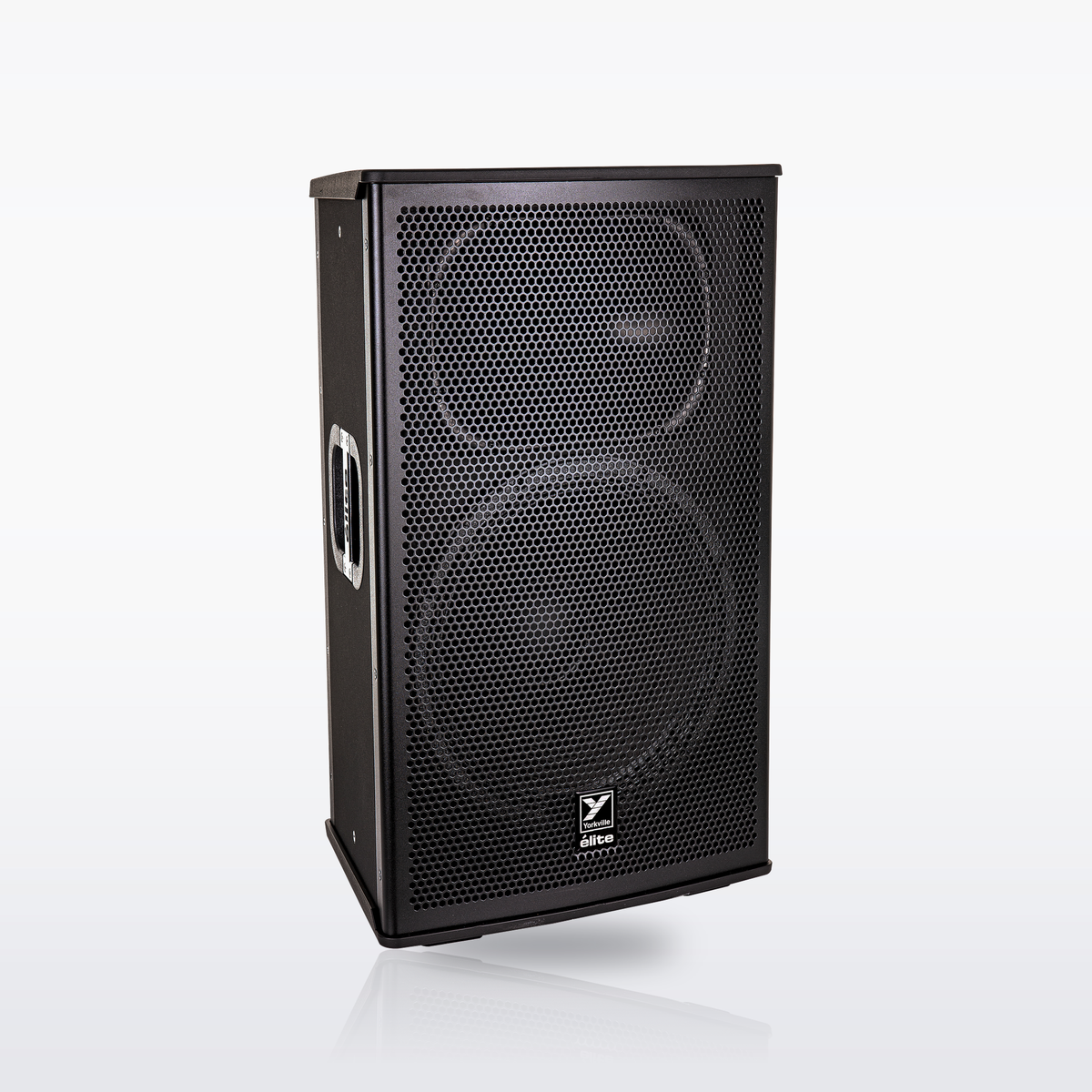

The EF15P is a 2-way active loudspeaker with onboard DSP. Use it as a front-of-house speaker, or as a self-contained compact PA for paging and playback with no mixer required.

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4" TRS line-level connections. An internal mixer can be engaged to add 1/8" TRS and 1/4" TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

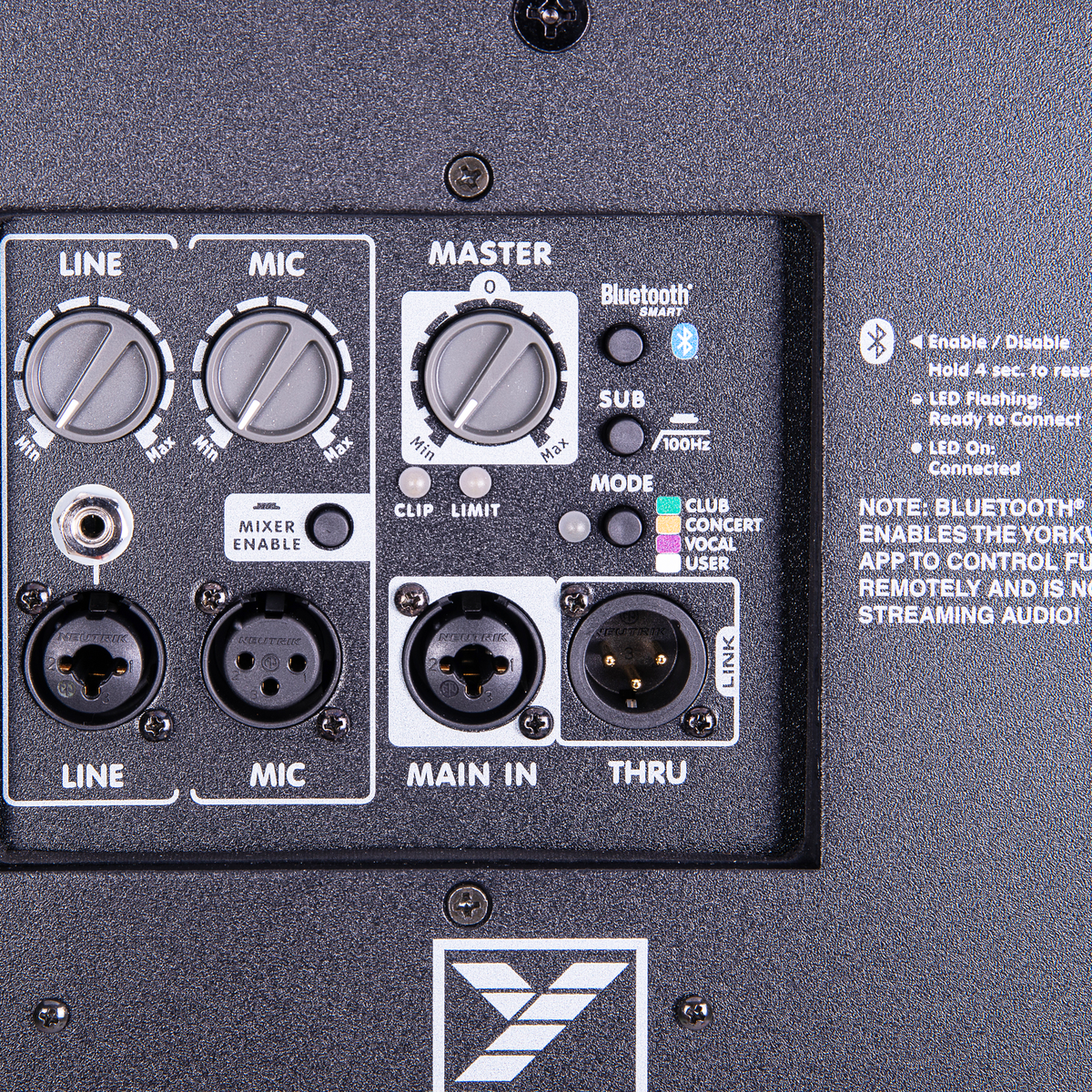

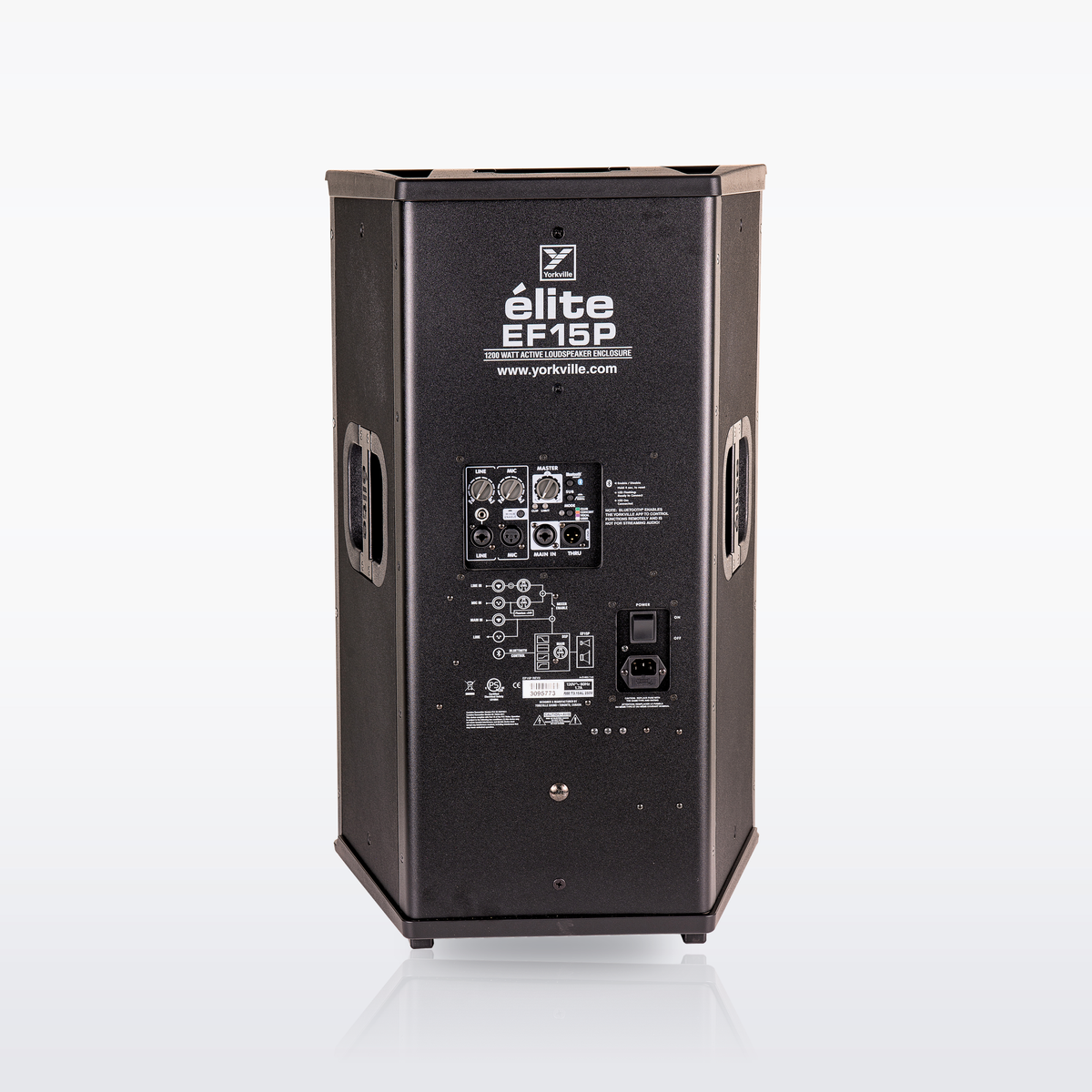

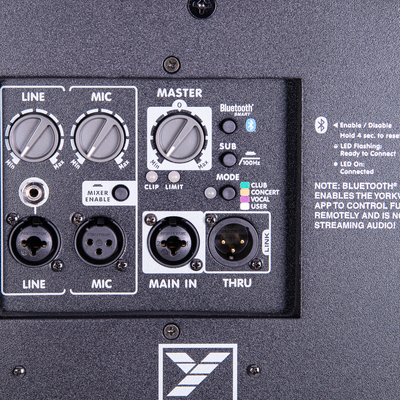

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn't required when using a subwoofer, and pair a Bluetooth device to control speaker parameters using the free companion app.

A 900-watt amplifier powers the 15-inch woofer, and a 3-tier 300-watt amplifier drives the 3-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs. Class D amplifiers, neodymium speaker magnets and Baltic birch construction keep the total weight low while maintaining classic Elite ruggedness and durability.

Key Features

• 2400 W peak power (1200 W program)
• 15" long-excursion cast-frame neodymium woofer with 3" voice coil
• 3" titanium-diaphragm compression driver
• Multiband DSP limiting with 4 preset performance modes
• iOS and Android app for added cabinet control
• ABS-coated birch plywood cabinet construction
• Made in Canada

Specifications

• System type: 2-way powered loudspeaker
• Power rating: 2400 W peak (1200 W program); LF 900 W Class D, HF 300 W 3-tier high headroom
• Max SPL: 133 dB peak (127 dB continuous)
• Frequency response: 43 Hz–16 kHz; crossover 1100 Hz
• Dispersion (H x V): 60° x 40°
• LF driver: 15" neodymium magnet with 3" voice coil; HF driver: 3" voice coil, titanium diaphragm
• Inputs: 1x combo jack (XLR / 1/4") main input; mixer: 1x XLR mic input, 1x combo jack (XLR / 1/4") line input, 1/8" line input; 1x XLR thru
• Controls: mixer enable, DSP mode (Club, Concert, Vocal, Custom), sub (100 Hz high-pass filter), Bluetooth enable; mic level, line level, master volume
• Handles: 3 (2 side, 1 top); fly points: 8 (2 top, 2 bottom, 2 each side) plus 2 pullback; pole mount adapter
• Fly hardware: 1/4-20
• Enclosure: ABS-coated Baltic birch plywood; perforated metal grille
• Dimensions (D x W x H): 14" x 18.5" x 30" (35.5 x 47 x 76 cm)
• Weight: 72 lb (33 kg)
